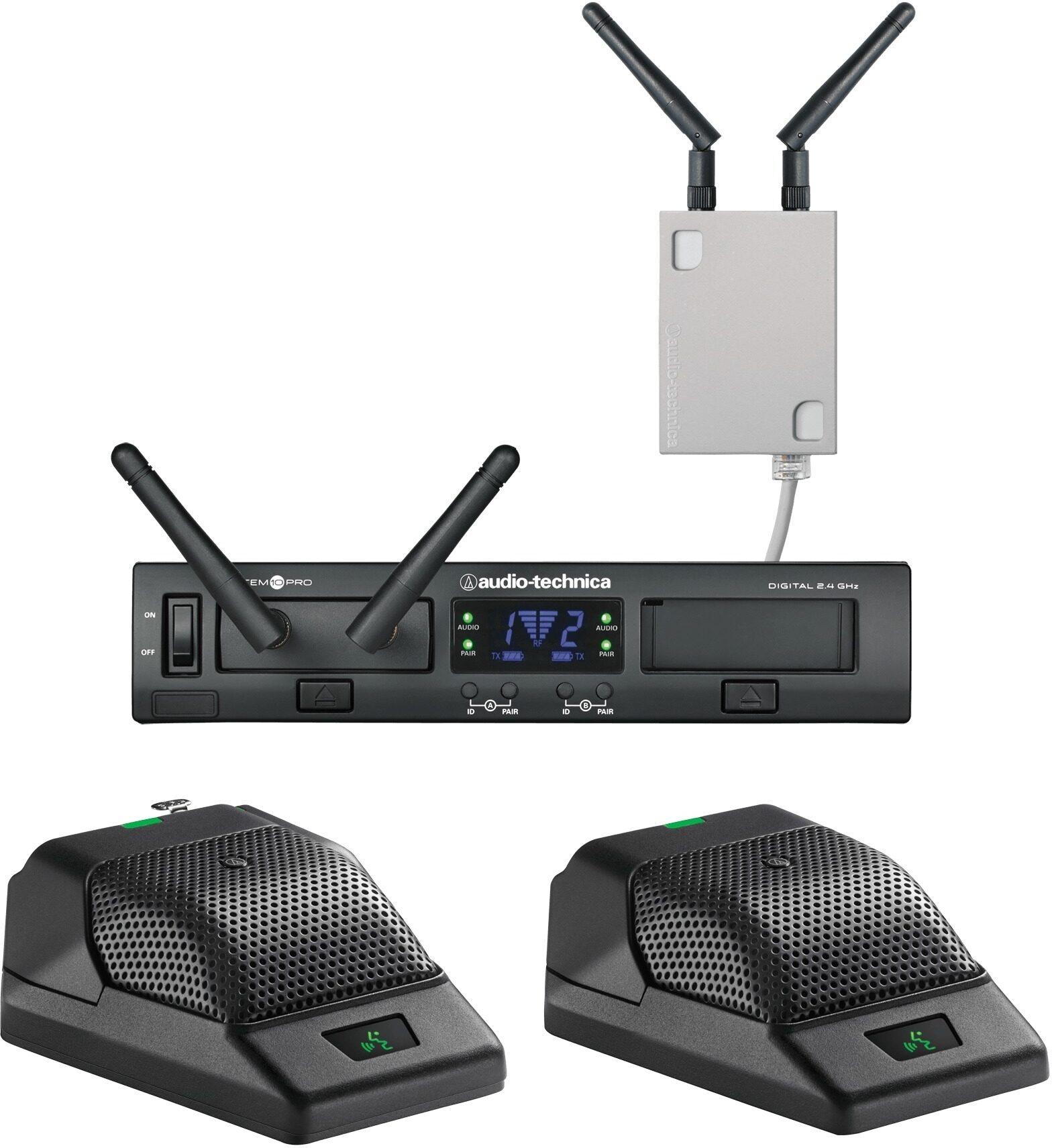

Overall System:
Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response: 20 Hz to 20 kHz /Depending on microphone type
Operating Range: 60 m (200') Open range env. with no interfering signals
Total Harmonic Distortion: <0.05% typical
Operating Temperature Range: 0 degrees C to +40 degrees C (32 degrees F to 104 degrees F) Battery performance may be reduced at very low temperatures
Handheld Transmitter:
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Battery Type: Two 1.5V AA / not included
Battery Life: >7 hours (alkaline) /Depending on battery type and use pattern
Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight: 280 grams (9.9 oz) without batteries
Accessories Included: AT8456a Quiet-Flex stand clamp
Body Pack:
RF Power Output: 10 mW
Battery Life: >7 hours (alkaline) /Depending on battery type and use pattern
Battery Type: Two 1.5V AA /not included
Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections: Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight: 100 grams (3.5 oz) / without batteries
Spurious Emissions: Following federal and national regulations

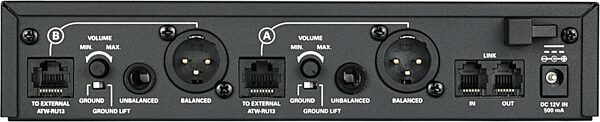

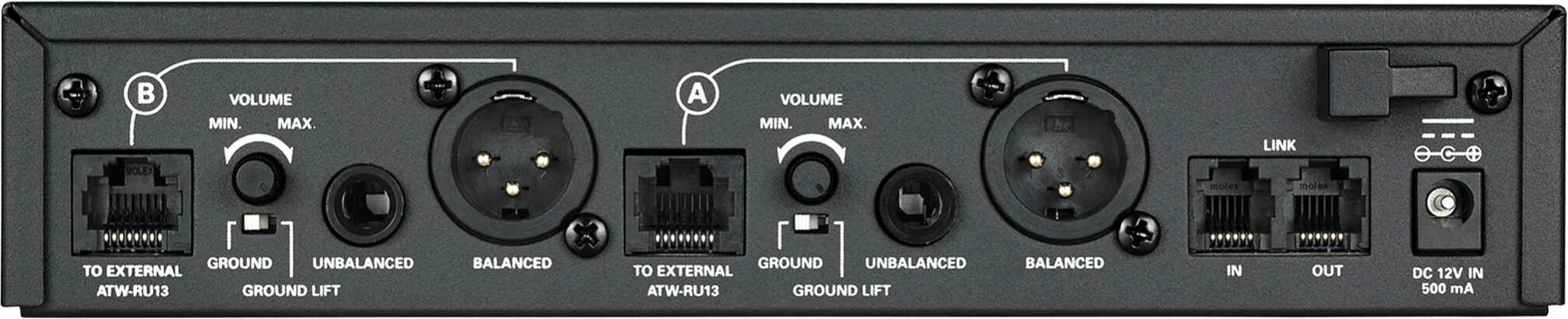

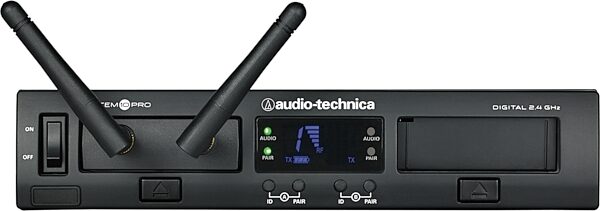

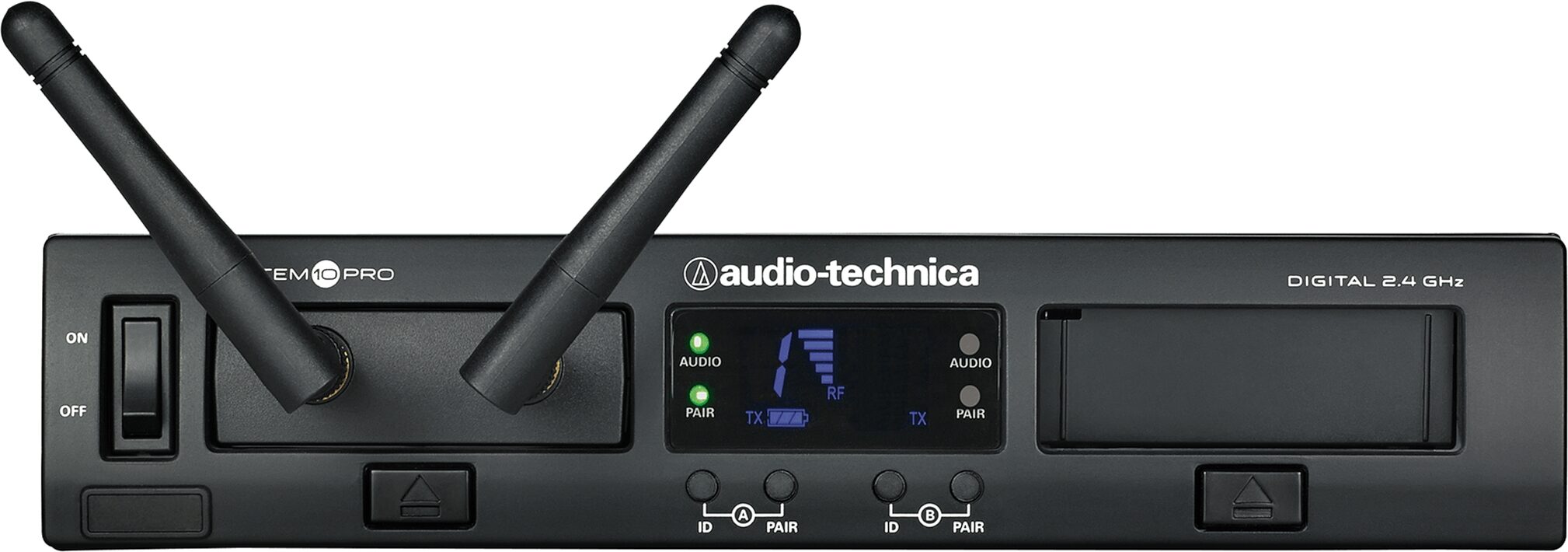

Receiver:
Receiving System: Diversity (frequency/time/space)
Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)
Dimensions: 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Weight: 940 grams (33.2 oz)
Accessories Included: AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet

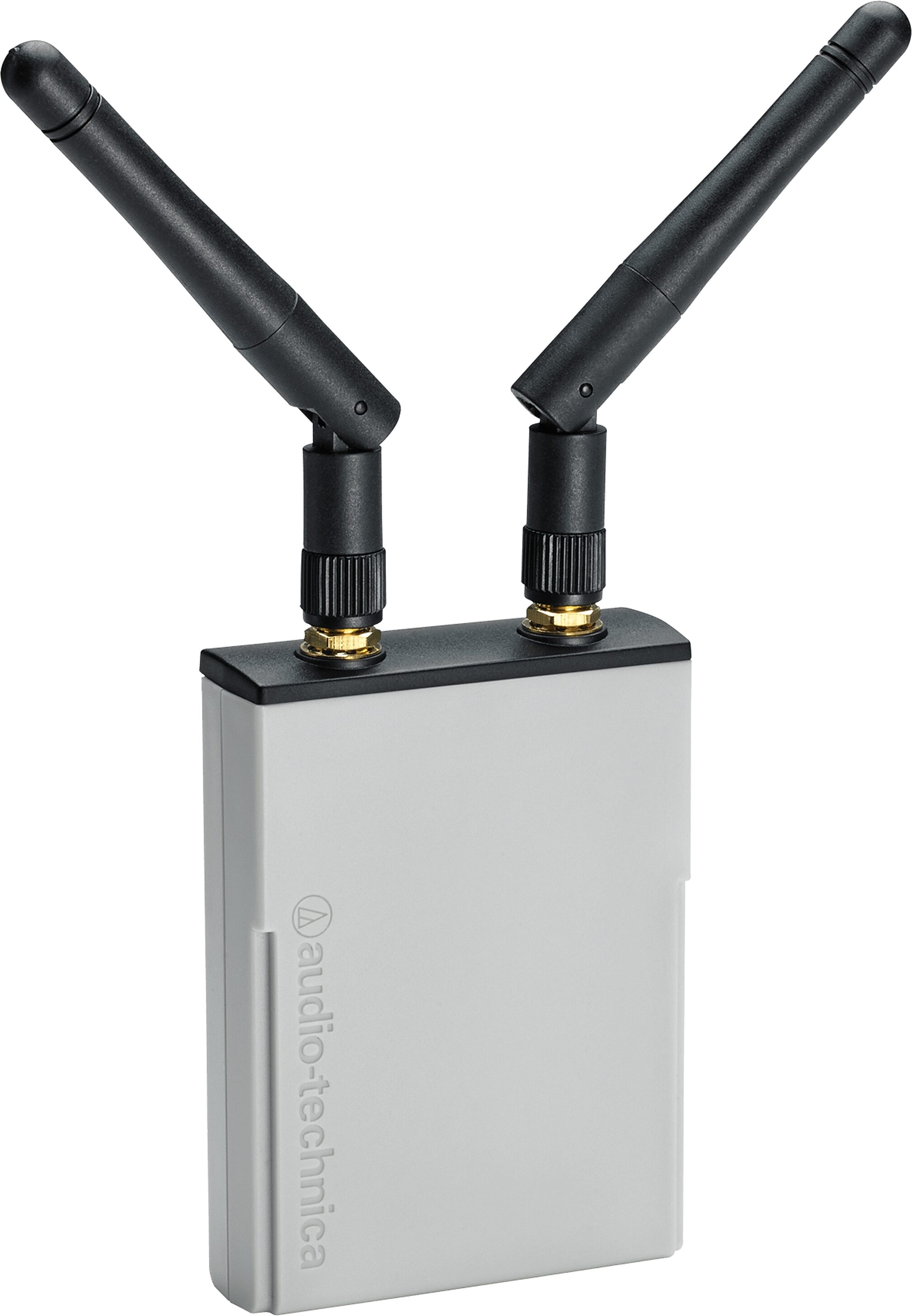

Output Connector: Remote Receiver Connector: RJ45
Link Connector: RJ12

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 8.5 lbs

Shipping Dimensions: 15 x 11 x 11 in

Manufacturer Part Number (MPN): AUD ATW1366

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
