Audio-Technica ATW-1102 System 10 Wireless Handheld Microphone System

zZounds Gear Experts Say...

Run this handheld wireless microphone for 7 hours on two AA batteries. Audio-Technica's System 10 delivers a clear, interference-free 24-bit digital signal.

Overview

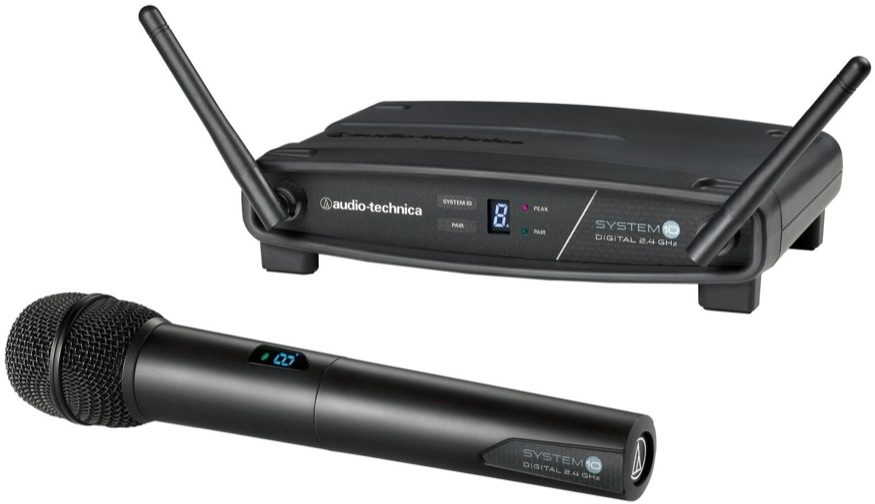

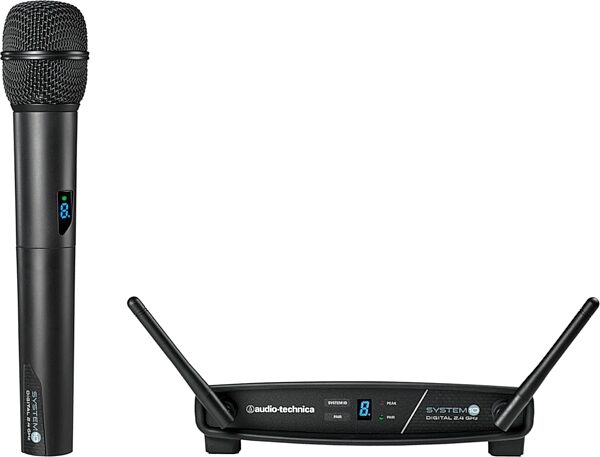

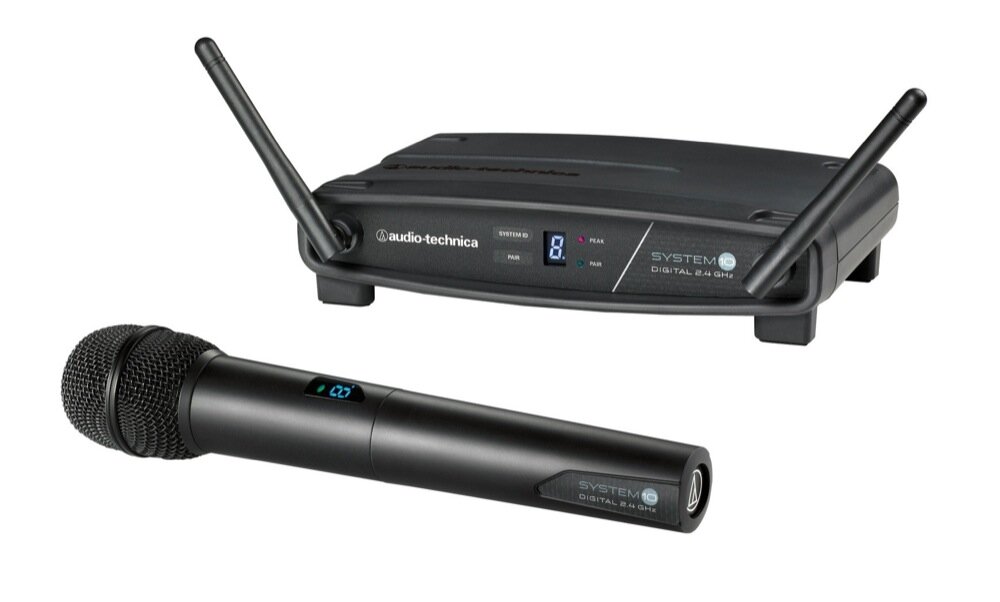

The Audio-Technica ATW-1102 System 10 wireless handheld microphone system is designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

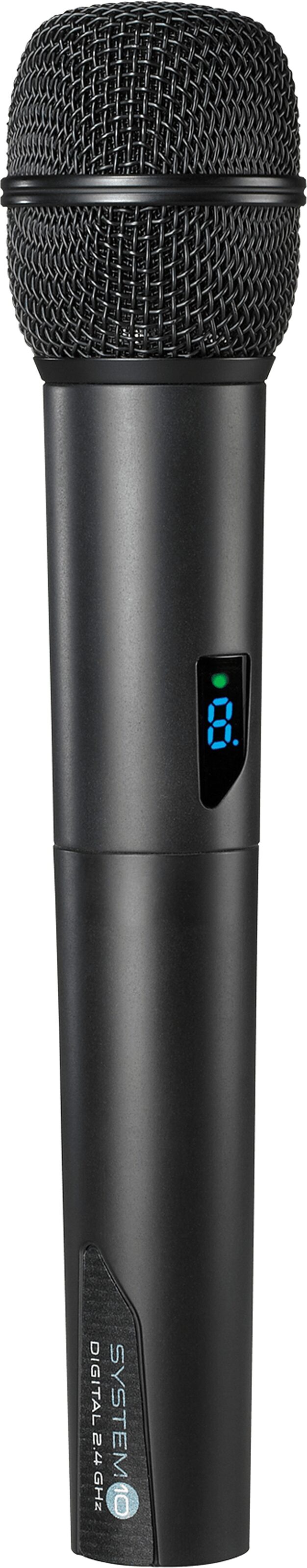

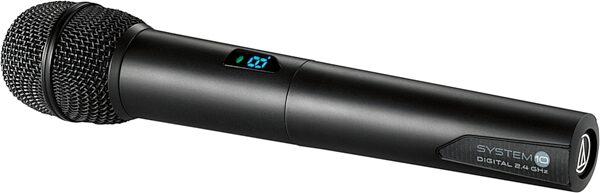

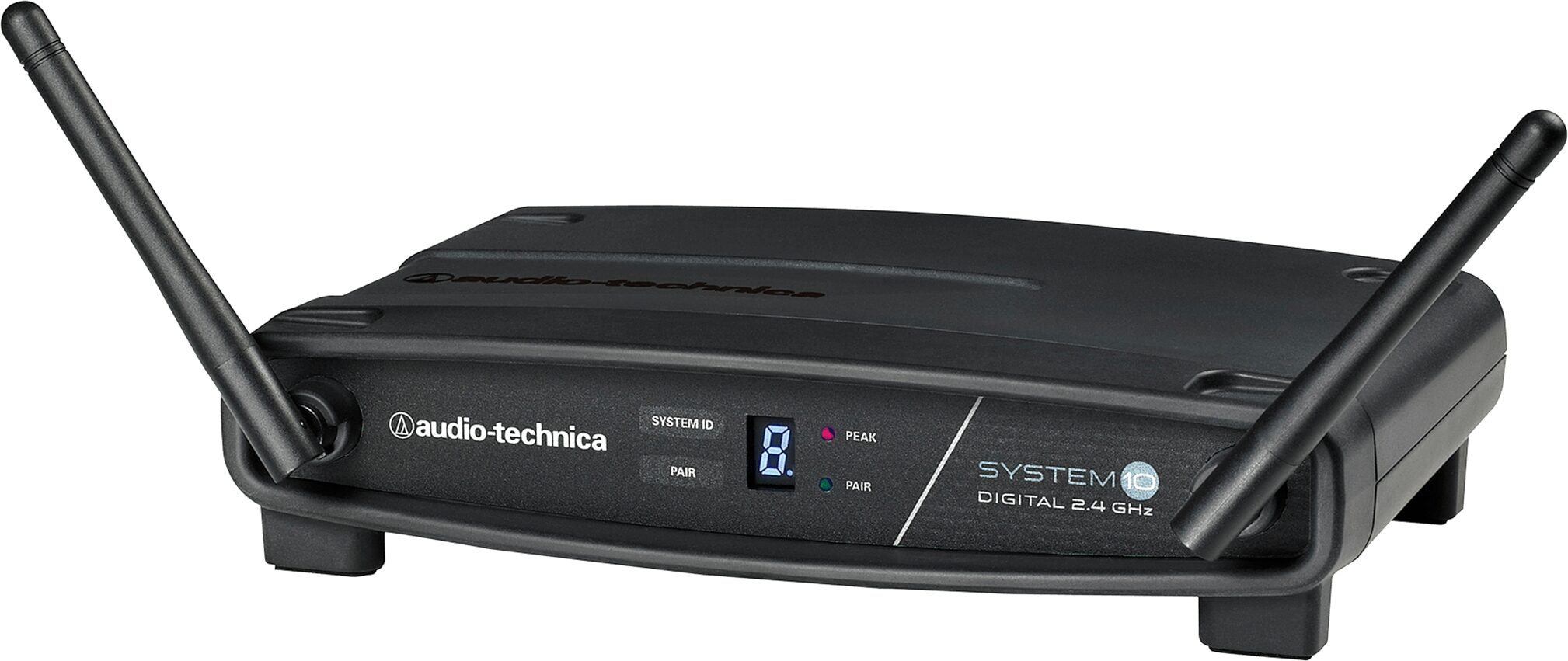

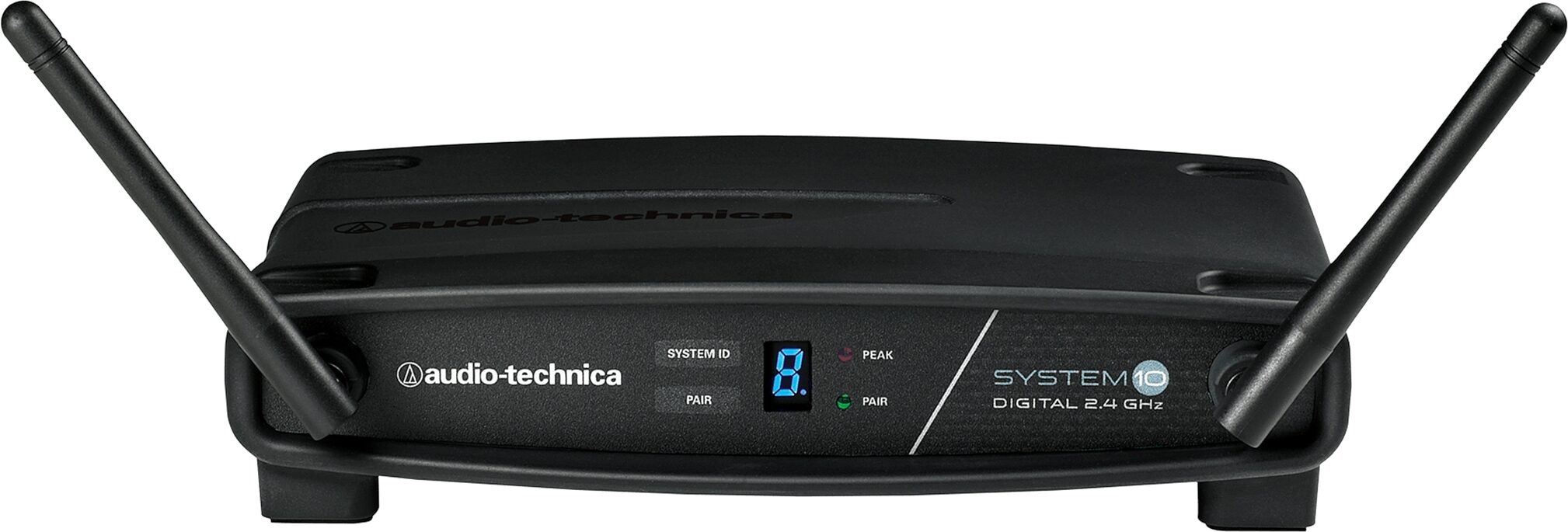

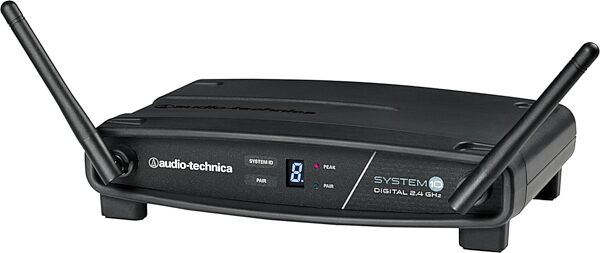

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights. ATW-R1100 receiver and ATW-T1002 handheld dynamic unidirectional microphone/transmitter. The Audio-Technica ATW-1102 includes an AT8456a Quiet-Flex stand clamp.

In this video from Audio-Technica Gary Boss unboxes the System 10 and gives you an overview of all the features:

Features:

- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- 2.4 GHz… read more range - completely free from TV interference
- Three levels of diversity assurance: frequency, time, and space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and set-up
- State-of-the-art digital receiver for reliable performance
- Balanced XLR and unbalanced 1/4" output jacks with level control

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Specs

- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') typical
- Open range environment with no interfering signals
- Operating Temperature Range: 0* C to +40* C (32* F to 104* F)
- Battery performance may be reduced at very low temperatures
- Frequency Response: 20 Hz to 20 kHz
- Depending on microphone type

Receiver:
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: XLR, balanced: 0 dBV
- 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
- Net Weight: 290 grams (10.2 oz)
- Accessory Included: Power supply

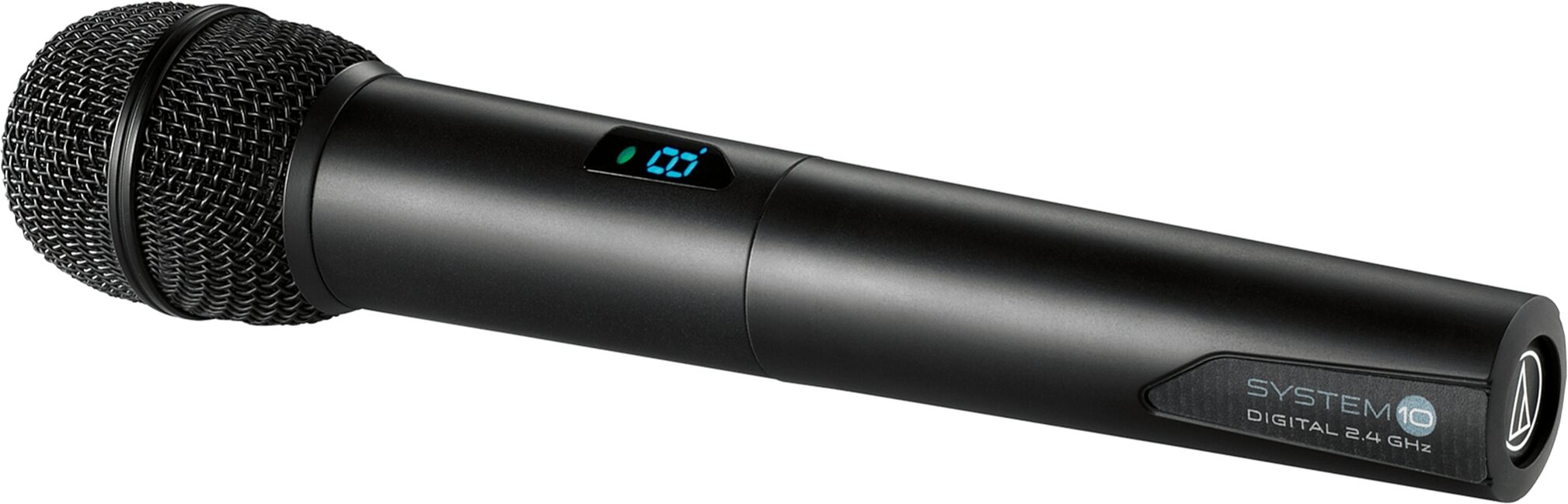

Handheld Transmitter:
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Batteries: Two 1.5V AA
- not included
- Battery Life: >7 hours (alkaline)
- Depending on battery type and use pattern
- Dimensions: 254.8 mm (10.03") long,
- 50.0 mm (1.97") diameter
- Net Weight: 280 grams (9.9 oz)
- without batteries
- Accessory Included: AT8456a Quiet-Flex(TM) stand clamp

Dimensions and Weight in Packaging
(2.4 GHz ISM): Shipping Weight: 2.75 lbs; Shipping Dimensions: 14 x 11 x 5 in; Manufacturer Part Number (MPN): ATW-1102

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com

Manual

Reviews

(1 ratings)

Submitted May 3, 2016 by Sylvan S in Elk Grove, CA

"Great Mic with design flaws"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

The mic is crystal clear and has good range up to 300 feet, maybe more. Digital wireless technology is amazing. Never any static, interference or feedback. However, it has design flaws. No on or off toggle switch or button on the handle. Instead the power/mute button is on the bottom. You have to hold the button for about 3 seconds to power it on. Also, the battery life is not great. 2 AAs will last about 6 hours. At the end of the day, I know wedding speeches and ceremonies will be heard loud and clear.
