Audio-Technica ATW-1101/H92 System 10 Wireless Headset Microphone System

With a tiny, low-profile over-the-ear lavalier microphone, the Audio-Technica ATW-1101/H92 wireless bodypack system delivers 24-bit digital performance.
The Audio-Technica ATW-1101/H92 System 10 wireless headset microphone system is designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality Operating in the 24 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection Up to eight channels may be used together without any frequency coordination problems or group selection issues System 10 receivers and transmitters offer an easy-to-read digital ID display

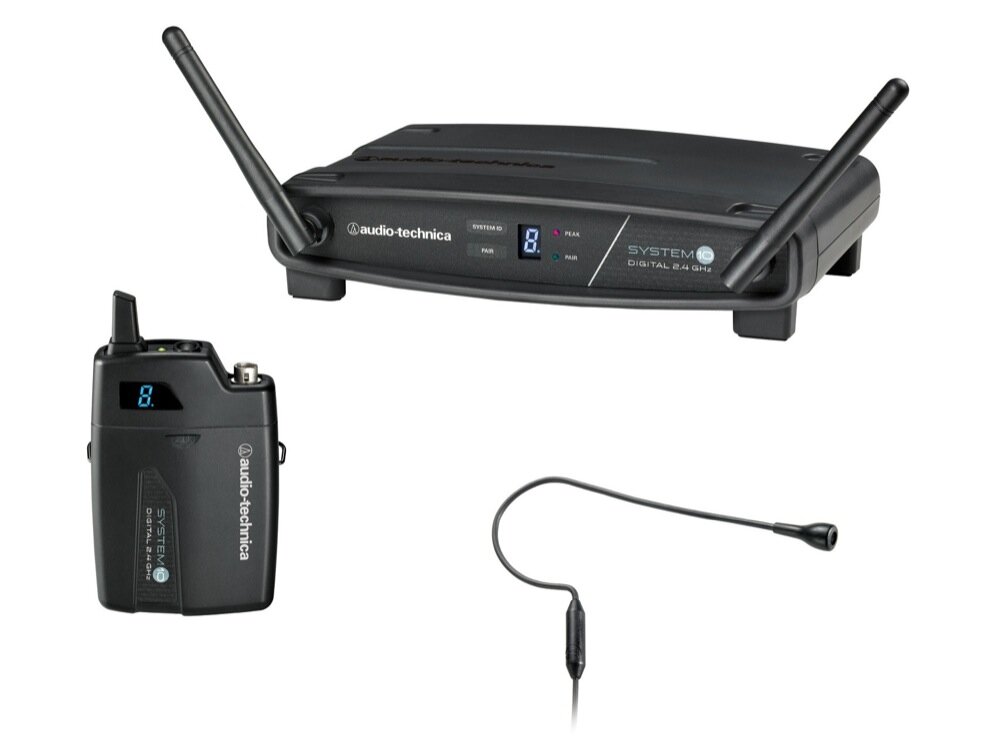

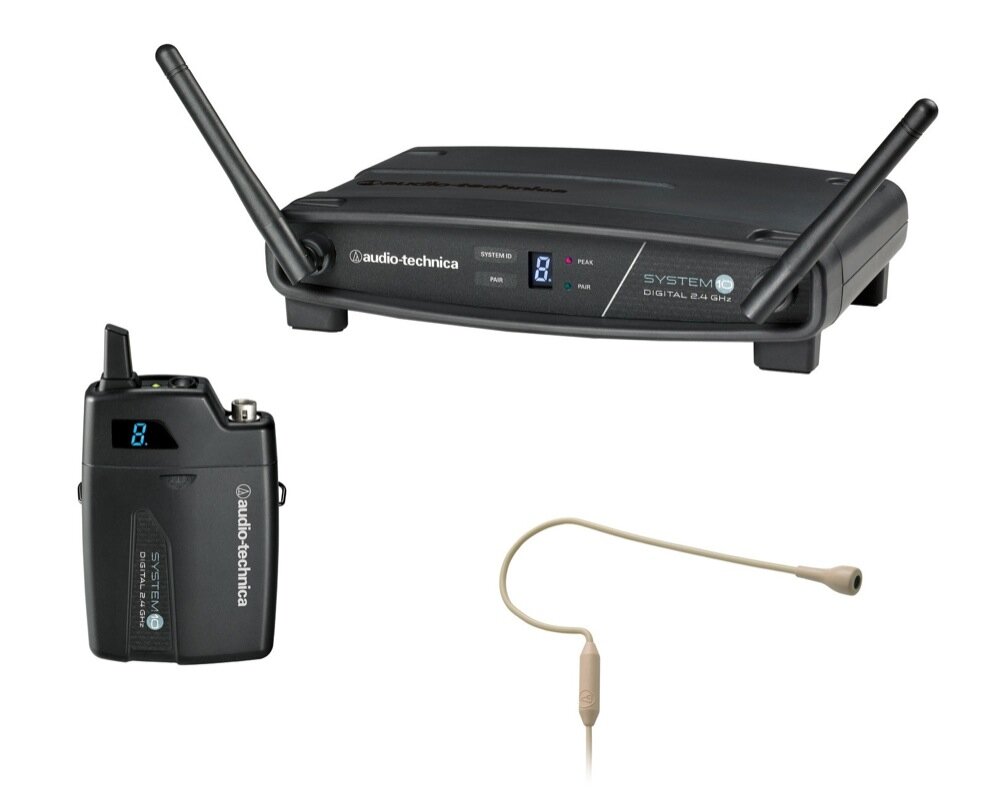

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights The Audio-Technica ATW-1101/H92 includes ATW-R1100 receiver and ATW-T1001 UniPak transmitter with PRO 92cW headworn microphone


- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- 24 GHz range - completely free from TV interference
- Three levels of diversity assurance: frequency, time, & space
- Automatic read more frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and set-up
- State-of-the-art digital receiver for reliable performance
- Balanced XLR and unbalanced 1/4" output jacks with level control
WARNING: Cancer and Reproductive Harm -
read less
- Operating Frequencies: 2.4 GHz ISM band
- Dynamic Range: >109 dB (A-weighted), typical
- Total Harmonic Distortion: <0.05% typical
- Operating Range: 30 m (100') typical
- Open range environment with no interfering signals
- Operating Temperature Range: 0* C to +40* C (32* F to 104* F)
- Battery performance may be reduced at very low temperatures
- Frequency Response: 20 Hz to 20 kHz
- Depending on microphone type

- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level: XLR, balanced: 0 dBV
- 1/4" (6.3 mm), unbalanced: +6 dBV
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
- Net Weight: 290 grams (10.2 oz)
- Accessory Included: Power supply

Body Pack Transmitter:
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: Four-pin Locking Connector
- Pin 1: GND, Pin 2: INST INPUT,
- Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA
- not included
- Battery Life: >7 hours (alkaline)
- Depending on battery type and use pattern
- Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
- Net Weight: 100 grams (3.5 oz) without batteries
Dimensions and Weight in Packaging
Beige, (2.4 GHz ISM)
Shipping Weight: 2.5 lbs
Shipping Dimensions: 14 x 11 x 5 in
Manufacturer Part Number (MPN): AUD ATW1101H92TH
Black, (2.4 GHz ISM)
Shipping Weight: 2.25 lbs
Shipping Dimensions: 14 x 11 x 4 in
Manufacturer Part Number (MPN): AUD ATW1101H92
