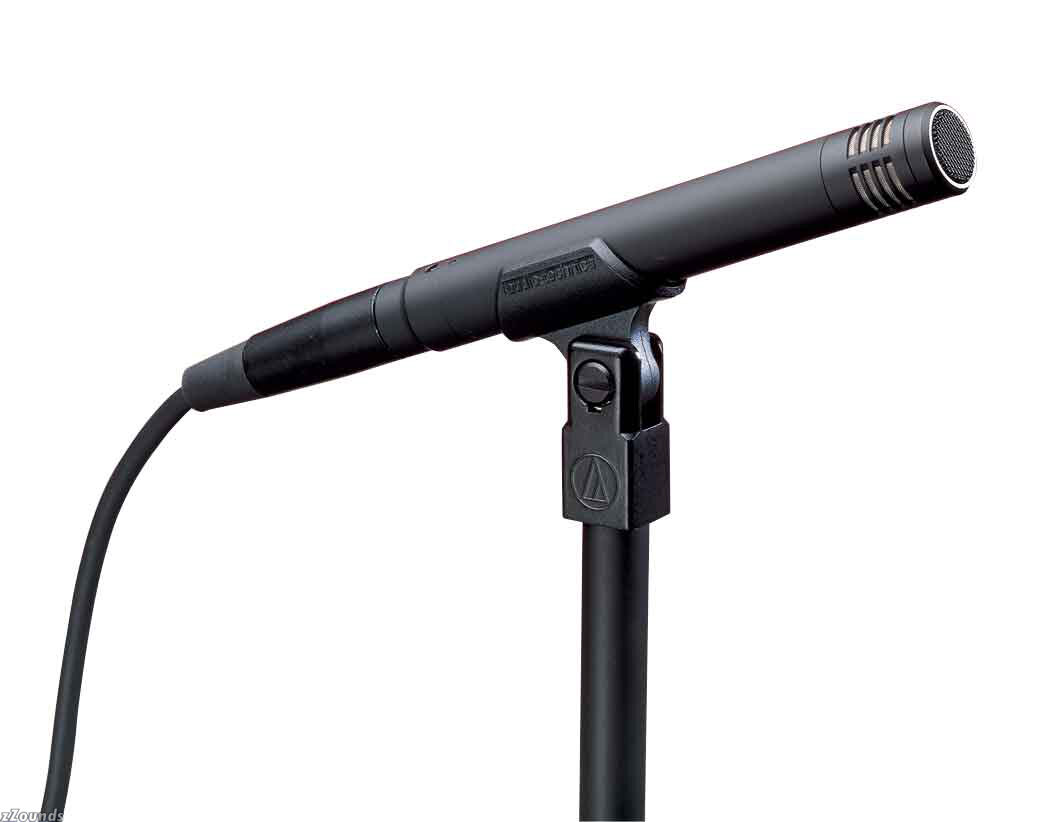

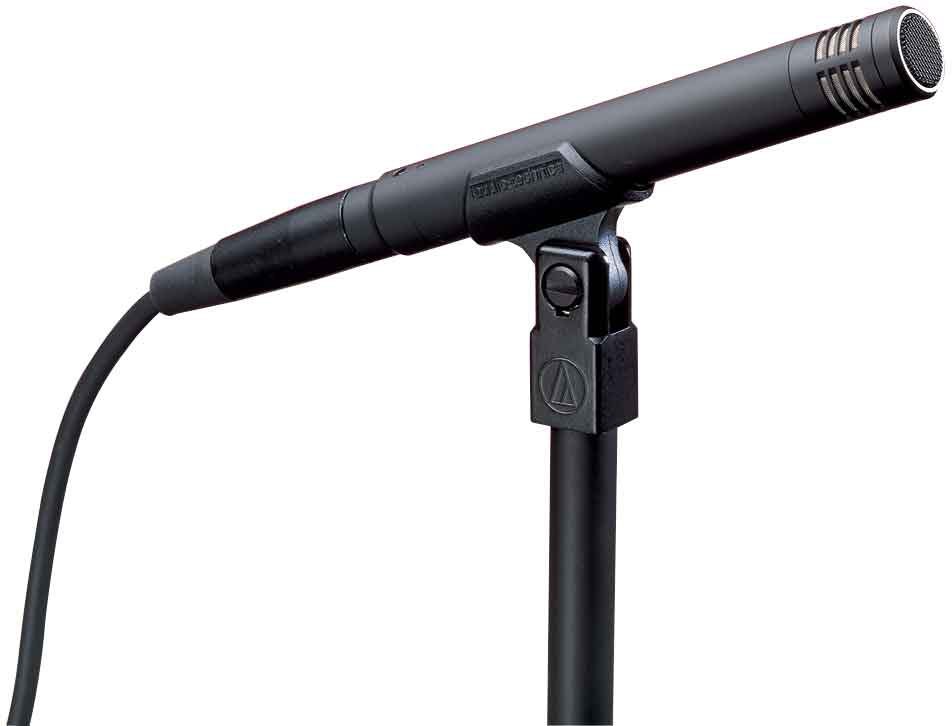

Audio-Technica AT4041 40-Series Cardioid Small-Diaphragm Condenser Microphone

zZounds Gear Experts Say...
Record and reinforce drum overheads, piano, acoustic guitar and much more with Audio-Technica's workhorse pencil mic -- the AT4041 small-diaphragm condenser.
Overview
This premium electret condenser microphone is engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound. The AT4041 cardioid studio condenser microphone features a smooth, extended frequency response with a slight rise in the high-frequency region and a transformerless output for very high SPL-handling capability.
A unique combination of audio excellence and moderate cost, the AT4041 is a rugged microphone housed in a case of turned brass with black chrome plating for durability and low reflectivity. The element back plate holds a fixed charge and has been aged to provide energy stabilization. The surface of the back plate is precision milled to ensure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.
The output of the microphone is a 3-pin XLRM-type connector. A switch permits choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise. The microphone is enclosed in a rugged housing. The included AT8405a stand clamp permits mounting on any microphone stand with 5/8"-27 threads. A windscreen and a protective carrying case are also included.
- Ideal for drum overheads, acoustic guitar, piano, horns and under snare
- Low-mass diaphragm improves transient response, increases… read more response bandwidth and reduces handling and mechanical noise transfer
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
- Switchable hi-pass filter and rugged turned-brass microphone housing
read less
A unique combination of audio excellence and moderate cost, the AT4041 is a rugged microphone housed in a case of turned brass with black chrome plating for durability and low reflectivity. The element back plate holds a fixed charge and has been aged to provide energy stabilization. The surface of the back plate is precision milled to ensure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.
The output of the microphone is a 3-pin XLRM-type connector. A switch permits choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise. The microphone is enclosed in a rugged housing. The included AT8405a stand clamp permits mounting on any microphone stand with 5/8"-27 threads. A windscreen and a protective carrying case are also included.
Features:
- Smooth, extended frequency response with a slight rise occurring in the high-frequency region- Ideal for drum overheads, acoustic guitar, piano, horns and under snare
- Low-mass diaphragm improves transient response, increases… read more response bandwidth and reduces handling and mechanical noise transfer
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
- Switchable hi-pass filter and rugged turned-brass microphone housing
Specs
Element: fixed-charge back plate, permanently polarized condenser
Polar pattern: cardioid
Frequency response: 20-20,000 Hz
Low frequency roll-off: 80 hz, 12 dB/octave
Open circuit sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
Impedance: 100 ohms
Maximum input sound level: 145 dB SPL, 1 kHz at 1% THD
Dynamic range (typical): 121 dB, 1 kHz at max SPL
Signal-to-noise ratio: 70 dB, 1 kHz at 1 Pa
Phantom power requirements: 48V DC, 3.2 MA typical
Switch: flat, roll-off
Weight: 4.2 oz (120 g)
Dimensions: 6.28" (159.5 mm) long, 0.83" (21.0 mm) body diameter
Output connector: integral 3-pin XLRM-type
Accessories furnished: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case
Audio-Technica case style: s1
Polar pattern: cardioid
Frequency response: 20-20,000 Hz
Low frequency roll-off: 80 hz, 12 dB/octave
Open circuit sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
Impedance: 100 ohms
Maximum input sound level: 145 dB SPL, 1 kHz at 1% THD
Dynamic range (typical): 121 dB, 1 kHz at max SPL
Signal-to-noise ratio: 70 dB, 1 kHz at 1 Pa
Phantom power requirements: 48V DC, 3.2 MA typical
Switch: flat, roll-off
Weight: 4.2 oz (120 g)
Dimensions: 6.28" (159.5 mm) long, 0.83" (21.0 mm) body diameter
Output connector: integral 3-pin XLRM-type
Accessories furnished: AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying case
Audio-Technica case style: s1
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1 lbs
- Shipping Dimensions: 11 x 5 x 2 in
- Manufacturer Part Number (MPN): AT4041
