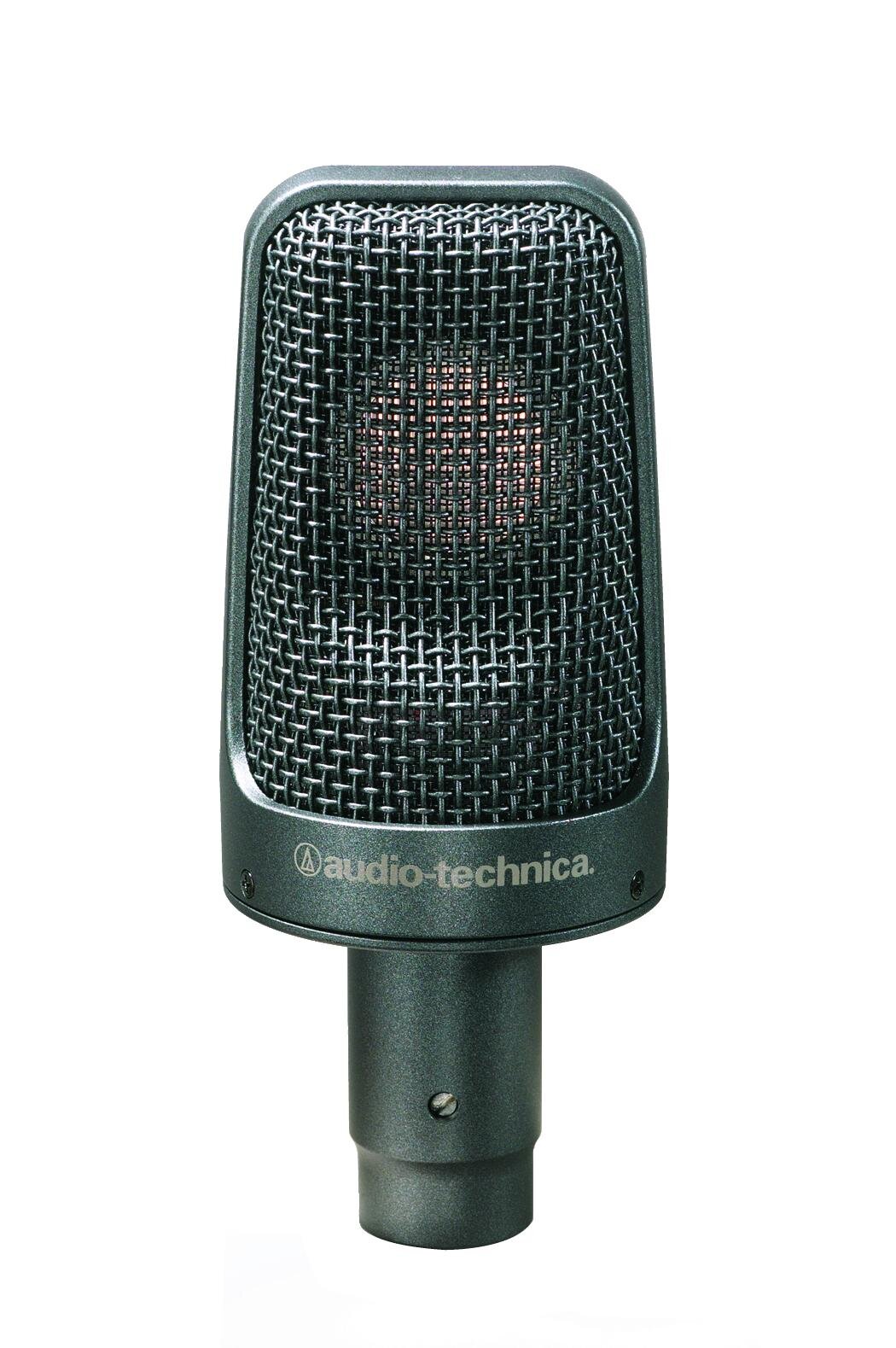

Audio-Technica AE3000 Cardioid Condenser Microphone

Known for its accurate, open sound, this side-address large-diaphragm condenser handles up to 148 dB SPL -- great on guitar cabs, drum overheads, and more.

The AE3000 excels in high-SPL applications such as guitar cabinets, toms, snare, timpani and overheads. A large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound.


- Supreme performance at extreme SPLs
- Low-profile side-address design with tapered grille allows optimal positioning of element vis-a-vis sound source
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10dB pad

- Element: Condenser
- Signal to Noise Ratio: 83 dB, 1 kHz at 1 Pa
- Polar Pattern: Cardioid
- Dynamic Range (Typical): 137 dB, 1 kHz at Max. SPL
- Frequency Response: 20 - 20,000 Hz
- Phantom Power Requirements: 11-52V, 3 mA typical
- Open Circuit Sensitivity: -43 dB (7.0 mV) re 1V at 1 Pa
- Switches: 10 dB pad; roll-off
- Impedance: 100 ohms
- Low Frequency Roll-off: 80 Hz, 12 dB per octave
- Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.
- Weight: 6.0 oz (170 g)
- Noise Output: 11 dB SPL
- Connector: Integral 3-pin XLRM-type

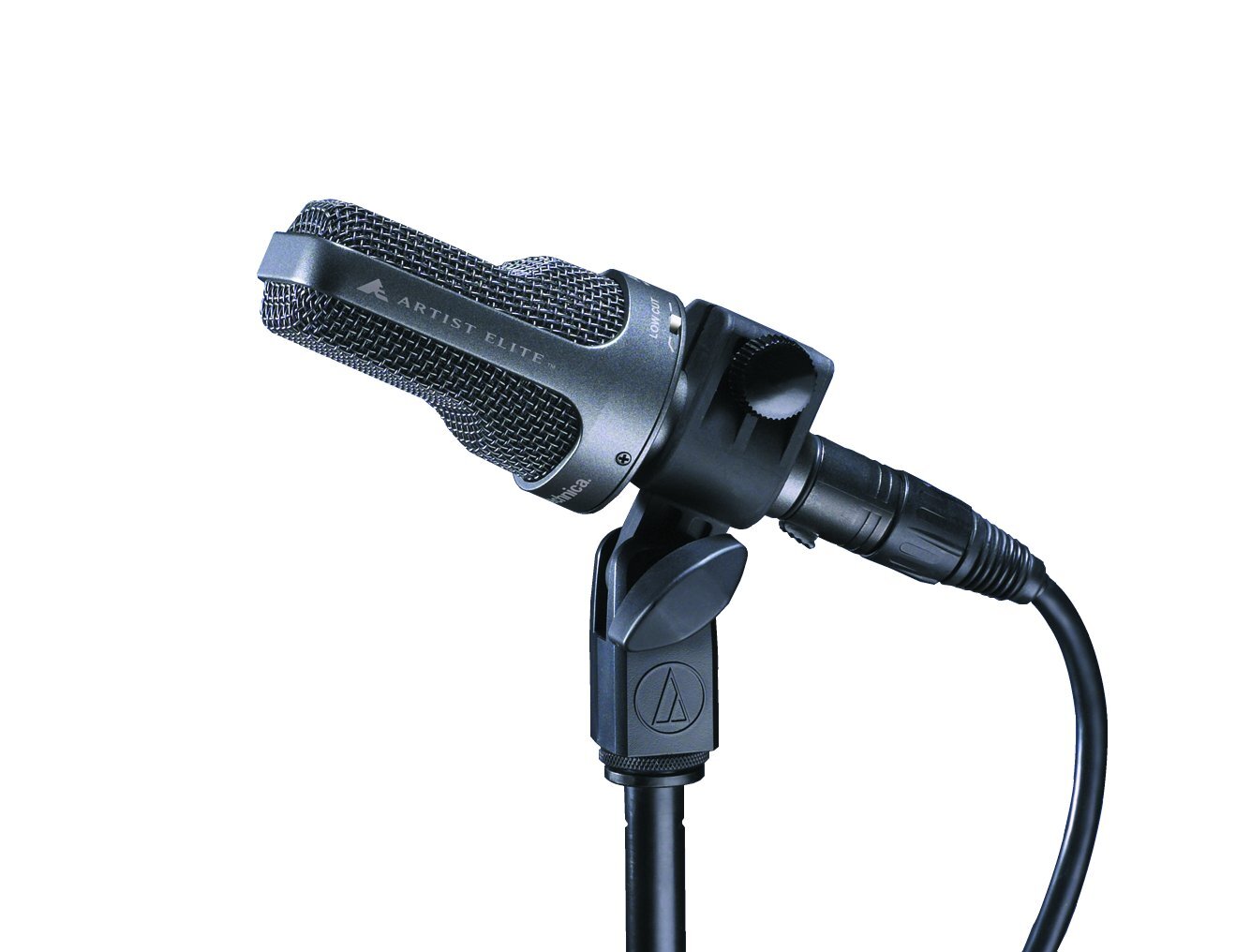

- Accessories Furnished: AT8471 isolation clamp; 3/8 in.-16 threaded adapter; protective pouch
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 10 x 5 x 3 in
Manufacturer Part Number (MPN): AE3000
