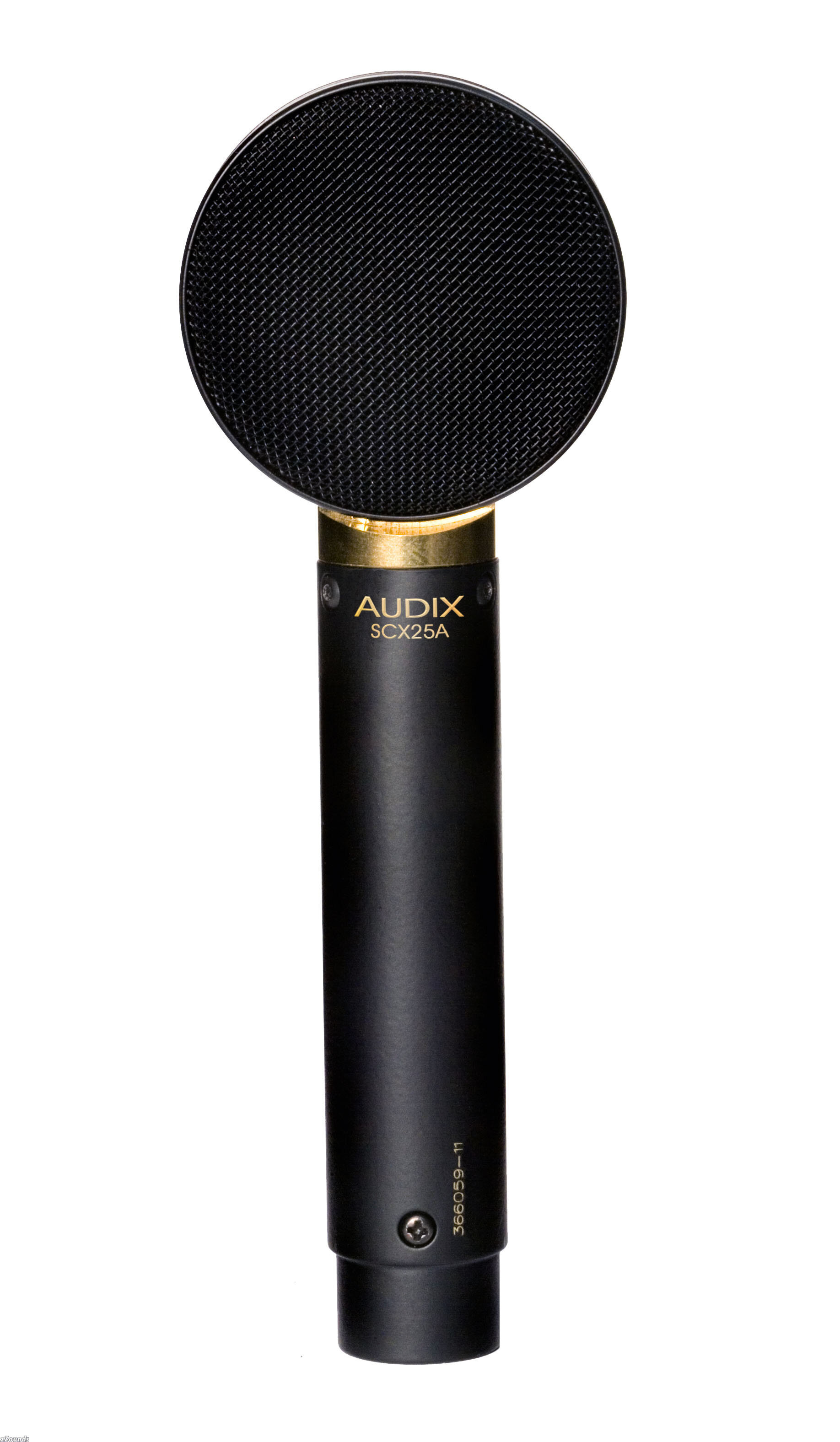

Audix SCX25A Studio Condenser Microphone

Capture pristine piano, percussion or vocals with the SCX25A. With a 1" diaphragm shock-mounted in a patented suspension system, it's a "secret weapon" mic.
The SCX25A is a professional studio condenser microphone with an elegant design and a patented capsule suspension system. Uniquely shock-mounted within an intricate machined brass ring, the SCX25A capsule is completely isolated from the mic body and electronics. By successfully minimizing acoustic reflections and diffractions, the SCX25A delivers a pure, open-air sound with exceptional detail and realism.

Wide Cardioid Pickup Pattern

With a smooth uniform frequency response from 20 Hz - 20 kHz, the SCX25A is very consistent when responding to on and off-axis signals, exhibiting excellent phase coherence and minimal proximity effect. The SCX25A is characterized with a wide cardioid polar pattern which enables the sound engineer the opportunity to blend the sound of the instrument or vocal with the sound of the room. Other features include a one-inch (25 mm) gold vapor capsule, miniaturized electronics, and an extremely small footprint. The SCX25A will handle sound pressure levels in excess of 135 dB and will provide up to 20 dB of ambient noise rejection.

Capture Vocals, Acoustic Instruments, and Percussion

In addition to vocals, the SCX25A is ideally suited to capture acoustic instruments such as piano, guitar, vibes, woodwinds, brass, percussion toys, drum overheads, orchestra and symphony sectionals.

Manufactured to Meet Exacting Standards

The SCX25A, which is manufactured to exacting standards and tight tolerances, features a precision machined brass body, innovative capsule read more suspension system, steel mesh grill, black e-coat finish, laser etched model and serial number, Switchcraft XLR connector, and heavy duty nylon clip.

Applications:

- Studio vocals, lead and backing
- Voice over
- Choir, ambient room
- Piano
- Drums, overheads
- Saxophone
- Acoustic guitar

Audix gives your a brief demo on using miking a grand piano with Audix microphones:


Features:

- Wide cardioid polar pattern
- 135 dB SPL handling
- Innovative design with isolated capsule suspension system
- Miniaturized pre-amp. Extremely small footprint (only 4 inches long)
read less
Specifications
Type: Condenser
Polar Pattern: Cardioid
Frequency Response: 20Hz - 20kHz
Impedance: 200 ohms
Sensitivity: @1k 22 mV/Pa
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 11 x 6 x 2 in
Manufacturer Part Number (MPN): AUI SCX25A
Matched Pair
Shipping Weight: 2.5 lbs
Shipping Dimensions: 10 x 6 x 4 in
Manufacturer Part Number (MPN): AUI SCX25AMP
Warehouse Resealed, Matched Pair
Shipping Weight: 2.5 lbs
Shipping Dimensions: 10 x 6 x 4 in
Manufacturer Part Number (MPN): NFS AUISCX25AMP
