Audio-Technica BP350ST-UL Stereo Mid-Side Shotgun Microphone

open zoom image for Audio-Technica BP350ST-UL Stereo Mid-Side Shotgun Microphone, New, Action Position Back

Audio-Technica BP350ST-UL Stereo Mid-Side Shotgun Microphone, New, main

Audio-Technica BP350ST-UL Stereo Mid-Side Shotgun Microphone, New, Action Position Back

zZounds Gear Experts Say...

This camera-mount shotgun mic lets you capture audio in mid-side -- so you can adjust the balance in post, and keep the depth of stereo without phase issues.

Overview

Engineered for professional broadcast, production and field recording, the BP350ST-UL camera-mount microphone is perfect for ENG and other on-the-move applications. The mic features a 16 cm (6.3") interference tube that rejects off-axis noise to focus on distant sounds. It is also equipped with independent line-cardioid and figure-of-eight elements configured in an MS (mid-side) arrangement with switch-selectable internal matrixing. The mic is designed to mount securely to video cameras or support rigs, delivering lifelike stereo sound capture in dynamic recording situations.

The BP350ST-UL mid-side capsule arrangement provides crisp, clear, well-balanced stereo response, even at high SPLs. A switch on the included AT8547 power module allows users to choose between left-right stereo output (wide or narrow) and discrete mid-side signals for later manipulation. Mid-side operation offers many advantages for postproduction editing, making it easier to place voices naturally in a mix, for example, and providing audio that won't lose its depth when stereo channels are combined into a mono track. The two-mics-in-one configuration also helps reduce common problems with stereo miking, such as time alignment and comb filtering.

The mic's permanently attached 30 cm (12") cable is terminated with a TA5F connector that plugs into the power module. The included AT8495 mount clip secures the mic to the power module, attaching at any angle to accommodate placement around other peripherals.… read more The power module can be mounted into a camera's microphone mount or secured using third-party mounts. It comes with a 36 cm (14.2") TA5F to dual-XLR3-M stereo cable that's suitable for connecting to a camera's stereo inputs or to any traditional mic preamplifier with phantom power. A switch on the power module allows users to select an 80 Hz high-pass filter to suppress unwanted ambient noise.

Features:

- Innovative small-format stereo microphone with MS (mid-side) capsule configuration engineered for broadcast, production and field recording
- 16 cm (6.3") camera-mount shotgun mic is perfect for professional journalists and vloggers who favor a run-and-gun style of filmmaking
- Independent line-cardioid and figure-of-eight condenser elements
- Excellent channel separation and a natural response, even at high SPLs
- Switch-selectable internally matrixed stereo modes (wide and narrow) and mid-side mode
- Compact lightweight design
- In-line AT8547 power module is equipped with a switchable 80 Hz high-pass filter
- Includes a 36 cm (14.2") TA5F to dual-XLR3-M stereo output cable, AT8495 mount clip, AT8180 foam windscreen, and protective carrying case

Included Accessories:
- Power module (AT8547)

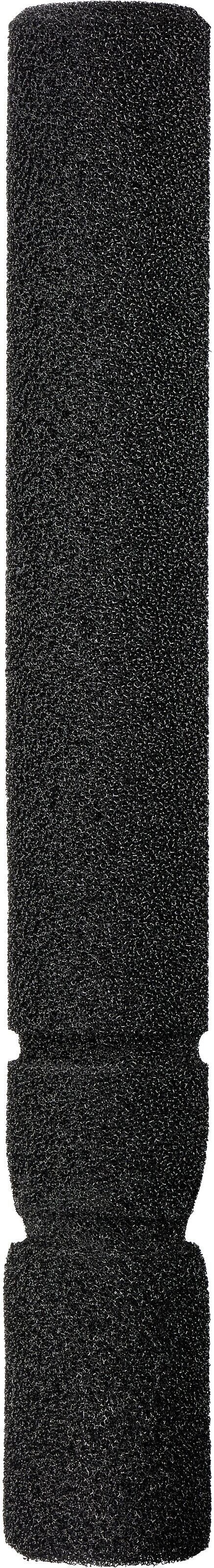

- Windscreen (AT8180)
- Mount clip (AT8495)
- O-ring -2
- 0.36 m (1.2') microphone cable
- Hard shell carry case

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Element: Fixed-charge back plate, permanently polarized condenser
Polar pattern: Line + gradient, Figure-of-eight
Frequency response: 40 to 20,000 Hz
Low cut: 80 Hz, 18 dB/octave
Open circuit sensitivity:
- MID: -29.5 dB (33.5 mV) (0 dB=1 V/Pa, 1 kHz)
- SIDE: -35 dB (17.8 mV) (0 dB=1 V/Pa, 1 kHz)
- L/R: -36 dB (15.9 mV) (0 dB=1 V/Pa, 1 kHz)
Impedance: 50 ohms
Maximum input sound level:
- MID: 144 dB SPL (1 kHz at 1% THD)
- SIDE: 149.5 dB SPL (1 kHz at 1% THD)
Dynamic range:
- MID: 126 dB (1 kHz at Max SPL)
- SIDE: 125.5 dB (1 kHz at Max SPL)
Signal-to-noise ratio:
- MID: 76 dB (1 kHz at 1 Pa, A-weighted)
- SIDE: 70 dB (1 kHz at 1 Pa, A-weighted)
- L/R: 72 dB (1 kHz at 1 Pa, A-weighted)
Phantom power requirements: 48 V DC, 8.2 mA (both channels total)
Switches: Stereo mode selection (MS, LR-W, LR-N), Flat, Low cut
Operating temperature range: -10-C (14-F) to 60-C (140-F)
Storage temperature range: -20-C (-4-F) to 60-C (140-F), 10% to 90% RH (without condensation)
Weight:
Microphone: 43 g (1.5 oz)
Power module: 49 g (1.7 oz)
Dimensions:
- Microphone (Length x Diameter): 159.7 mm x 12.7 mm (6.3" x 0.50")
- Power module (Length x Diameter x Width): 125 mm x 21 mm x 28 mm (4.9" x 0.83" x 1.1")
Cable length Main unit cable: 0.3 m (0.98')
Microphone cable (included): 0.36 m (1.2')
Output connector Power module: 5-pin mini XLR-M type
Microphone: 5-pin mini XLR-F type
