Audio-Technica ATW-1427 System 20 PRO Dual Desk Stand Transmitter Wireless System

zZounds Gear Experts Say...

Add gooseneck microphones and you're ready to roll with the ultra-reliable Audio-Technica ATW-1427 System 20 PRO dual desk stand transmitter system.

Overview

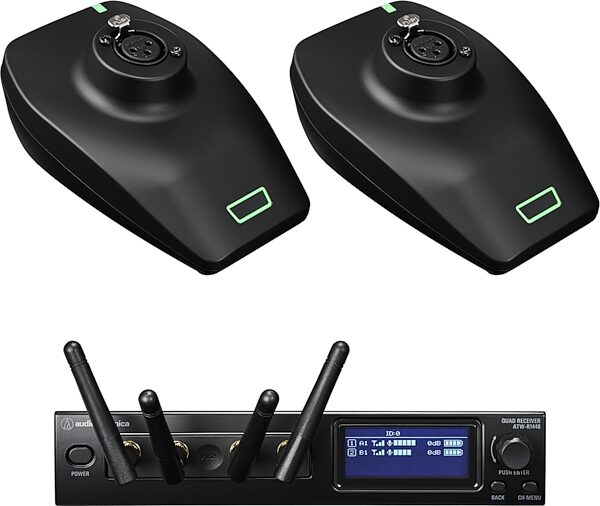

This Audio-Technica System 20 Digital Wireless System includes one ATW-R1440 4-channel receiver and two ATW-T1407 desk stand transmitters.

When Audio-Technica launched the System 10 PRO rack-mount receiver Audio-Technica took 2.4 GHz wireless microphone systems to a higher level of functionality and convenience. Now, with the System 20 PRO Audio-Technica takes it even further, offering a self-managing, plug-and-play 2.4 GHz system that's scalable to 20 channels and delivers the same dependable, high-quality audio - regardless of where you set it up. Designed for hassle-free deployment, the system overcomes many challenges of conventional wireless microphones, such as frequency coordination, complex intermodulation calculations, and remote antenna cabling.

Features:

- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range - completely free from TV interference

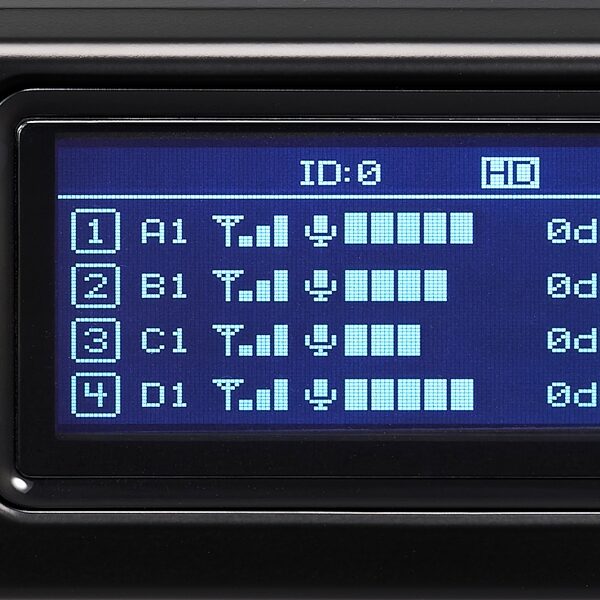

- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively

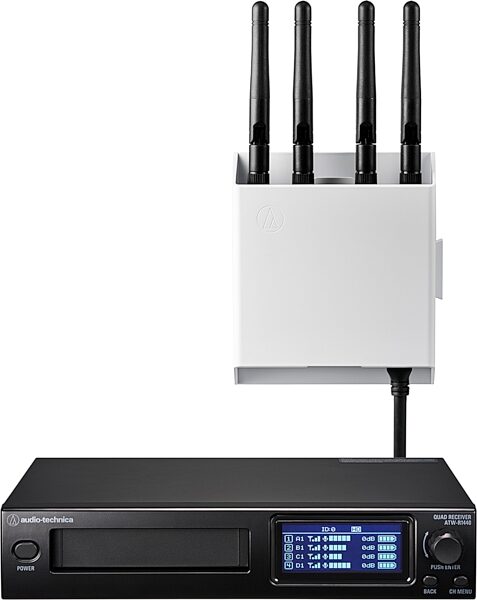

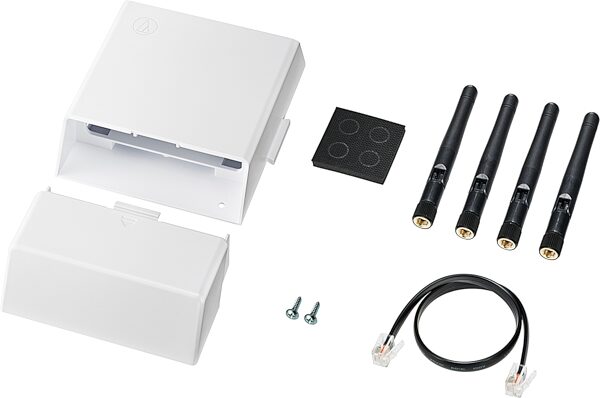

- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations

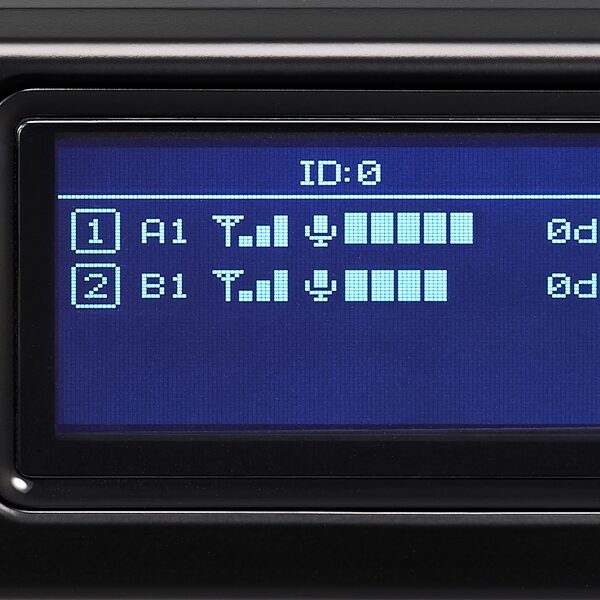

- Chassis' System ID Display shows RF signal level,… read more system ID, transmitter battery level, and system link status

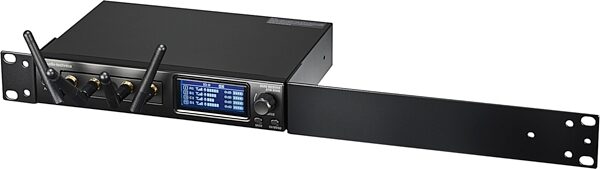

- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica's Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels

Capable of receiving up to four transmitters, the system's ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimize latency or HD mode (20 channels) to maximize channel count.

Seamless setup and management are controlled via Audio-Technica's Wireless Manager software, which is capable of managing multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation. The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

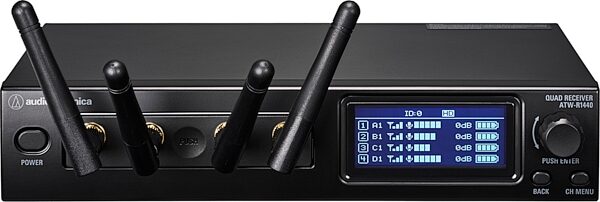

ATW-R1440 System 20 PRO 4-Channel Receiver:
- Half-rack chassis capable of receiving up to four transmitters
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Switch between Standard (10 channels) and HD (20 channels) modes

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Overall System
Operating Frequencies: 2,402~2,480MHz
Dynamic Range: 120dB (A-weighted), typical
Total Harmonic Distortion: < 0.05%, typical
Maximum Simultaneous Use (recommended):
- Standard: 10 channels
- HD mode: 20 channels, It depends on the region and environment.
System Frequency Response: 20 to 20,000Hz, Varies depending on the microphone to be installed.
Delay:
- Standard: 2.8ms
- HD mode: 6.7ms
Audio Sampling Rate
- Standard: 24bit/48kHz
- HD mode: 24bit/48kHz
Encryption Method: AES128

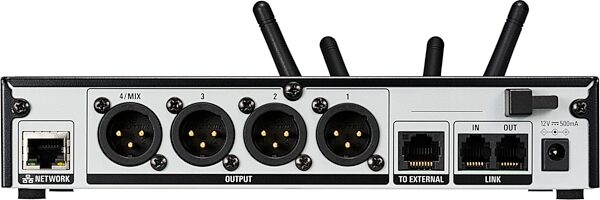

ATW-R1440
Receiver unit external connection port: RJ45
NETWORK Port: RJ45: RJ45: RJ45 Fast Ethernet
LINK IN/OUT port: RJ12
Output Level:
- LINE max: +22dBu (+20dBV)
- LINE Unity: -20dBu (-22dBV)
- MIC max: -12dBu (-10dBV)
- MIC Unity: -50dBu (-52dBV)
Power Consumption: 3.7W
Power Supply: DC12V 0.5A (AC adapter)
Operating temperature: 0oC to +40oC
Dimensions (WxDxH): 209.8mm x 165.6mm x 42.5mm
Weight: 740g
Included Accessory: Blade tip for AC adapter and AC adapter, Rack mount adapter (short), rack mount adapter (long), Fixing screws x 5, connecting cable (30cm), rubber feet x 4

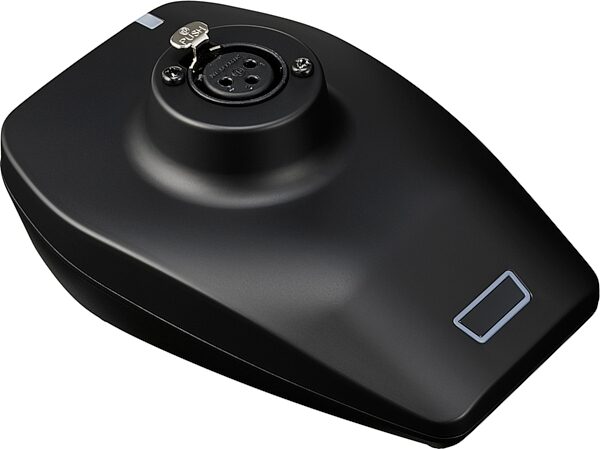

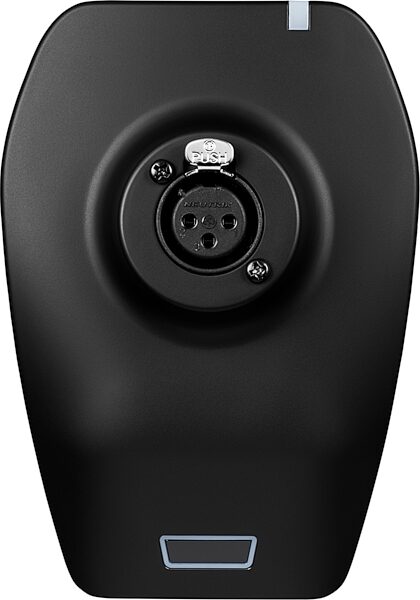

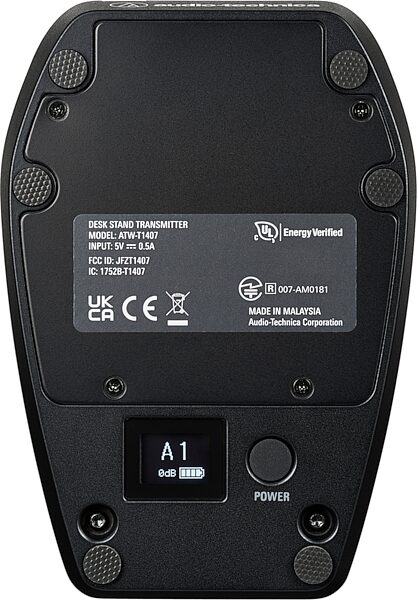

ATW-T1407 DESK STAND TRANSMITTER
Modulation mode: GFSK
RF output: 10mW EIRP
RF sensitivity: -90dBm, typical
Whip antenna : True diversity
Microphone: Gooseneck microphone support
Phantom power supply: DC24V
Built-in battery: 3.7V lithium-ion battery (5.5Wh, 1460mAh)
Battery life: When using gooseneck microphone without LED: Approx. 12 hours, When using gooseneck microphone with LED: Approx. 8 hours, This varies depending on usage conditions.
Charging time: Approx. 3 hours and 10 minutes, This varies depending on usage conditions.

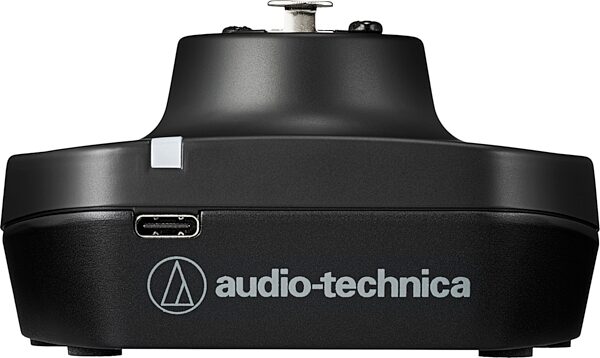

USB Charging port: USB Type-C (USB 2.0)
Operating temperature: 5oC to +40oC
Dimensions (WxDxH): 90.5mm x 129.4mm x 47.6mm
Weight: 490g (including battery)
Included accessory: USB power adapter, blade tip for USB power adapter, USB cable (1.5 m)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 8.9 lbs; Shipping Dimensions: 17 x 16 x 7 in; Manufacturer Part Number (MPN): ATW-1427

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
