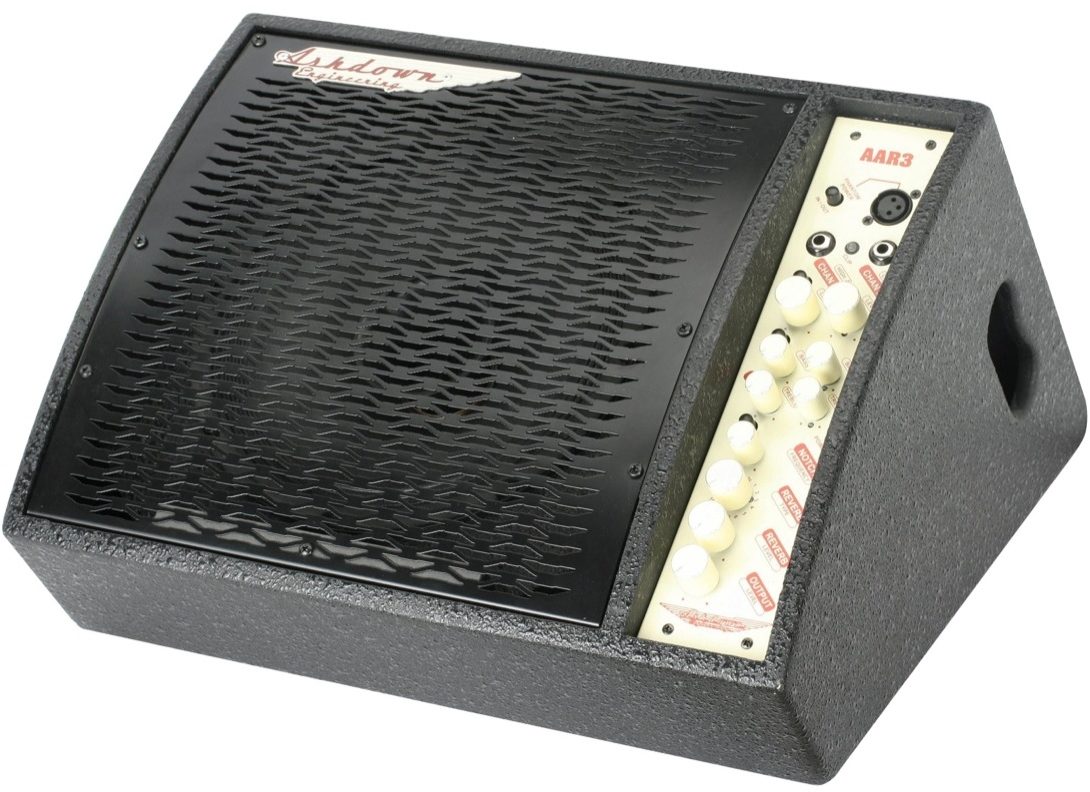

Ashdown AAR3-10 Radiator Acoustic Guitar Amplifier (1x10", 350 Watts)

No longer available at zZounds

zZounds Gear Experts Say...

Compact and powerful, the AAR3-10 is loaded with the natural and crisp tone you can only get from a bi-amped setup.

Overview

Ashdown's AAR3-10 Acoustic Radiator is a fully loaded acoustic guitar amp specifically designed for professional stage performance. The AAR3-10 features a 10 in./HF concentric driver system and 350 watt RMS bi-amped power for transparent, full frequency, natural sounding audio that is the perfect partner for your best acoustic guitars.

The AAR3-10 also features a very musical sounding EQ, Shape, Phase, and adjustable Notch Filtering so you can dial in the best combinations for stage or studio and the 16 preset digital reverb provides depth and expansion effects tailored to the unique characteristics of the acoustic guitar.

Specs

Inputs:
- Channel 1 Impedance: 3.9M Ohms / Input range 150mV to 10V p-p
- Channel 2 XLR and Jack Impedance: 600 Ohms balanced / Level -20dB to 0dB
- Effects Return Impedance: 47k Ohms / Level 0dBu

Outputs:
- Line Impedance: 4.7kOhms / Level 0dBu
- Effects Send Impedance: 10k Ohms / Level 0dBu
- DI Impedance: 600 Ohms balanced / Level -20dBu
- EQ: +/- 15dB at 100Hz and 10kHz
- Notch Filter Frequency: 70 to 350Hz / Q = 5
- Power Output (RMS): 350W Bi-amped digital
- Speaker Configuration: 1 x 10 dual concentric or 1 x 12 dual concentric
- Dimensions (HxWxD): AAR3-10: 450 x 455 x 290 / AAR3-12: 500 x 505 x 340
- Weight: AAR3-10: 11kg / AAR3-12: 18kg
