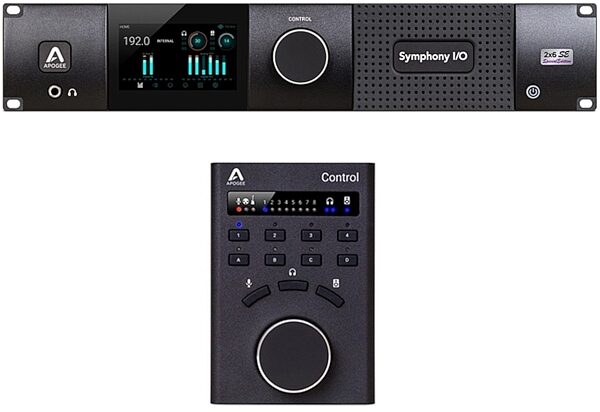

Apogee Symphony I/O Mk II 2x6 SE Thunderbolt Audio Interface

INPUTS
- Analog IN: 2 balanced inputs on 2 female XLR connectors
- AES IN: Stereo input on 1 female XLR connector
- Optical IN: Supports ADAT, SMUX & S/PDIF
-- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
-- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
-- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

OUTPUTS
- Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
- AES OUT: Stereo output on 1 male XLR connector
- Optical OUT: Supports ADAT, SMUX & S/PDIF
-- ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
-- SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
-- S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
- S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

A/D
- THD+N of -116dB @23dBu (0.00016%) unweighted
- Dynamic range: 124 dB (A) of dynamic range
- Maximum input levels:
-- +4dB setting: +24dBu
-- -10dB setting: +6dBV
- Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
- Input impedance: 10K

D/A
- THD+N of -118dB @ 22dBu (0.00013%) unweighted
- Dynamic range: 131dB (A) dynamic range
- Max output levels – ∞ to +24dBu
- Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
- Output impedance: 25 Ohm

Connection
- Thunderbolt 2 (Thunderbolt cable sold separately)

Performance
- 44.1kHz – 192kHz
- Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)

Computer
- Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
- Operating System: Mac OS 10.9.5 or greater

Control
- Symphony Control software (included in software installer) and front panel touchscreen

Compatible Software
- Logic Pro X
- Any Core Audio application on Mac
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 18 lbs
Shipping Dimensions: 23 x 18 x 10 in
Manufacturer Part Number (MPN): SYM2-2X6SE
Warehouse Resealed
Shipping Weight: 18 lbs
Shipping Dimensions: 23 x 18 x 10 in
Manufacturer Part Number (MPN): SYM2-2X6SE
