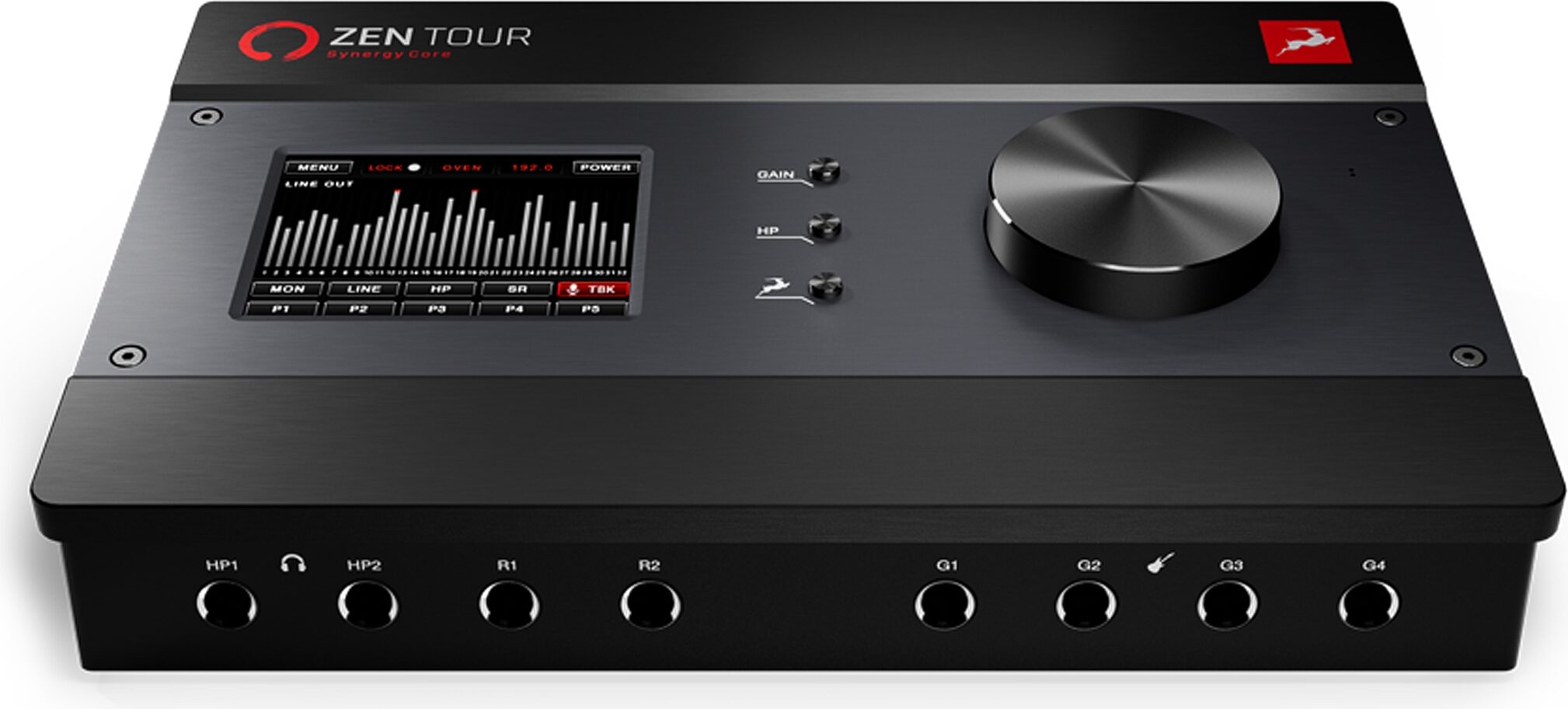

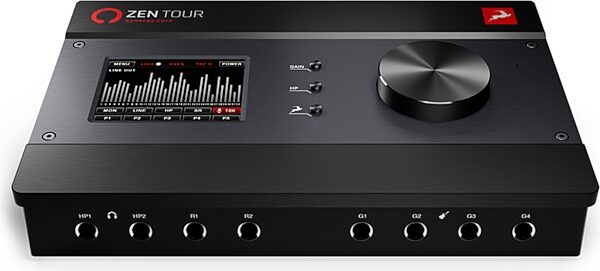

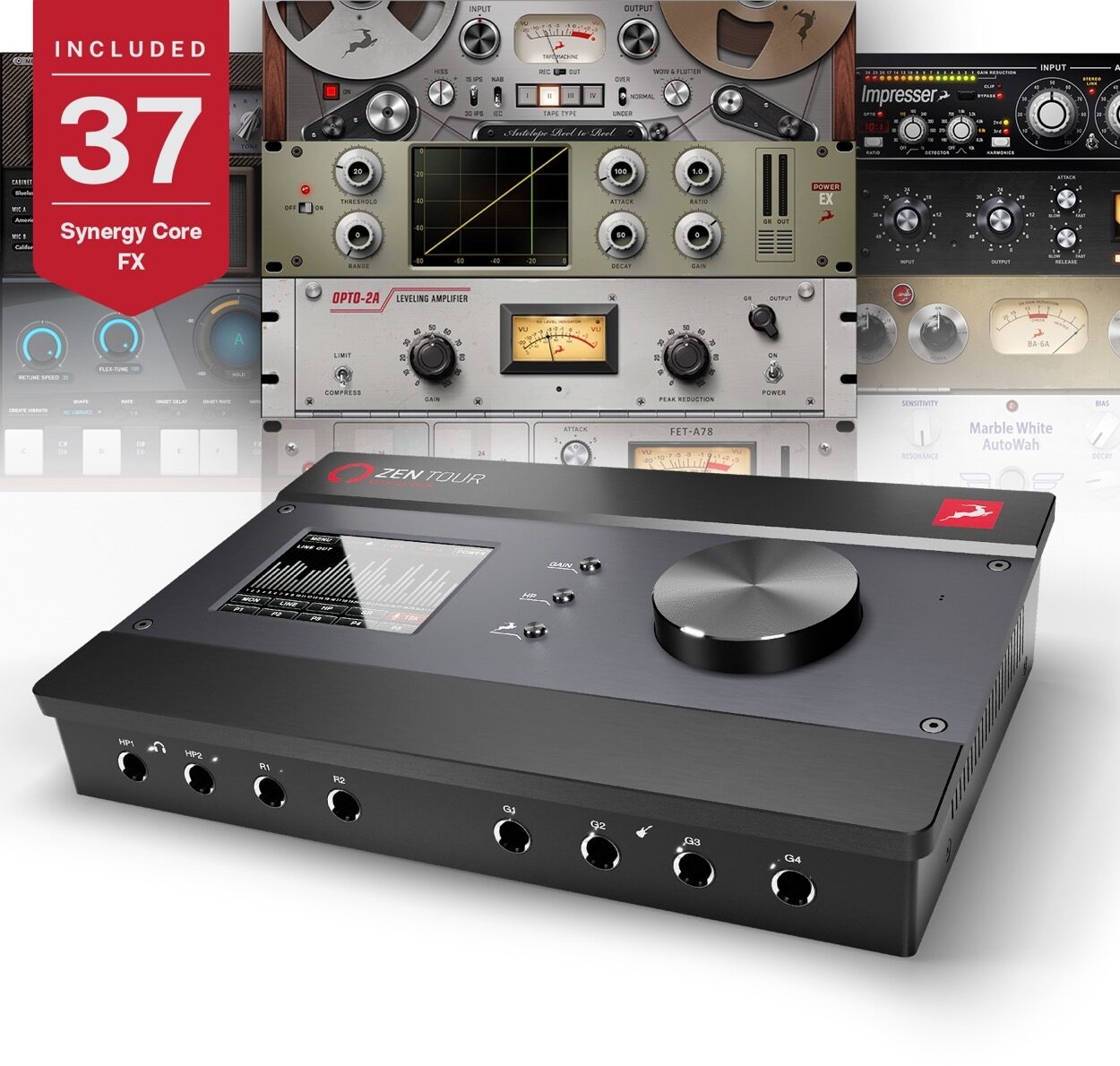

Antelope Audio Zen Tour Synergy Core USB/Thunderbolt 3 Audio Interface

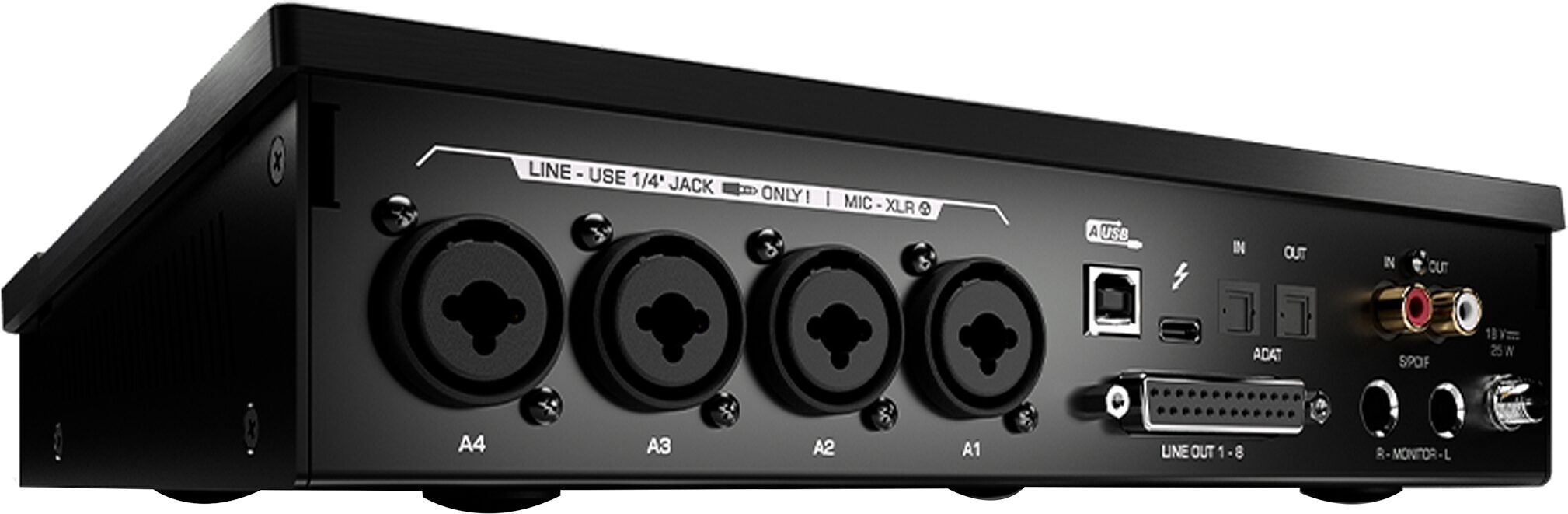

ANALOG:
Analog Inputs:
- 4 x Hi-Z / Line Inputs
- 4 x Mic / Line Inputs on Combo XLR jacks
Analog Outputs:
- 1 x Monitor Out Pair on TRS 1/4 Jacks, +20 dBu max
- 8 x Line Outs on TRS, +20 dBu max (DC-Coupled)
- 2 x Stereo Headphone Outputs
- 2 x Re-amp Outputs

Mic Preamps:
- EIN: -128 dBu (A-weighted)
- Dynamic Range: -121 dB (A-weighted)
- THD: -106 dB
- Max input: +20 dBu
- Max Gain: 65 dB

D/A Monitor Converter:
- Dynamic Range: 130 dB
- THD + N: -115 dB

D/A Converter (Line Out)"
- Dynamic Range: 127 dB
- THD + N: - 106 dB
- DC Coupled

A/D Converters:
- Dynamic Range: 124 dB
- THD + N: -110 dB

DIGITAL:
Digital Inputs:
- 1 x ADAT (up to 8CH)
- 1 x S/PDIF (up to 2CH)
- Digital Outputs
- 1 x ADAT (up to 8CH) also transmitting word clock
- 1 x S/PDIF (up to 2CH) also transmitting word clock

USB 2.0 I/O:
- USB 2.0 Type B connector
- (Up to 24 channels)
- Thunderbolt(TM) 3
- Thunderbolt(TM) 3 Type C connector
- (Up to 32 channels)

CLOCKING:
Clocking System:
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Sample Rates (kHz)
- 44.1, 48, 88.2, 96, 176.4, 192

OTHER:
- Operating Temperature
- 0-50*C, 32-122*F
- Weight (Approx)
- 1.6 kg/ 3.5 lbs
- Dimensions (Approx)
- Width: 255 mm / 10.0"
- Height: 62 mm / 2.4"
- Depth: 168 mm /6.6"
- Power Consumption
- 25 Watts

IN THE BOX:
- Zen Tour Synergy Core Interface
- Quick Start Guide
- Inline External Power Supply Unit
- USB Cable
- Warranty Card

System Requirements:
WINDOWS:
- PC: Computer with USB ports and Thunderbolt(TM) 3 (backwards compatible with Thunderbolt(TM) 2)
- OS: Windows 10 x64 with the latest updates
- RAM: 4GB minimum (8GB or more recommended)
- CPU: Intel Core i3(TM) or AMD FX and higher

MAC:
- Model: Apple Mac 2012 or newer with USB ports and Thunderbolt(TM) 3 (backwards compatible with Thunderbolt(TM) 2)
- OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
- Memory: (RAM)4GB minimum (8GB or more recommended)
- Additional Info: Internet connection required for product activation.
Dimensions and Weight in Packaging
Bundle with Edge Solo Mic, Bitwig Software + Analog Curator FX Plug-ins
Shipping Weight: 12.25 lbs
Base Item
Shipping Weight: 7.5 lbs
Shipping Dimensions: 12 x 9 x 7 in
Manufacturer Part Number (MPN): 853744004854
Blemished
Shipping Weight: 7.5 lbs
Shipping Dimensions: 12 x 9 x 7 in
Manufacturer Part Number (MPN): 853744004854
If you have additional warranty questions, please contact the manufacturer at 916-238-1643
(2 ratings)
Submitted September 20, 2020 by a customer from gmail.com
"Wonderful Interface"
Verified Customer zZounds has verified that this reviewer made a purchase from us.

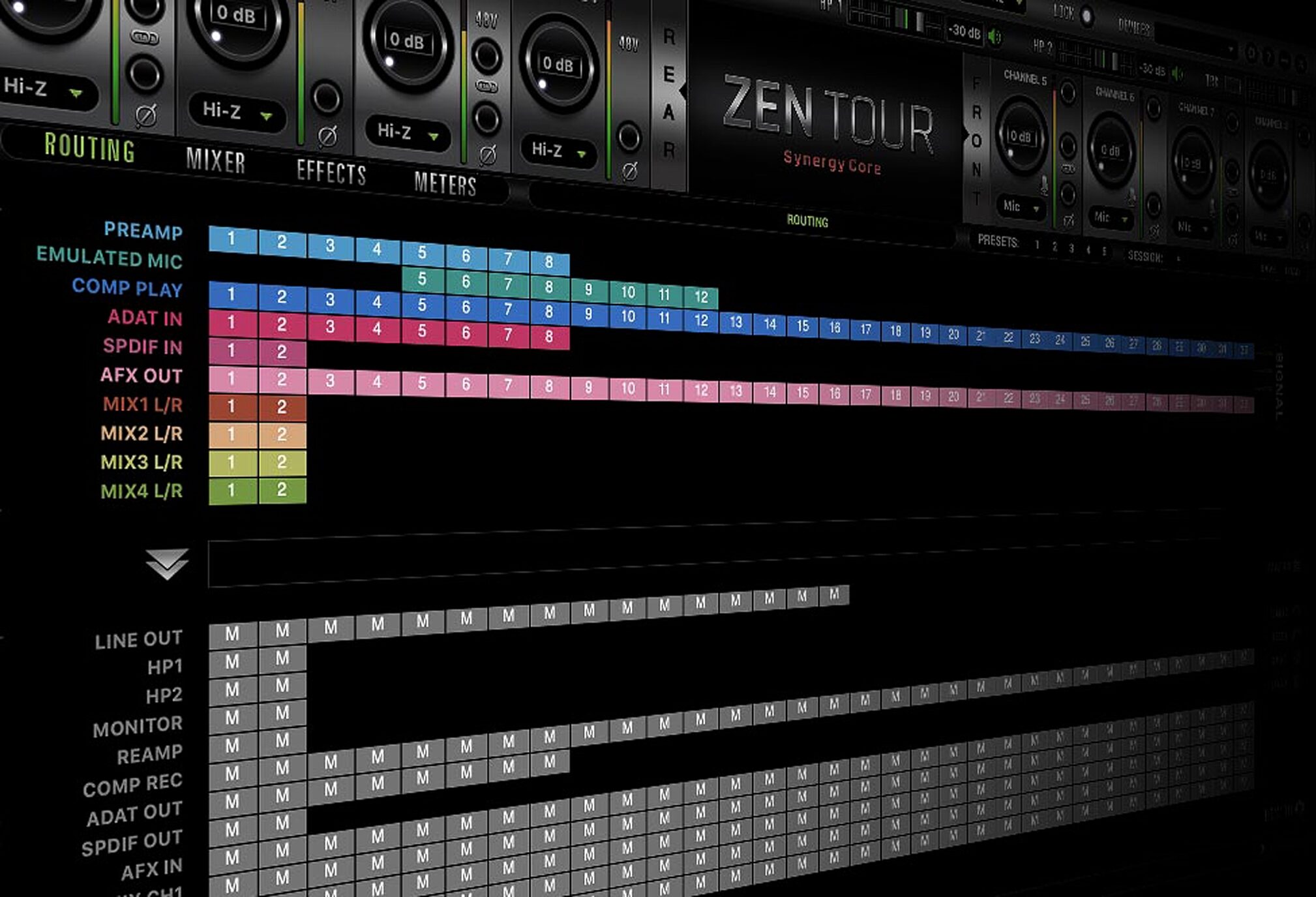

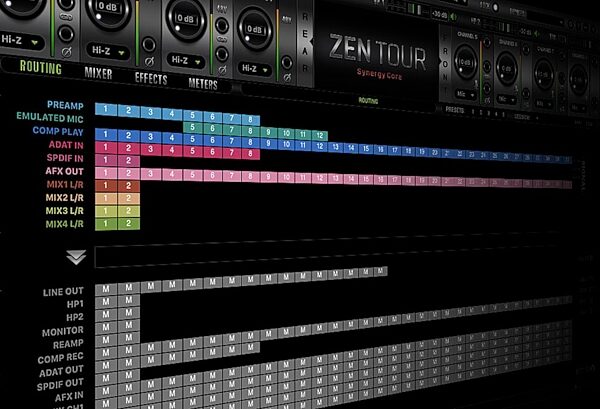

I typically program music in my DAW and work with a vocalist. I have owned several audio interfaces, my last was the Antelope Discrete 8 Synergy Core. I upgraded to the Zen Tour Synergy Core for the flexibility of the control panel and I wanted a desktop device. The control panel alone makes this my favorite. There are so many routing options and it's pretty easy to understand. The Antelope effects sound great and being able to mix with them is fun and rewarding! The results are nice. The sound quality of my productions have improved because of this device. Within 24 hours it has become my favorite, 10 Thumbs Up, Very Happy!!
1 of 1 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
