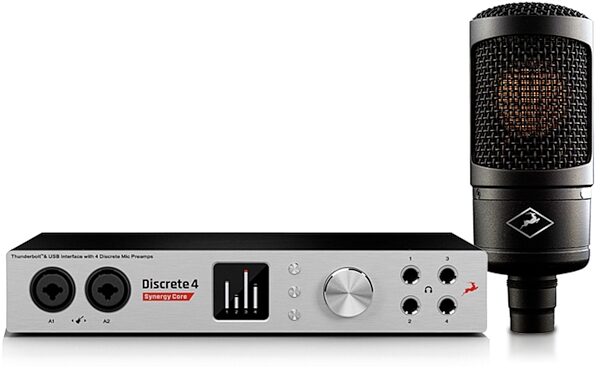

Antelope Audio Discrete 4 Synergy Core USB/Thunderbolt 2 Audio Interface

Analog Inputs
- 2 x Mic / Line Inputs
- 2 x Mic / Line / Hi-Z Inputs

Analog Outputs
- 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
- 4 x Line Outs on TRS, +20 dBu max
- 4 x Stereo Headphone Outputs

Mic Preamp
- EIN: -128 dBu (A-weighted)
- Dynamic Range: -121 dB (A-weighted)
- THD: -106 dB
- Max input: +18 dBu
- Max Gain: 65 dB

D/A Monitor Converter
- Dynamic Range: 121 dB
- THD + N: -100 dB

A/D Converter
- Dynamic Range: 121 dB
- THD + N: -112 dB

D/A Converters (Line Out)
- Dynamic Range: 118 dB
- THD + N: - 100dB
- DC Coupled

Digital Inputs
- 1 x ADAT (up to 8CH)
- 1 x S/PDIF

Digital Outputs
- 1 x ADAT (up to 8CH)
- 1 x S/PDIF

USB 2.0 I/O
- USB 2.0 Type B connector

Thunderbolt
- Thunderbolt 2 connector

Word Clock Outputs
- 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz

Clocking System
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS

Sample Rates (kHz)
- 32, 44.1, 48, 88.2, 96, 176.4, 192

Operating Temperature
- 0-50 C, 32-122 F

Weight (Approx)
- 1.7 kg/ 3.7 lbs

Dimensions (Approx)
- Width: 261 mm / 10.2"
- Height: 44 mm / 1.7"
- Depth: 208 mm /8.2"

Power Consumption
- 15 Watts

In the box
- Discrete 4 Synergy Core Interface
- Quick Start Guide
- Wart External Power Supply Unit
- USB Cable
- Warranty Card
Dimensions and Weight in Packaging
Bundle with Edge Solo Mic, Bitwig Software + Analog Curator FX Plug-ins
Shipping Weight: 10.5 lbs
Base Item
Shipping Weight: 5.75 lbs
Shipping Dimensions: 14 x 13 x 4 in
Manufacturer Part Number (MPN): Discrete 4 Synergy
Blemished
Shipping Weight: 5.75 lbs
Shipping Dimensions: 14 x 13 x 4 in
Manufacturer Part Number (MPN): Discrete 4 Synergy
Warehouse Resealed
Shipping Weight: 5.75 lbs
Shipping Dimensions: 14 x 13 x 4 in
Manufacturer Part Number (MPN): Discrete 4 Synergy
If you have additional warranty questions, please contact the manufacturer at 916-238-1643
(19 ratings)
Submitted January 28, 2020 by Konstantin Matheou in Lakewood, OH
"Very Happy With Product"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I bought this unit to be a pre amp and mic combo for my current DAW setup. I am very happy with the various quick mic setups that come with the unit. I was unaware of the additional $50 dongle needed for setup - dongle not included - also needs to be ver 2 or better. Likewise, using Wind 10 OS, cannot have both say MOTU and Antelope being used at the same time as you can if using a Mac OS. Also important to note, that you can use the SPDIF link between two ADC/DACs (for example, I have the MOTU interface).. and to save an audio input to the MOTU from the antelope preamp analog input, I use the SPDIF clocked output to the MOTU input... THese are more setup/integration issues I came across... but main thing is the quality and the ease of getting a main vocals mic setup quickly and with variation when needed and the processing is not done on the PC. Support was very good.. used them 3 times and they returned my call the same day.
Musical Background:
45 years - play professionally - piano/keyboards - clarinet/sax
Musical Style:
Greek, International, Jazz, Rock, Blues, Motown, 70's rock and contemporary
7 of 7 people (100%) people found this review helpful. Did you?
