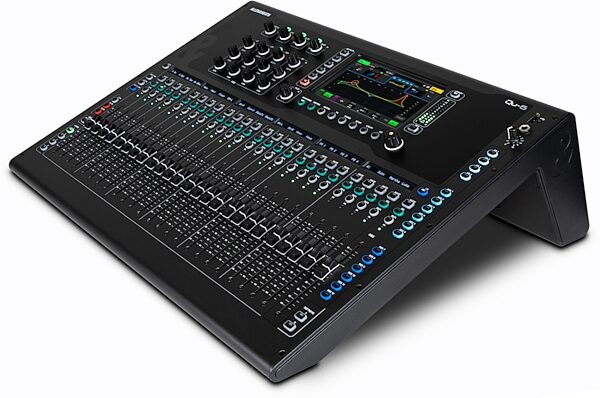

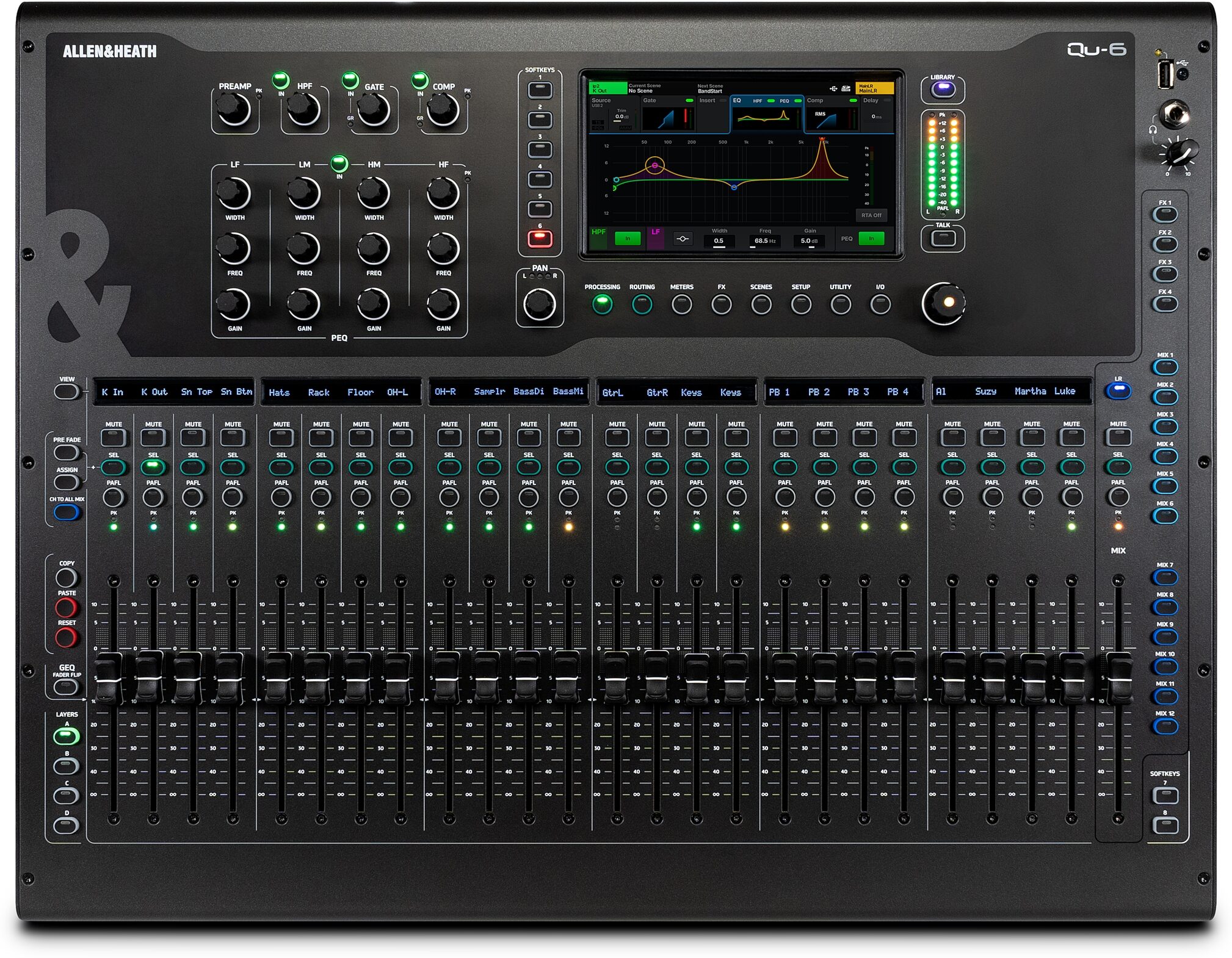

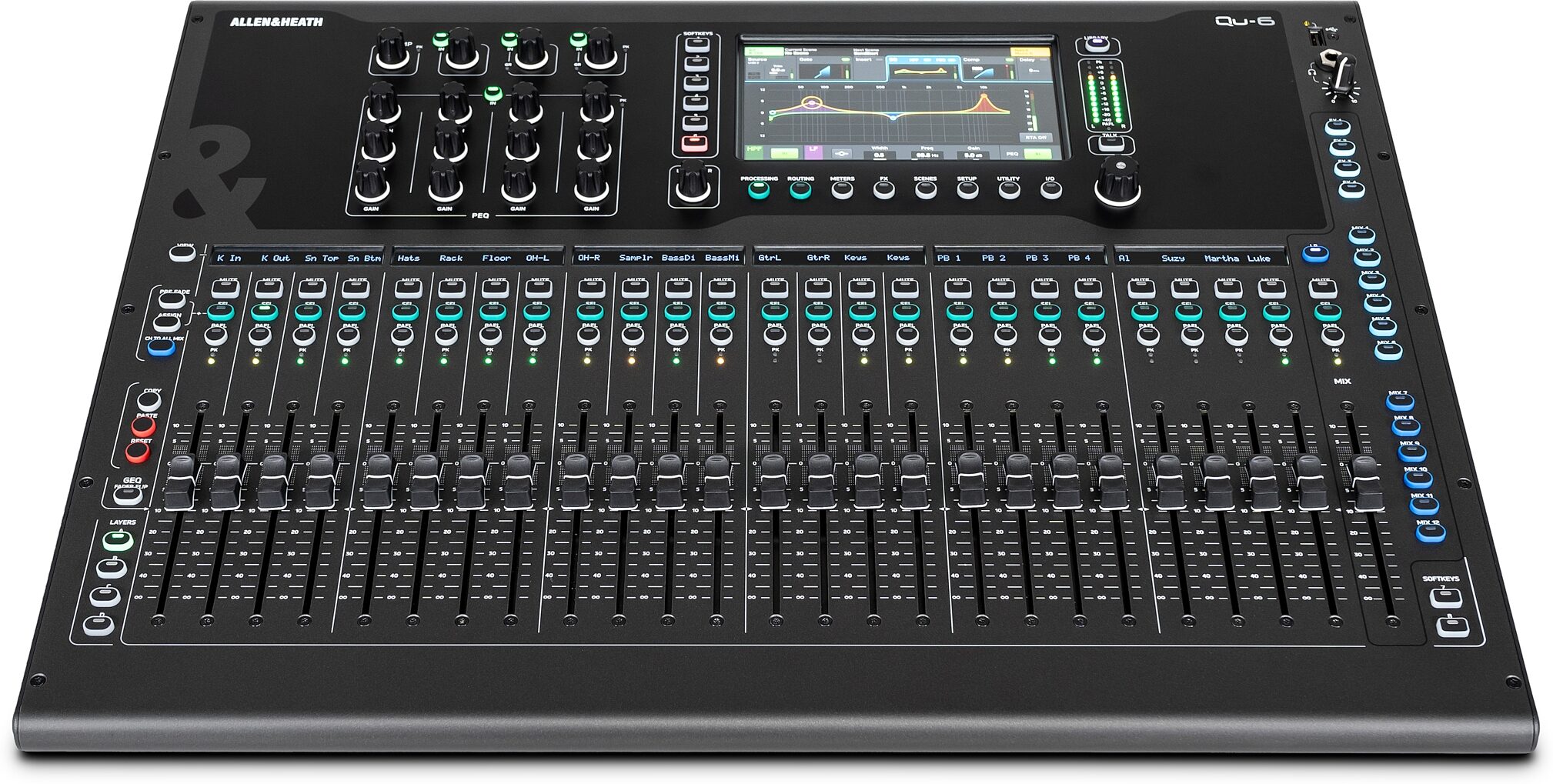

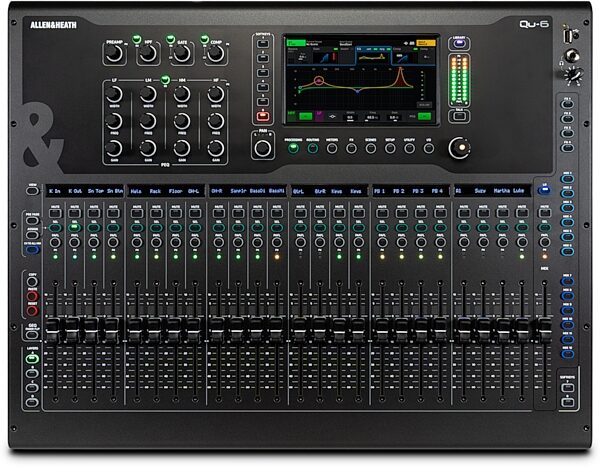

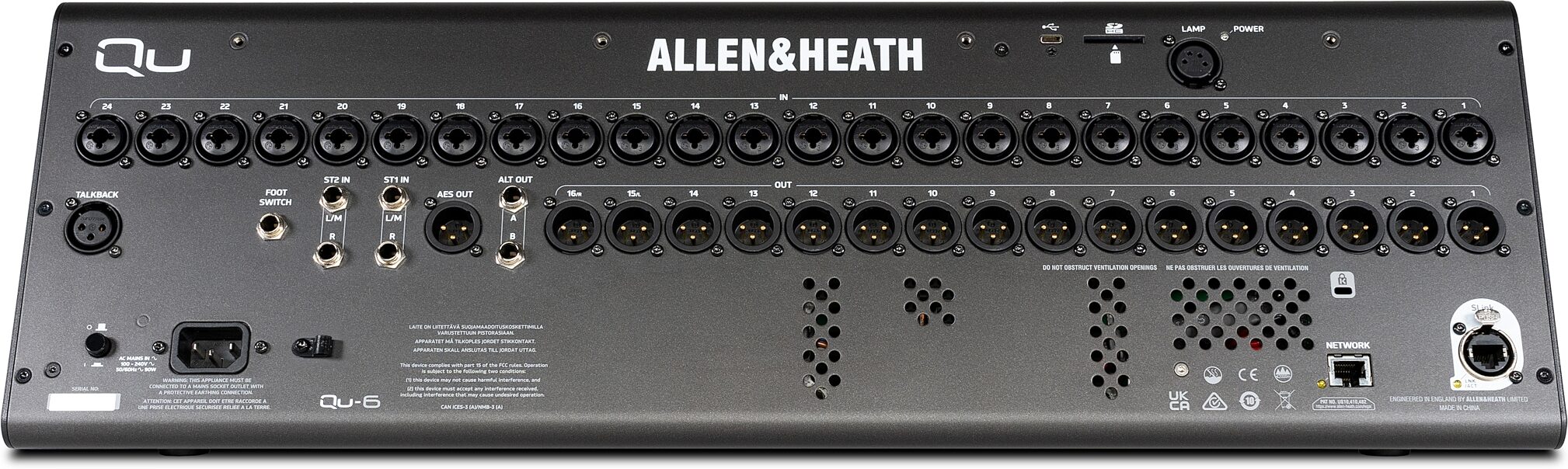

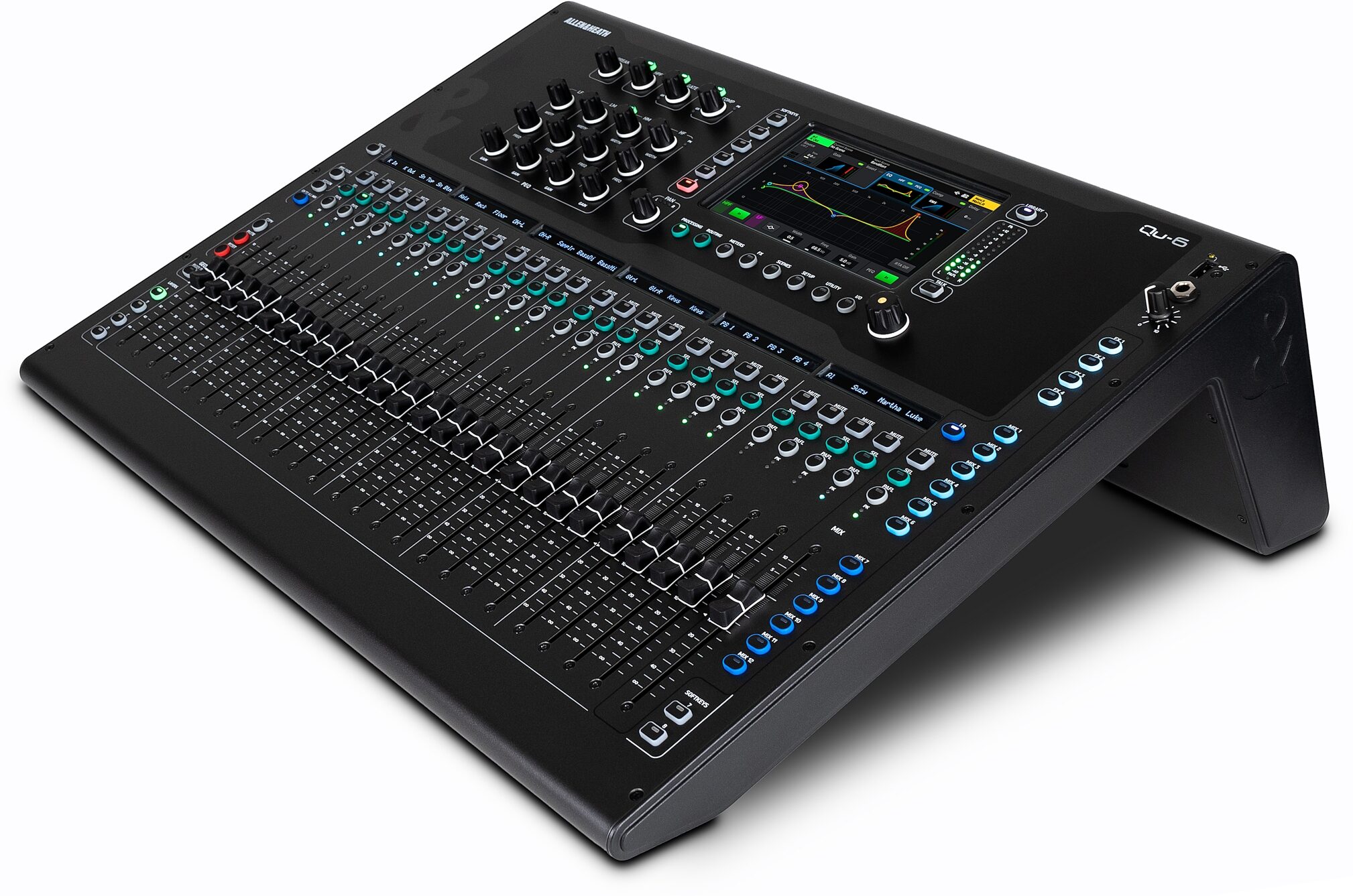

Allen and Heath Qu-6 32-Channel Digital Mixer

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back
Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back
Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back
Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back
Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back Allen and Heath Qu-6 32-Channel Digital Mixer, New, Action Position Back
zZounds Gear Experts Say...
Get hands-on control of every channel with the Allen and Heath Qu-6, a 32-channel mixer with powerful DSP and a simple workflow.

Qu-6 takes the popular Qu-24 form factor and adds Allen & Heath's powerful XCVI processing, updated FX engines and Everything I/O connectivity. There's also a larger capacitive touchscreen, channel strip displays and fully customizable layers.

In addition, the Qu-6D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment. Both the Qu-6 and Qu-6D are 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.

Features:

- Stereo Main LR Output
- Stereo Headphone Output
- 6x Multi-FX Engines with dedicated Return Channels
- 7" Capacitive Touchscreen
- 4x Channel Strip Layers
- 8x SoftKeys
- 12V Lamp Socket
- Remote control via free apps - Windows/MacOS/iOS/Android

- 96kHz FPGA Core
- 36x Inputs to Mix(32x Mono/Linkable, 2x Stereo)
- 12x Mixes(6x Mono/Linkable Aux, 6x Stereo Aux/Group)
- 4x Matrix (Mono/Linkable)
- 24x XLR/Jack 'Combi' Mic/Line Input Sockets
- 2x Stereo Line Input Sockets(each 2x TRS)
- 1x Talkback Socket
- 16x XLR Output Sockets
- 2x TRS Output Sockets
- 1x AES3 Stereo Digital Output Socket
- 128x128 Intelligent SLink Port for Everything I/O expansion and system connections
- 16x16 48/96 kHz Dante interface (Qu-6D only)
- 25x 100mm Motorised Faders
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32x32)
- SD Card Slot for multichannel audio record/playback (16x16@96kHz, 32x32@48kHz)
- Configurable single/dual Footswitch Connection
- Configurable Chromatic Channel Meter LED's
- IEC Mains Connection with Worldwide PSU
- RJ45 Network Socket
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 35.5 lbs
Shipping Dimensions: 30 x 26 x 13 in
Manufacturer Part Number (MPN): AH-QU-6

For support or warranty questions, please contact the manufacturer:
Phone: 800-431-2609
Web: https://www.allen-heath.com/support/
