zZounds Gear Experts Say...
AEA matched two figure-8 ribbons in a Blumlein pair, making stereo mic'ing easy. With 135 dB max SPL, this modern ribbon mic rocks on drums, amps, and more!

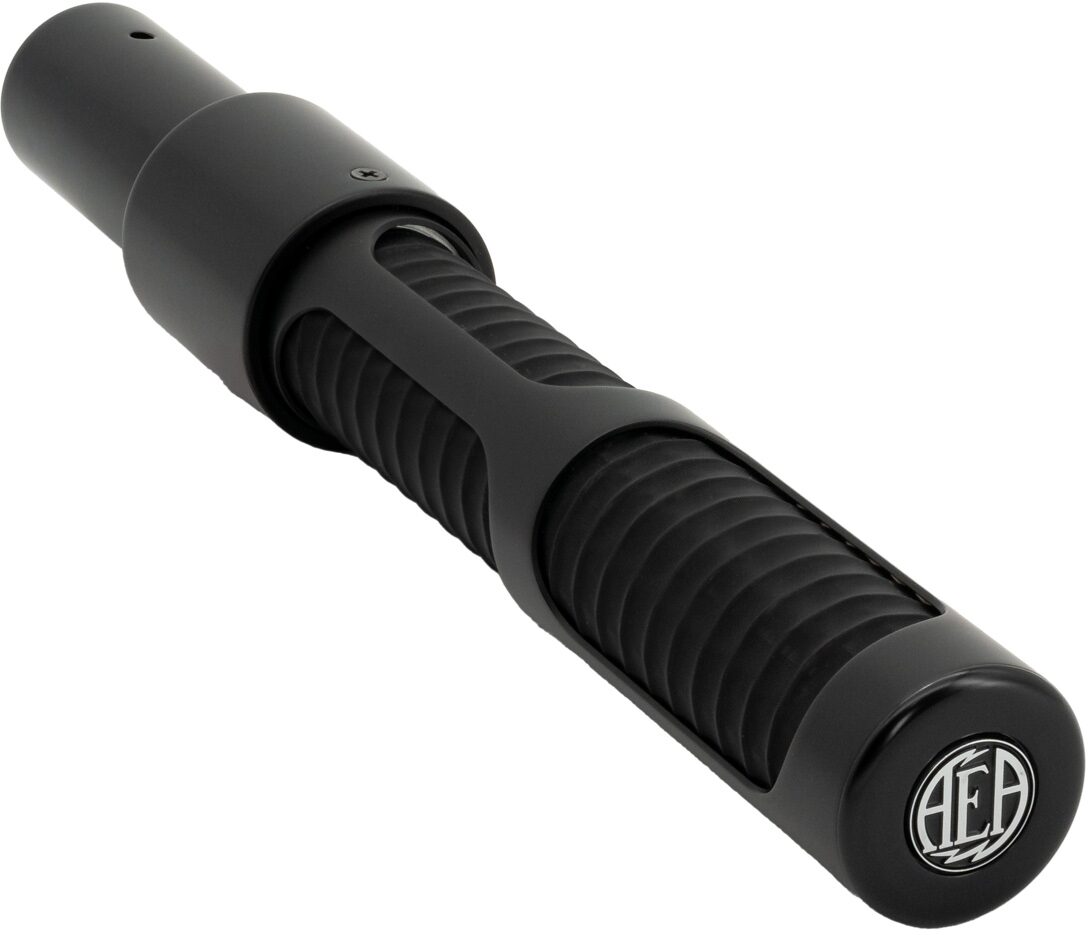

The N28 is an active Blumlein ribbon microphone equipped with two matched bidirectional (or figure-of-8) ribbon transducers, and designed with a compact, easy-to-position body that is slightly longer -- by just under two inches -- than other Nuvo microphones. The N28 uses Lehle 1:89 transformers and impedance buffer amp topology. Small, easy to position, and optimally designed for medium-distance miking applications, the N28 is the perfect addition to the AEA NUVO line.

Feature:

- 0.086" wide, 1.31" long ribbons
- Fixed Blumlein matched bidirectional (or figure-of-8) ribbon transducers
- Precision matched within +/- 0.5 dB between channels
- Mid-field low-end response tuning

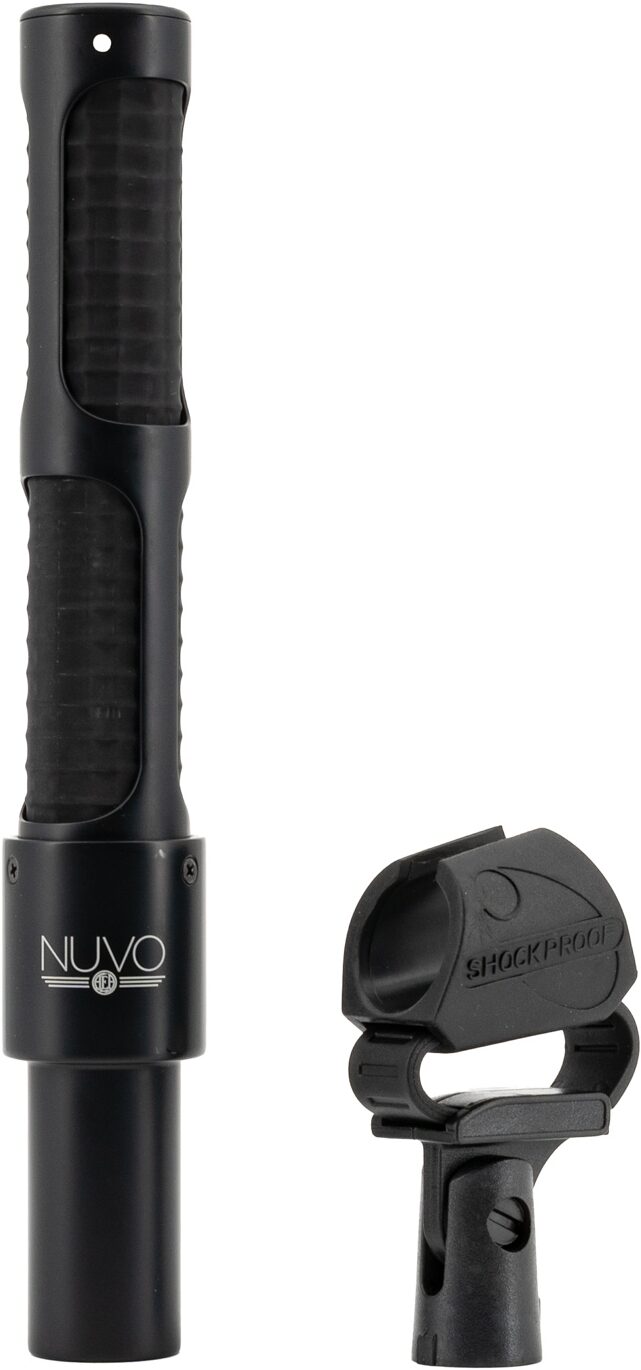

- Supplied with standard shock mic clip
- 15-foot detachable 5-pin XLR-5 breakout cable
- Additional pop/windscreen
- Requires 48V phantom power, 7mA
- 1:89 Lehle output transformers

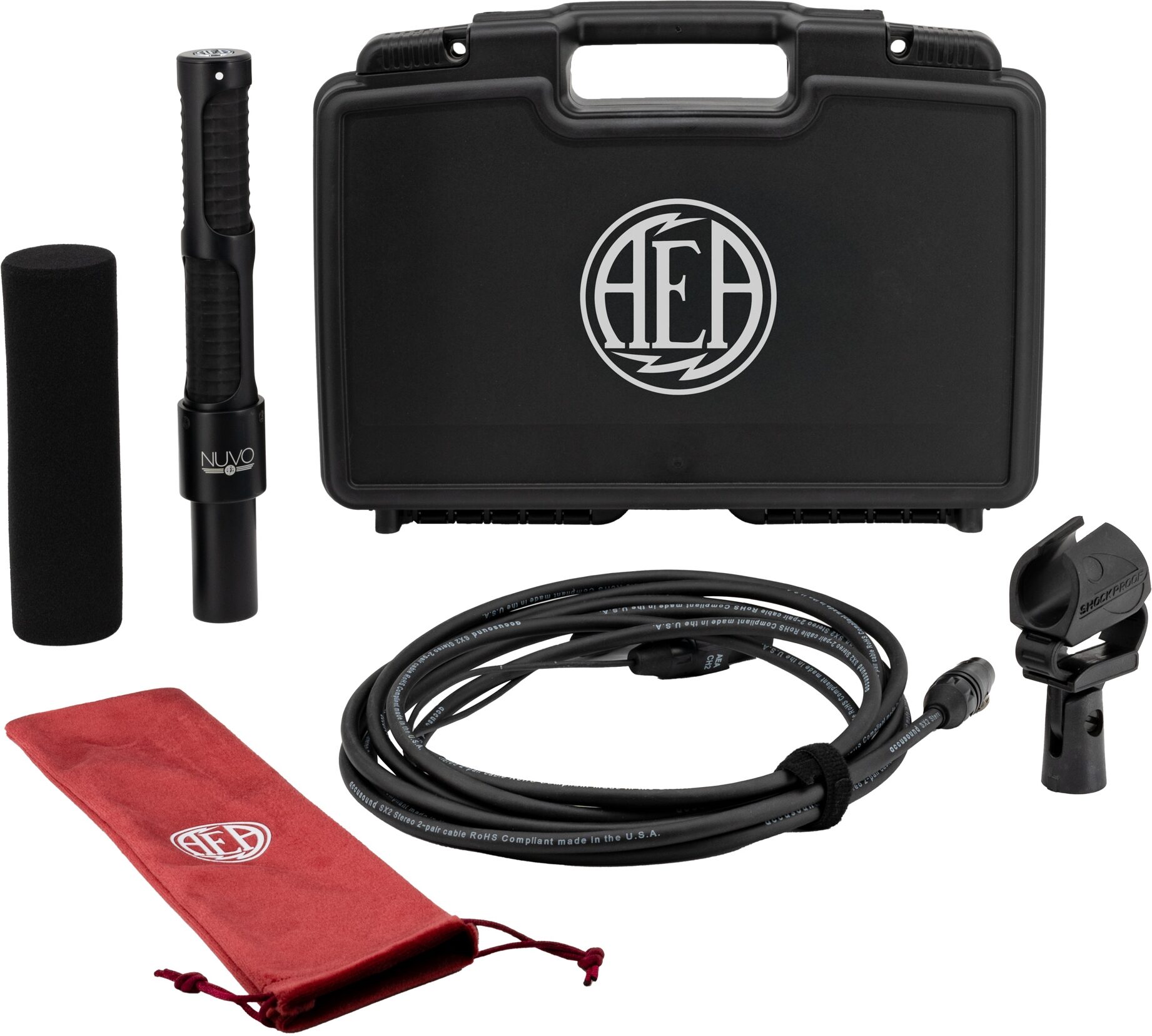

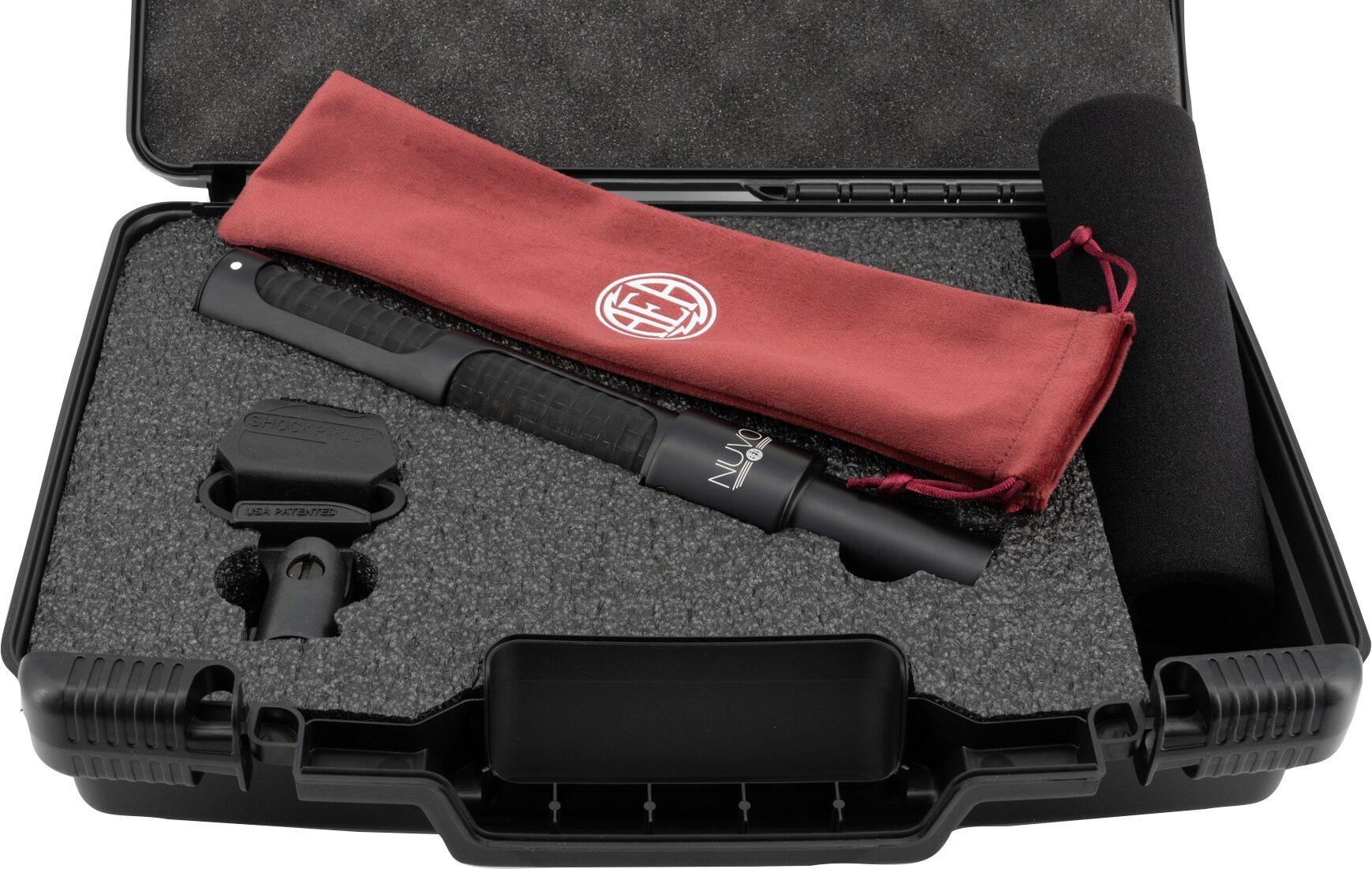

Included Accessories:

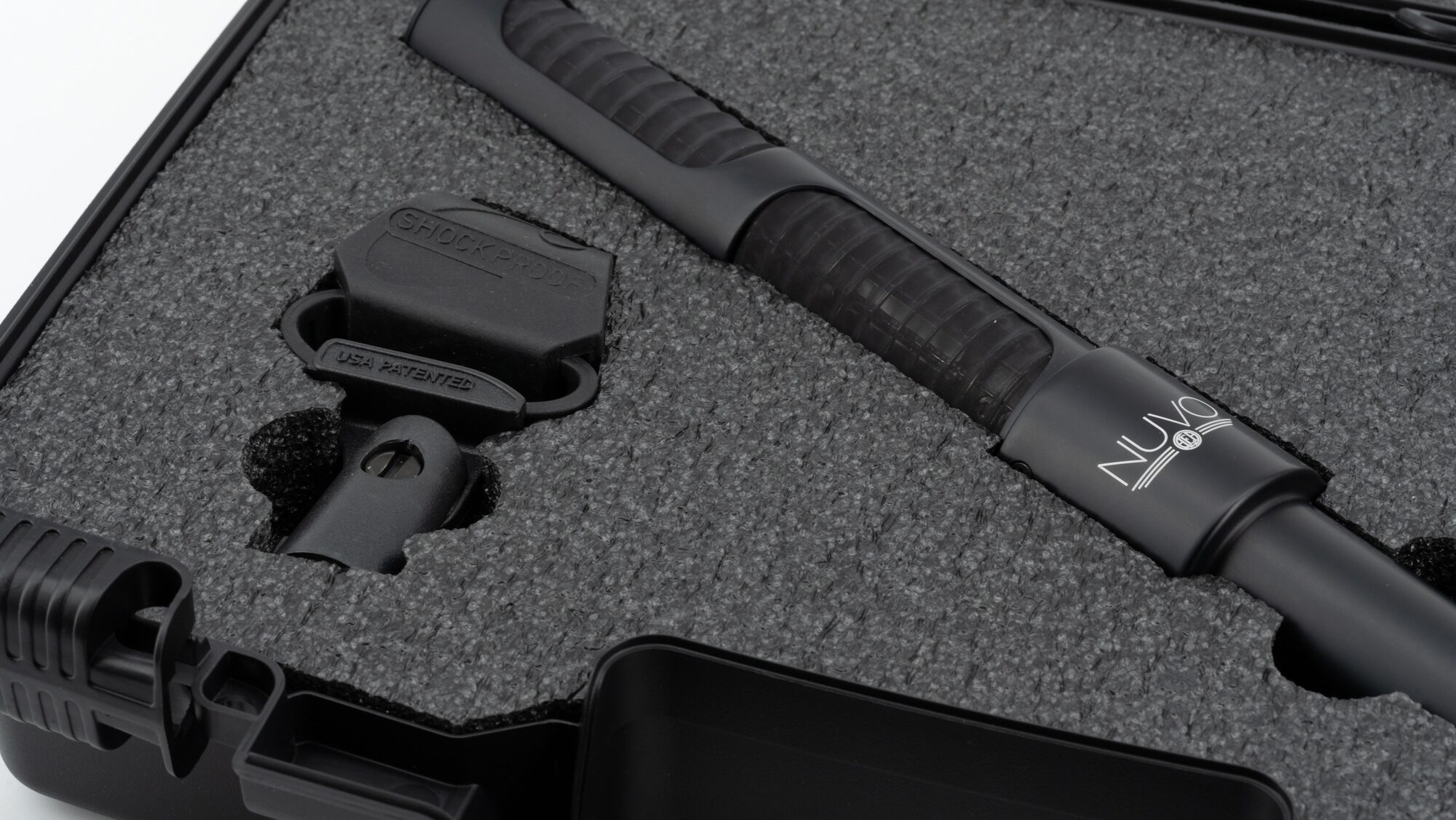

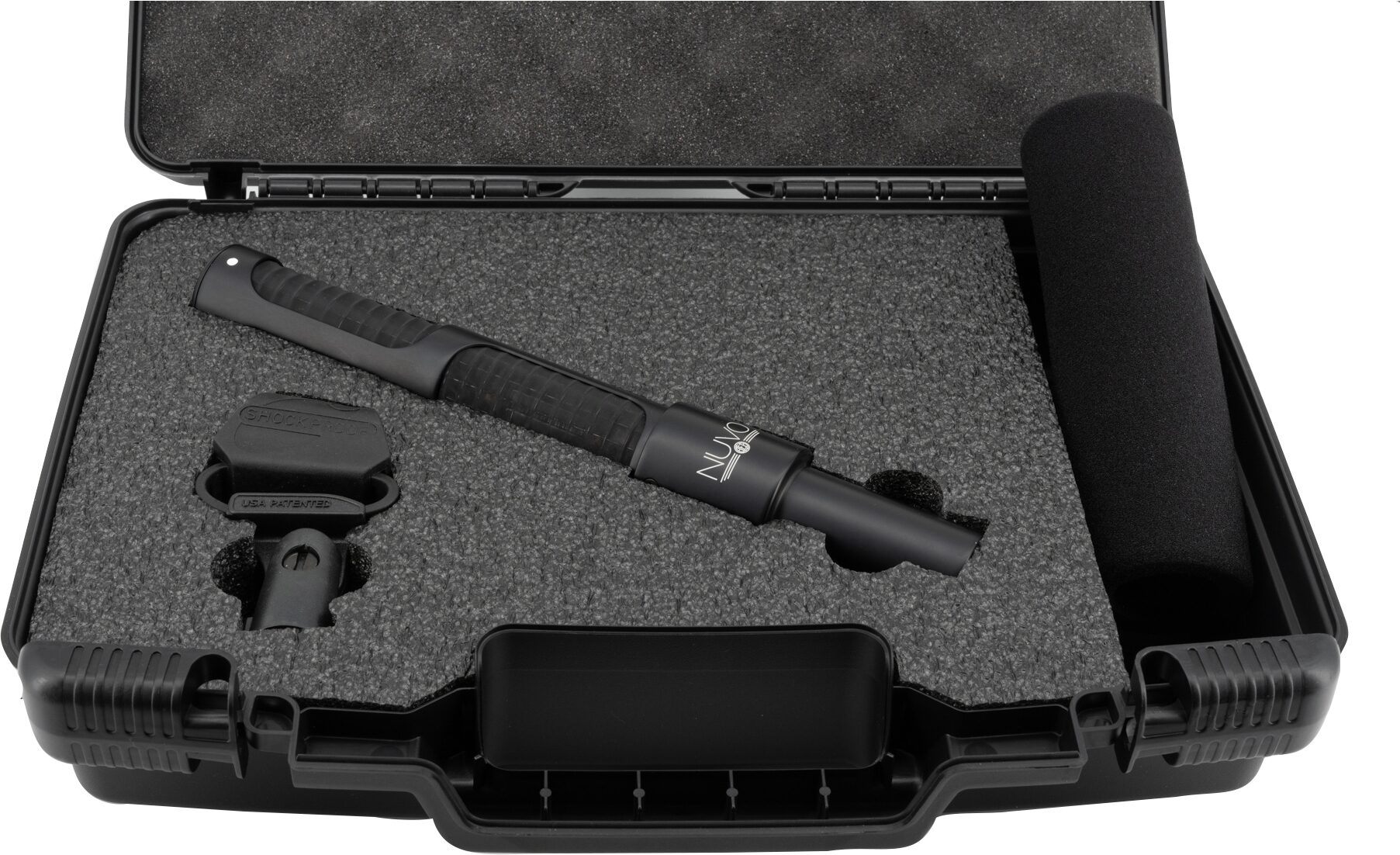

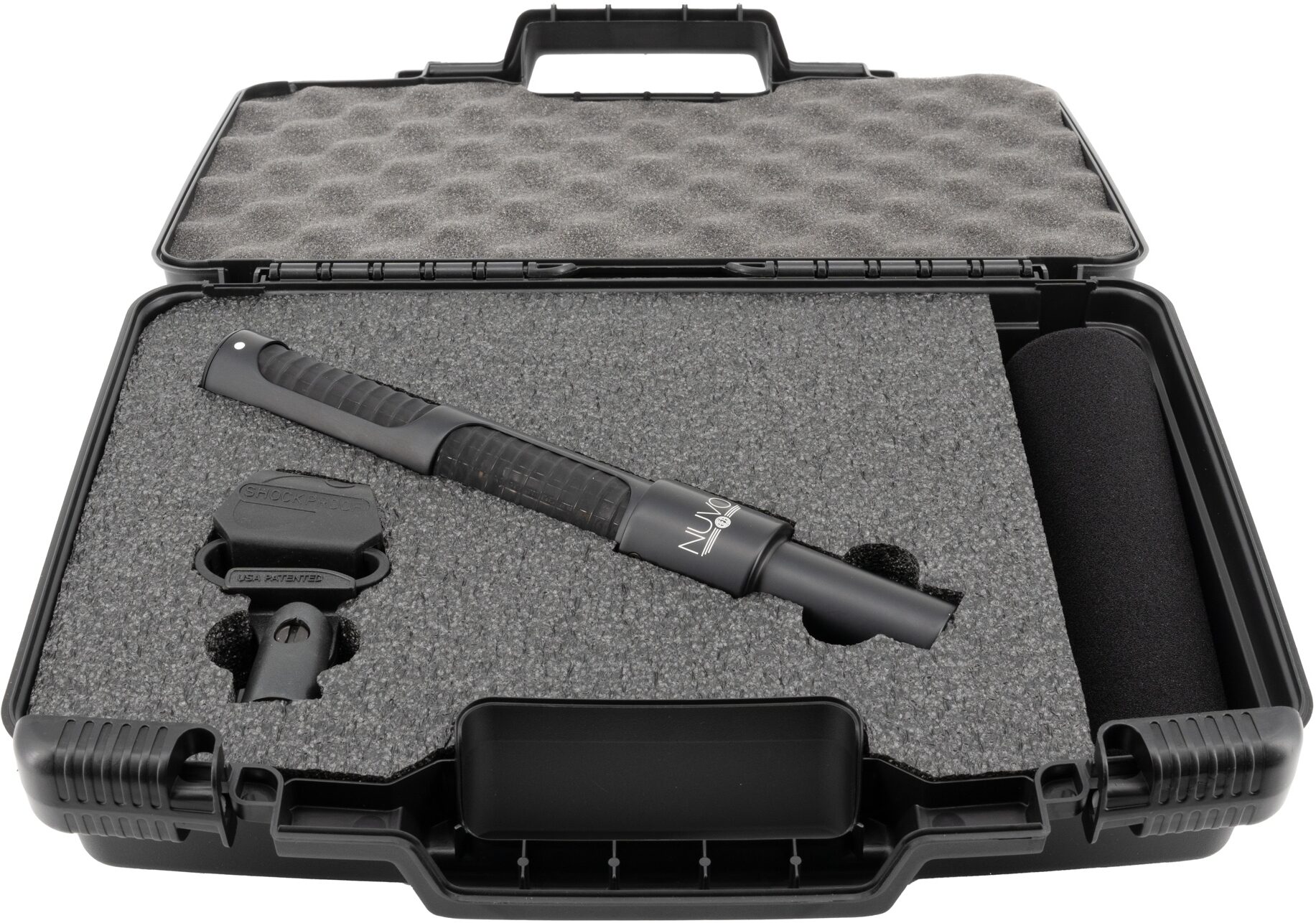

- Storage/shipping case
- Custom windscreen
- Shock mount clip
- Soft cloth bag
- 15-foot breakout cable
- Manual

Operating Principle: Pressure gradient transducer
Directional Pattern: Two bidirectional in fixed Blumlein pair
Frequency Range: <20 Hz to >20 kHz
Maximum SPL: 135 dB SPL at 1 kHz
Sensitivity: 6.10 mV/Pa (-44.3 dBV)
Output Impedance: 92 Ohm broadband
Load Impedance: 1.0 kOhm or greater
Phantom Power: P48 phantom power, 7mA
Polarity: Pin 2 and 4 high for positive pressure at the front of the microphone
Off-Axis Response
- Horizontal: Level changes with angle, frequency response is consistent, -35dB null at 90o / 270o
- Vertical: Level changes with angle, reduced HF response above and below 0o / 180o, -25 dB null at 90o / 270o
Transducer Element
- Material: Aluminum corrugated ribbon
- Thickness: 1.8 \0x03BCm
- Width: 0.086 in (2.2 mm)
- Length: 1.31 in (33.3 mm)
Microphone Dimensions
- Height: 10.6 in (270 mm)
- Width: 1.62" (412 mm)
- Weight: 14 oz (400 g)
Connector: XLR-5M
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 4.32 lbs
Shipping Dimensions: 16 x 12 x 5 in
Manufacturer Part Number (MPN): N28

For support or warranty questions, please contact the manufacturer:
Web: https://aearibbonmics.com/support/
