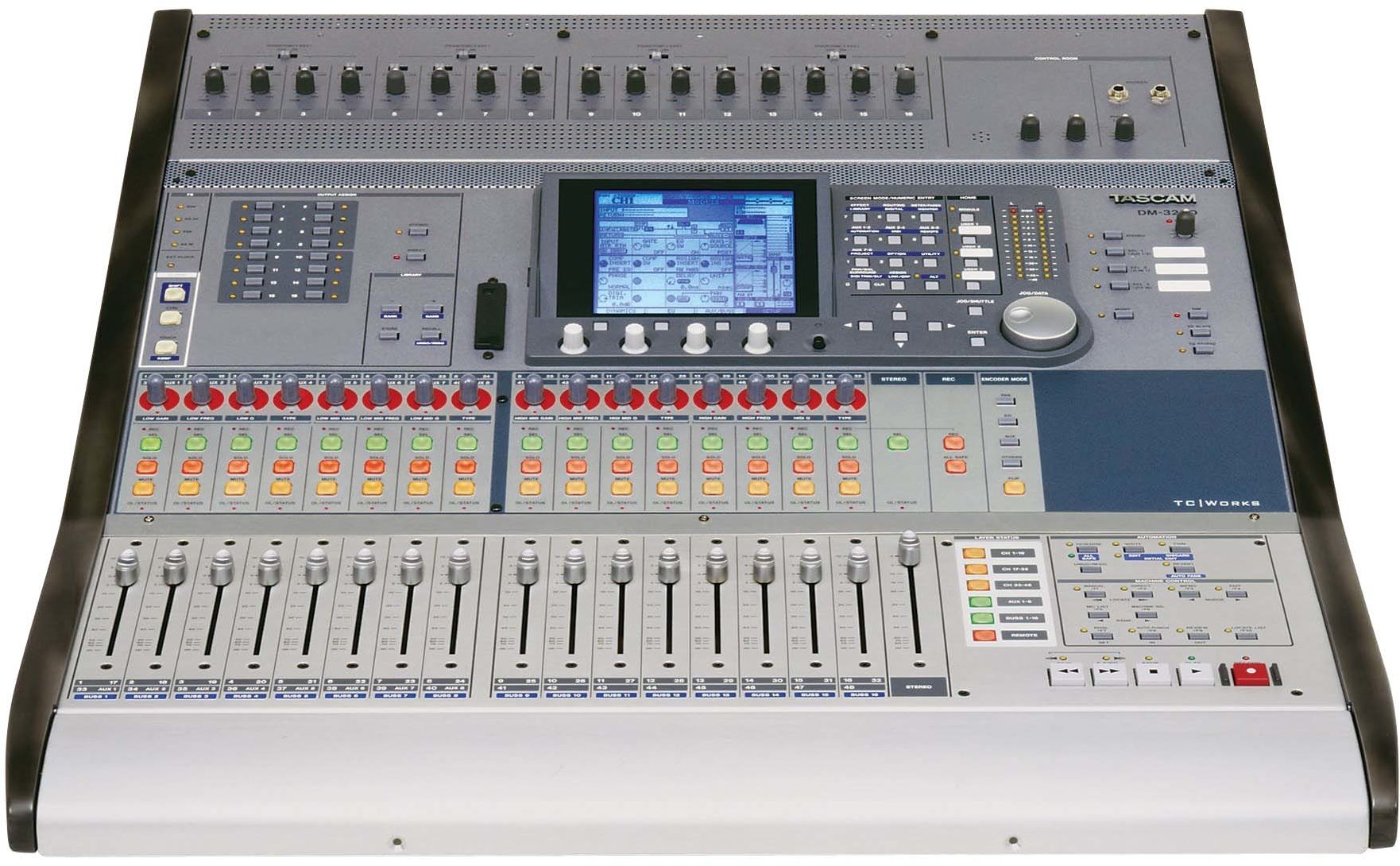

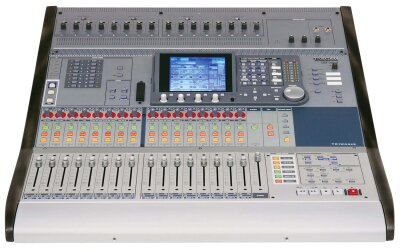

Tascam DM3200 32-Channel 16-Bus Digital Mixer

16 busses, 8 Aux Sends, 16 analog mic/line inputs, 24 channels of TDIF, and 8 channels of ADAT

Additional Images: Loading...

Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
More channels. More inputs. The new TASCAM DM-3200 has more of everything that made the DM-24 a pedigreed studio workhorse. Plus an improved physical interface with per-channel multi-function LED ring encoders, more comprehensive DAW control, vastly improved routing flexibility, easier and robust data backup/ restore, greatly expanded mix storage using compact flash media and much more.

The DM-3200 is a 32-channel digital mixing console, even at its full 96kHz / 24-bit audio resolution. It features 48 inputs at mixdown, 4-band fully-parametric EQ and dynamics on every channel, and four effects processors. It mixes in surround, panning up to 6.1 output channels, and the optional IF-SM/DM expansion card adds surround monitoring and downmixing to the DM-3200. An additional expansion card, the IF-FW/DM FireWire card, turns the console into a 24-channel computer audio interface, making it a complete studio solution for professional DAW recording.

32 channels and 16 auxiliary returns for 48 total inputs

16 busses

8 Aux Sends

16 analog mic/line inputs with phantom power for condenser mics and analog inserts

24 channels of TDIF and 8 channels of ADAT built in

2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards

Dedicated cascade port supports cascade of two DM-3200s

Per channel LED ring encoders for pan, aux sends and EQ

Built-in DAW control

All inputs, effects and processing are available at 96k -- no features are sacrificed at full sampling rate

Transport controls

Powerful automation with touch-sensitive motorized faders

EQ and compression on each channel

Two built-in effects processors at 44.1/48k or 88.2/96k

Flexible routing

Offload data to convenient Compact Flash media using built-in CF slot

Optional MU-1000 meter bridge

Stylish, professional design with rear panel I/O connections

TASCAM Mixer Companion software (Win XP/OSX) with:

Driverless USB connection to computer

Backup/restore data via USB

On screen timecode, transport and meter displays

Technical Info

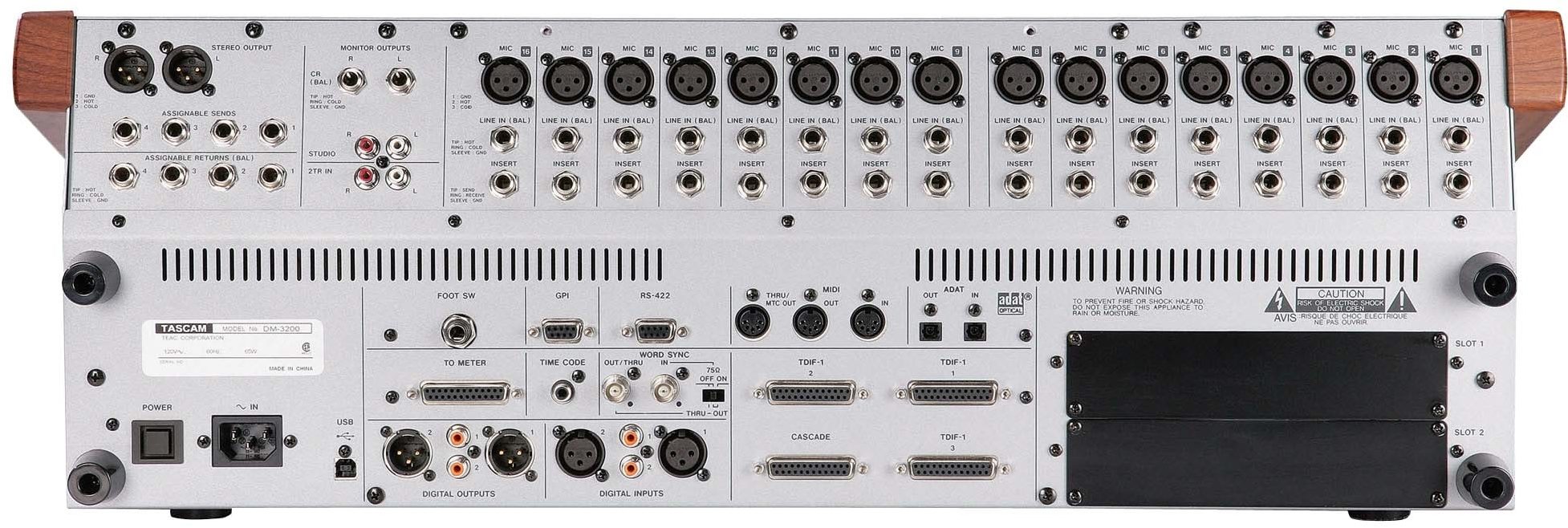

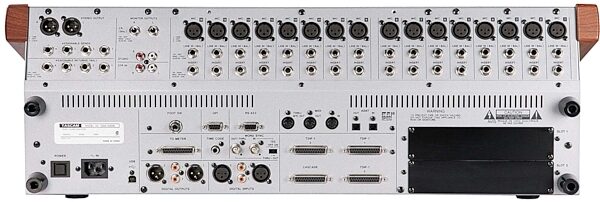

(16) XLR analog mic/line inputs with phantom power for condenser mics

(16) 1/4 in. TRS Analog Inserts

(16) Balanced 1/4 in. TRS line inputs

(3x) 8-channel TDIF digital inputs and outputs

8-channel ADAT optical digital input and output

2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards (listed below)

(2) Stereo AES/EBU digital inputs on XLR connectors

(2) Stereo S/PDIF digital inputs on coaxial connectors

(2) Stereo AES/EBU digital outputs on XLR connectors

(2) Stereo S/PDIF digital outputs on coaxial connectors

Stereo XLR balanced line outputs

1/4 in. Stereo TRS balanced Monitor outputs

Stereo RCA Studio outputs

Stereo RCA 2-Track input

(4) 1/4 in. TRS balanced Assignable Insert sends

(4) 1/4 in. TRS balanced Assignable Insert returns

RCA Timecode Input

MIDI In, Out and Thru connectors

BNC Word Sync Input and Out/Thru with termination

GPI output for replay control

RS-422 connector for device control

USB 1.1 connector

1/4 in. Footswitch jack

Dedicated cascade port supports cascade of two DM-3200 mixers

Connector for (optional) MU-1000 24-channel meter bridge
Powerhouse 24-bit, 96kHz digital mixer sports 32 channels, each with 4-band parametric EQ and compression. Add to that its 16 aux returns and you've got 48 channels at mixdown! 16 mic pres w/ phantom power and inserts. 16 touch-sensitive, motorized faders. 2 effects processors. USB and Compact Flash backup.

What Our Customers Say About zZounds

"Super Cheap Gear. Great and affordable Shipping. Mine was free!!!" - customer on November 20, 2009

Call 800.ZZOUNDS (996.8637) and mention priority code: 7W6L8H6

Item: TASDM3200

In Stock
Will Ship Monday
$2,999.00
Call for 4 payments!
List: $4,199.99 SAVE 28%
Free Ground Shipping

related accessories


from $649.95
4 payments of $187.25

$399.00
4 payments of $99.75

from $9.95

from $99.00

from $9.95

Tascam DM3200 32-Channel 16-Bus Digital Mixer Reviews

113 People rated this product :
           9 out of 10
           9 out of 10
"Why buy anything else for the 3-5 grand mark"
Feature:
You can route anythign to anything basicaly, its intimidating if this is your first digital mixer untill you get the hang of it wich comes by pretty quick.

Quality:
For this price, why would you even get the yamaha dm1000, Its build is solid, looks F***in sexy, realy gave my studio a very proffesional feel and look. I loved the spaciousness of the board. faders with the moterization give them weight, wich feels oohh so nice the level with.

Value:
None on the market right now! If you want a stellar control surface and 16 ins, this would still be a good price for what your getting, the routing is so sick.

Desirability:
yea man it looks sexy, people walk into my studio and even ask to drop by just to see the mixer, and are blown away by its elegance. its a beaut!

Sound:
I give it a 9 because there are 100 though boards out there, so this is getting an awsome score, greate sound, the eq's are wicked fun and the FX are top notch.

Ease of Use:
Alittle trickey in the beginning, but that just made it so much more interesting, dont get freaked out by some other reviewers saying the board is hard to learn, once u learn one channel and its options, you know the whole board.

Support:
THIS IS WHERE I LOVE TASCAM! I bought the mixer and the Firewire card... after alittle wtf mate my mixer didnt read the card, and i couldnt connect with my computer... i emailed tascam and emidiatly they asked me how i set it up yadda yadda deliverd me a new card that same day, it didnt work either. I brought the board to where i bought it, figured out on the phone with a TEAC rep that the board was broken, I went to the TEAC building that was not to far from my home, got a fully functioning mixer while they fixed my mixer. I got the mixer back after a week workign perfect and never had to wait while they worked mixerless. Thanks Tascam! Plus when i was there I was shown some features not in the manual*

Overall:
If someone stole it from me id find out and yes get another one in a heartbeat. this will serve me untill 2 dm generations from now then ill get another one

Submitted: 11/18/2008
Style of Music: Trunk Filling Bass, Club Shattering Bass
4 of 4 people (100%) found this review helpful. Did you?
Thanks for your opinion!
           8 out of 10
  zZounds has verified that this customer bought this product from us.
"Try before you buy."
Feature:
This is where it excels. You can route just about anything, anywhere in this board and that is extreme flexibility. Where it lacks in sound, it makes up for with ins, outs, effects processors, really nice faders, DAW automation, ADAT (16 in/out possible with add on card) nice meter bridge and just a great, ergonomic surface. It takes awhile to digest it all, but the manual is well writtten, and easy to follow. It takes awhile to get used to all the different buttons, functions, sub menus, etc. I don't like the white background, tiny resolution LCD,. They could have done a better job there, but for the price, I think the board is OK.

Quality:
it looks more impressive than it sounds, just MHO

Value:
I am going to give it a high 8 because the board has so many inputs, that it really doubles as a sound card and DAW controller first. I really think it is a glorified FW-1884 with a stainless facadae, as I have owned both and really feel the sonic quality is comparible to its younger sibling, with inputs halved. Problem is with the DM, is if you want more inputs, it cost more money so the board with the options you need can easily set you back 3 grand. All that considered, I'd look seriously into the Allen and Heatch Zed16R if I had to do it all over again, but at the time of purchase, that unit was not available. I added plug ins to mimic warmth, so that is how I got around the stoic and sonically sterile nature of the DM 3200.

Desirability:
I is a nice looking board, I will admit. Looks impressive

Sound:
I give it a 7 because it is clean. too clean. It doesn't have that full, rich, deep sound that you get with a Mackie,or say an Allen and Heath (use those as comparisons as they are in same price range). Cannot compare to Yamaha mixers and I have not mixed on them. I know that IMHO, it doesn't have as nice a deep, rich low end as a good analog console with a bus compressor. It cannot touch an SSL or Neve unless you throw in an Xl rack or UAD/Duende Cards in your PC, which is exactly what I did. I am not a big fand of the sound of digital boards, and when guitars, drums and whatnot are run straight into them, they have no depth in the low end and digital EQ is just, well, weird sounding. Unnatural to the human ear. SSL and Neve consoles cost 140,000 for a reason, but hey, I've tracked LP's on a Mackie and it sounded a hundred times better in the low end. This board has great features, unfortunately, its sound, is not one of its highlights and if you mix on it, great, plug into it, great, run and entire mixdown on it with no external processors, and you are getting a thin product on the final mixdown. You will have to spend a little more (say two grand) for some really good DAW plugs or a UAD/Duende Card to process before it enters the DM then set all DM parameters on EQ to mid range. Then, you can get a good sounding mix. The DM sounds clean, but it is just too clean, too digital or 'brittle', in a way that I personally don't like, but others may like. It is a case of try before you buy. Listen to mixes done on the board if it will be your sole audio interface and mixdown device.

Ease of Use:
If you come from analog boards, it is not that easy to get into and get a workflow going. I think personally, that the user interface is a bit crowded as some buttons have multiple functions and the shift and alt key must be pressed in sequence to get the desired screen, while other functions are more intuitive. Takes time, but easier once you read along with the manual a few times

Support:
They called me back, and were nice, so I have to give them props for that

Overall:
I chose this board for the sheer number of inputs and its ability to act as a fader layer for my DAW. because I do not depend on its sound alone, I keep the board for the aforementioned reasons as it saves me the cost of a multi fader controller and audio interface. If I had to do it again, I'd have gone analog, but hindsight is always 20/20

Submitted: 02/14/2009
Style of Music: ambient, Electronica, drone, dreamsynth....
3 of 3 people (100%) found this review helpful. Did you?
Thanks for your opinion!
