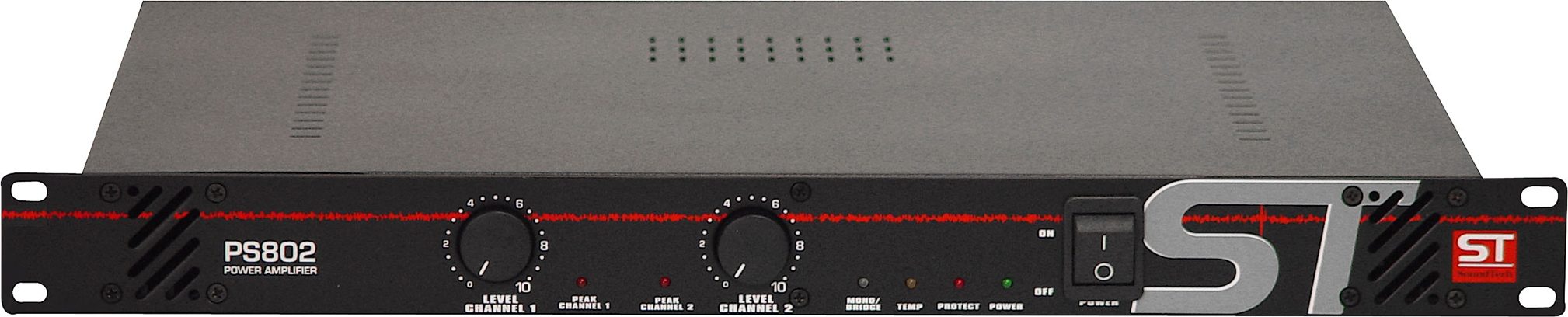

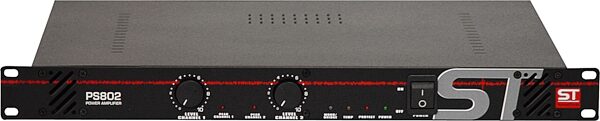

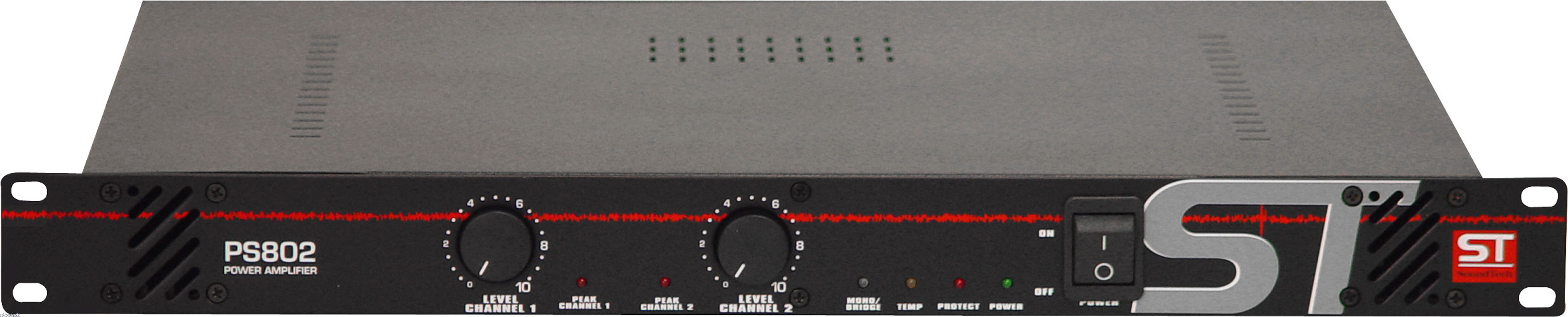

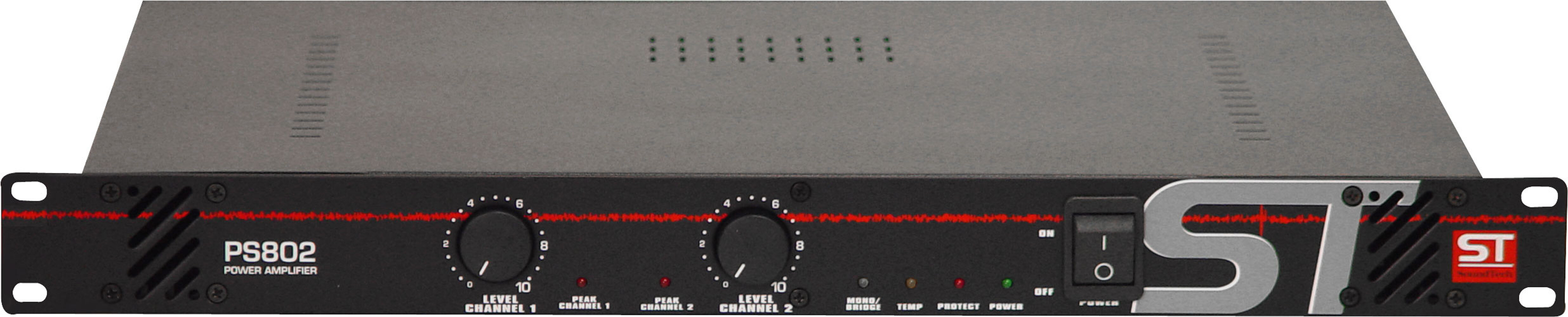

SoundTech PS802 Power Source Series Power Amplifier

Following in the footsteps of the popularly acclaimed PS800, SoundTech is proud to offer a further refinement of its "smaller, lighter, and more powerful" Power Source Series. The PS802, which yields 800 Watts in a scant 1 space high, 15.8 lbs. rack mount package, is a heavyweight performer in a flyweight package.

The SoundTech PS802 achieves its small size and light weight by using a highly efficient, hybrid switch mode power supply, which reduces the need for bulky mains transformers. Weight and size savings are especially important for portable sound applications; whereas smaller, lighter amplifiers yield daily savings in transportation and labor.

The Power Source Switch Mode power supply and Class-H Output circuits combine to yield a 20% improvement in energy efficiency, while retaining the punch required for today's challenging music.

Complete Protection is provided, shielding speakers from unsafe conditions, including DC faults, on/off transients, and under/overvoltage conditions. Full protection from AC mains faults is also an integral part of PS802 design.

Vari-Speed Dual 1 in. Fan Cooling keeps the PS802 operating safely from idle to full power, under conditions from nominal to adverse.

Versatile Inputs allow connection via balanced XLR connectors or unbalanced 1/4 in. phone jacks, giving reliable connection to professional and semi-pro equipment.

The PS802 is covered by SoundTech's 5-year "Built-Tough" warranty.

Technical Info

Power Supply: Switch Mode

Channels: 2

Power Output *(1.)
4 0hms: 2 x 400W
8 0hms: 2 x 230W
8 0hms Bridge Mono: 800W

Frequency Response (+ 1dB): 20-20k Hz

Total Harmonic Distortion: <0.05%

Channel Separation: 85 dB

Damping Factor: >200:1

Slew rate: 42V/usec

Input Impedance
Balanced Input: >/=10k Ohms
Unbalanced Input: >/=10k Ohms

Input Sensitivity +4dB(1.23V)

Voltage Gain 36.3 dB

Clip Light Threshold -6 dB

Signal to Noise Ratio 120 dB

Common Made Rejection >60 dB

Indicators *(2.) 1,2,3,4,5

Protection Circuits *(3.) 1,2,3,4,5,6

Connectors:
Balanced In XLR female
Unbalanced In 1/4 in. phone jack
Output MDP Banana

Cooling: Dual varispeed fans

Power Requirements:
Voltage 120/230 VAC
Frequency 50-60 Hz
Power 1000 W

Dimensions: 1.72 x 19 x 14 in. (44 x 483 x 356 mm)

Net Weight: 15.8 lbs. (7.2 kg)

Shipping Weight: 16.7 lbs. (7.6 kg)

Notes:
*1. EIA 1.0% THD standard rating, unless otherwise indicated
*2. Indicators: 1) Power On, 2) Protect Mode, 3) Mono Bridge Mode, 4) Clip, 5) Temperature Protect
*3. Protection Circuits: 1) Short Circuit, 2) Current Limit, 3) Thermal Cutoff, 4) DC Fault, 5) Power up/down transients, 6) AC Line Fuse, 7) Limited
