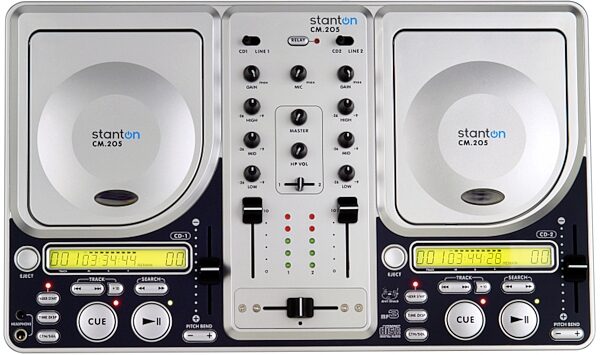

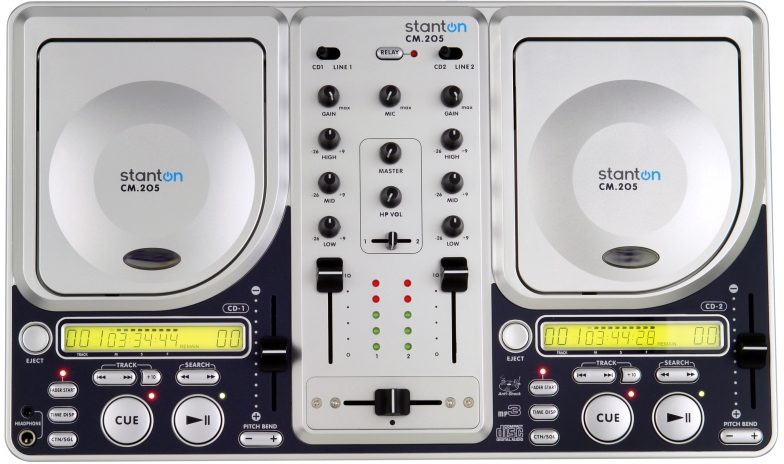

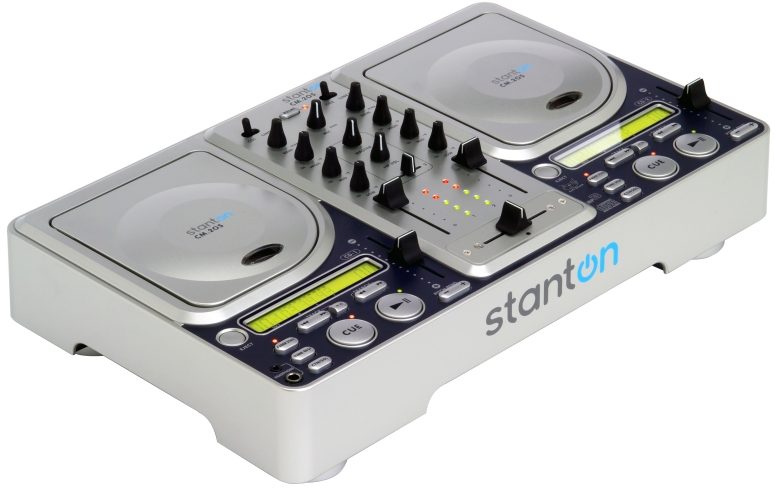

Stanton CM.205 Dual Top Load CD/MP3 Player and Mixer

This versatile CD mixer offers up serious options with style and convenience for the professional DJ. The CM.205 combines the benefit and utility of a dual top loading CD player with anti-shock buffer and full MP3 functionality. A solid Stanton 2 channel mixer completes this All-In-One "hybrid" solution for the contemporary DJ without sacrificing traditional quality.

CD Section Features
# MP3 playback

# 20-sec. anti-shock buffer per side prevents CD "skips"

# 8% pitch control with pitch bend

# Fader start

# Relay play

Mixer section Features
# 2 line inputs to connect iPod(R), other MP3 device or more CD players

# Gain and 3 band EQ (+9/-26) per channel

# User replaceable crossfader

# 1/4" mic input with volume control

# Headphone output with cue pan

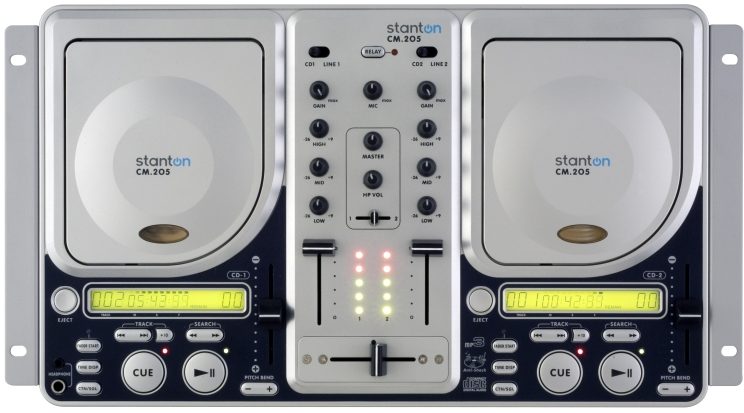

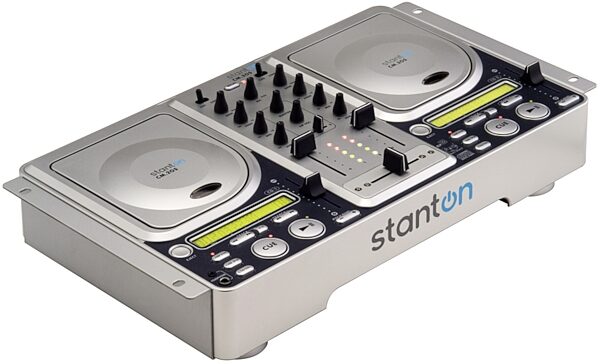

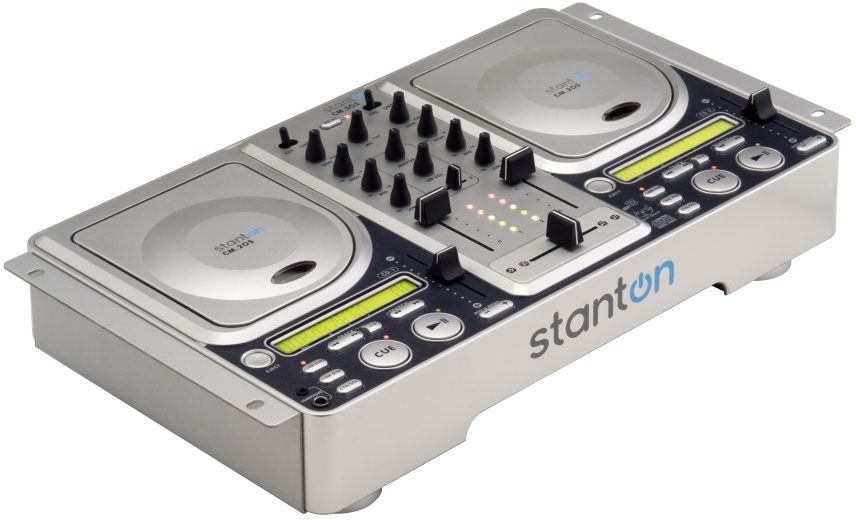

Optional rack ears included

iPod Ready: 1 iPod(R) cable included for plug and play connectivity
iPod is a registered trademark of Apple Computer, Inc.

Technical Info

Specifications
Frequency Response (line to master output): 20 Hz to 20 kHz +/- 2 dB

THD+N (line): <0.01% at 1 kHz

S/N Ratio: (Dynamic Range): >90 dB

Noise Floor (line in put to any output): < -85 dBV

Channel Fader Kill: < -85 dB @ 1 kHz

Cross Fader Kill: > -75 dB at 1kHz, 0 dB

Channel EQ:
- Hi +9 dB, -16dB @13Hz
- Mid +9 dB, -23dB @1Hz
- Low +9 dB, -23dB @70Hz

CD Section
Frequency Response (CD to master output): 20 Hz to 20 kHz +/- 2.0 dB

THD+N with 20 KHz Low Pass Filter: 0.05% at 1 kHz

S/N Ratio (ref: Full-Scale): >85 dB

Microphone
Frequency Response (mic to master output): 20 Hz to 20 kHz +/- 2.0 dB

THD+N with 20 KHz Low Pass Filter: 0.05% at 1 kHz

S/N Ratio (ref: Full-Scale): >110 dB

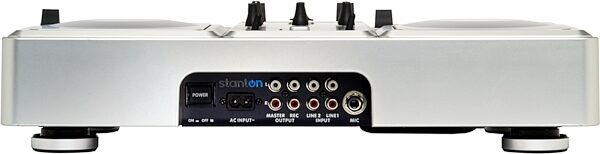

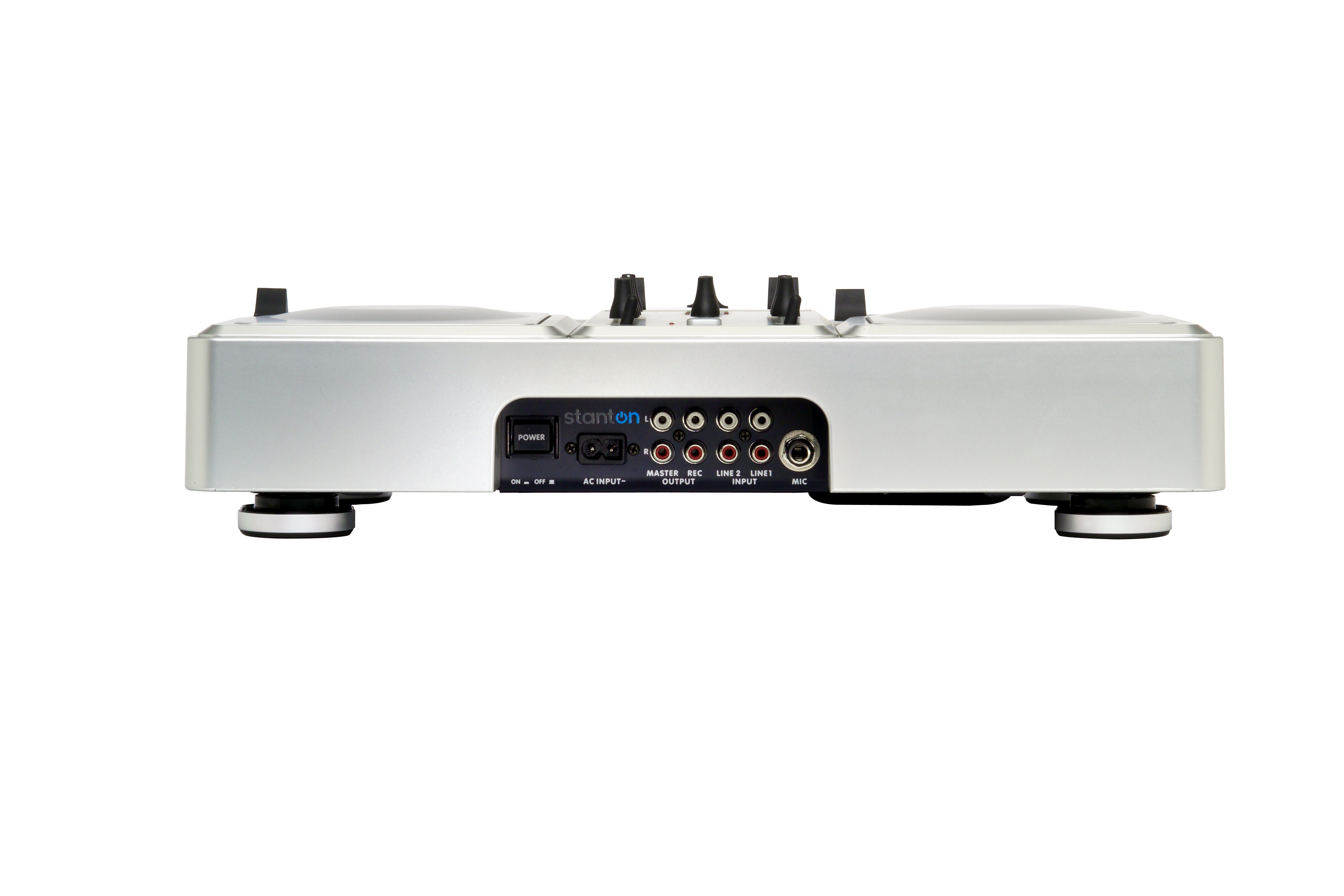

Input/Output
Line Inputs: 2 x Stereo RCA -14 dBV/nominal input level 18 k Ohm unbalanced

Mic Input: 1 x TRS -54 dBV/nominal input level 10k Ohm Balanced

Master Output: 2 x RCA unbalanced nominal load 10k Ohms

Record Output: 2 x RCA unbalanced -10dBV into 10k ohm load

Headphone Output: 1 x 1/4 in. Phone Jack 1 x 1/4 in. Phone Jack Max Load 32 Ohms
1x 1/8 in. Mini Phone Jack

General
System: Compact Disc Digital Audio

Disc Loading: Top Loading

Display: 11 Digit LCD Display

Pitch Control Range: Within +/- 8%

Pitch Bend: +/- 8%

Pitch Accuracy: +/-0.15%

Physical Specifications
Dimensions (W x D x H): 440 x 266 x110.5 mm

Weight: 4.4 kg

Operation Temp.: 0 degrees C to 40 degrees C

Storage Temp: -20 degrees C to 50 degrees C

Power Source US: 120V, 60Hz, AC 14W
