Audio-Technica AT-XP7/H Headshell Combo Kit

Get the best performance from your turntable with the AT-XP7/H headshell combo. Thanks to clever design, you'll always have a clear visibility of the stylus.

Overview

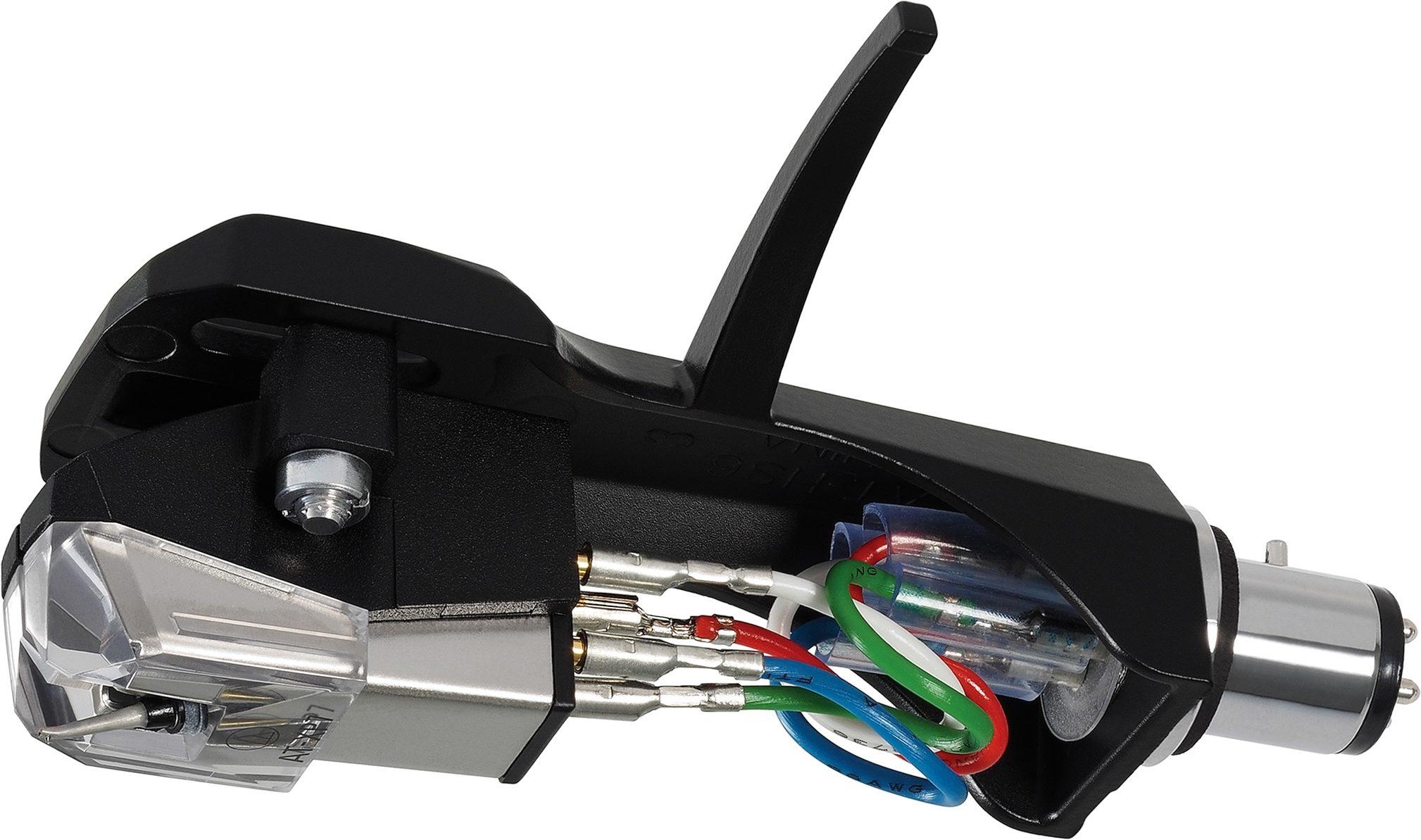

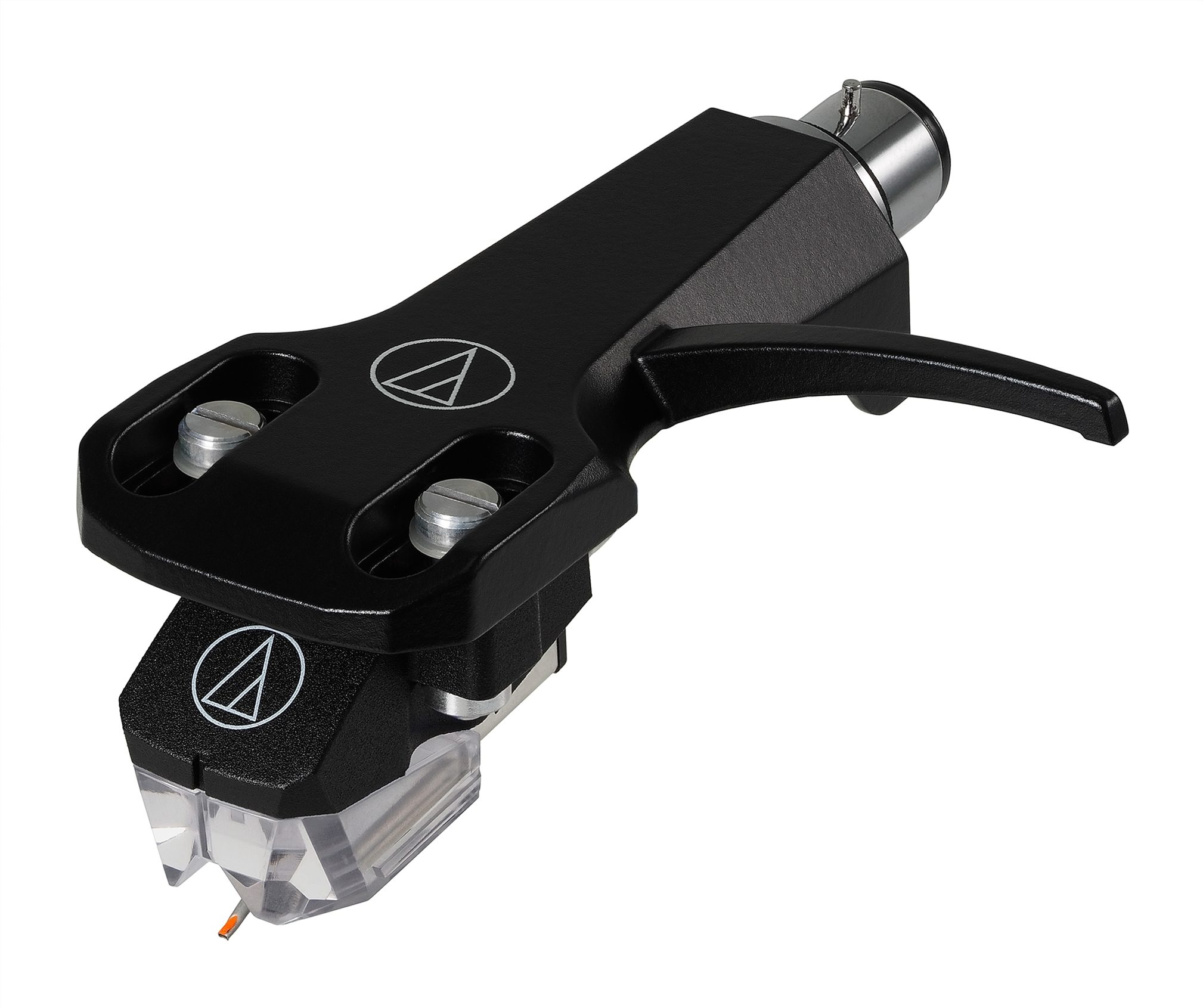

The Audio-Technica AT-XP7/H combo kit includes the AT-XP7 DJ cartridge premounted on the AT-HS6BK headshell.

Features

- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- Universal 1/2" mount headshell for 4-pin turntable cartridges

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Frequency Response: 20-20,000 Hz
- Channel Separation: 22 (dB at 1 kHz)
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 6.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum tapered pipe
- Mount: Half-inch
- Replacement Stylus: ATN-XP7
- Coil Impedance: 6.7 k ohms (1 kHz)
- DC Resistance: 990 ohms
- Recommended Load Capacitance: 100 to 200 pF
- Vertical Tracking angle: 20 degrees
- Dimensions: 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D
- Weight (Cartridge): 6.2 g (0.22 oz)
- Dimensions (Cartridge and Headshell): 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
- Weight (Cartridge and Headshell): 15.6 g (0.55 oz)
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.25 lbs; Shipping Dimensions: 4 x 3 x 2 in; Manufacturer Part Number (MPN): AT-XP7/H
