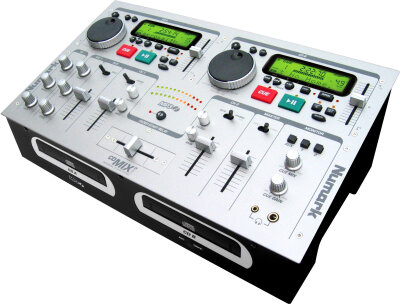

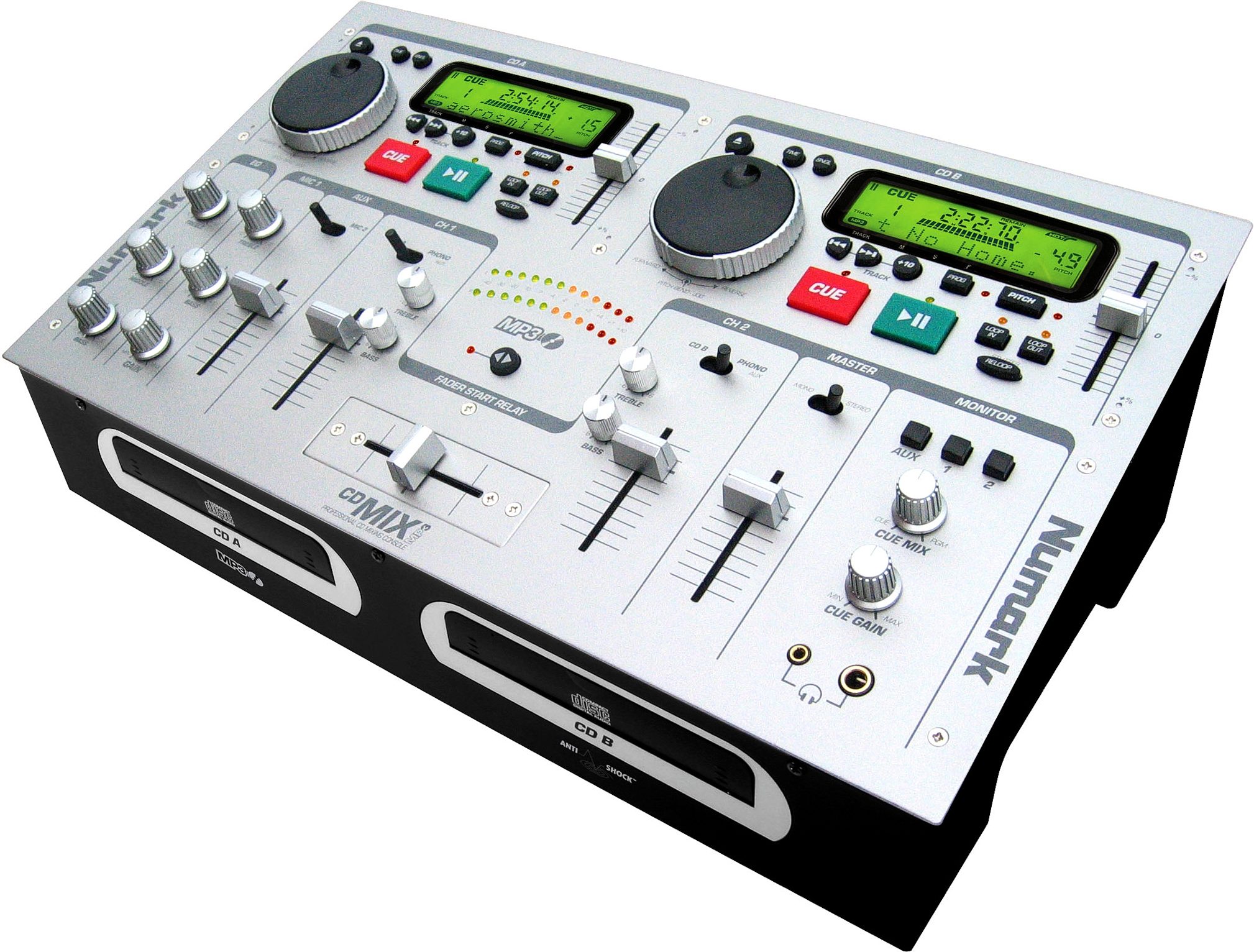

Designed expressly for mobile DJs and club owners in search of a compact, highly portable system that sets up and packs away on a moment's notice, the CDMIX3 plays both standard CD audio and MP3 CDs, provides buffered Anti-Shock in. memory protection, delivers seamless looping, and pitch control with a pitch bend wheel among its wealth of features.
Features:
Support for standard audio CDs and MP3 CDs
Buffered Anti-Shock in. memory protection for consistent playback under trying conditions
Seamless loops for both CD audio and MP3 files
True buffered instant start
Stutter start capability with settable stutter points
12% pitch bend capability via its pitch bend/jog wheel
Master EQ section and individual channel EQ
Technical Info
Power Source: DC 12V, 2.5A
Dimensions: 445 x 258 x 156 (W x D x H)
Audio Characteristics: (Load=47K OHM For Master Output)
1 Input Terminal (Input Level/Impedance)
CD: -14dBV/5K OHM ?2db TCD-782 (Track 16)
Line1: -14dBV/10K OHM 2db
Line 2,3: -14dBV/47K OHM 2db
Phono: -50dBV/47K OHM 2db
Mic: -53dBV/2.2K OHM 2db
Note: 0dBV=1 Vrms.
Master is set to 0dBV output
2 Output Terainal (Output Level/Impedance)
Master Out (RCA)- 0dBV (1.0V)/600 OHM
Master Out (XLR)- 0dBV (1.0V)/470 OHM 2dBV
Phones (Load=32 OHM)- -6dBV (0.5V)/33 OHM 2dBV
Max Output (THD=5%)
Master- More Than +17dBV (7V)
Phones- (Load=32 OHM)- More Than +5dBV (1.8V)
Channel Balance- Within 3dB
Frequency Response
CD/Line: 20-20KHz +1, -1.5dB
TCD-782 (Track 3, 7)
Phono: 20-20KHz +2, 2.5dB/RIAA
Mic: 20-20KHz +1, /-3dB
Output Noise (W/ 20KHz LPF and IEC-A Weighted)
Line: Less Than -75dB
Phono: Less Than -60dB
Mic: Less Than -55dB
CD S/N Ratio: More Than 80dB
Note: CD 0dB Output,
Master is set to 0dBV Output
Total Harmonic Distortion: From Master Out
CD/Line: Less Than 0.05%
Phono/Mic: Less Than 0.13%
Note: Output=0dBV,1KHz. With 20KHz LPF
and 200Hz HPF.
