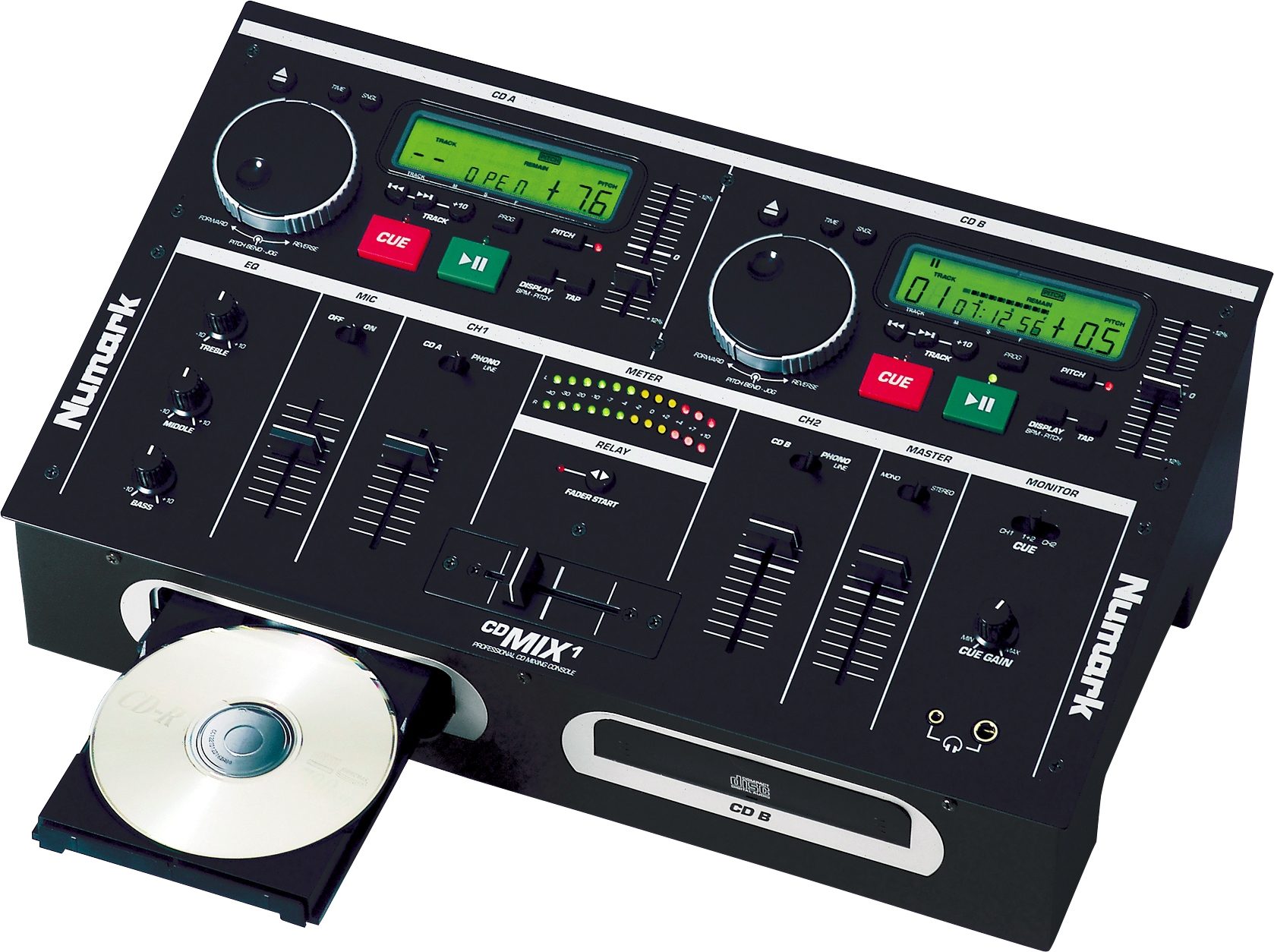

Numark CDMIX1 CD Player and Mixer System

zZounds' Take on Numark CDMIX1

The Numark CDMIX1 is a dual CD player and mixer, all together in one easy-to-carry unit. You can grab it and go to the gig. Setup and teardown are fast and easy with the CDMIX1 because you don't need to waste time running cables and testing levels. It's perfect for mobile DJs working events, clubs that need to be able to pack away their system quickly, and any other DJ on the move.

The Numark CDMIX1's CD player is based closely on Numark's CDN22 CD player, which has a worldwide reputation for superior performance with tough-to-read CD and CD-R discs that may be dirty or even scratched. For this reason, the Numark CDMIX1 also makes a perfect backup or second system for those times when you just need it to play!

The CDMIX1 Concept: Updated

This CDMIX1 is an update to the classic version by the same name. Since 1997, DJs all over the world have experienced the ease of use and superior portability of the Numark's CDMIX series. The series also includes HDMIX, KMX02, and the CDMIX line.

Because CDMIX1 is designed for professional use, it is housed in a metal chassis for years of rugged, reliable performance.

Full-Featured CD Performance

The CDMIX1 contains a dual-deck CD player with all of the functionality and capabilities you'd expect in a standalone unit. You can quickly access the point in the track you want on its easy-to-use multifunction jog/shuttle wheels. The wheels are also helpful for controlling pitch bend. You can pitch tracks up and down by 12% for easy beat matching. And for assisting with beat matching, Numark's CDMIX1 has a built-in BPM counter with tap tempo. Just tap to the beat.

In addition to standard single-track and continuous playback, the CDMIX1's programmable playback mode enables you to set up a sequence of tracks for convenient playback. You can set cue points on the fly for creative performance.

The CDMIX1 also has Fader Start, which can automatically start cued-up playback when you move the crossfader. The CD drives work on a tray-loading system that plays full-sized and mini discs. This type of drive is more reliable and professional than slot-loading units because dirt and grime on the drive slots can degrade your CDs' performance as they are dragged across.

Complete Mix Control

The CDMIX1's mixer section is also a complete component that is on par with standalone mixers. It's based on a two-channel design with a mic channel, replaceable crossfader, and pre-fader cueing controls.

For the two main channels, you can switch between the onboard CD players or rear-panel RCA inputs for additional CD players, iPods, or turntable with preamps such as our TTXUSB or TTi. Above the Master fader, you can switch the output between stereo and mono to accommodate different kinds of PA setups. The cueing section gives you both 1/4" and 1/8" stereo headphone outputs with level control.

For optimizing system response, the Numark CDMIX1 has a three-band EQ, and you can watch your levels on its stereo, tri-color LED meter. CDMIX 1 has professional outputs on both XLRs and RCAs for compatibility with most systems. There's also a Record output so you can capture your set or send your mix to an auxiliary PA system. If you find yourself working outside, remotely, or on a cruise ship, the CDMIX1 CD player and mixer system even has a 12VDC power input so you can run it with a power supply or car battery. Of course, the CDMIX 1 also runs on a standard wall-power connection for those more-traditional gigs indoors.

Whether you want an all-in-one system for getting into and out of the gig in the minimum amount of time or you're looking for a rock-solid backup system that even plays even difficult discs, the Numark CDMIX1 is the way to go.

Manufacturer's Description for Numark CDMIX1 CD Player and Mixer System

The Numark CDMIX1 is a combination dual CD player and mixer designed specifically for the professional DJ. The CDMIX1 was designed to provide portable CD mixing with the same ease and creativity that you have enjoyed with records. CD features include mechanical anti-shock, CD and CDR disc compatibility so you can play your home-burned CDs, auto dead-space elimination and 12 in. pitch control. The mixer section has 2 external Phono/Line inputs, a mic input and 3-band EQ.

CD Section Features:

- 2 independent CD units
- Mechanical Anti-Shock
- Ability to play 3 in. and 5 in. CDs
- Plays CD and CDR (recordable CDs)
- = Pitch/Jog Wheel for both setting cue points and adjusting tempo
- 3 search speeds
- Large back lit LCD Display
- Track sequence programming
- Time button with elapse and remain time bar
- Single/Continuous modes
- Pitch percentage display
- +/- 12% pitch adjustment
- Auto dead space elimination
- Ability to autostart player with use of the crossfader
- BPM counter

Mixer Section Features:

- External input for 2 Phono or 2 Line inputs
- Master balanced/unbalanced and record output
- Direct input for onboard CD units
- Input for External Microphone with independent gain control
- Crossfader to blend between 2 Channels and control Auto start of the CD units
- 3-band Equalizer for master output
- Dual Band, 12-segment LED output display
- Fader CD Start button
- Headphone output for 1/4 in. and 1/8 in. style plugs with the ability to cue any channel
- 12VDC power input to allow car battery usage zZounds is an authorized dealer of Numark products.

CD Players
Quantization: 16-bit linear/channel, 3 beam laser

Oversampling rate: 8 times

Short access time (Play next track): Less than 1.7 seconds

Long access time (Track 1 ->Track 20): Less than 3 seconds

Start Time: less than 0.3 seconds

Pitch control range: +/-12%

Pitch bend: +/-16%

Overall
Frequency Response
CD: 20 - 20KHz +1,-2dB
LINE 20: - 20KHz +1,-1.5dB
PHONO 20 - 20KHz +2,-2.5dB/RIAA
MIC 33 - 15KHz +1,/-3dB

S/N Ratio: (IEC-A Weighted)
CD/LINE: More than 85dB
PHONO: More than 75dB
MIC: More than 70dB

Total Harmonic Distortion
CD/LINE: Less than 0.05%( 20KHz LPF)
PHONO: Less than 0.12%
MIC: Less than 0.12%
PHONES (32 0HM) Less than 0.25%

Crosstalk
CD: More than 60 dB AT 1KHz
Line/Phono: More than 55 dB AT 1KHz

Equalizer
LOW: +/- 12 dB (100Hz)
MID: +/- 12 dB (1KHz)
HI: +/- 11.5 dB (10KHz)

Power Requirements DC 12V, 2.5A

Dimensions: 17 1/2"(W) x 10"(D) x 6 3/16"(H); 445mm(W) x 255mm(D) x 157mm(H)

Weight: 11.5lbs.; 5.2Kgs
