Denon DNX500 Professional Rackmount DJ Mixer

Product Description

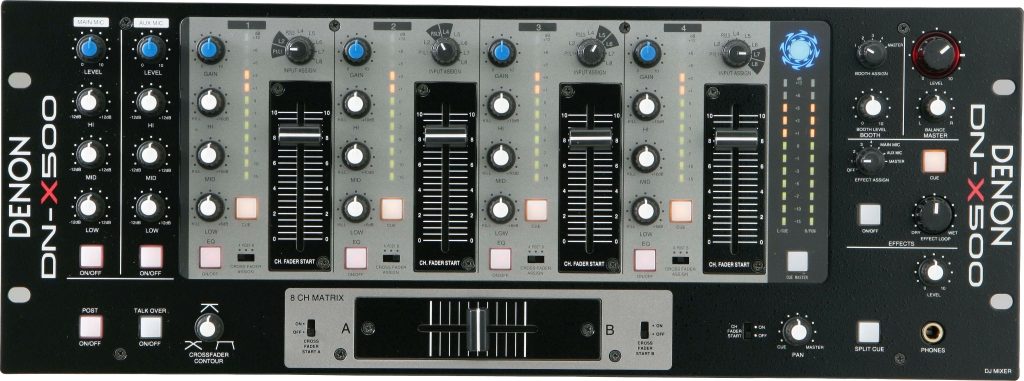

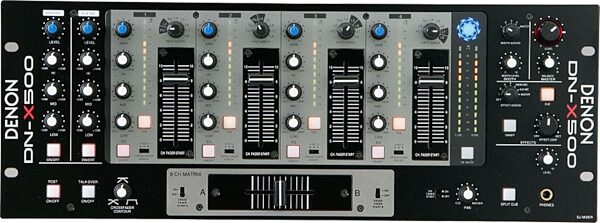

The DN-X500 is a professional 4U 19 in. rack-mountable analog matrix mixer that has eight line and two phono inputs which can be freely assigned to any of four channels. Four smooth 60 mm VCA channel faders provide level control, and a responsive 45 mm VCA crossfader with contour adjustment. Independent PFL channel meters help DJs to optimize and match levels for each source, ensuring a smooth transition between sources when crossfading.

Denond listens, understands, and builds. The result is their all-new DN-X500 rackmount mobile/club DJ mixer. Rock solid construction, superb audio fidelity, high quality parts, and of course reliability are the core ingredients of their design. The DN-X500's unique features provide mobile and club DJs tremendous flexibility and intuitive control. Eight-channel input matrix routing gives you the freedom to move any source to any channel or even the same source to multiple channels for remixing. Pre-fader level metering and gain control as well as long 60mm smooth channel faders are individually replaceable with their rotary knob option (ACD-46). Three-Band EQ with full output kill, booth output with channel select, two mic inputs with talkover sensitivity and effects send/return with cue, dry/wet knob and channel select should all make this new mixer the one you've been waiting for.

Features
Matrix input assignment -- No longer does your device need to be married to a particular channel. Eight input sources are freely assignable to any channel or even multiple channels.

8 line / 2 phono switchable

4 smooth 60mm VCA channel faders

Responsive 45mm VCA cross fader w/contour adjust

Independent channel PFL meters -- All input levels can be pre-adjusted in advance to match the gain levels, insuring a smooth transition between fades.

Independent 3-band EQ kill (high-mid-low)

Independent EQ on/off switch

Booth output assign selector -- Pre-monitor any channel including Master through the booth output in the same manner as you would with your headphones, with volume control!

External send/return control -- multi channel assignable -- effect on/off -- effect cueing (pre & post) -- effect dry/wet knob

Independent channel A-B post switch (crossfader)

Powerful clean headphone output

Fader start (5V pulse) cross fader and channel fader-start trigger is compatible with all Denon DJ CD/MP3 players.

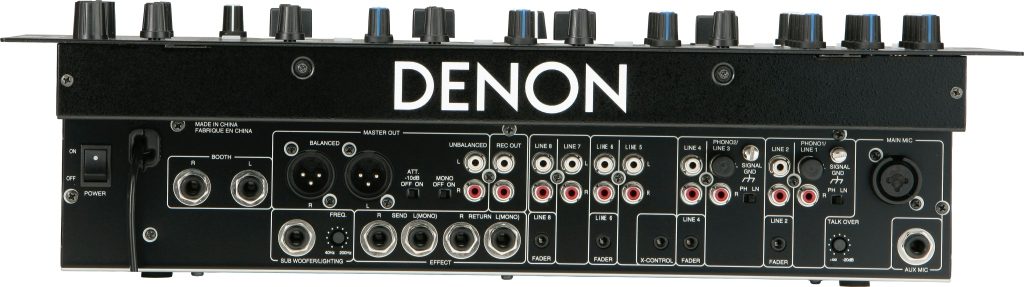

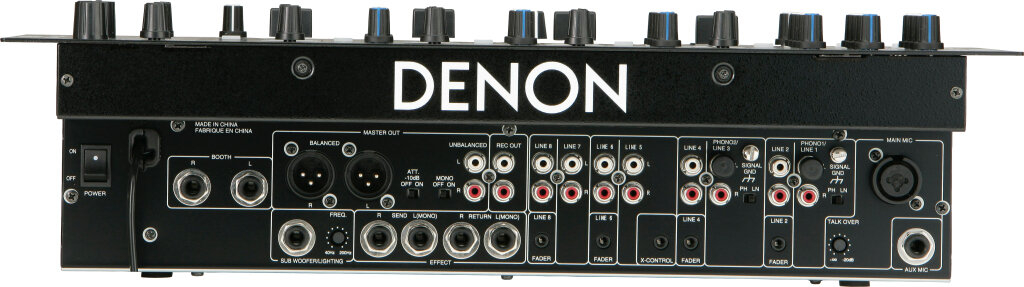

Compact 4U rack space with recessed rear terminals

Independent 3-band main and aux mic EQ

Independent cue system (all channels)

Mic talkover function w/sensitivity adjustment

Split/cue headphone monitor w/PFL metering

Master output -10dB attenuation switch

Master output stereo/mono switch

Record out -- RCA/unbalanced

Subwoofer/lighting output w/freq adjust ideal for powered speakers, powered amp or even a signal feed for lighting systems. zZounds is an authorized dealer of Denon products.

Dimensions 19.0 (W) x 4.4 (H) x 6.9 (D) inches, 482 (W) x 112.5 (H) x 177 (D) mm

Weight: 5.8 kg, 13 lbs.

Power supply: AC120 V +/-10%, 60 Hz

Power consumption 27 W

Audio section
Input level and impedance:
-- 8-Line-14 dBV (200 mV) 50 kilohms

-- 2-Phono -50 dBV (3.0 mV) 50 kilohms

-- Effect (return) -14 dBV (200 mV) 50 kilohms

-- Main mic -54 dBV (2.0 mV) 10 kilohms

-- Aux mic -60 dBV (1.0 mV) 10 kilohms

Output level and impedance:
-- Balanced 4 dBm (1.23 V) 600 ohms

-- Unbalanced 0 dBV (1.0V) 1 kilohms

-- Booth (balanced) 4 dBm (1.23 V), 600 ohms load

-- Rec (RCA) -10 dBV (316 mV) 1 kilohms

-- Effect (send) -14 dBV (200 mV) 1 kilohms

-- Subwoofer/lighiting 2 dBm (975 mV), 600 ohms

-- Headphone 0 dBV (1.0 V) 32 ohms

Frequency response:
-- Line 20 to 20 kHz +/-2 dB

-- Phono 20 to 20 kHz RIAA +/-2 dB

-- Mic 20 to 20 kHz +/-2 dB

Signal to noise ratio:
-- Line 82 dB (0 dBm, 1 kHz, EQ flat)

-- Phono 75 dB (0 dBm, 1 kHz, EQ flat)

-- Main mic 65 dB (0 dBm, 1 kHz, EQ flat)

Total harmonic distortion rate:
-- Line below 0.05%

-- Phono below 0.05%

-- Cross talk over 70 dB

Channel equalizer:
-- Hi +10 dB, -35 dB (16 kHz)

-- Mid +10 dB, -35 dB (1 kHz)

-- Low +6 dB, -35 dB (60 Hz)

Microphone equalizer:
-- Hi +12 dB, -12 dB (10 kHz)

-- Mid +12 dB, -12 dB (1 kHz)

-- Low +12 dB, -12 dB (100 Hz)

Dimensions and Weight in Packaging

Shipping Weight: 15 lbs

Shipping Dimensions: 23 x 12 x 9 in
