This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

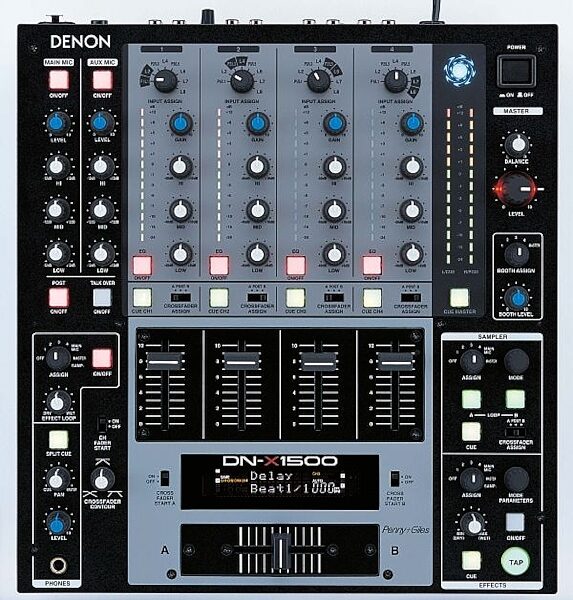

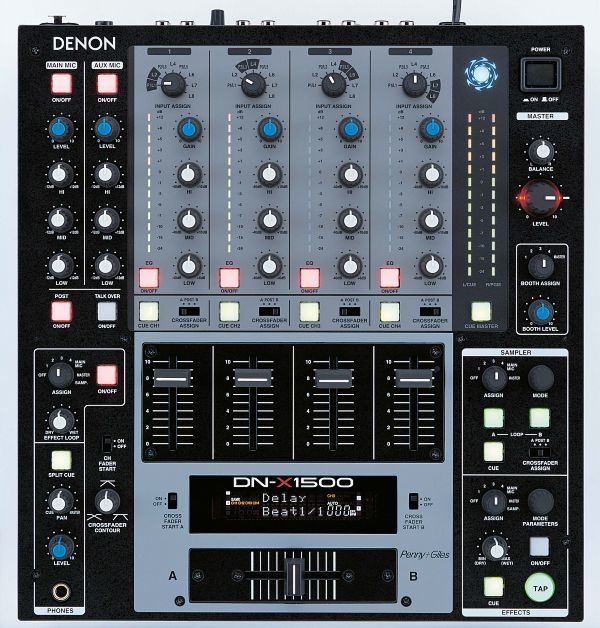

Denon DNX1500 4-Channel DJ Mixer with Effects
World's first 12 in. Matrix Mixer. 3-band parametric EQ with kills. 9 on-board effects.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
To equal the incredible abilities of its renowned DN-S5000 and DN-S3000 single CD/MP3 players, Denon has hit the mark once again with the DNX1500. Advanced features, unprecedented functionality and flexibility team with the entirely digital circuitry. The Effector and Sampler are built in to further boost the DJ's creative powers. Denon has strictly selected the cross fader to provide high sound quality and reliability, even under heavy usage. The Denon DNX1500 even has a USB port for future software updates!
Features:
World's first 12 in. Matrix Mixer
4-channel Club/Mobile/Battle DJ Mixer
5 line / 3 switchable phono-to-line inputs
High performance 45mm Penny & Giles crossfader
45mm VCA channel faders
3 Band parametric EQ with kills
9 on-board effects
External send/return effects loop
Individual input gains w/PFL meters
FL Tube Display to manage effects (World's First)
8 Sec on-board Sampler w/edit options
Multi channel assignable crossfader
2 Mic inputs w/eq adjustments
Talk Over & Mic Post switch
Digital Output (coaxial)
Assignable Booth output w/volume control
Balanced XLR output w/trim
Stereo/Mono output switch
Headphone EQ adjustment by preset
Split cue H/P monitor w/program pan
3-way BPM counter, Auto/TAP/Manual
4 Fader start inputs
USB port to add free future plug-ins such as effects (World's First)
Optional 19 in. rack mount kit (RMDJ-1500)
Dimensions (W x D x H): 12.2 x 4.3 x 12.9 in.
Weight: 14.7 lbs
Power Supply: AC120V +/-10%, 60 Hz
Power Consumption: 45 w
Input Level and Impedance
8-Line: -14 dBV (200mV) 50k ohms
3-Phono: -50 dBV (3.0mV) 50k ohms
Effect (Return): -14 dBV (200mV) 50k ohms
Main Mic: -54 dBV (2.0 mV) 2k ohms
Aux Mic: -60 dBV(1.0 mV) 1k ohms
Output Level and Impedance
Balanced: 4 dBu (1.23V) 150 ohms
Unbalanced: 0 dBV (1.0V) 1k ohms
Effect (Send): -14 dBV (200mV) 1k ohms
Headphone: 0 dBV (1.0V) 100 ohms
Frequency Response Line: 20 to 20 kHz +/- 2 dB
Phono: 20 to 20 kHz RIAA +/- 2 dB
Mic: 20 to 20 kHz +/-3 dB
Signal to Noise Ratio
Line: 85 dB (at Noise Gate ON)
Phono: 73 dB(at Noise Gate ON)
Main Mic: 65 dB (at Noise Gate ON)
THD
Line: Below 0.02%
Phono: Below 0.05%
Crosstalk: Over 70 dB
Channel Equalizer
Hi: +10 dB (8 kHz), -33 dB (15 kHz)
Mid: +10 dB (8 kHz), -40 dB (1 kHz)
Low: +6 dB (8 kHz), -40 dB (60 Hz)
Microphone Equalizer
Hi: +12 dB, -12 dB (10 kHz)
Mid: +12 dB, -12 dB (1 kHz)
Low: +12 dB, -12 dB (100 Hz)
Digital Ouput
Signal format: IEC958 Type II
Output Level: 0.5 Vp-p 75 ohms
Output Signal Level: -6 dB
Features:
World's first 12 in. Matrix Mixer
4-channel Club/Mobile/Battle DJ Mixer
5 line / 3 switchable phono-to-line inputs
High performance 45mm Penny & Giles crossfader
45mm VCA channel faders
3 Band parametric EQ with kills
9 on-board effects
External send/return effects loop
Individual input gains w/PFL meters
FL Tube Display to manage effects (World's First)
8 Sec on-board Sampler w/edit options
Multi channel assignable crossfader
2 Mic inputs w/eq adjustments
Talk Over & Mic Post switch
Digital Output (coaxial)
Assignable Booth output w/volume control
Balanced XLR output w/trim
Stereo/Mono output switch
Headphone EQ adjustment by preset
Split cue H/P monitor w/program pan
3-way BPM counter, Auto/TAP/Manual
4 Fader start inputs
USB port to add free future plug-ins such as effects (World's First)
Optional 19 in. rack mount kit (RMDJ-1500)
Technical Info
General SpecificationsDimensions (W x D x H): 12.2 x 4.3 x 12.9 in.
Weight: 14.7 lbs
Power Supply: AC120V +/-10%, 60 Hz
Power Consumption: 45 w
Input Level and Impedance
8-Line: -14 dBV (200mV) 50k ohms
3-Phono: -50 dBV (3.0mV) 50k ohms
Effect (Return): -14 dBV (200mV) 50k ohms
Main Mic: -54 dBV (2.0 mV) 2k ohms
Aux Mic: -60 dBV(1.0 mV) 1k ohms
Output Level and Impedance
Balanced: 4 dBu (1.23V) 150 ohms
Unbalanced: 0 dBV (1.0V) 1k ohms
Effect (Send): -14 dBV (200mV) 1k ohms
Headphone: 0 dBV (1.0V) 100 ohms
Frequency Response Line: 20 to 20 kHz +/- 2 dB
Phono: 20 to 20 kHz RIAA +/- 2 dB
Mic: 20 to 20 kHz +/-3 dB
Signal to Noise Ratio
Line: 85 dB (at Noise Gate ON)
Phono: 73 dB(at Noise Gate ON)
Main Mic: 65 dB (at Noise Gate ON)
THD
Line: Below 0.02%
Phono: Below 0.05%
Crosstalk: Over 70 dB
Channel Equalizer
Hi: +10 dB (8 kHz), -33 dB (15 kHz)
Mid: +10 dB (8 kHz), -40 dB (1 kHz)
Low: +6 dB (8 kHz), -40 dB (60 Hz)
Microphone Equalizer
Hi: +12 dB, -12 dB (10 kHz)
Mid: +12 dB, -12 dB (1 kHz)
Low: +12 dB, -12 dB (100 Hz)
Digital Ouput
Signal format: IEC958 Type II
Output Level: 0.5 Vp-p 75 ohms
Output Signal Level: -6 dB
What Our Customers Say About zZounds
"I ordered a Bluesband harp. The price was below USED items on [major competitor]. Brilliant!" - customer on November 1, 2009
Denon DNX1500 4-Channel DJ Mixer with Effects Reviews
10 out of 10
"Now that they've got the CD-deck market share - they're after the mixer share to - and will probably get it!"
Feature:
The colour display really lets you know whats going on - no more having to guess exactly which label a rotary knob is pointing at - or getting glared out by a bright LED next to a faint label in a dark environment. The in-built sampler is neat too, and the effects are not only BPM linked but also rise/fall effects such as flanger, dont start their rise/fall cycle until YOU want them too - unlike some units where the rise/fall cycle is simply running in the background all the time.
Quality:
Solid, robust all metal contstruction - no loose elements, no damage evident - very well protected by packaging.
Value:
The price of this mixer isnt cheap, but it is in-line with the price of other 4 channel mixers from well known manufacturers. This mixer however, offers new circuitry, and far advance design features and ease of use.
Desirability:
Nothing else quite like this baby.
Sound:
The Menu presets allow me to adjust the centre frequencies of the EQ controls on the music channels enabling me to tailor the mixer to my own sound system - eg: centre the bass eq to my woofers most efficient freq.range. Also, the Denon even allows me to select an EQ for my headphones during cueing eg: Bass Boost, High and low boost, etc. I replaced my cobwebby Pioneer DJM-600 with this unit, and its outperformed it easily in terms of sound clarity and ease of use.
Support:
The unit seems to have taken on-board comments made by DJs on the Denon forum. Also the USB port on the back of the unit allows new software updates to be added to the machine - I've just downloaded and installed the latest software update from the Denon website- it was free and took about 3 minutes to install - more updates promised.
Overall:
Thanks to the USB update port - I see me and my DN-X1500 being partners for at least 5+ years if not alot longer.
The colour display really lets you know whats going on - no more having to guess exactly which label a rotary knob is pointing at - or getting glared out by a bright LED next to a faint label in a dark environment. The in-built sampler is neat too, and the effects are not only BPM linked but also rise/fall effects such as flanger, dont start their rise/fall cycle until YOU want them too - unlike some units where the rise/fall cycle is simply running in the background all the time.
Quality:
Solid, robust all metal contstruction - no loose elements, no damage evident - very well protected by packaging.
Value:
The price of this mixer isnt cheap, but it is in-line with the price of other 4 channel mixers from well known manufacturers. This mixer however, offers new circuitry, and far advance design features and ease of use.
Desirability:
Nothing else quite like this baby.
Sound:
The Menu presets allow me to adjust the centre frequencies of the EQ controls on the music channels enabling me to tailor the mixer to my own sound system - eg: centre the bass eq to my woofers most efficient freq.range. Also, the Denon even allows me to select an EQ for my headphones during cueing eg: Bass Boost, High and low boost, etc. I replaced my cobwebby Pioneer DJM-600 with this unit, and its outperformed it easily in terms of sound clarity and ease of use.
Support:
The unit seems to have taken on-board comments made by DJs on the Denon forum. Also the USB port on the back of the unit allows new software updates to be added to the machine - I've just downloaded and installed the latest software update from the Denon website- it was free and took about 3 minutes to install - more updates promised.
Overall:
Thanks to the USB update port - I see me and my DN-X1500 being partners for at least 5+ years if not alot longer.
Submitted: 03/31/2005
Style of Music: Dance/Party music
10 out of 10
zZounds has verified that this customer bought this product from us.
"I cannot say enough good things about this mixer"
Feature:
The input matrix is great. You can have one input play on all 4 channels if you wish, eq them differently, add effects to one, assign them to the crossfader however you like. The mixer is so adaptable. The effects sound great and are easy to use. The presets are remarkable. You can change the headphone eq settings, changes to eq ranges of the highs, mids, and lows knobs. You can add new effects. The screen is very helpful too. The USB plug in has been invaluable in adding desired upgrades.
Quality:
This one's solid as a rock. The quality stands out as soon as you open the box.
Value:
This blows the Pioneer 600 out of the water. It should be twice as much.
Desirability:
Play with it for 30 minutes and you will rob a convenience store to buy one.
Sound:
The sound is incredible, crystal clear, with masses of headroom.
Support:
I needed advice from Support to get the software update. They were helpful and quick to respond.
Overall:
For sound quality, build quality, and variety of features the mixer is a must have for the "dj mixer under $1500" league.
The input matrix is great. You can have one input play on all 4 channels if you wish, eq them differently, add effects to one, assign them to the crossfader however you like. The mixer is so adaptable. The effects sound great and are easy to use. The presets are remarkable. You can change the headphone eq settings, changes to eq ranges of the highs, mids, and lows knobs. You can add new effects. The screen is very helpful too. The USB plug in has been invaluable in adding desired upgrades.
Quality:
This one's solid as a rock. The quality stands out as soon as you open the box.
Value:
This blows the Pioneer 600 out of the water. It should be twice as much.
Desirability:
Play with it for 30 minutes and you will rob a convenience store to buy one.
Sound:
The sound is incredible, crystal clear, with masses of headroom.
Support:
I needed advice from Support to get the software update. They were helpful and quick to respond.
Overall:
For sound quality, build quality, and variety of features the mixer is a must have for the "dj mixer under $1500" league.
Submitted: 05/18/2005
Style of Music: soul, jazz, house
