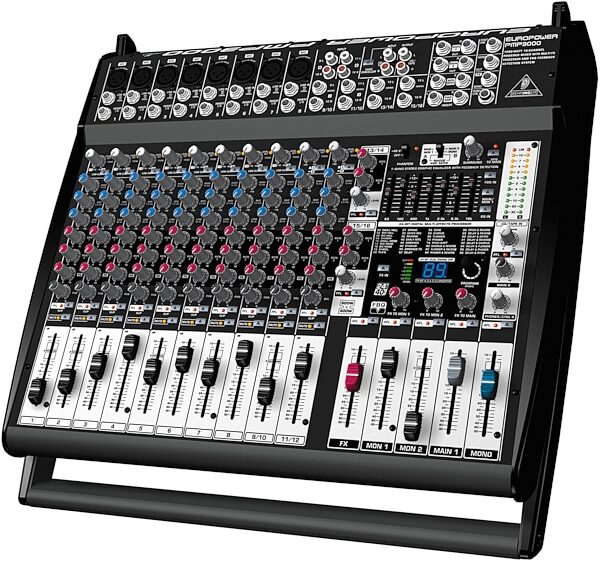

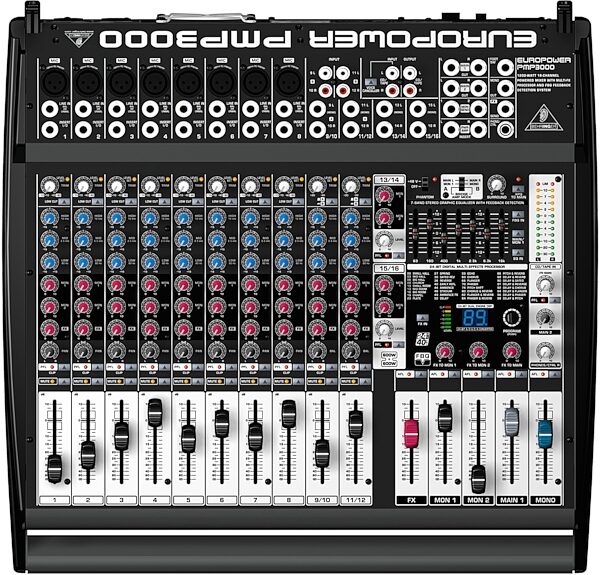

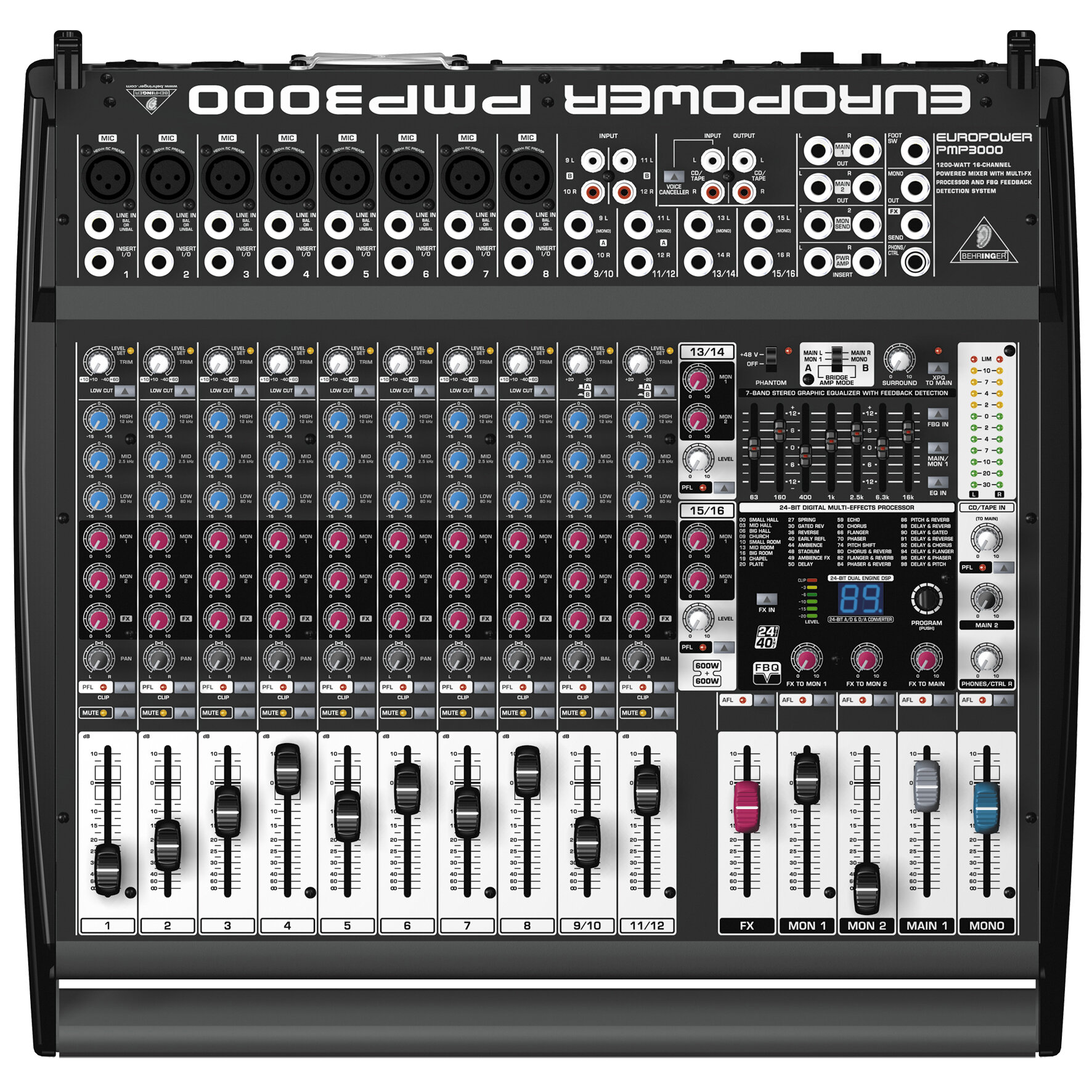

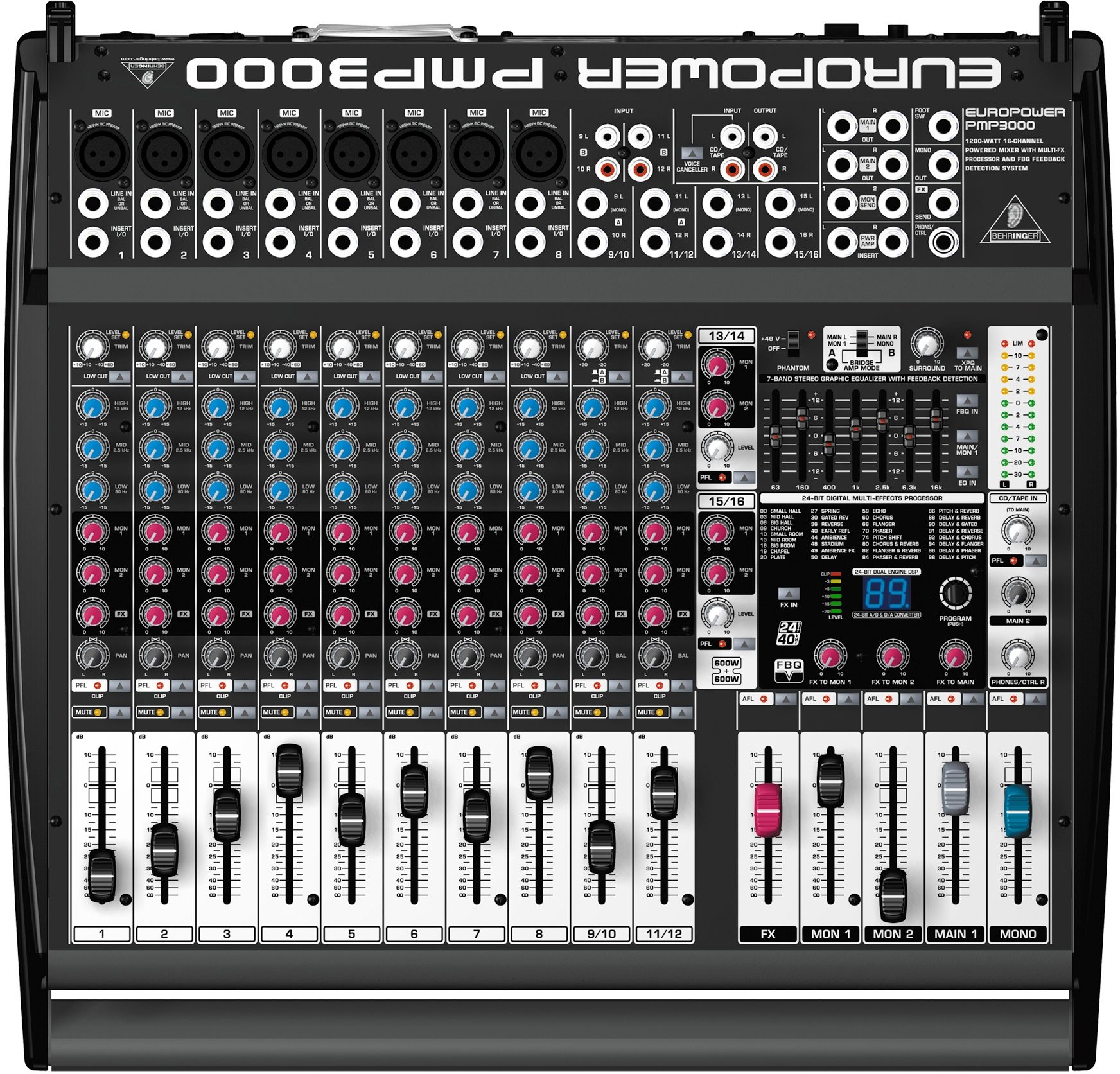

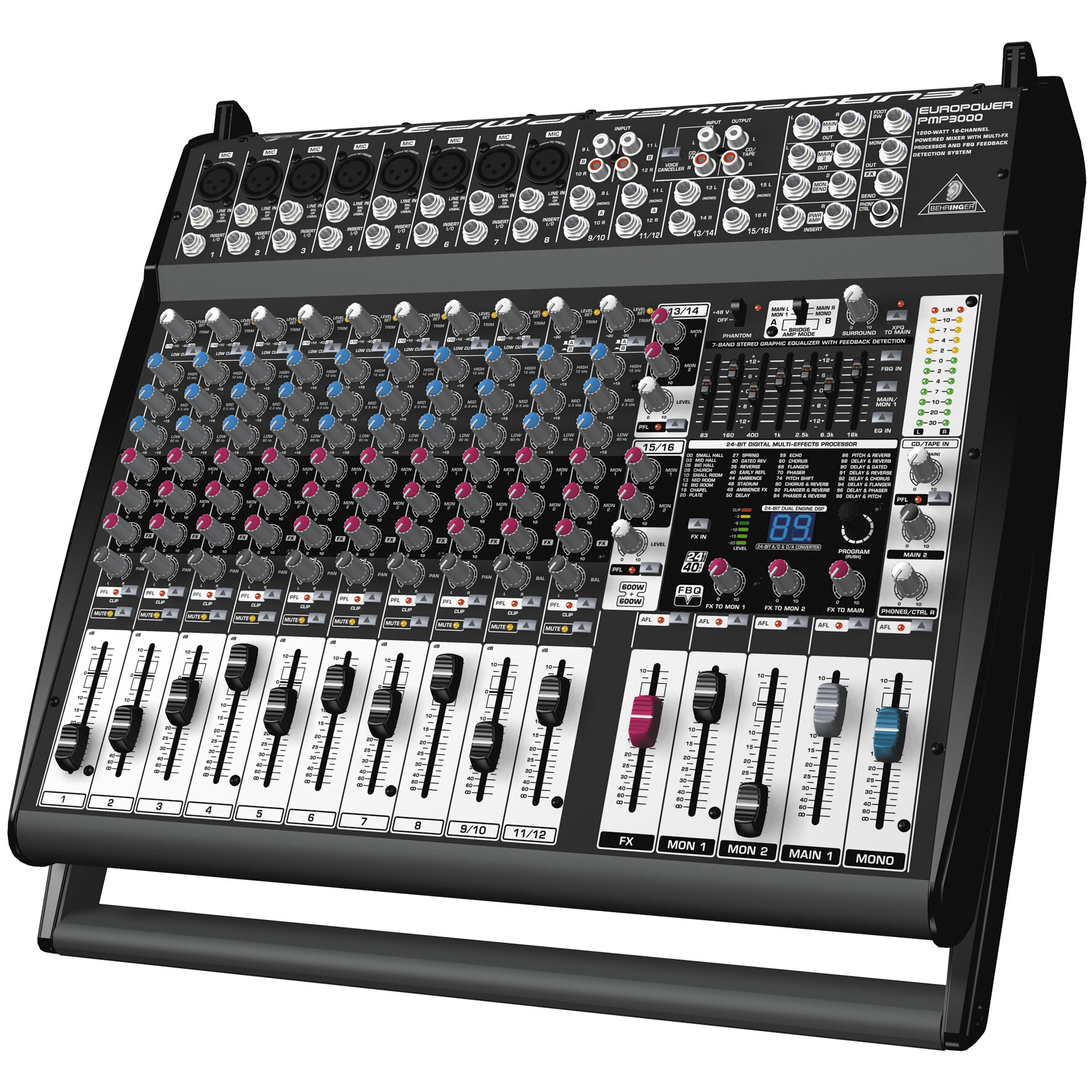

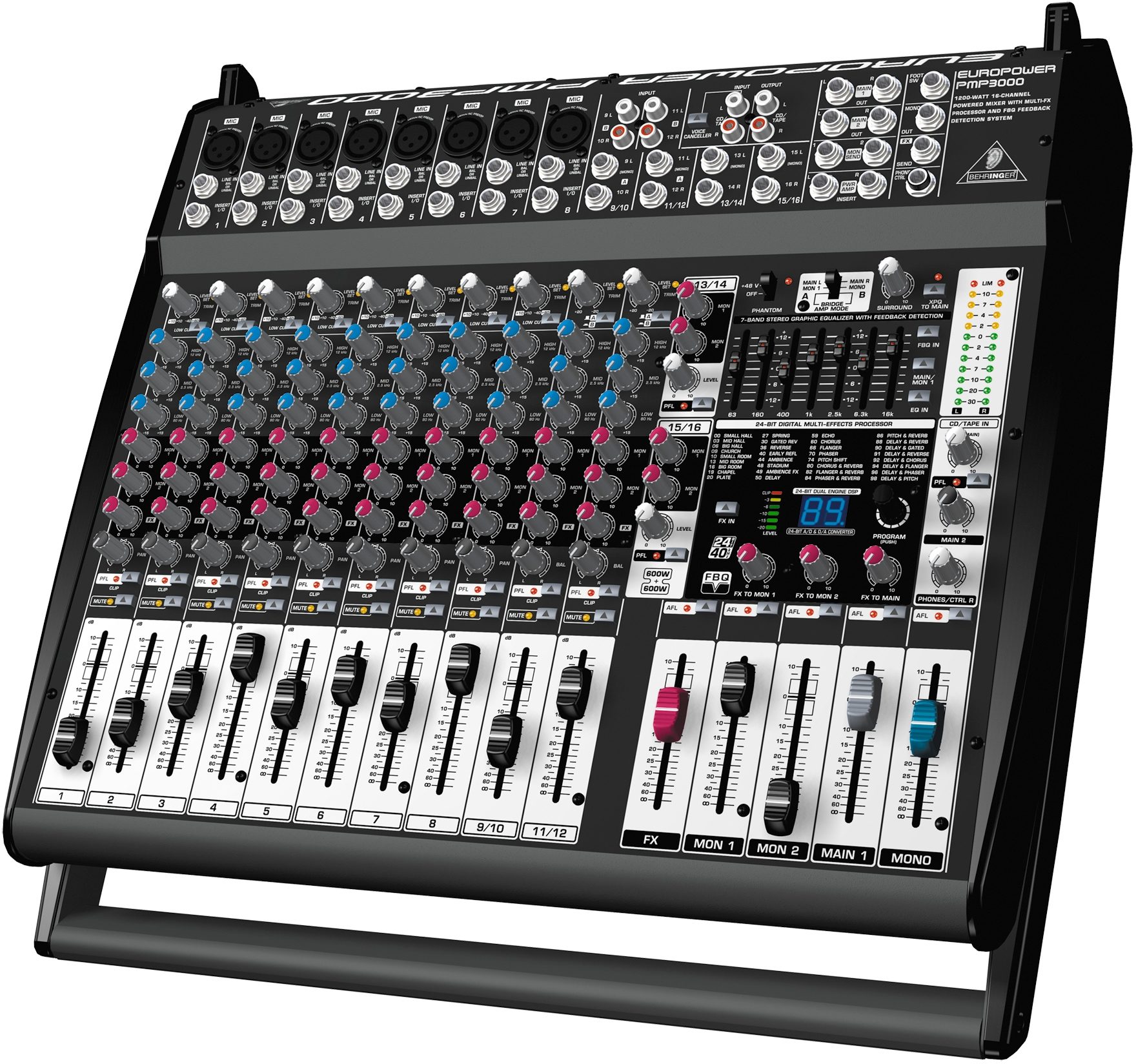

The PMP3000 powered mixer delivers more power, better sound at less weight!
The PMP3000 mixer delivers 1,200 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps, Voice Canceller and more round off this impressive package of power features.
Get massive power and great sound in a lightweight package!
Features
Ultra-compact 2 x 600-Watt stereo powered mixer (1,200 Watt bridged mode)
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight
16-channel mixer section features 8 mono and 4 stereo channels plus separate tape returns
Studio-grade 24-bit stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
8 high-quality IMP “Invisible” Mic Preamps with switchable +48 V phantom power for condenser microphones
Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels
Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
Voice Canceller function removes singer’s voice from recordings for Karaoke applications
Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
Adjustable stereo CD/Tape input for connecting external signal sources
Multi-functional stereo Preamp outputs for added flexibility
Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
Technical Info
Microphone Inputs:
- Type: XLR, electronically balanced, discrete input circuit
- Frequency Response: <10 Hz-155 kHz (-1 dB), <10Hz- >200 kHz (-3 dB)
- Gain: +10 dB, +60 dB
- Max Input Level: +12 dBu @ +10 dB gain
- Impedance: approx. 2.6 k ohms balanced/ 1.3 k ohms unbalanced
- Signal-to-Noise Ratio: 109 dB/ 112 dB A-weighted (0 dBu IN @ +10 dB gain)
- Distortion (THD+N): 0.002% / 0.0018% A-weighted
Mono Line Inputs
- Type: 1/4 in. TS connectors, balanced
- Impedance: approx 20k ohms
- Max Input Level: +21 dBu
Stereo Line Inputs
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: >3.6k ohms
- Max Input Level: +22 dBu
Equalizer
- Low: 80 Hz / +/- 15 dB
- Mid: 2.5 kHz / +/- 15 dB
- High: 12 kHz / +/- 15 dB
CD/Tape Input
- Type: RCA
- Impedance: approx 3.6 k ohms, balanced
- Max Input Level: +21 dBu
Main Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k ohms, unbalanced
- Max Input Level: +21 dBu
Monitor Preamp Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 k, unbalanced
- Max Input Level: +21 dBu
Stereo Outputs:
- Type: 1/4 in. TRS connectors, unbalanced
- Impedance: approx 150 ohms, unbalanced
- Max Output Level: +21 dBu
Stereo Outputs:
- Type: RCA
- Impedance: approx 1k ohms
- Max Output Level: +21 dBu
Loudspeaker Outputs:
- Type: compatible to Neutrik Speakon
Load Impedance:
- Main L/R: 4-8 ohms
- Monitor/Main Mono: 4-8 ohms
- Main Mono/Main Mono: 4-8 ohms
- Bridge: 8-16 ohms
DSP:
- Converter: 24-bit Delta-Sigma, 64/128-times oversampling
- Dynamics D/A: 90 dB
- Sampling Rate: 46.875 kHz
- Delay Time: max 5s
- Signal Run Time (Line in>>Line out): approx 1.5 ms
Display:
- Type: Dual 7-Segment LED
Amplifier (Power Amp Output):
- Power @ 4 ohms: 2 x 450 w
- Power @ 8 ohms: 2 x 215 w
- Power @ 8 ohms (Bridge): 1 x 1200 w
Power Supply:
- Mains Voltage: 120 V, 60 Hz
- Power Consumption: 1000 w
- Fuse: T 10 A H 250 V
- Mains Connector: Standard IEC receptacle
Physical/Weight:
- Dimensions: 4 7/8 x 18 3/4 x 18 1/8 in.
- Weight: 23.815 lbs
