Behringer DCX2496 Ultradrive Pro Digital Crossover System

Much more than just a crossover system, the Behringer DCX2496 Ultradrive Pro also features all the digital effects you need to get the most from your system. 131 People rated this product:

Rate and Review This Product

Ships to:

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Behringer DCX2496 Ultra-Drive Pro Digital Crossover System

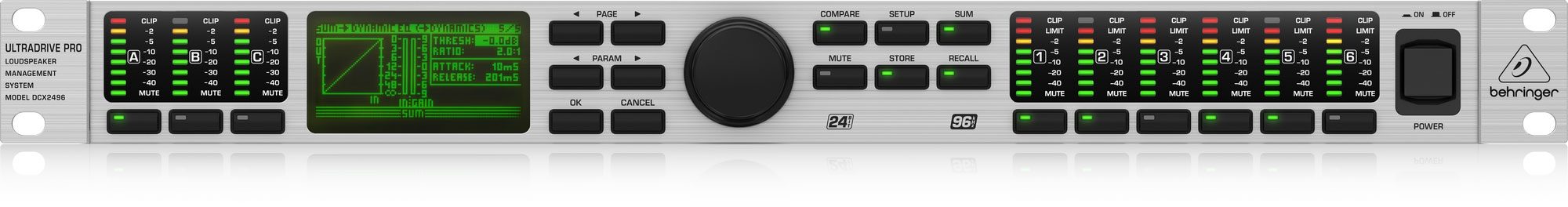

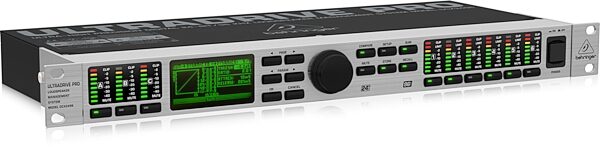

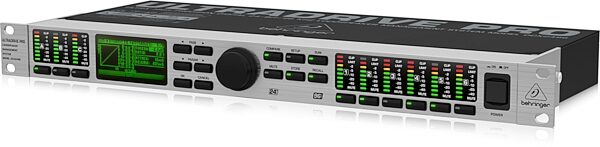

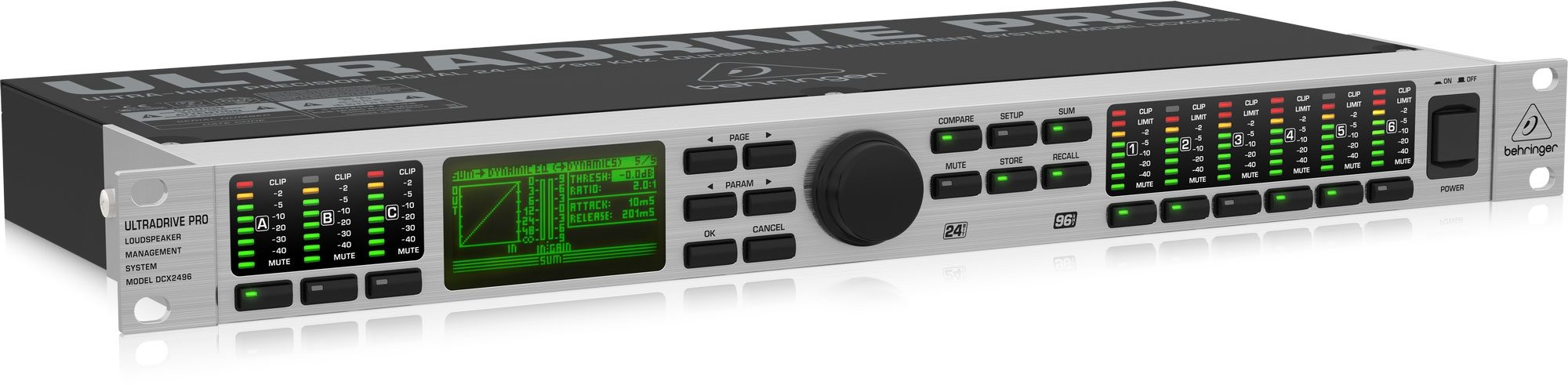

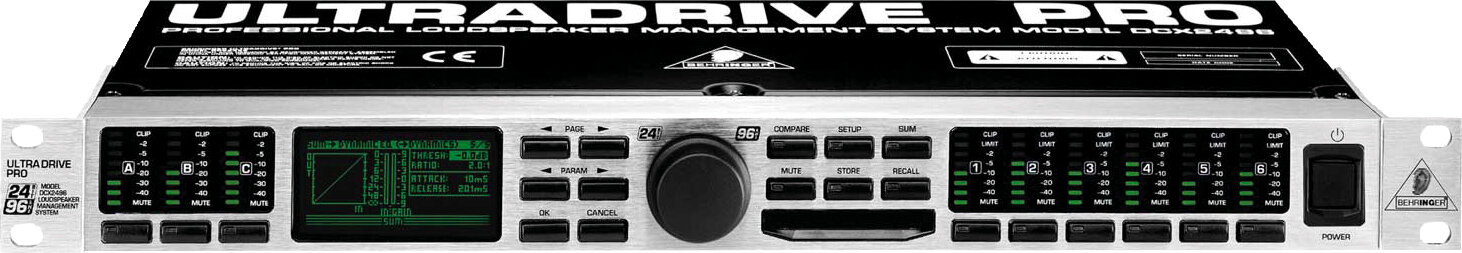

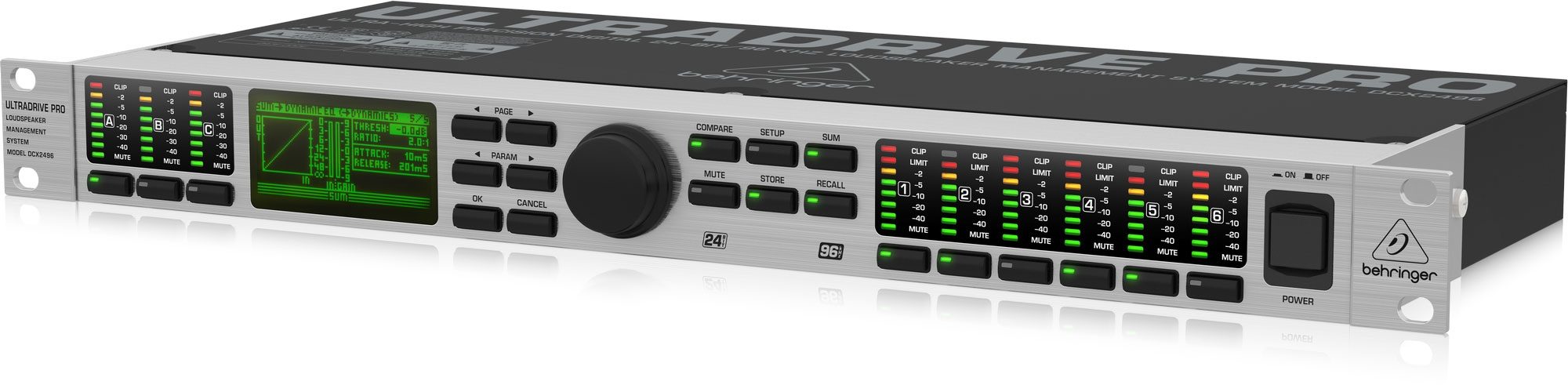

The Behringer Ultradrive Pro DCX2496 is the ultimate digital loudspeaker management system with an unheard-of audio quality and feature list. It is an indispensable tool for the precise set-up of multiple loudspeaker systems or arrays. Installation contractors, live-sound engineers, cinemas/discotheques/concert hall operators will quickly learn to love this model's rich features. Signals can be split in various ways to assure precise sound by using the optimal frequency range of each loudspeaker.

Features:

- 3 analog inputs (one suitable as digital stereo AES/EBU input) and 6 analog outputs for maximum flexibility
- High-end AKM 24-bit/96 kHz A/D and D/A converters for ultimate signal integrity and wide dynamic range (113 dB)
- Integrated sample rate converter for easy connection of external digital signals with sampling rates from 32 to 96 kHz
- Precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs
- Several types of EQs (LP/BP/HP) for each input and output
- "Zero"-attack limiters on all output channels for optimal speaker protection
- 4 different mono and stereo output operating modes
- Individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave
- Adjustable delays for all inputs and outputs-allow manual or automatic correction for room temperature, phase and arrival time differences
- Additional sum signal derived from the A/B/C inputs offers a 4th internal input signal
- Future-proof Ultradrive Pro software enables single or multi remote control via PC through RS-232 and RS-485 interfaces
- Link option via RS-485 network interface enables cascading of several Ultradrive Pros
- 60 user-defined internal presets storable via PC software or on PCMCIA card
- Open architecture assures easy software updates
- Ultra low-noise 4580 operational amplifiers for outstanding audio performance

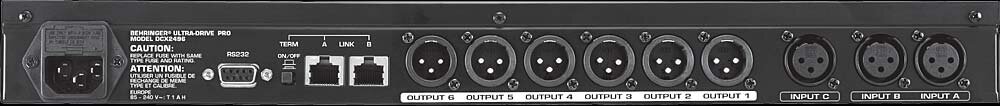

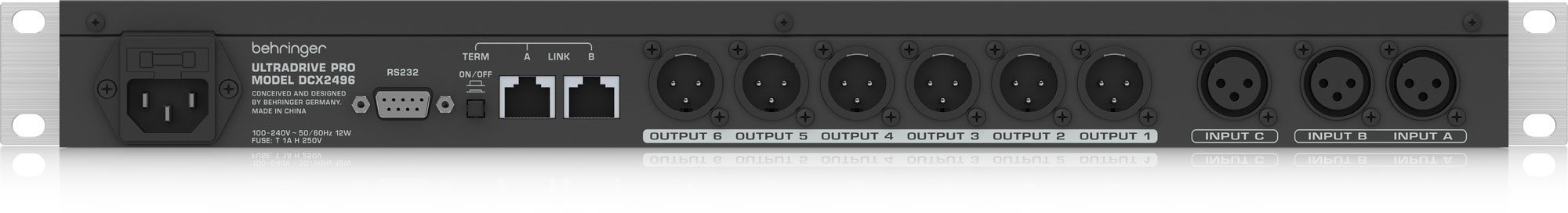

- Servo-balanced, gold-plated XLR connectors for all inputs and outputs
- High-quality components and exceptionally rugged construction for long life and durability
- Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption
- Manufactured under ISO9000 certified management system

Ultradrive Pro

Start with its 3 analog inputs (one suitable as a digital stereo AES/EBU input) and 6 analog outputs. You get maximum flexibility in just one rack space. Superb high-end AKM 24-bit/96 kHz A/D and D/A converters give you ultimate signal integrity and an extreme dynamic range of 113 dB. Easy connection of external digital signals with sampling rates from 32 to 96 kHz is a breeze with the integrated sample rate converter. There are precise dynamic EQs for level-dependent equalization and extremely musical parametric EQs, selectable for all inputs and outputs, and 'Zero'-attack limiters on all output channels guarantee optimal signal and loudspeaker protection.

Flexibility

You also get 4 different mono and stereo output operating modes, all with individual crossover filter types (Butterworth, Bessel and Linkwitz-Riley) with selectable roll-off characteristics from 6 to 48 dB/octave. The delays for all inputs and outputs are adjustable. This allows you to manually or automatically correct for room temperature, phase and arrival time differences. An additional sum signal is easily derived from the A/B/C inputs.

Future-Proof

Now that remote control is such a hot topic, you'll be glad that the future-proof Behringer Ultradrive Pro software enables single or multi remote control via PC through RS-232 and RS-485 interfaces. And the link option via RS-485 network interface enables cascading of several Ultradrive Pros. A Windows-based editing software is available for download free of charge. No matter what the future brings, its open architecture assures easy software updates. A PCMCIA slot allows you to store all your settings and recall them anytime you change the location -- virtually taking your Ultradrive Pro with you.

But don't be fooled by the Behringer DXC2496 Ultradrive Pro's sleek design. Its high-power Sharc-DSPs and ultra-high resolution Crystal/AKM A/D & D/A converter provide outstanding audio performance -- and the servo-balanced, gold-plated XLR connectors for all inputs and outputs guarantee excellent connectivity for the years to come. zZounds is an authorized dealer of Behringer products.

***The owners manual states that an RS232 cable is included. We confirmed with Behringer that this is a typo. No such cable is included.

Dimensions and Weight in Packaging: Shipping Weight: 9 lbs; Shipping Dimensions: 21 x 12 x 5 in

Behringer Warranty

Behringer Warranty

If you have additional warranty questions, please call the manufacturer at 425-672-0816

zZounds is an
authorized Behringer dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "zZounds saved my marriage!" - customer on February 1st, 2012

New

$299.95

or 4 payments
of $74.99
details

List: $653.99

Savings: $354.04 (54%)

In Stock

Will Ship Feb 13 Seen it for less?

Free Ground Shipping

2 Day Shipping $12.99Overnight $36.99

Customer Reviews

4.5 out of 5 (131 ratings) Rate and Review This Product

Read 2 Behringer DCX2496 Ultra-Drive Pro Digital Crossover System Reviews

zZounds has verified that this customer bought this product from us. "This is not a typical user's review, but the work of a Professional Audio Equipment Design Engineer. To me this is what I ne"

Sound: Hi I have not listened to the DXC2496 yet, but I have measured its performance. The unit performs miraculously. according to my measurements. The unit will be used to TriAmp my K2 Klipschorns. That is going to be long project. Probably months. Feature: No Accessories Ease of Use: A little hard to use, you have to be technically oriented, which I am. Quality: I found two problems so far. The linear regulator ICs run quite hot, I added a couple of heat spreaders to lower the case temperature of the regulators. The second problem is that the RS232 port is not wired according to the RS232 specifications. The unit does not use the connector pin ground for signal return but rather the connector shell This I have not fixed yet. Value: Yes it is worth it's price, It would have cost me a lot more to design it myself if I ever could. Manufacturer Support: Got firmware upgrade from Behringer Website. It is difficult to find this unit on the website. The connection through ZZound, however did work. The Wow Factor: Technically this is a marvel, but not designed for the less technically skilled person. It is hard to follow the manual, and the operation is not intuitive. Overall: When I get it all to work like it should it will be used untouched for many years, bu this is a research project.

Style of Music: Jazz and Classical

3 of 3 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

zZounds has verified that this customer bought this product from us. "All the speaker management features you need at half the cost."

Sound: We are using the DCX2496 in an installed system at Church. We have several sets of speakers at different distances from the front of the church so each needs a different delay, and each needs a different cross over frequency. This fits the bill perfectly. Clean sound and relatively easy to set up. And it is the most flexible box on the market. The user manual was a little confusing because it highlighted the automatic self determining delay feature. Once I contacted Behringer and received a simple instruction for manually setting everything, setup went quick and easy. The price is expensive for Behringer, but half the price of a Drive Rack which can not do what I needed. Feature: Being able to adjust the gain of each output was a nice feature. It allowed me to match all the speaker volumes from the same piece of equipment. The "Sum" intermediate channel turned out to also be a useful feature in that it allowed me to adjust the volume of several sets of speakers with one adjustment. The average user will not need this, but it is available and very handy. Ease of Use: The manual portion of user interface is set up more for a technician than a "player". As an engineer I felt very comfortable with it. It is intuitive so I can go back any time and re-adjust things without consulting the documentation. Can't speak to the ease of using the automatic setup features. Quality: The product is solid and does not generate a lot of heat. So I expect it to last 10+ years. Since it is all digital, there are not a lot of knobs and sliders to fail, and what you hear today should be what you hear years from now. Value: If you need the features of this product it is well worth the price. And it has the ability to be configured to just about any situation now and in the future. Manufacturer Support: We have over a dozen Behringer boxes in our audio systems. Their relatively low price has allowed us to spread our limited budget. The equipment's quality and reliability are about medium. The one time I emailed Behringer with a question, I got an immediate and thorough response. Very professional. The Wow Factor: Huh? This is a piece of rack equipment. I don't care what it looks like! I'd rather the money goes into reliability, not appearance. Overall: This should outlast everything in the audio system. Don't have any plans to replace it or to get a backup.

Style of Music: Varied

3 of 3 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read 2 Behringer DCX2496 Ultra-Drive Pro Digital Crossover System Reviews
