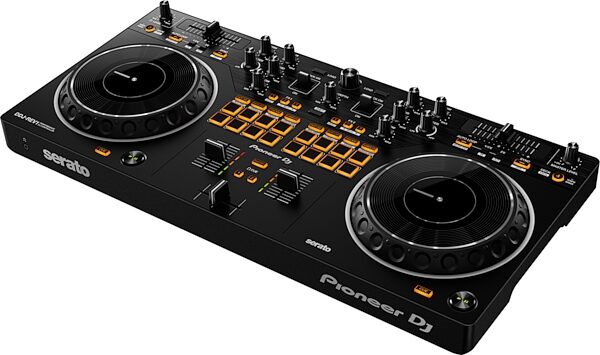

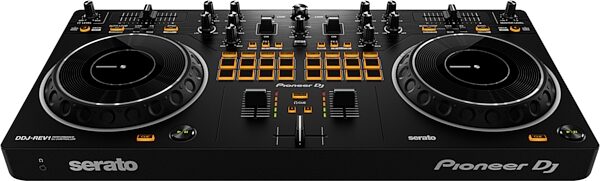

Pioneer DJ DDJ-REV1 DJ Controller

Prepare to fight! The REV1 emulates a common battle-style layout, making it ideal for artists who are more comfortable mixing and scratching with this setup.

The Pioneer DJ DDJ-REV1 matches perfectly with the free Serato DJ Lite software, boasting a battle-style layout that's easy to use and perfect for playing like a pro. The design of this 2-channel DJ controller emulates a professional DJM-S mixer + PLX turntable setup, including specialized features for open-format and scratch DJs.


Get a closer look at the DDJ-REV1 in this video from Pioneer DJ:


Perform Intuitively

Artists are invited to get hands-on with an interface emulating two PLX turntables and a DJM-S series mixer -- a common pro battle DJ setup.

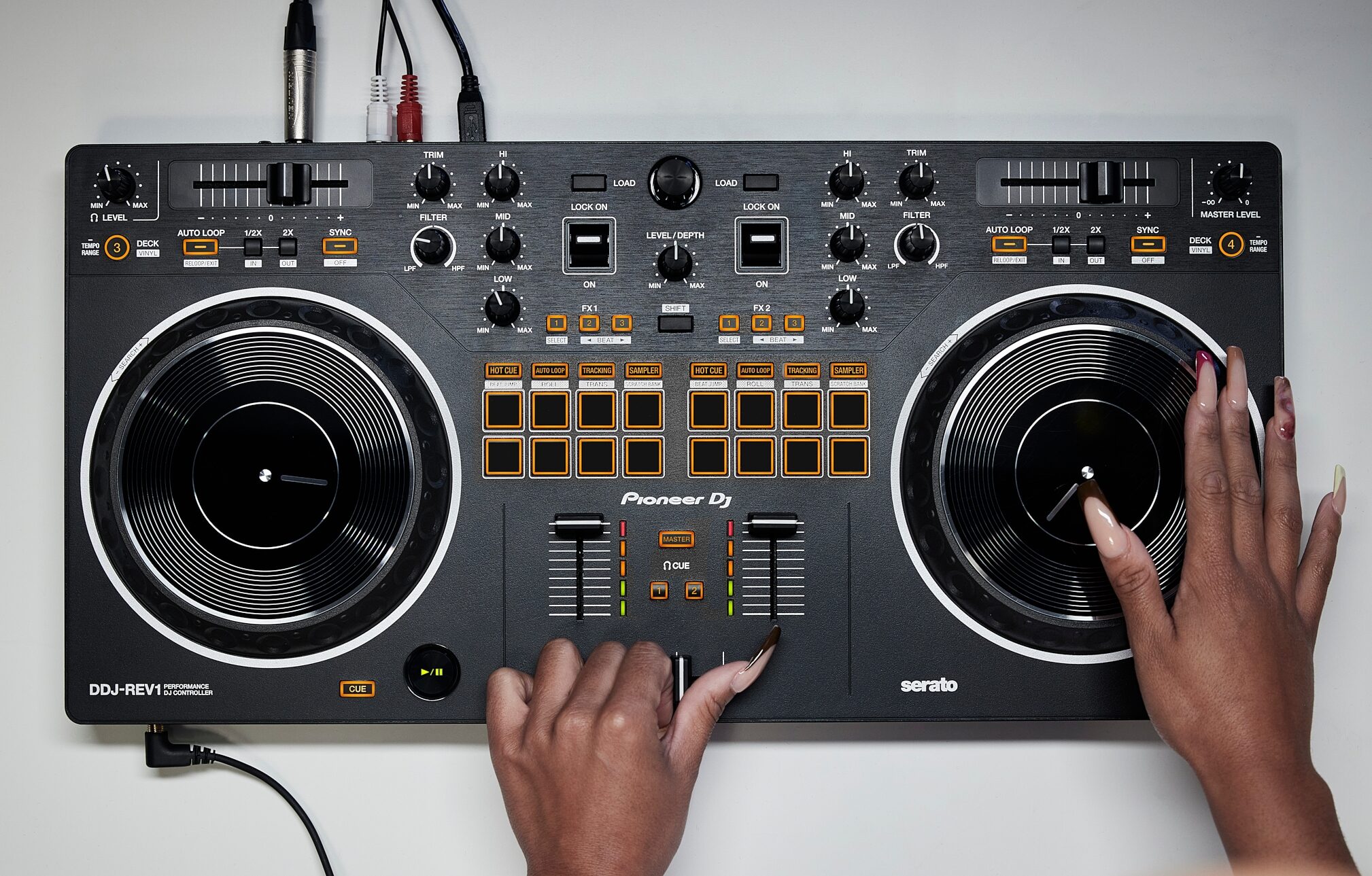

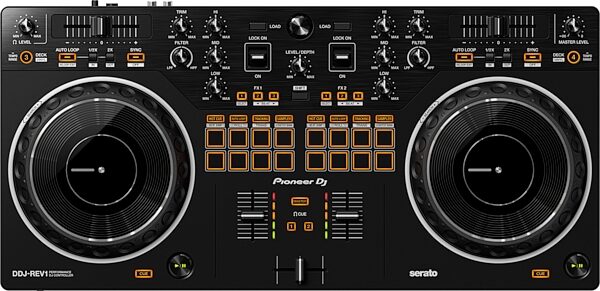

Battle-Style Setup

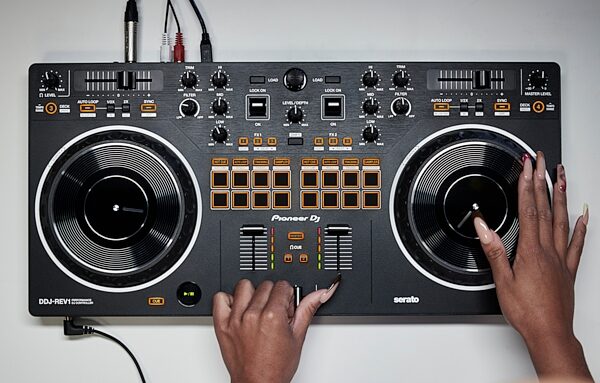

The DDJ-REV1 provides artists with space to perform mixing and scratching techniques with a unique control arrangement. Tempo sliders are longer than sliders on the DDJ-SB3, measuring at 60mm and giving artists finer control. Sliders run horizontally above the decks while the Performance Pads are in the mixer section allowing artists to intuitively combine effects, trigger samples, and scratch tracks.

Bigger Jog Wheels

Jog wheels on the DDJ-REV1 are the same size as jogwheels on the DDJ-SR2 -- a popular Pioneer DJ controller.

Lever FX

Artists can dynamically add texture to their music with Lever FX in the mixer section, by pulling down the levers and holding them to apply effects from Serato DJ Lite in short bursts. Alternatively, artists can also push the levers up, to lock on effects and free their hands for scratching or track browsing.

Tracking Scratch: Get a Helping Hand with Scratching

read more The Pioneer DJ DDJ-REV1 helps artists have fun scratching without doing it all for them. Artists will still need to hone their skills, but the Tracking Scratch feature will silently take the music back to the cue point the moment they move the jog wheel backward or lift their hand away -- in turn, saving them from needing to close the fader and find the right track place to start the scratch again. All artists need to do is select the Tracking Scratch Pad mode, press a Performance Pad to choose their desired Scratch Crossfader Cuts pattern and move the jog wheel.

Mixed Microphone Audio: Easily Add Voice While Streaming

For the first time in a Pioneer DJ controller at this level, the output of the master audio integrates with the microphone sound removing the need for external equipment such as a soundcard or separate mixer. All sounds are sent to Serato DJ Lite so you can stream from there.

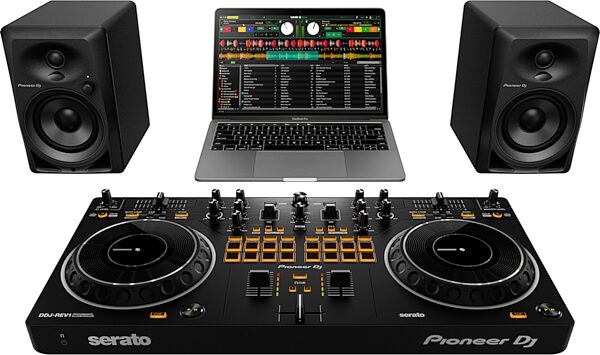

Serato DJ Lite Integration: Enjoy Full Use of the Free Software

After downloading Serato DJ Lite to their PC/Mac for free, artists connect the DDJ-REV1 via the supplied USB cable and begin DJing. Artists enjoy tactile control of various features and effects in the software by manipulating the controller's buttons, knobs, faders and jog wheels.

With Scratch Bank pad mode, artists instantly load scratch samples from four banks that they've assigned in Serato DJ Lite or Pro by simply tapping the dedicated Scratch Bank button. Artists can load from a specific start point too -- handy if they want to use this feature to drop in full tracks during a routine.

Other Features:

- Deck 3/4 Control: Play tracks and sounds loaded on any of the four Serato DJ Lite decks.
- Serato DJ Pro Support: Elevate performances with a 14 day free trial of Serato DJ Pro. (Paid Permanent Upgrade Available Separately)
read less

-Software: Serato DJ Lite, Serato DJ Pro (license/subscription not included)
-Frequency Response: 20Hz - 20kHz
-S/N Ratio: 103 dB(USB)
-Total Harmonic Distortion: 0.005%

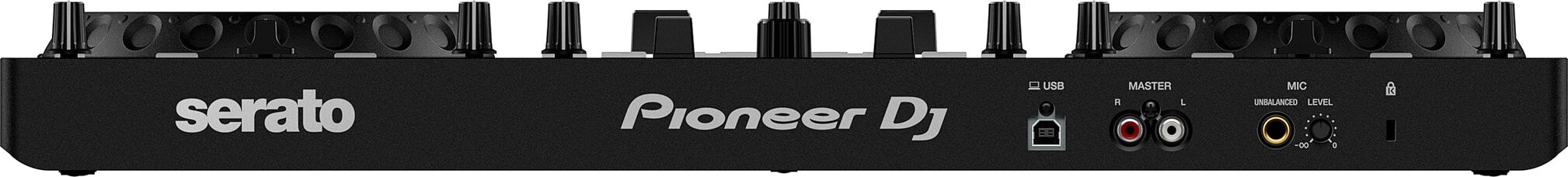

-Input / Output Terminals:
-Inputs: MIC x 1 (1/4" TS jack)
-Outputs: MASTER x 1 (RCA x 1), PHONES x 1 (3.5-mm stereo mini jack x 1)
-USB: USB Type-B x
-Power Supply: USB Type-B bus powered
-Power Consumption: 5V 500mA
-Maximum Dimensions (W x D x H): 526.0 255.5 59.2 mm / 20.7" 10.06" 2.33"
-Weight: 2.1 kg / 4.6 lbs.
-Accessories:
USB cable
Warranty (for some regions)
Quick Start Guide
Precautions for Use
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 6.25 lbs
Shipping Dimensions: 23 x 13 x 5 in
Manufacturer Part Number (MPN): DDJ-REV1

For support or warranty questions, please contact the manufacturer:
Phone: 800-421-1404 or 800-782-7210
Web: https://support.pioneerdj.com/
