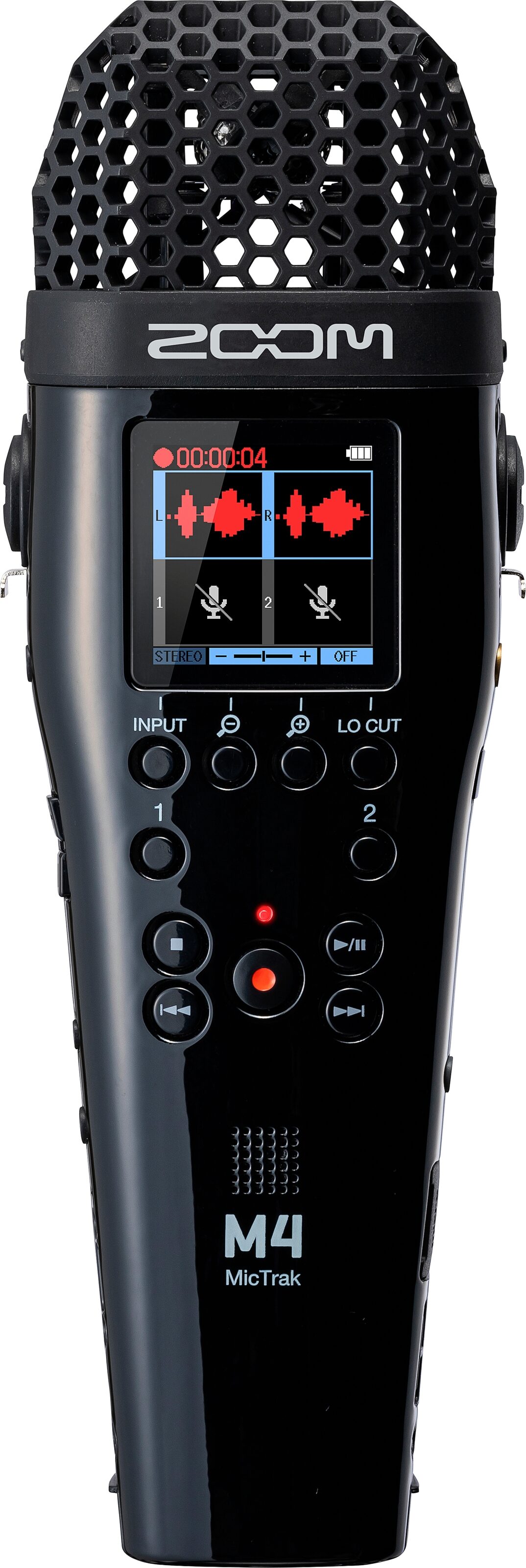

Zoom M4 MicTrak 4-Track Recorder with Stereo X/Y Microphones and Timecode
With 32-bit float recording, built-in timecode, and 2 XLR inputs plus built-in stereo mics for ambiance, this 4-track recorder is ideal for video shoots.
Overview
The Zoom M4 MicTrak is a 4-track portable recorder equipped with 32-bit float recording and built-in timecode generator, giving filmmakers and musicians everything they need to capture outstanding audio.
read less
Clip-Free Audio
When you're on-set you can't afford to come away with clipped or faint audio. The M4 records in 32-bit float, allowing you to capture perfect audio in any situation without the need to set gain.Built For Creators - Rolling... And... Action!

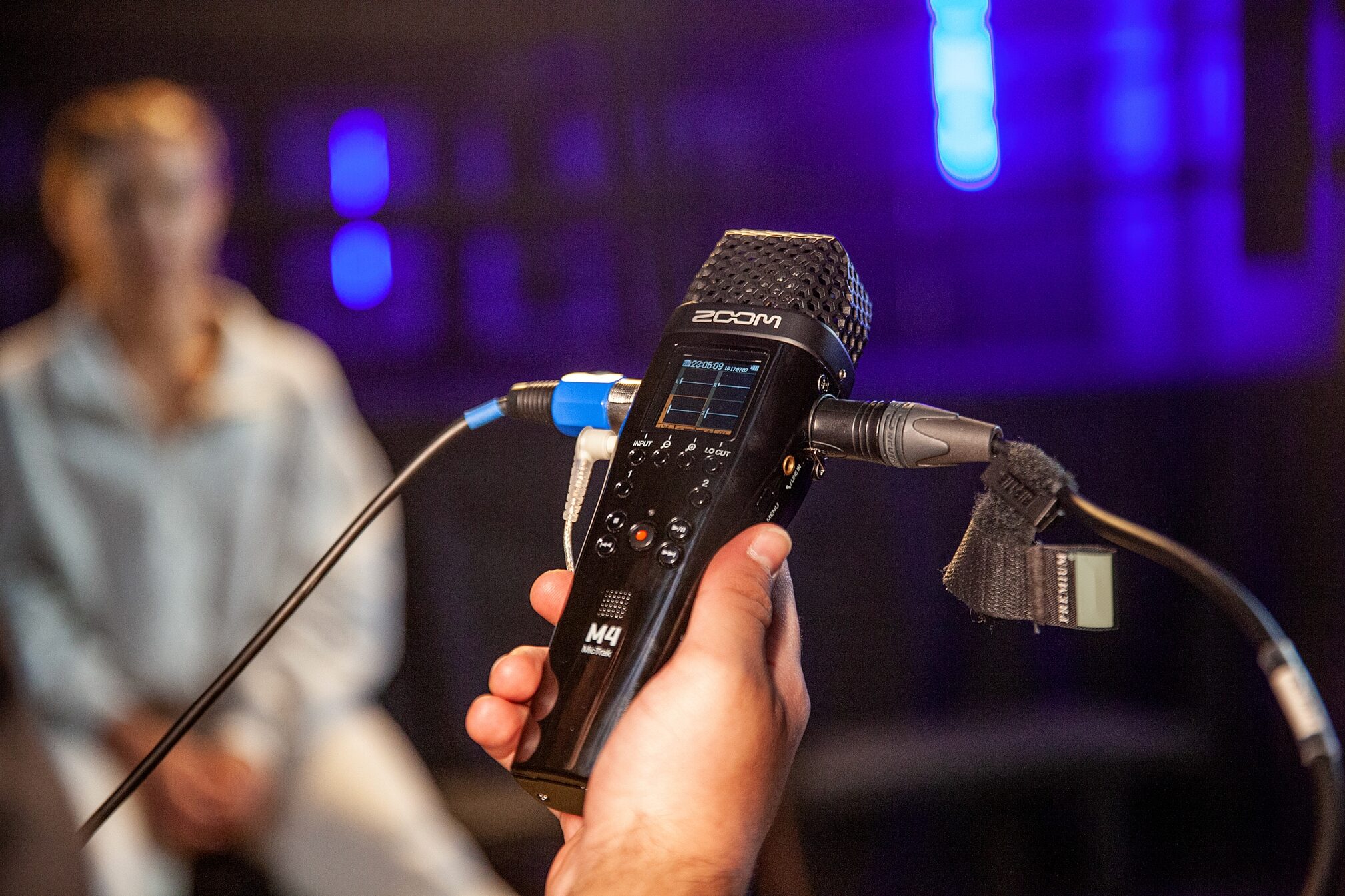

Filmmakers can use the two XLR inputs for dialogue, while using the X/Y mics to record ambiance. In post, your recordings can easily be synced to video, thanks to the M4's onboard timecode generator.Make Great Sounding Music Videos
Combine audio captured by the onboard X/Y mics with two additional external microphones to give your videos studio-quality sound in any environment.WAV Watching
Keep an eye on all four tracks of your recording using the M4's color LCD with a real-time waveform display.Super Low Handling Noise
The M4 was engineered to be the quietest handheld recorder ever. Its unique shock mounted X/Y mics and glossy finish significantly reduces handling noise, ensuring clean, clear audio, every time.Timecode Onboard
Serious videographers use timecode to keep their audio and video perfectly in sync. The M4's built-in timecode generator has professional grade .2 ppm accuracy.High-Performance Inputs

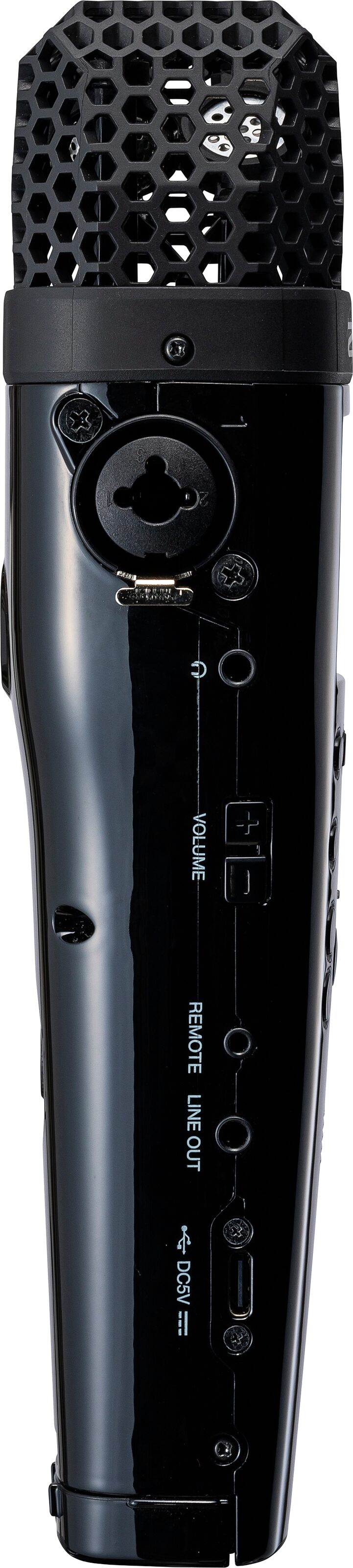

The M4 has two XLR/ TRS inputs that feature the same professional… read more grade, low-noise preamps found in Zoom's flagship F-Series recorders.Perfect Outputs
Connect the line output to your camera to record a backup or sync track to your video. Monitor your recording using the built-in headphone output.One-Step Normalization
Save time in post production by using the on board NORMALIZE function to automatically raise or lower the volume of your recording to the optimal level without compressing the audio.Monitoring Capability
Use the headphone output to monitor your recording or use the built in speaker for quick reference playback.Six Seconds Of Safety
The PRERECORD function captures and saves six seconds of audio before you hit RECORD - perfect for unexpected starts.Record All Day
With 18 hours of battery life, the M4 is ready to record whenever you need it.RC4 Remote Control
Control your M4 from up to 5 meters away with the Zoom RC4 (sold separately).32-BIT Float Audio Interface

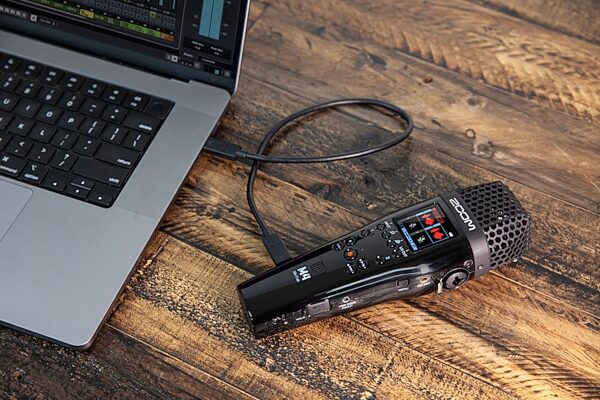

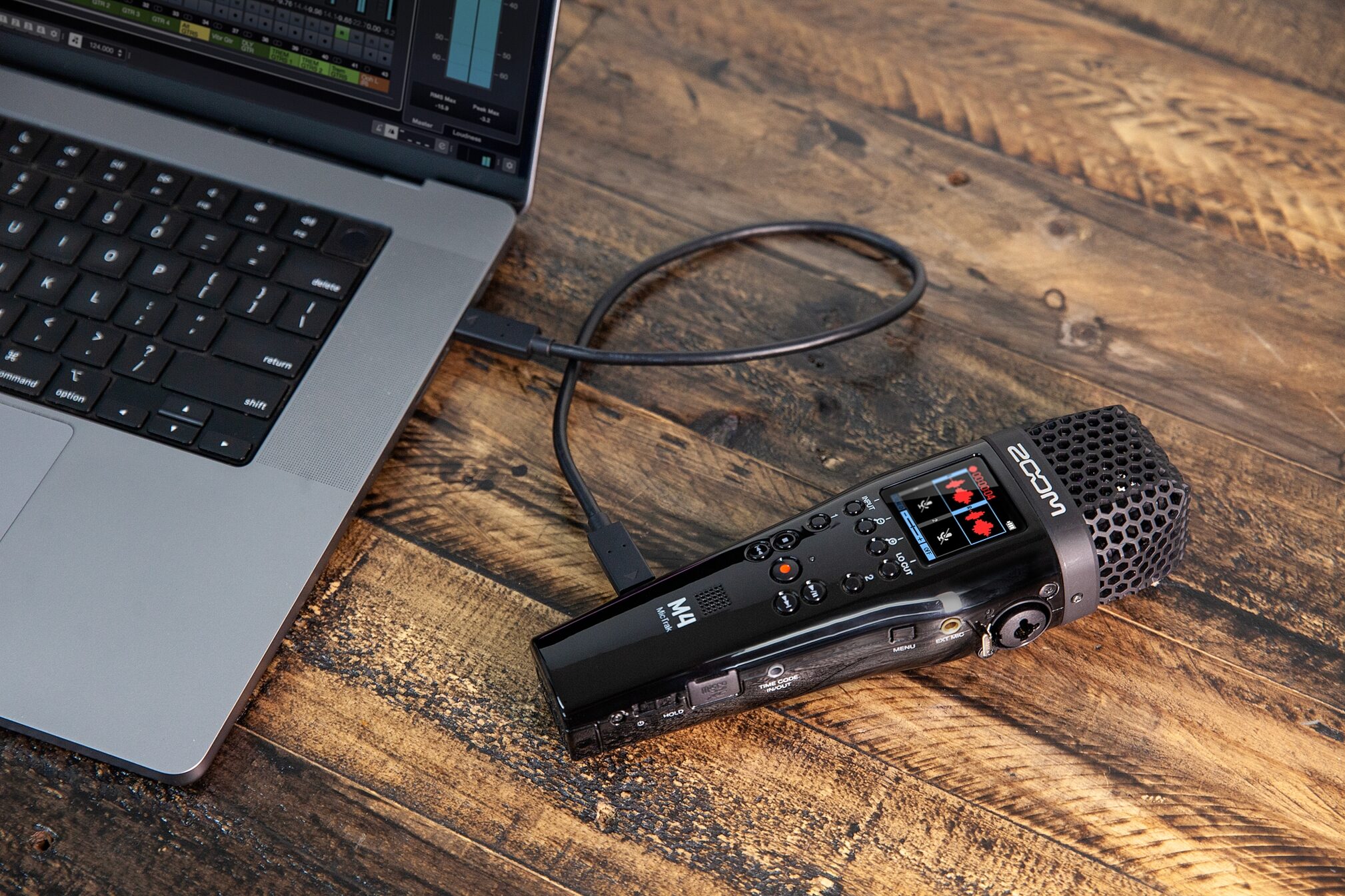

The M4 can be used as a 32-bit float, 4-in/2-out audio interface.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
-Inputs:
-Channels: 2 (built-in XY mic) + 2 (XLR/TRS inputs)
-Mic Input:
- -Mic Type: Unidirectional
- -Sensitivity: -42 dB, 1 kHz at 1 Pa
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Max Sound Pressure Input: 135 dB SPL
-EXT Mic Input:
- -Connectors: 1/8" stereo mini jack
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Input Impedance: 2 kOhm or more

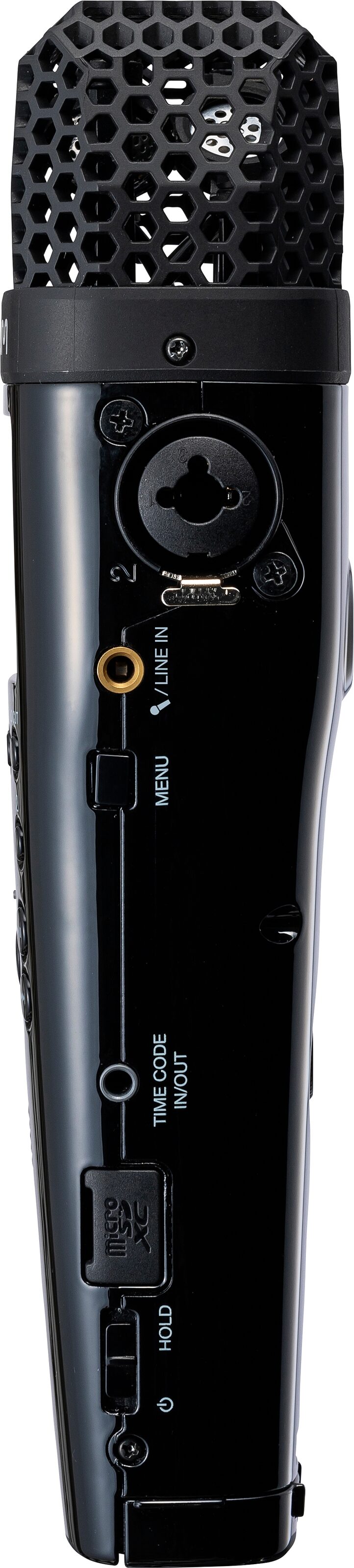

-XLR/TRS Input:
- -Connectors: XLR (2: HOT)/TRS combo jacks
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Input Impedance:
- -MIC: 3 kOhm or more
- -LINE: 3 kOhm or more
- -Maximum Input Level:
- -MIC: +4 dBu
- -LINE: +24 dBu
- -Phantom Power: +24/+48V 10mA maximum for each channel
- -Equivalent Input Noise: \0x2212127 dBu or less (IHF-A)
-Outputs:
-Line Out:
- -Connector: 1/8" stereo mini jack
- -Maximum Output Level: +1 dBu
-Headphone:
- -Connector: 1/8" stereo mini jack
- -Maximum Output Level: 20 mW +20 mW (32 Ohm load)
-Built-In Speaker: 500mW/8Ohm mono speaker
-Recording:
-Recording Media:
- 4GB-32GB microSDHC cards
- 64GB-1TB microSDXC cards
-WAV:
- -Supported Formats:
- 44.1/47.952/48/48.048/96/192kHz
- 32-bit float
- mono/stereo
- BWF and iXML
- -Maximum Simultaneous Recording Tracks: 4 (2 built-in XY mic + 2 XLR/TRS inputs)
-Time Code:
-Connector: 1/8" stereo mini jack (Tip: IN, Ring: OUT)
-Modes:
- Off
- Int Free Run, Int Record Run, Int RTC Run
- Ext
-Frame Rates:
- 23.976ND
- 24ND
- 25ND
- 29.97ND
- 29.97D
- 30ND
- 30D
-Precision: +/-0.2 ppm
-Supported Input Levels: 0.2 - 5.0 Vpp
-Input Impedance: 4.6 kOhm
-Output Level: 3.3 Vpp
-Output Impedance: 50 Ohm or less
-Power Supplies:
-Batteries: 4 AA
-AC Adapter: ZOOM AD-17 (DC 5 V/1 A)
- USB bus power is supported
-Display:
-LCD: 1.54" full color (240 x 240)
-Remote:
-Input: RC2/RC4/RCH-5/RCH-6
-USB:
-Connector: USB Type-C
-Mass Storage:
- Class USB 2.0High Speed
-Audio Interface With Rec:
- -Class: USB 2.0 High Speed
- -Sampling Rate: 48kHz
- -Bit Rate: 24-bit/32-bit float
- -Channels: 4 in/2 out
-Estimated Continuous Operation Time Using Batteries:
- 48 kHz/32-bit float, 2ch recording to microSDHC card
- -Alkaline batteries: about 18 hours
-Bundle:
- Quick Guide
- Windscreen
-Channels: 2 (built-in XY mic) + 2 (XLR/TRS inputs)
-Mic Input:
- -Mic Type: Unidirectional
- -Sensitivity: -42 dB, 1 kHz at 1 Pa
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Max Sound Pressure Input: 135 dB SPL
-EXT Mic Input:
- -Connectors: 1/8" stereo mini jack
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Input Impedance: 2 kOhm or more
-XLR/TRS Input:
- -Connectors: XLR (2: HOT)/TRS combo jacks
- -Input Gain: Adjustment unnecessary (dual AD converter circuits used)
- -Input Impedance:
- -MIC: 3 kOhm or more
- -LINE: 3 kOhm or more
- -Maximum Input Level:
- -MIC: +4 dBu
- -LINE: +24 dBu
- -Phantom Power: +24/+48V 10mA maximum for each channel
- -Equivalent Input Noise: \0x2212127 dBu or less (IHF-A)
-Outputs:
-Line Out:
- -Connector: 1/8" stereo mini jack
- -Maximum Output Level: +1 dBu
-Headphone:
- -Connector: 1/8" stereo mini jack
- -Maximum Output Level: 20 mW +20 mW (32 Ohm load)
-Built-In Speaker: 500mW/8Ohm mono speaker
-Recording:
-Recording Media:
- 4GB-32GB microSDHC cards
- 64GB-1TB microSDXC cards
-WAV:
- -Supported Formats:
- 44.1/47.952/48/48.048/96/192kHz
- 32-bit float
- mono/stereo
- BWF and iXML
- -Maximum Simultaneous Recording Tracks: 4 (2 built-in XY mic + 2 XLR/TRS inputs)
-Time Code:
-Connector: 1/8" stereo mini jack (Tip: IN, Ring: OUT)
-Modes:
- Off
- Int Free Run, Int Record Run, Int RTC Run
- Ext
-Frame Rates:
- 23.976ND
- 24ND
- 25ND
- 29.97ND
- 29.97D
- 30ND
- 30D
-Precision: +/-0.2 ppm
-Supported Input Levels: 0.2 - 5.0 Vpp
-Input Impedance: 4.6 kOhm
-Output Level: 3.3 Vpp
-Output Impedance: 50 Ohm or less
-Power Supplies:
-Batteries: 4 AA
-AC Adapter: ZOOM AD-17 (DC 5 V/1 A)
- USB bus power is supported
-Display:
-LCD: 1.54" full color (240 x 240)
-Remote:
-Input: RC2/RC4/RCH-5/RCH-6
-USB:
-Connector: USB Type-C
-Mass Storage:
- Class USB 2.0High Speed
-Audio Interface With Rec:
- -Class: USB 2.0 High Speed
- -Sampling Rate: 48kHz
- -Bit Rate: 24-bit/32-bit float
- -Channels: 4 in/2 out
-Estimated Continuous Operation Time Using Batteries:
- 48 kHz/32-bit float, 2ch recording to microSDHC card
- -Alkaline batteries: about 18 hours
-Bundle:
- Quick Guide
- Windscreen
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.95 lbs
- Shipping Dimensions: 9 x 4 x 3 in
- Manufacturer Part Number (MPN): ZM4
