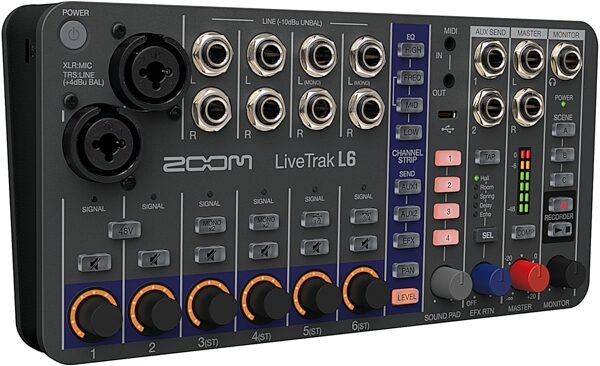

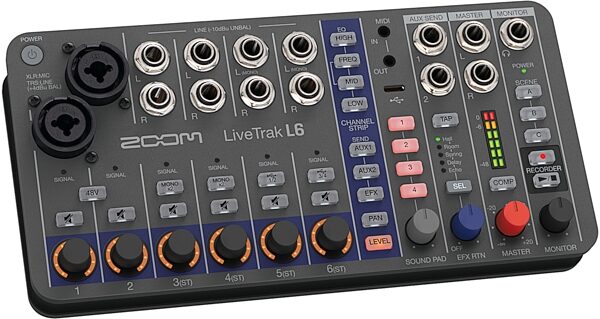

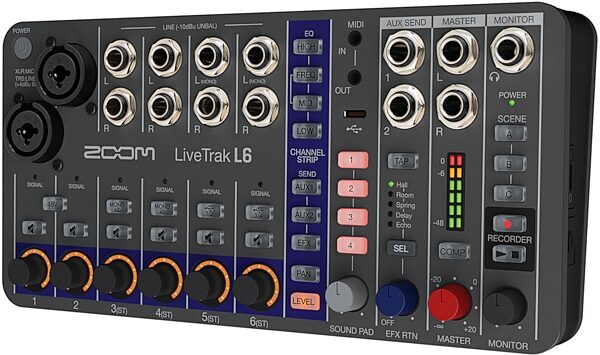

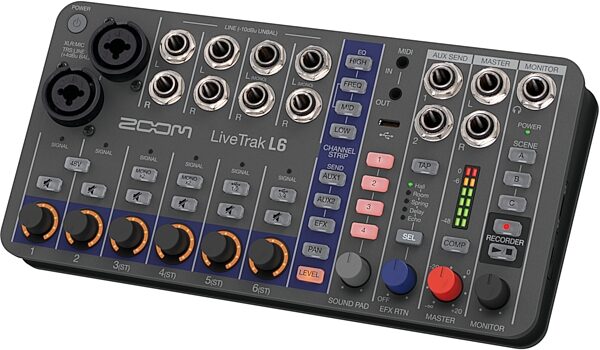

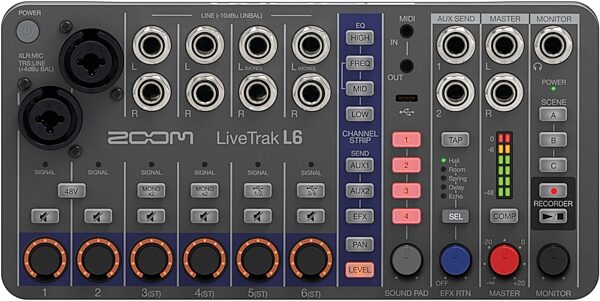

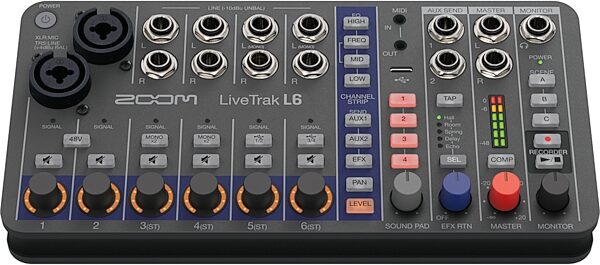

Zoom LiveTrak L-6 Digital Mixer and Multi-Track Recorder, 6-Channel
Overview
The LiveTrak L6 is Zoom's most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it's perfect for bands, synth players, live streaming, and more.
- 10-tracks of studio quality audio
- Full channel strip controls for each track
- 3-band mid-sweepable EQ, aux sends, pan, and effects
- Tracks the full stereo mix on an SD card, up to 1TB
- 32-bit float and pristine sounding preamps
- 2 XLR/TRS combo inputs, 2 stereo TRS inputs, & 2 stereo/mono TRS inputs
- Send custom mixes to monitors, effects, or external devices
- Connect to studio monitors or live speakers
- Headphone output with volume control
- Onboard effects include Delay, Echo, plus Spring, Room, & Hall reverbs
- Output compressor increases loudness while adding natural saturation
- Connect Outboard gear like drum machines and synths
- Map parameter controls such as volume, pan, and EQ to outboard gear
- Tempo synchronization with effects like delay
- Sound pads to trigger pre-recorded backing tracks or samples
- The L6 Editor gives you access to settings and MIDI programming
Full Featured Mixer
Don't let its size fool you. The L6 is designed with big mixer capabilities; full channel strip controls for each track including 3-band mid-sweepable EQ, aux sends, pan, and effects.
Powerful Multi-Track Recording
The L6 records 10 discrete tracks plus the full stereo mix on an SD card up to 1TB. Share the live mix, or… read more transfer your multi-track audio files to your favorite DAW for editing and mixing.
32-Bit Float Technology
With 32-bit float and pristine sounding preamps, you will get clip-free audio every time, without the need to set gain.
Battery Power
Use four AA's for up to 3 hours of power or an external USB battery for extended use.
Tons of I/O
Plenty of Inputs
- 2 XLR/TRS combo inputs plus 4-stereo 1/4" inputs
- Get two additional mono inputs instead of a stereo input
- USB Audio Return for backing tracks and other audio from a Laptop
The Right Outputs
- Send custom mixes to monitors, effects, or external devices
- Connect to studio monitors or live speakers
- Headphone output with volume control
Loaded with Effects
Enhance your mix with effects including Delay, Echo, and Spring, Room, and Hall reverbs.
Advanced Compressor
The L6's main output compressor increases loudness while adding natural saturation. With 32-bit float, the audio will never clip, even at high volume.
MIDI Connectivity
Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.
Record & Control
The L6 can be used as a 32-bit float 10-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the SD card. It's also a control surface for your favorite DAW.
Broadcast & Stream
The L6 is the perfect companion for video streams that need broadcast quality audio no matter the location. Connect to your favorite streaming software on PC, Mac, iOS devices.
LED Control Knobs
Adjust levels and parameters quickly and precisely with the LED control knobs.
Sound Pads
Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.
L6 Editor Software
The L6 Editor gives you access to settings and MIDI programming. Customize effect parameters, AUX send points, sound pad settings and more.
Scene Saving
Once you've dialed in your mix, save it to one of the three Scene memories for instant recall.
Eurorack
The L6 is mountable to a standard Eurorack case using the optional ERL-6 rack ears and power supply.
Package Includes:- LiveTrak L6
- AD-17 USB AC Adapter
- USB-C Cable
read less
Features:
- Compact and portable- 10-tracks of studio quality audio
- Full channel strip controls for each track
- 3-band mid-sweepable EQ, aux sends, pan, and effects
- Tracks the full stereo mix on an SD card, up to 1TB
- 32-bit float and pristine sounding preamps
- 2 XLR/TRS combo inputs, 2 stereo TRS inputs, & 2 stereo/mono TRS inputs
- Send custom mixes to monitors, effects, or external devices
- Connect to studio monitors or live speakers
- Headphone output with volume control
- Onboard effects include Delay, Echo, plus Spring, Room, & Hall reverbs
- Output compressor increases loudness while adding natural saturation
- Connect Outboard gear like drum machines and synths
- Map parameter controls such as volume, pan, and EQ to outboard gear
- Tempo synchronization with effects like delay
- Sound pads to trigger pre-recorded backing tracks or samples
- The L6 Editor gives you access to settings and MIDI programming
Full Featured Mixer
Don't let its size fool you. The L6 is designed with big mixer capabilities; full channel strip controls for each track including 3-band mid-sweepable EQ, aux sends, pan, and effects.
Powerful Multi-Track Recording
The L6 records 10 discrete tracks plus the full stereo mix on an SD card up to 1TB. Share the live mix, or… read more transfer your multi-track audio files to your favorite DAW for editing and mixing.
32-Bit Float Technology
With 32-bit float and pristine sounding preamps, you will get clip-free audio every time, without the need to set gain.
Battery Power
Use four AA's for up to 3 hours of power or an external USB battery for extended use.
Tons of I/O
Plenty of Inputs
- 2 XLR/TRS combo inputs plus 4-stereo 1/4" inputs
- Get two additional mono inputs instead of a stereo input
- USB Audio Return for backing tracks and other audio from a Laptop
The Right Outputs
- Send custom mixes to monitors, effects, or external devices
- Connect to studio monitors or live speakers
- Headphone output with volume control
Loaded with Effects
Enhance your mix with effects including Delay, Echo, and Spring, Room, and Hall reverbs.
Advanced Compressor
The L6's main output compressor increases loudness while adding natural saturation. With 32-bit float, the audio will never clip, even at high volume.
MIDI Connectivity
Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.
Record & Control
The L6 can be used as a 32-bit float 10-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the SD card. It's also a control surface for your favorite DAW.
Broadcast & Stream
The L6 is the perfect companion for video streams that need broadcast quality audio no matter the location. Connect to your favorite streaming software on PC, Mac, iOS devices.
LED Control Knobs
Adjust levels and parameters quickly and precisely with the LED control knobs.
Sound Pads
Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.
L6 Editor Software
The L6 Editor gives you access to settings and MIDI programming. Customize effect parameters, AUX send points, sound pad settings and more.
Scene Saving
Once you've dialed in your mix, save it to one of the three Scene memories for instant recall.
Eurorack
The L6 is mountable to a standard Eurorack case using the optional ERL-6 rack ears and power supply.
Package Includes:- LiveTrak L6
- AD-17 USB AC Adapter
- USB-C Cable
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Number of Inputs:
- MIC/LINE (mono) x2
- LINE (stereo) x4
Number of Outputs:
- AUX SEND (mono) x2
- MASTER (stereo) x1
- MONITOR (stereo) x1
Number of Buses:
- MASTER x1
- AUX SEND x2
- SEND EFX x1
MIC/LINE Inputs
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input impedance:
XLR: 3.8 k or more
TRS: 39 k or more
Maximum input level:
XLR: +4 dBu
TRS: +24 dBu
Phantom power: +48 V (Channel total of 10 mA or less)
LINE Inputs
Connectors: 8 TS phone jacks (balanced)
Input impedance: 10 k
Maximum input level: +9 dBu
AUX SEND Outputs
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147
MASTER Outputs
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147
Monitor Output
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 load)
Output impedance: 14.7
Channel strip
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz 8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
Level meters: 6 segments
Send effects: 5 types
Recorder
Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48kHz, 32-bit float, mono/stereo WAV
Recording media:
microSDHC memory cards (Class 10 or higher)
microSDXC memory cards (Class 10 or higher)
Audio interface
Input: 12 channels
Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface USB: 2.0
Card reader Class Mass storage class: USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150 input
Power
Accepted Power Sources:
4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power is supported
Estimated Battery Life (continuous recording time using):
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 7 hours
Power consumption: 5W maximum
Dimensions (WxDxH): 223 mm 114 mm 46.5 mm
Weight (unit only): 526g
Weight (including batteries): 618g
- MIC/LINE (mono) x2
- LINE (stereo) x4
Number of Outputs:
- AUX SEND (mono) x2
- MASTER (stereo) x1
- MONITOR (stereo) x1
Number of Buses:
- MASTER x1
- AUX SEND x2
- SEND EFX x1
MIC/LINE Inputs
Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input impedance:
XLR: 3.8 k or more
TRS: 39 k or more
Maximum input level:
XLR: +4 dBu
TRS: +24 dBu
Phantom power: +48 V (Channel total of 10 mA or less)
LINE Inputs
Connectors: 8 TS phone jacks (balanced)
Input impedance: 10 k
Maximum input level: +9 dBu
AUX SEND Outputs
Connectors: 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147
MASTER Outputs
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147
Monitor Output
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 load)
Output impedance: 14.7
Channel strip
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz 8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
Level meters: 6 segments
Send effects: 5 types
Recorder
Maximum simultaneous recording tracks: 12
Maximum simultaneous playback tracks: 2
Recording formats: 48kHz, 32-bit float, mono/stereo WAV
Recording media:
microSDHC memory cards (Class 10 or higher)
microSDXC memory cards (Class 10 or higher)
Audio interface
Input: 12 channels
Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface USB: 2.0
Card reader Class Mass storage class: USB 2.0 High Speed
Sampling frequency: 48 kHz
Frequency response: 20 Hz 20 kHz / -1.0 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150 input
Power
Accepted Power Sources:
4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
USB bus power is supported
Estimated Battery Life (continuous recording time using):
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 7 hours
Power consumption: 5W maximum
Dimensions (WxDxH): 223 mm 114 mm 46.5 mm
Weight (unit only): 526g
Weight (including batteries): 618g
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1.7 lbs
- Shipping Dimensions: 11 x 6 x 3 in
- Manufacturer Part Number (MPN): ZL6
