Number of input channels: 8 (XY mic capsule, 1-4, A, B)
Number of output channels: 2 (stereo headphone and stereo line)
MIC IN: ZOOM mic connector

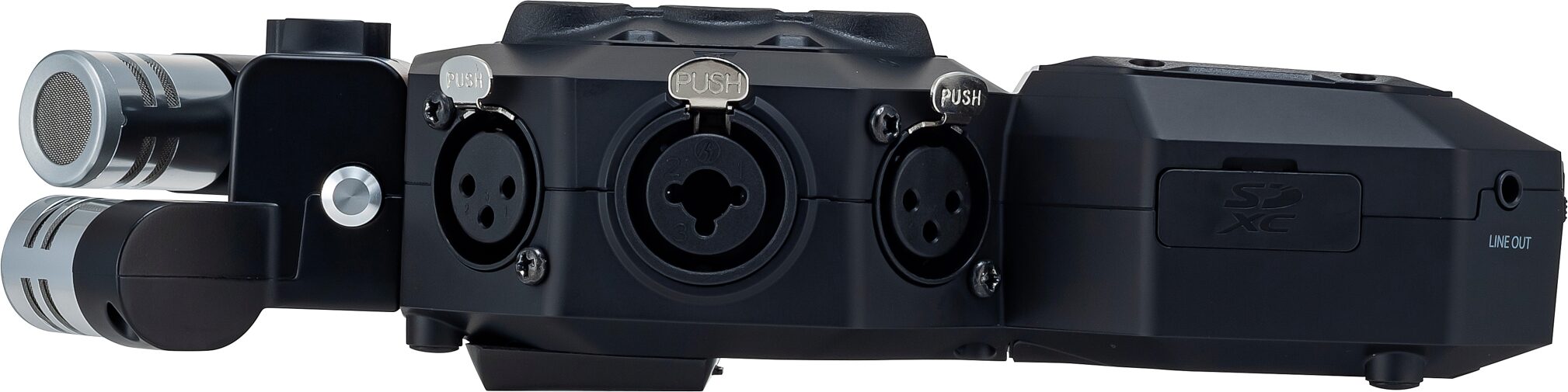

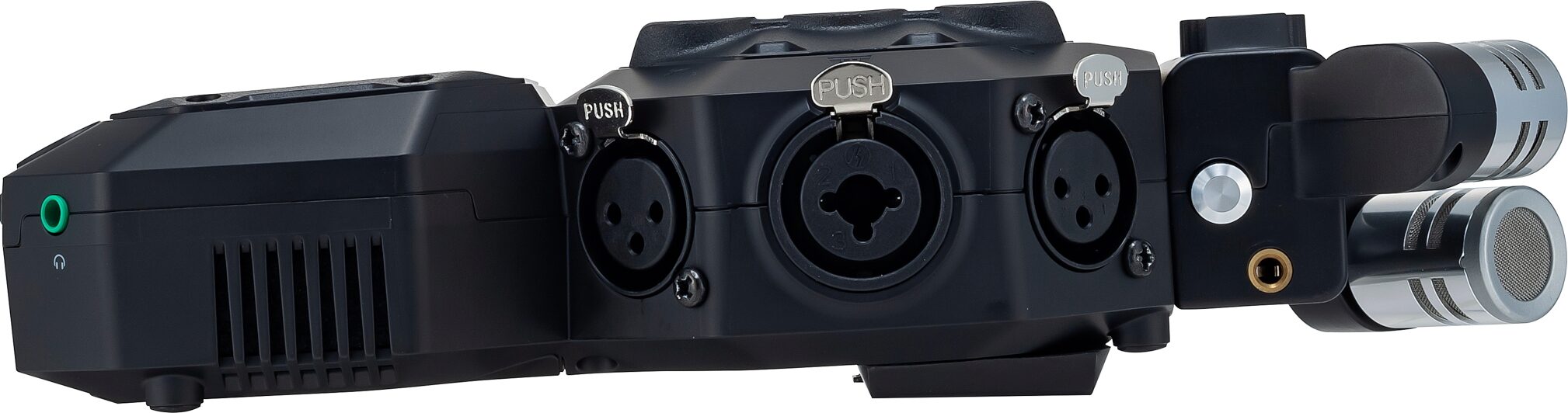

INPUT 1-4: XLR jacks (2: HOT)
INPUT A/B: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
USB: USB Micro-B (audio interface, mass storage and Guitar Lab connection functions)
Note: Use a USB cable that supports data transfer. Operation using USB bus power is possible. When using a USB cable designed for recharging, audio interface, SD card reader and Guitar Lab connection functions cannot be used.
REMOTE: ZOOM BTA-1 or other dedicated wireless adapter

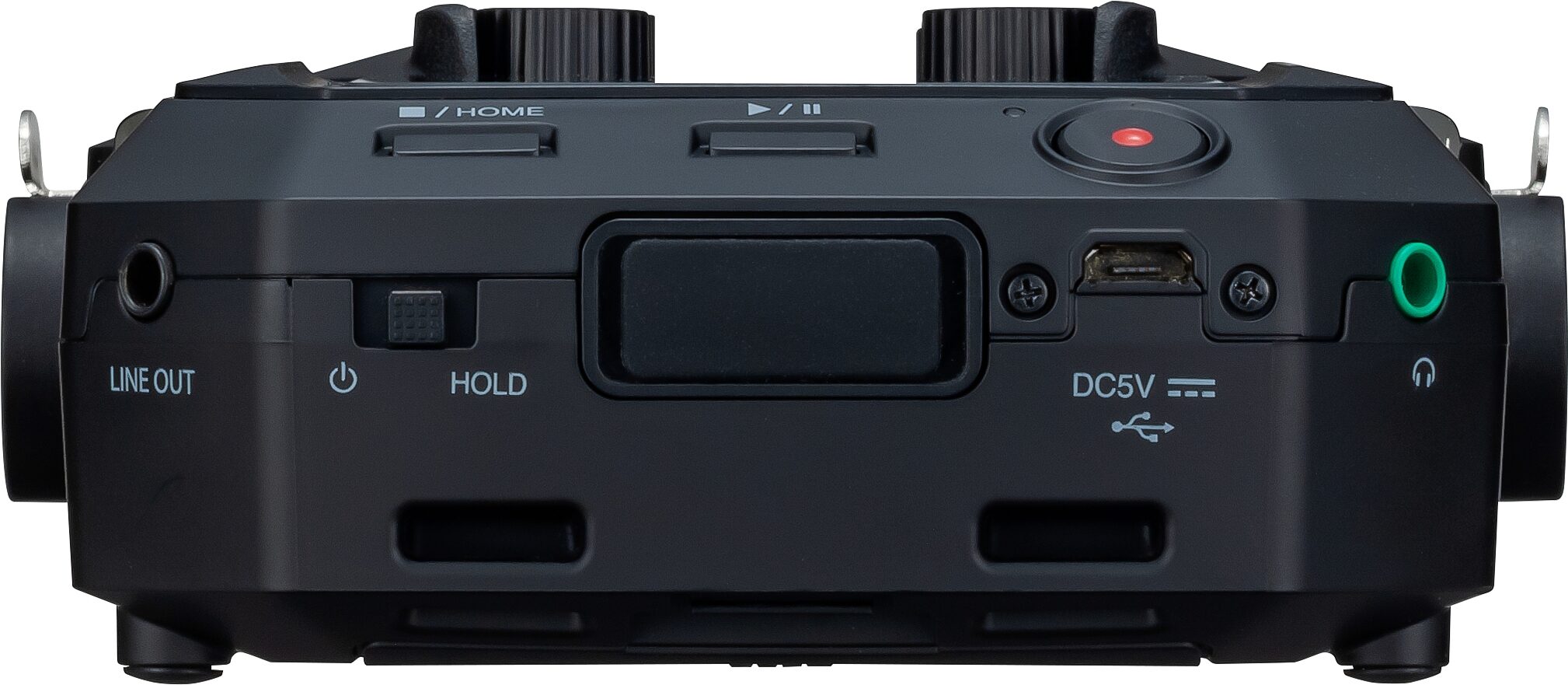

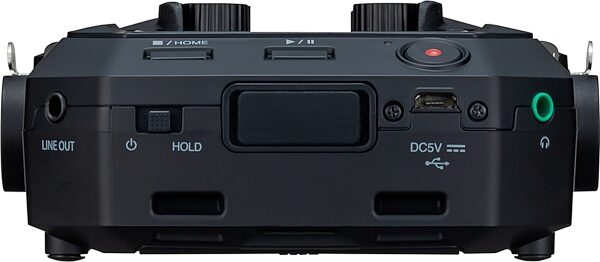

LINE OUT: 3.5 mm stereo mini
HEADPHONE OUT: 3.5 mm stereo mini
Phantom power: +24 V/+48 V (independent ON/OFF for INPUTS 1-4, A and B)
Recording media: Cards that support SD/SDHC/SDXC specifications
Formats:
- WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereo
- MP3: 128, 192, 320 kbps
Maximum simultaneous recording tracks: 12 (MIC IN, backup recording, 1-4, A, B, and LR)
Audio interface:
- Multitrack mode: 44.1/48/96 kHz, 16/24-bit, 12-in/2-out
- Stereo mix mode: 44.1/48 kHz, 24-bit, 2-in/2-out
Tuner: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
Built-in speaker: 400 mW 8 Ohm mono speaker

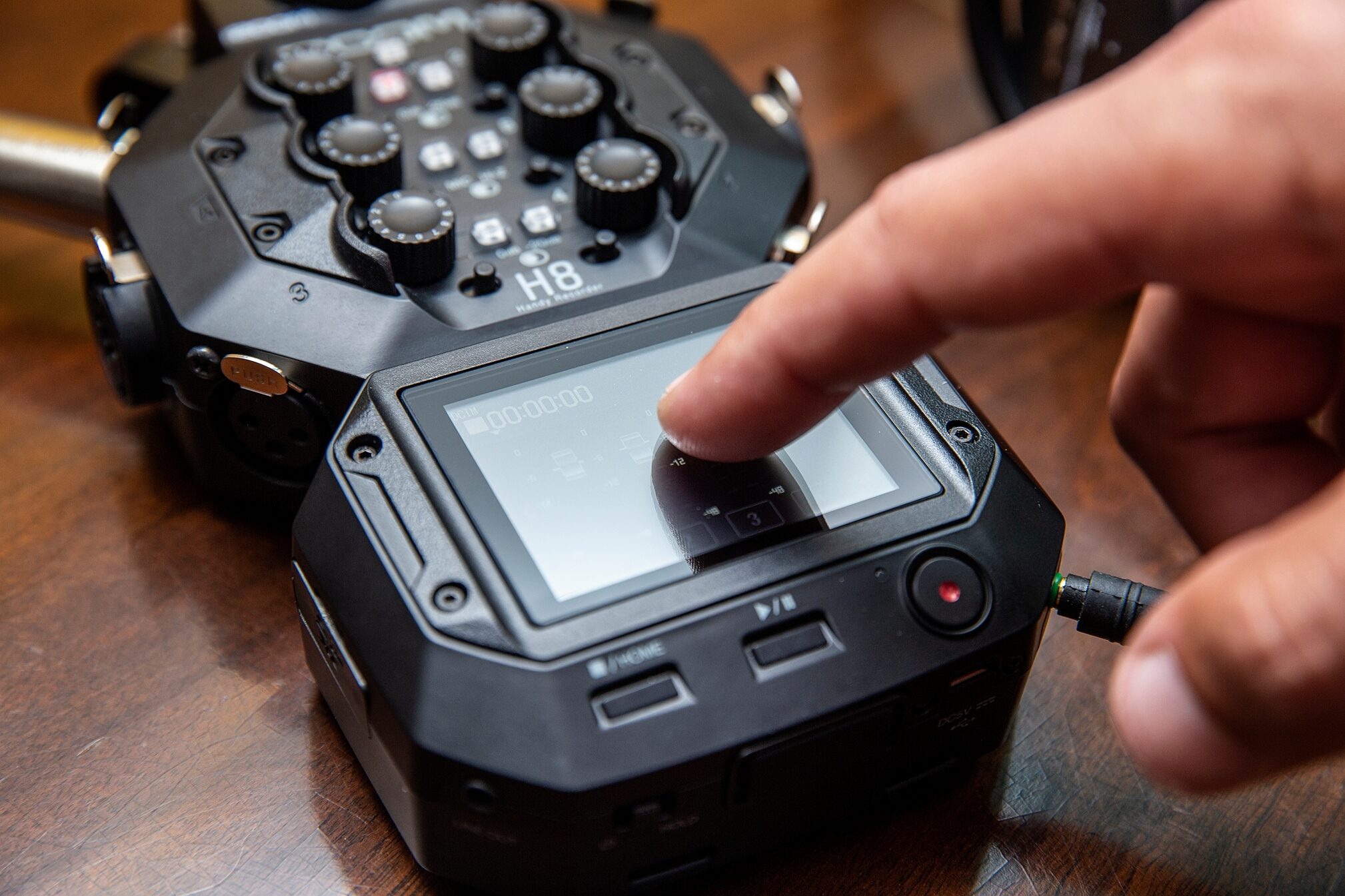

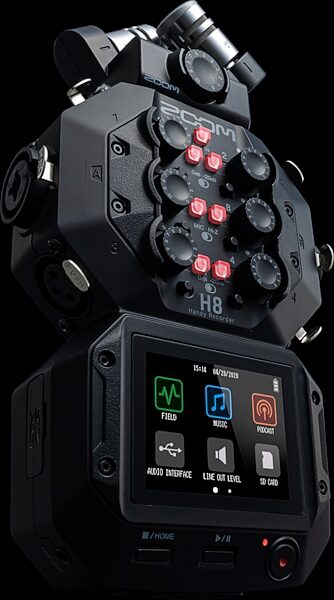

Display: 2.4" (320x240) full-color touchscreen LCD
Power:

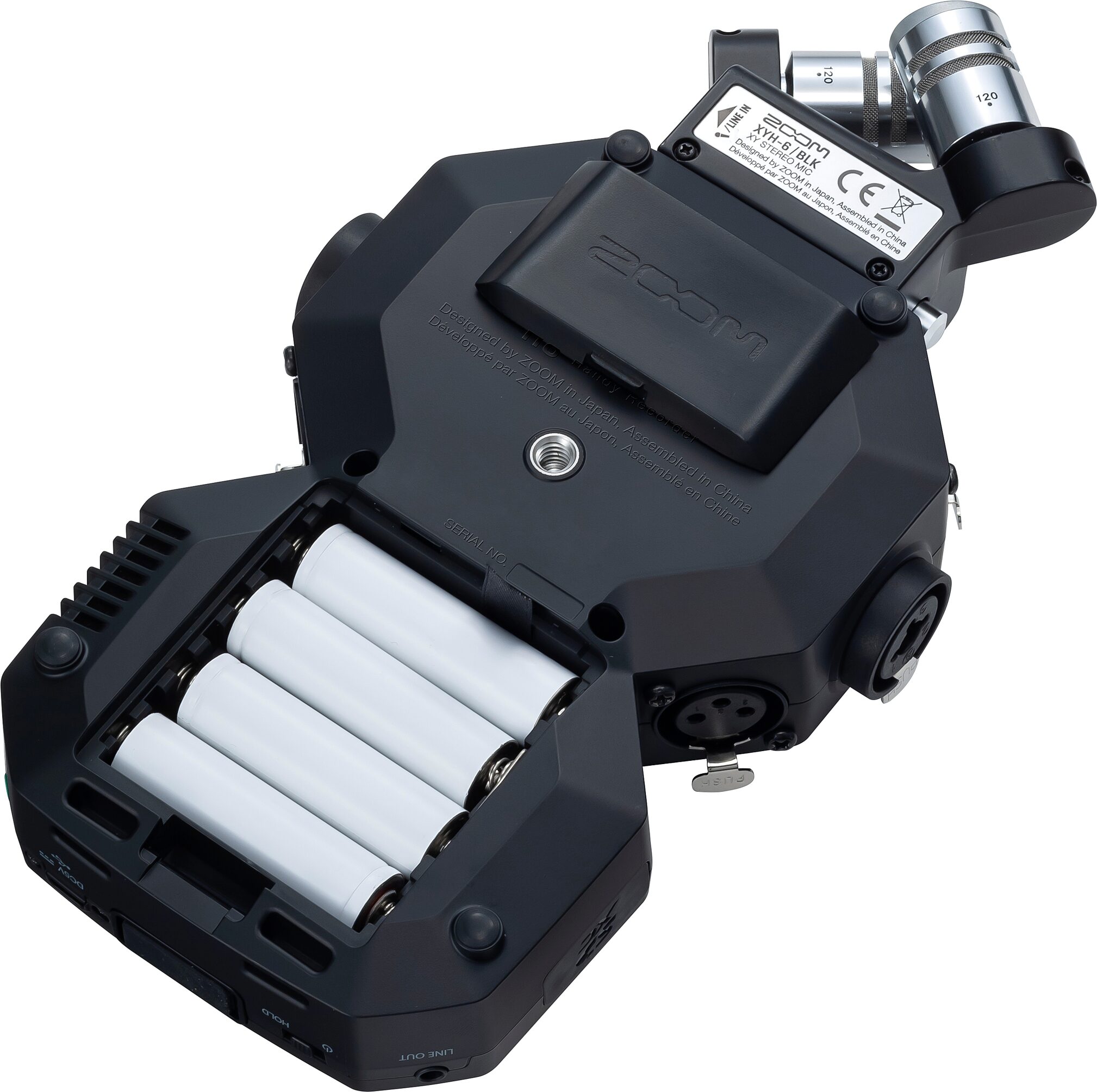

- 4 AA batteries (alkaline, NiMH or lithium)
- AC adapter (ZOOM AD-17): DC 5 V/1A
- USB bus power
Estimated continuous operation time using alkaline batteries and XY mic, 44.1 kHz/24-bit (stereo x 1): approximately 15 hours
(Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.)
External dimensions (W x D x h)
- H8 recorder: 4.58" x 6.43" x 1.91" (116.4 x 163.3 x 48.6 mm)
- XYH-6 capsule: 3.1" x 2.37" x 1.78" (78.9 x 60.2 x 45.2 mm)
Weight:
- H8 recorder: 0.78 lbs (354 g)
- XYH-6 capsule: 0.29 lbs (130 g)
- Dimensions and Weight in Packaging
- Base Item
-
Shipping Weight: 1.75 lbs
-
Shipping Dimensions: 9 x 7 x 3 in
-
Manufacturer Part Number (MPN): ZH8
