Operation power: The NTG-2 is designed to operate from standard P48 phantom power or a 1.5 V Alkaline Battery. The NTG-2 will operate between 44 V to 52 V applied with positive polarity to pin 2 and pin 3 via the output XLR connector.
Operation output impedance: The NTG-1 will operate satisfactorily into a load impedance as low as 1 kilohm. If a load below this is used, the output signal level will be reduced. The NTG-2s output is balanced between pin 2 (hot), pin 3 (cold) and pin 1 is ground.
Acoustic principle: Line plus Gradient.

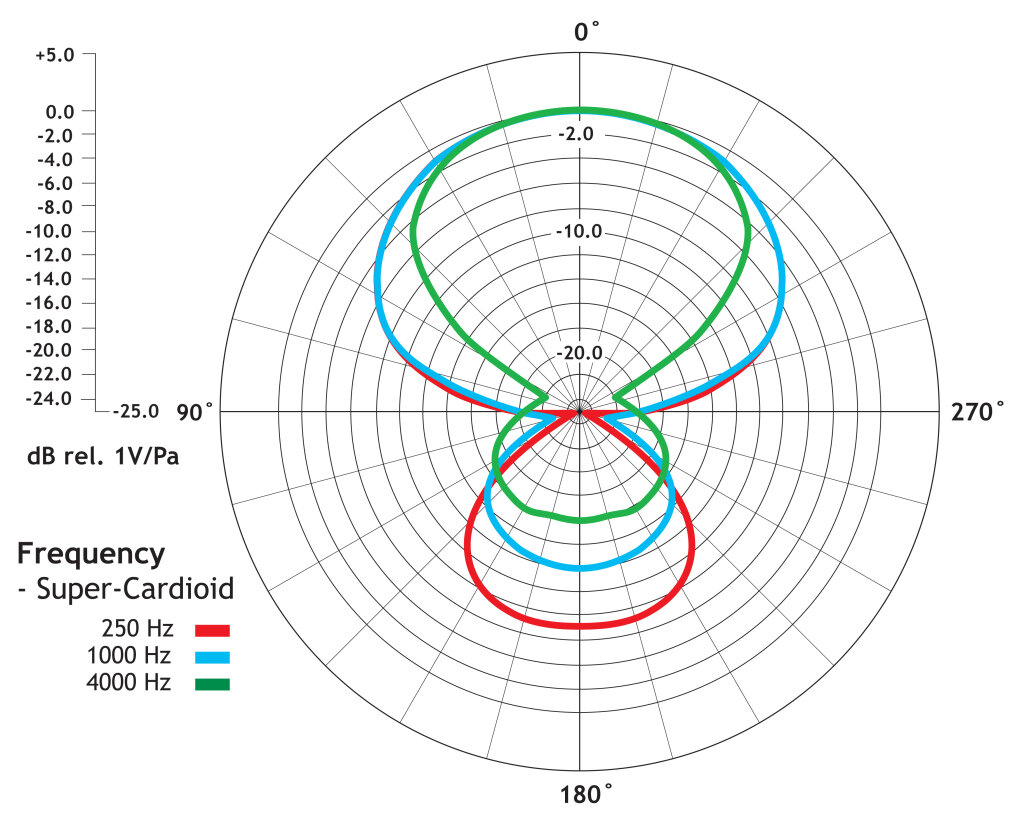

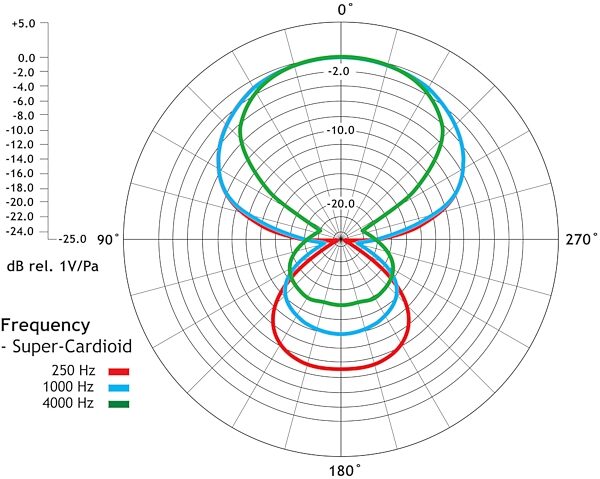

Directional pattern: Super-Cardioid.

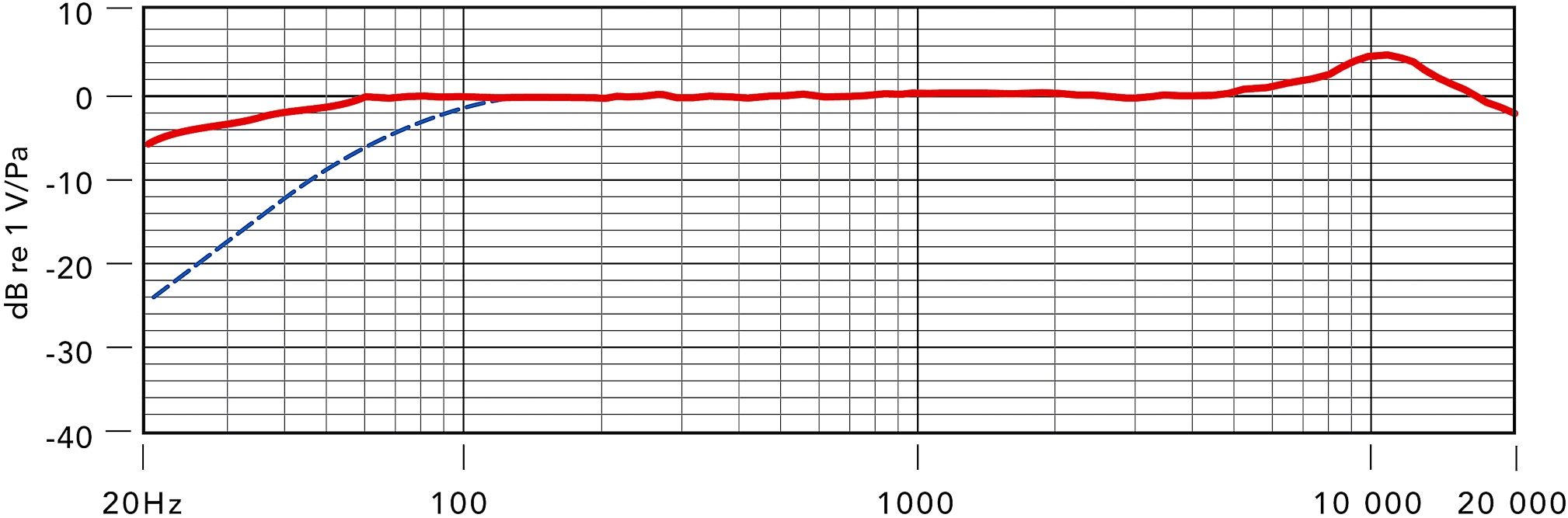

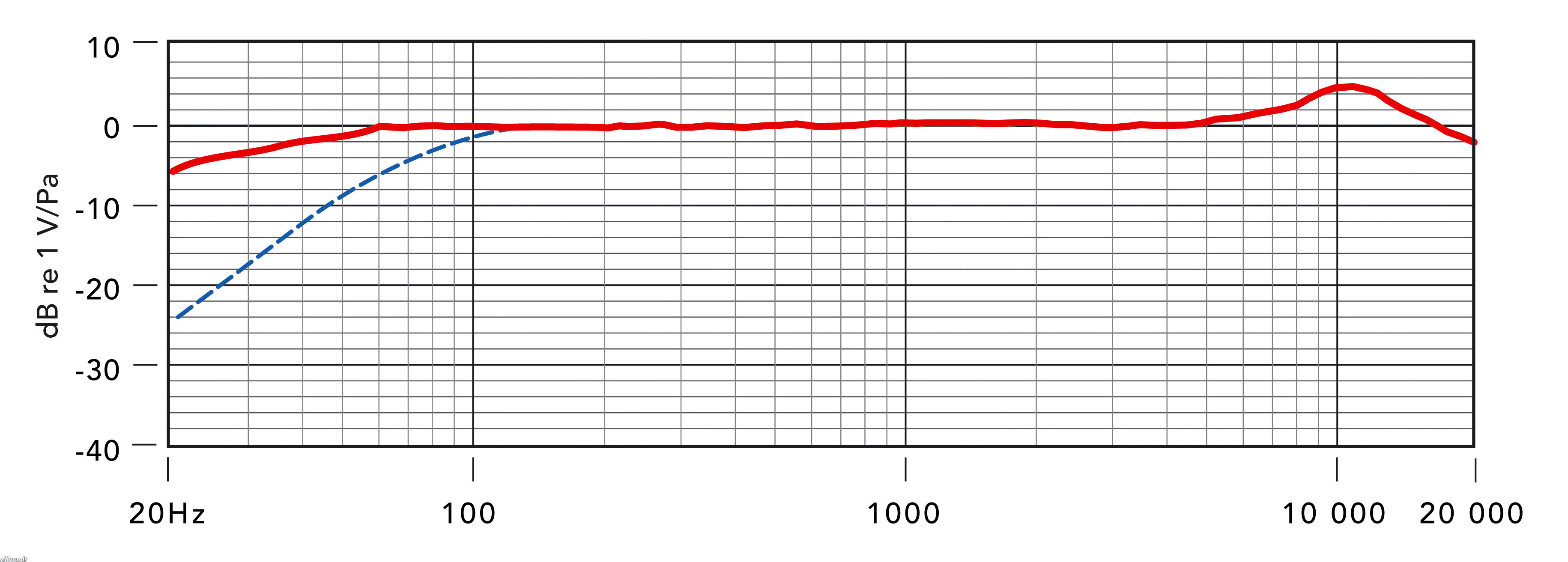

Frequency range: 20 Hz ~ 20 kHz selectable HPF @ 80 Hz/12 dB octave
Output impedance: 250 ohms -- phantom power, 350 ohms -- battery power
Signal noise ratio din iec 651: 76 dB (1 kHz rel. 1 Pa; per IEC651, IEC268-15)
Equvalent noise: 18 dB SPL (per IEC651, IEC268-15)
Maximum spl: 131 dB (@ 1% THD into 1 kilohm)
Sensitivity: -36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB (at 1 kHz in free field into open circuit)
Dynamic range din iec 651: 113 dB (per IEC651, IEC268-15)
Power supply voltage: 1.5 V Alkaline Battery or P48 Phantom
Current consumption: 2.0 mA
Output connection: 3 pin XLR, balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
Weight with battery: 161 g approx. (3.37 oz.)
Dimensions width: 278mm
Dimensions depth: 22mm
Dimensions height: 22mm
- Dimensions and Weight in Packaging
- Base Item
Shipping Weight: 1.25 lbs
Shipping Dimensions: 13 x 6 x 2 in
Manufacturer Part Number (MPN): NTG2

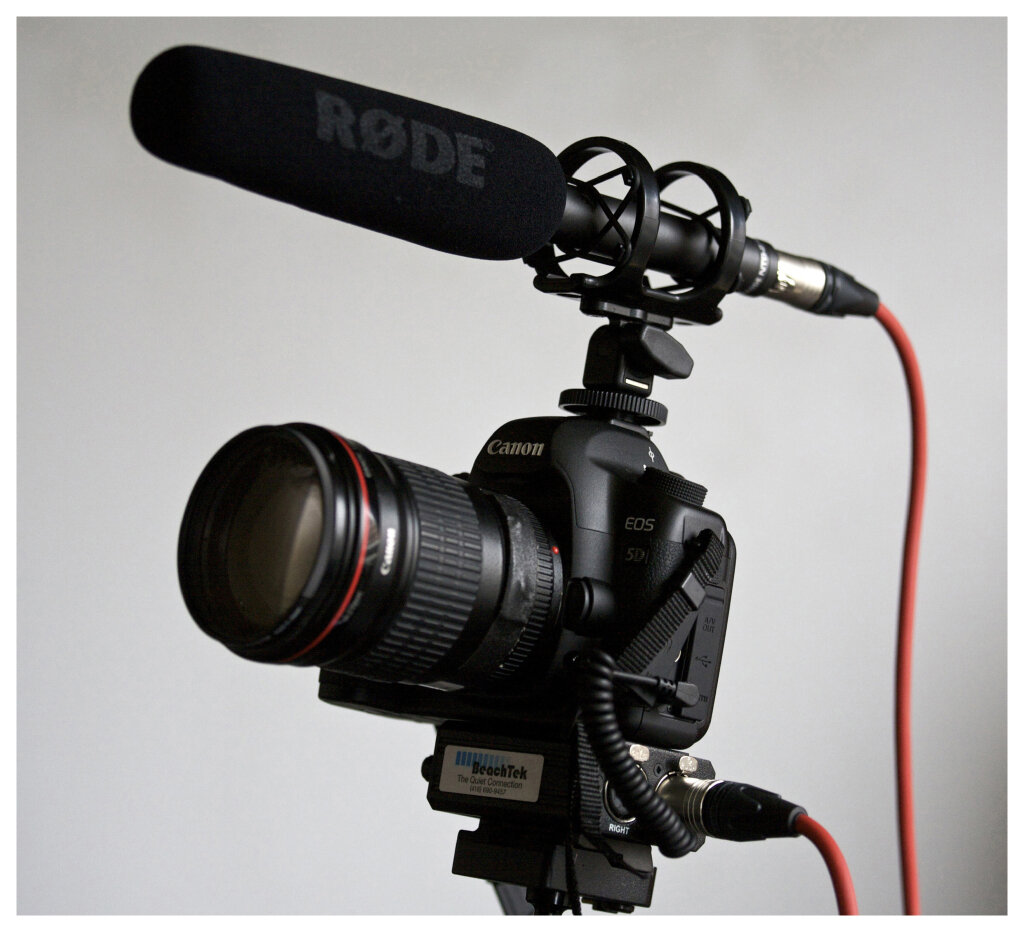

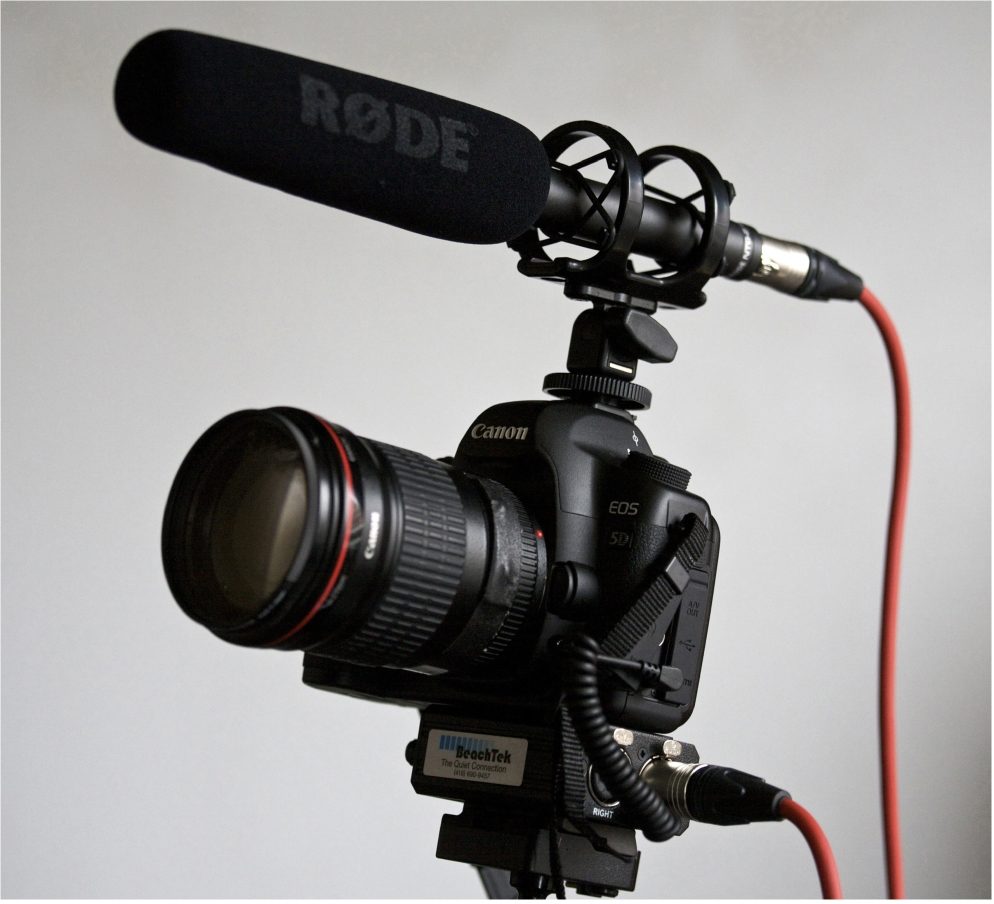

- with Rode SM3 Shockmount
Shipping Weight: 1.5 lbs
