- Dimensions: Width: 1,450 mm (57-1/16") Height:160 mm (6-5/16") Depth: 470 mm (18-1/2")
- Weight: 29 kg (63 lbs., 15 oz.)
- Number of Keys: 88
- Type: Balanced Hammer Effect Keyboard
- Initial Touch: Yes
- Aftertouch: Yes
- Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
- Maximum Polyphony: AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
- Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
- Wave Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
- Performance: Approx. 1,900
- Filter: 18 types
- Effects: Reverb x 12 types, Variation x 76 types, Insertion (A, B) x 76 types*, Master Effect x 15 types *A/D part insertion x 71 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
- Controllers: Master Volume, AD Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Sliders x 8, Knobs x 8, Super Knob, Data dial
- Display: 7" TFT Color Wide VGA LCD touch screen
- Connectors: [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT (BALANCED) [L/MONO]/[R] (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (6.3 mm, Balanced TRS jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
Power Consumption27 W
- Accessories: AC Power cord, Owner#s Manual, Cubase AI Download Information
- Live Sets: Preset: 128 and more, User: 2,048
Performance Recorder:- Tracks: 16 Sequence tracks, Tempo track, Scene track
- Recording type: Real time replace, Real time overdub, Real time punch in/out
- Note Capacity: Approx. 130,000 notes
- Note Resolution: 480 ppq (parts per quarter note)
- Tempo (BPM): 5 # 300
- Songs: 64 songs
- Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: Approx. 10,000 types User: 256 types
- Sequence formats: MONTAGE original format, SMF formats 0, 1
- Dimensions and Weight in Packaging

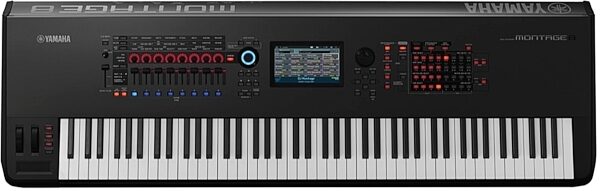

- Black
-
Shipping Weight: 74 lbs
-
Shipping Dimensions: 65 x 23 x 10 in
-
Manufacturer Part Number (MPN): MONTAGE8

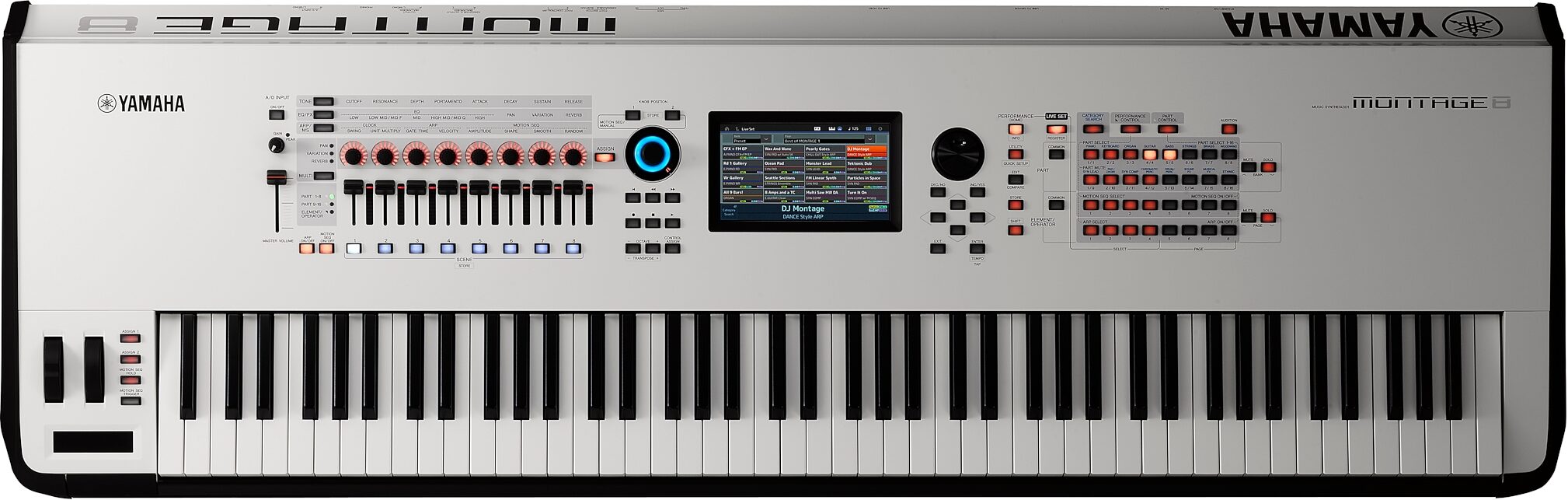

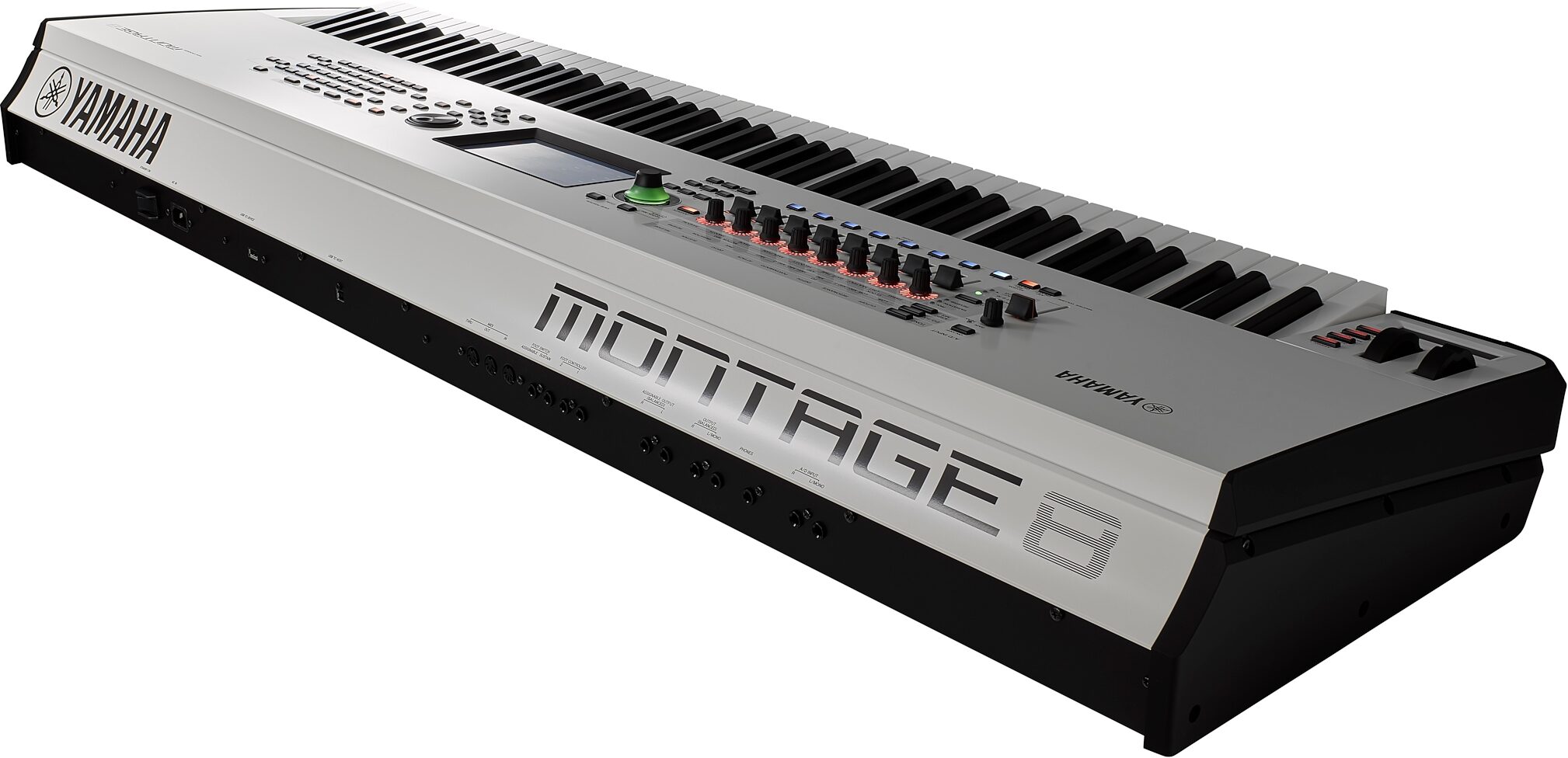

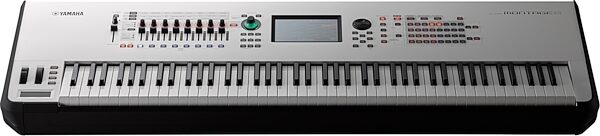

- White
-
Shipping Weight: 74.5 lbs
-
Shipping Dimensions: 65 x 23 x 10 in
-
Manufacturer Part Number (MPN): MONTAGE8 WH

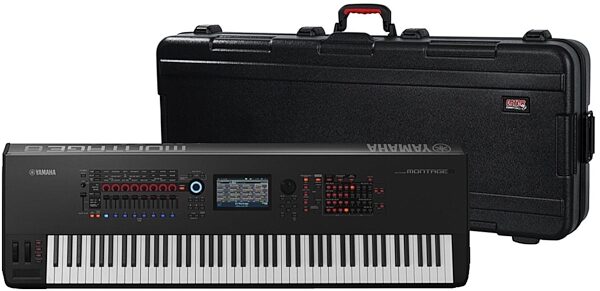

- Black, with Gator GTSA-KEY88 Keyboard Case
-
Shipping Weight: 110 lbs
