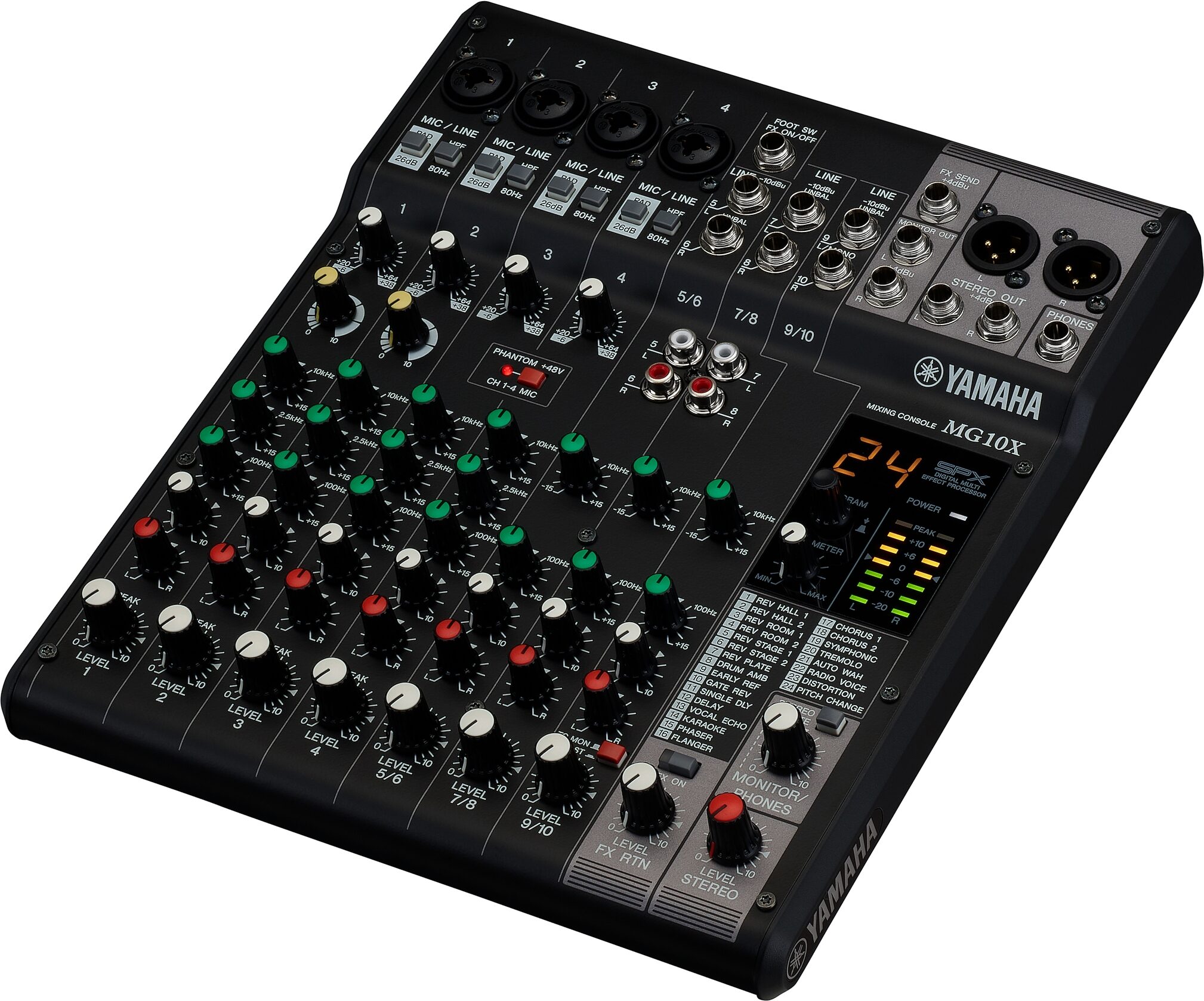

Yamaha MG10X 10-Channel Stereo Mixer with Effects

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back
Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back
Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back
Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back
Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back Yamaha MG10X 10-Channel Stereo Mixer with Effects, New, Action Position Back
With a small footprint, high-quality D-Pre preamps, and SPX digital effects, the Yamaha MG10X mixer delivers great sound without taking up too much space.

Housed in a rugged steel chassis, the MG10X can accommodate up to 10 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and 2 channels of single knob compression. The MG10X can accept XLR, Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG10X offers rotary controls instead of faders, reducing the footprint for discrete placement onstage or anywhere space is a premium. A footswitch input allows hands-free effect muting.

Features:

- 10-Channel Mixing Console
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- D-PRE discrete Class A mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- Built-in SPX digital effects with 24 programs
- Color-coded controls offer easy operation
- PAD switch on mono inputs
- Switchable +48V Phantom power
- XLR balanced outputs
- Rugged, powder-coated steel chassis for superior durability

Dimensions (W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 2.1 kg (4.63 lbs.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 7.5 lbs
Shipping Dimensions: 16 x 14 x 5 in
Manufacturer Part Number (MPN): MG10X CV

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support

Be the first to rate and review this product.

New

$247.99
