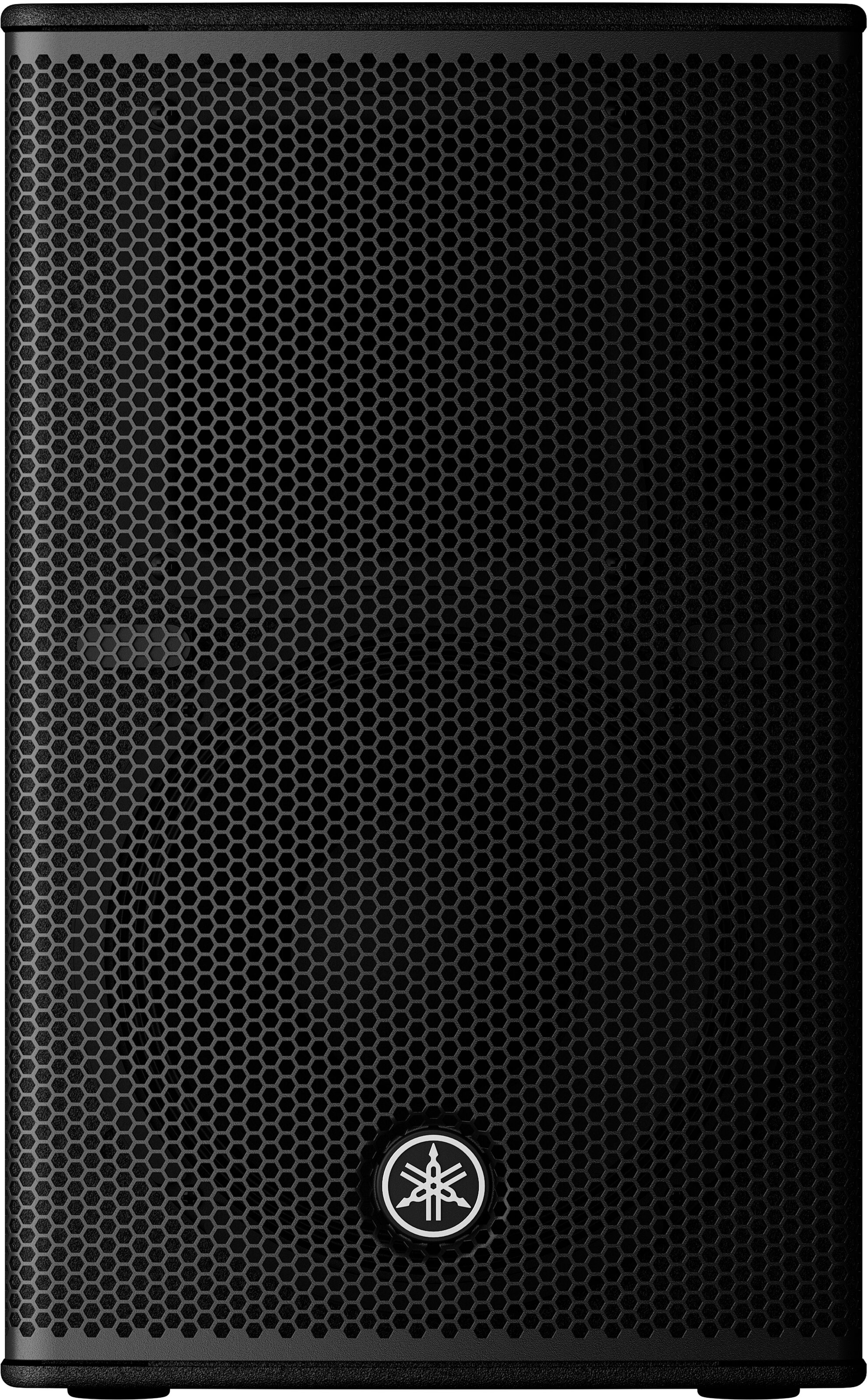

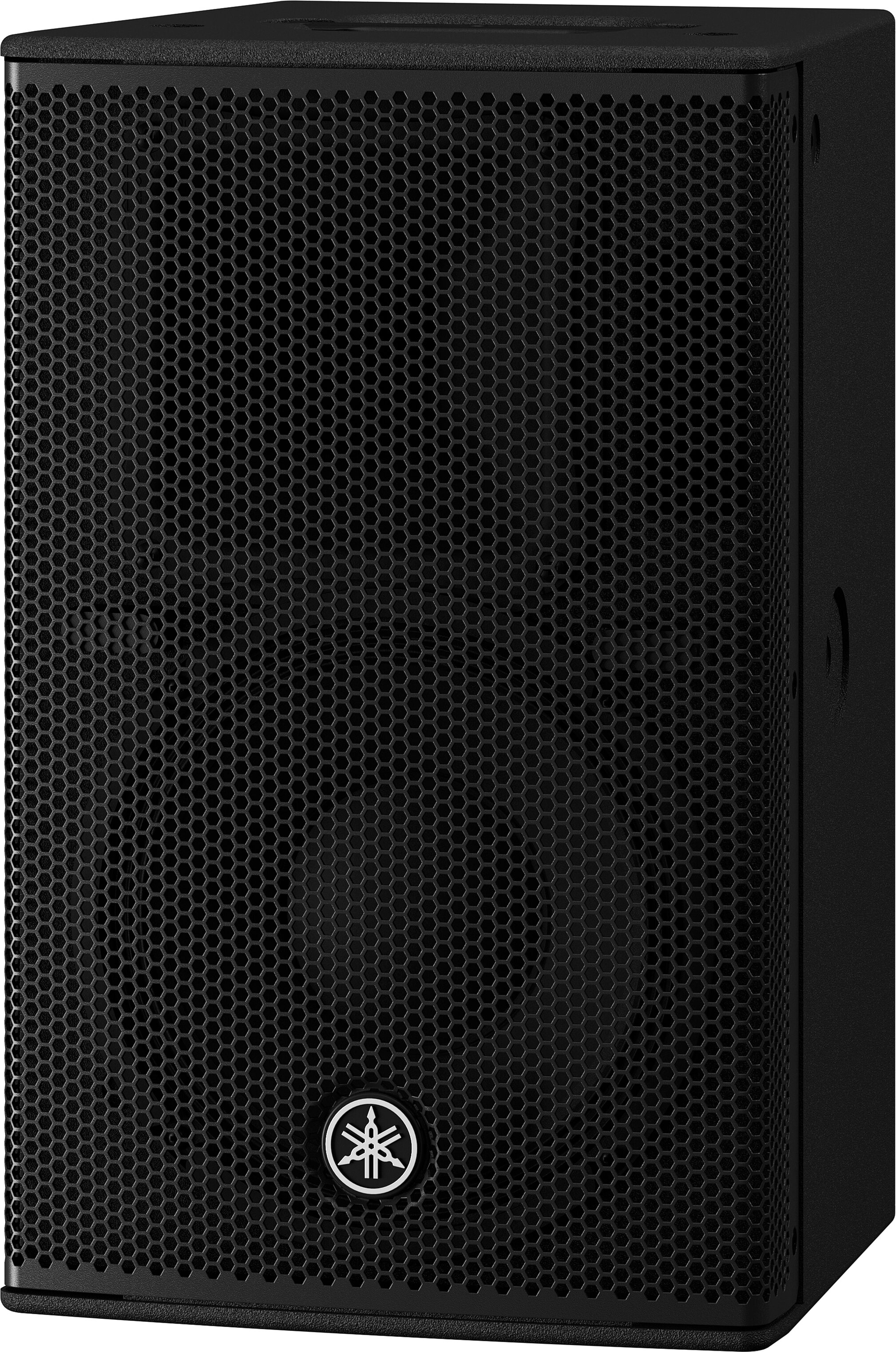

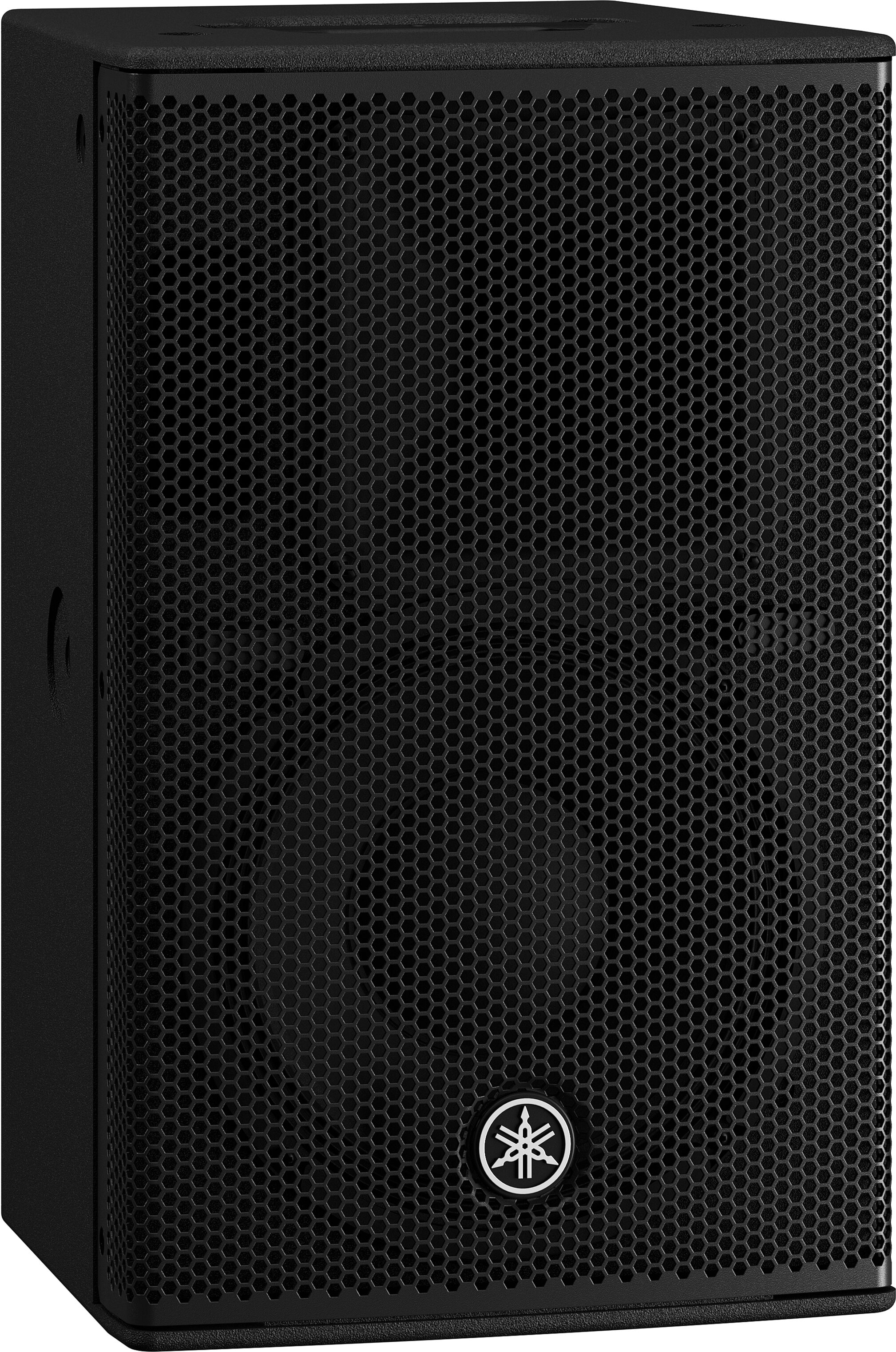

Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts)

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
open zoom image for Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
open zoom image for Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
open zoom image for Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
open zoom image for Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back Yamaha DHR10 Powered PA Speaker (1x10", 700 Watts), New, Action Position Back
zZounds Gear Experts Say...
Get the full, clear sound of Yamaha in a portable size with the DHR10, a powered speaker with a wooden cabinet and FIR-X tuning for optimal phase alignment.

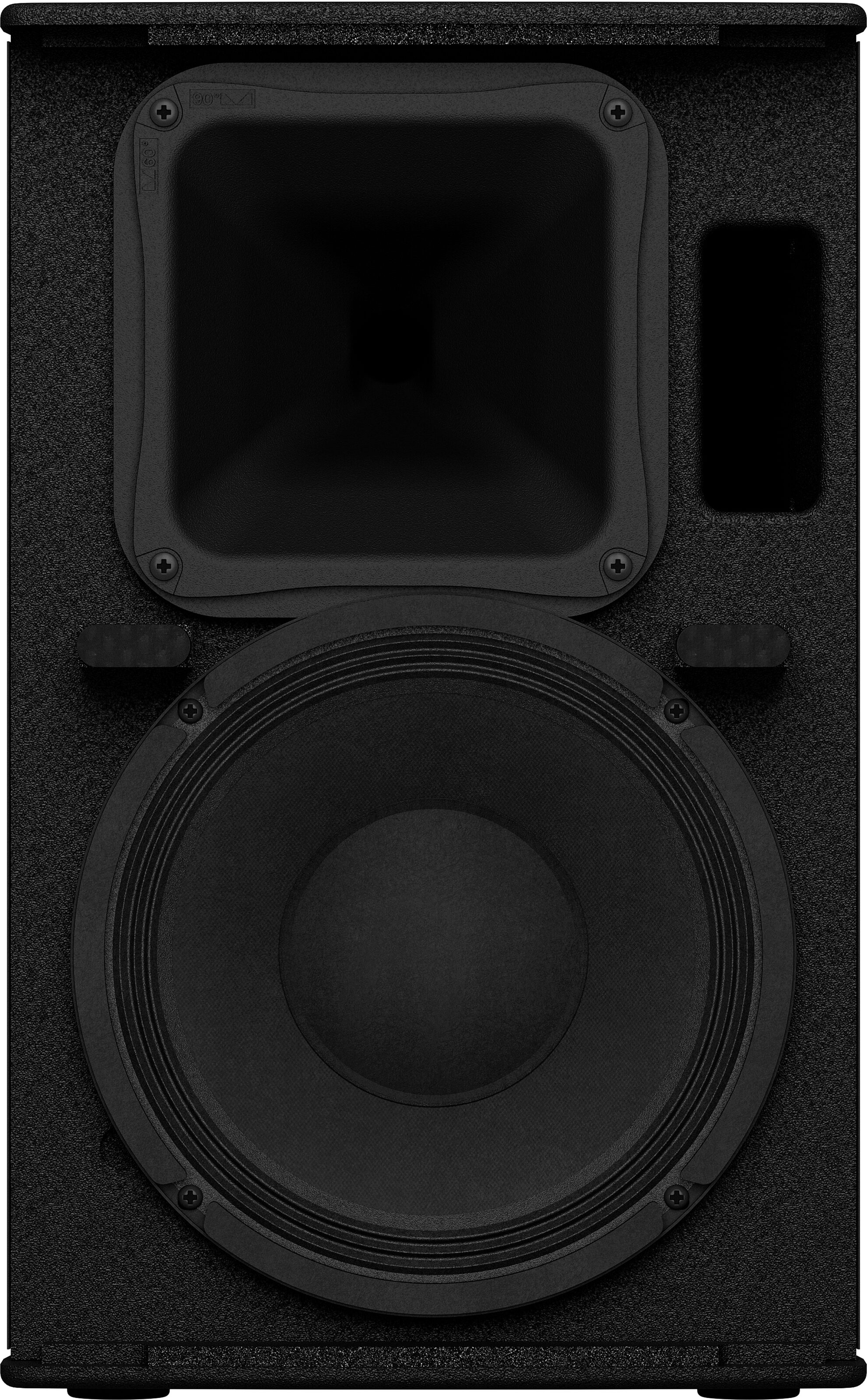

The Yamaha DHR10 powered loudspeaker is a versatile design with integral rigging of optional bracketry, offers a rotatable HF horn with 60 x 90 degree dispersion mated to a 1.4" HF compression driver and a high compliance 10" LF woofer for extremely clear voice reproduction and musicality.

Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha's high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

Features:

- 1.4" precision HF compression drivers
- Strong plywood cabinets with a tough polyurea coating
- Ultra-Precise 48bit (76bit Accumulator) DSP processing
- Employs FIR-X tuning to optimize time alignment, frequency and phase response for the crossover network
- D-CONTOUR intelligent multi-band dynamics processor
- DSP protection for maxmimum output and component longevity
- Custom designed transducers
- High-Efficiency Class-D Amplifiers
- Onboard 2-Ch Mixer

- Speaker Type: 2-way bi-amp powered loudspeaker
- Frequency Response (-10dB): 52 Hz - 20 kHz
- Coverage Pattern: 90° H x 60° V (rotatable)
- Max SPL (Peak): 128 dB SPL
- LF Transducer: 10" cone driver with 2" voice coil, Ferrite magnet
- HF Transducer: 1.4" compression driver with 1" throat, Ferrite magnet
- Crossover Frequency: 1.9 kHz
- Amplifier Type: Class-D bi-amplified
- Amplifier Power (LF): 500W (Dynamic), 260W (Continuous)
- Amplifier Power (HF): 200W (Dynamic), 65W (Continuous)

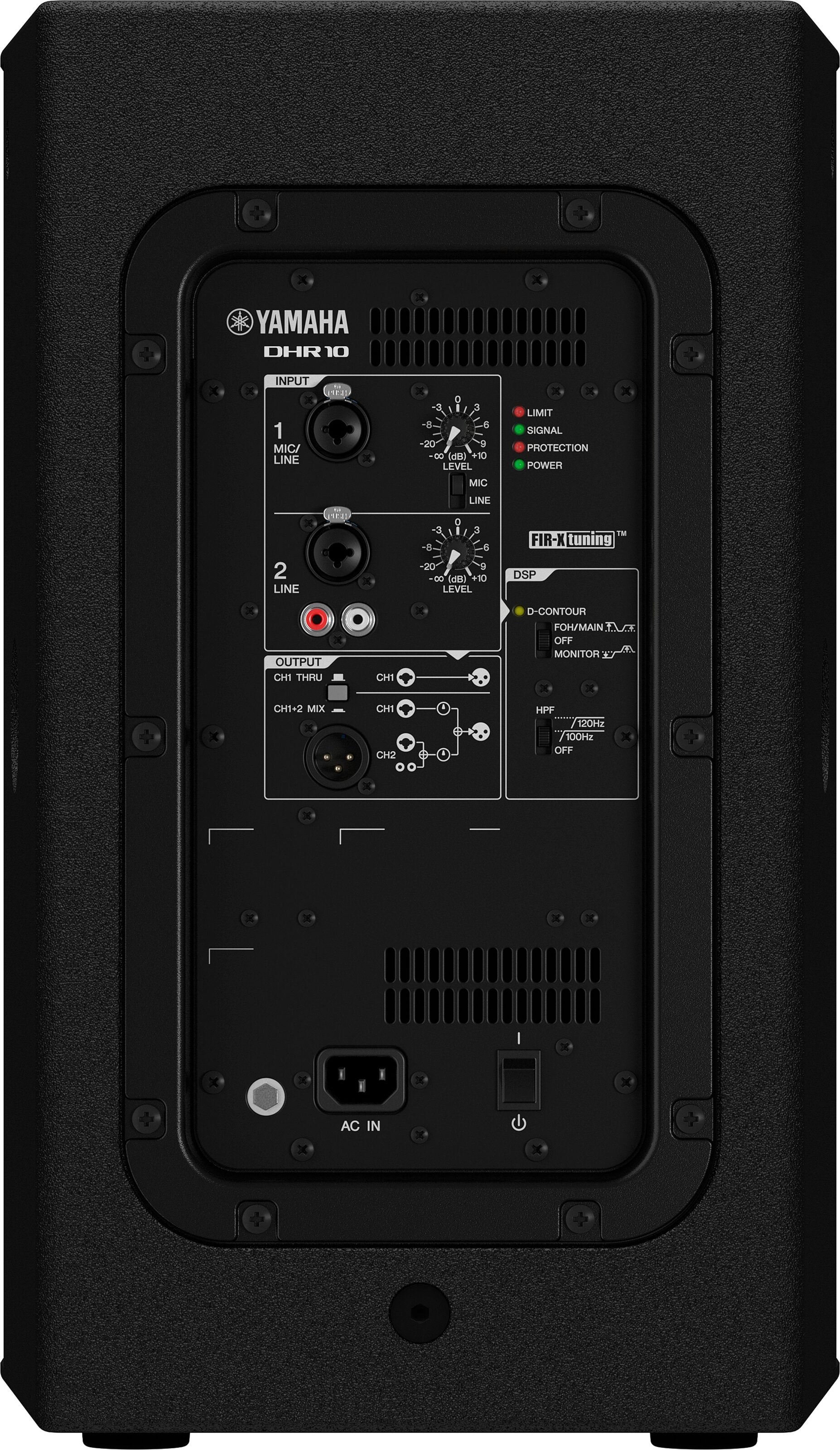

- Input Connectors: CH1: XLR/TRS combo (Mic/Line), CH2: XLR/TRS combo + RCA stereo (Line)
- Output Connectors: XLR male (CH1 Thru/CH1+CH2 Mix)
- Power Supply: 100-240V AC, 50/60 Hz (Multi-voltage)
- Power Consumption (Idle): 18W
- Power Consumption (Max): 60W
- Enclosure Material: Plywood with polyurea coating
- Grille Material: Metal grille
- Mounting Options: 35mm pole socket, M10 rigging points (top x2, rear x1), Optional UB-DXRDHR10 U-bracket

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 39.5 lbs
  • Shipping Dimensions: 22 x 17 x 16 in
  • Manufacturer Part Number (MPN): DHR10

Open Box (Like New)

  • Shipping Weight: 39.5 lbs
  • Shipping Dimensions: 22 x 17 x 16 in
  • Manufacturer Part Number (MPN): YAM DHR10 NFS

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support
