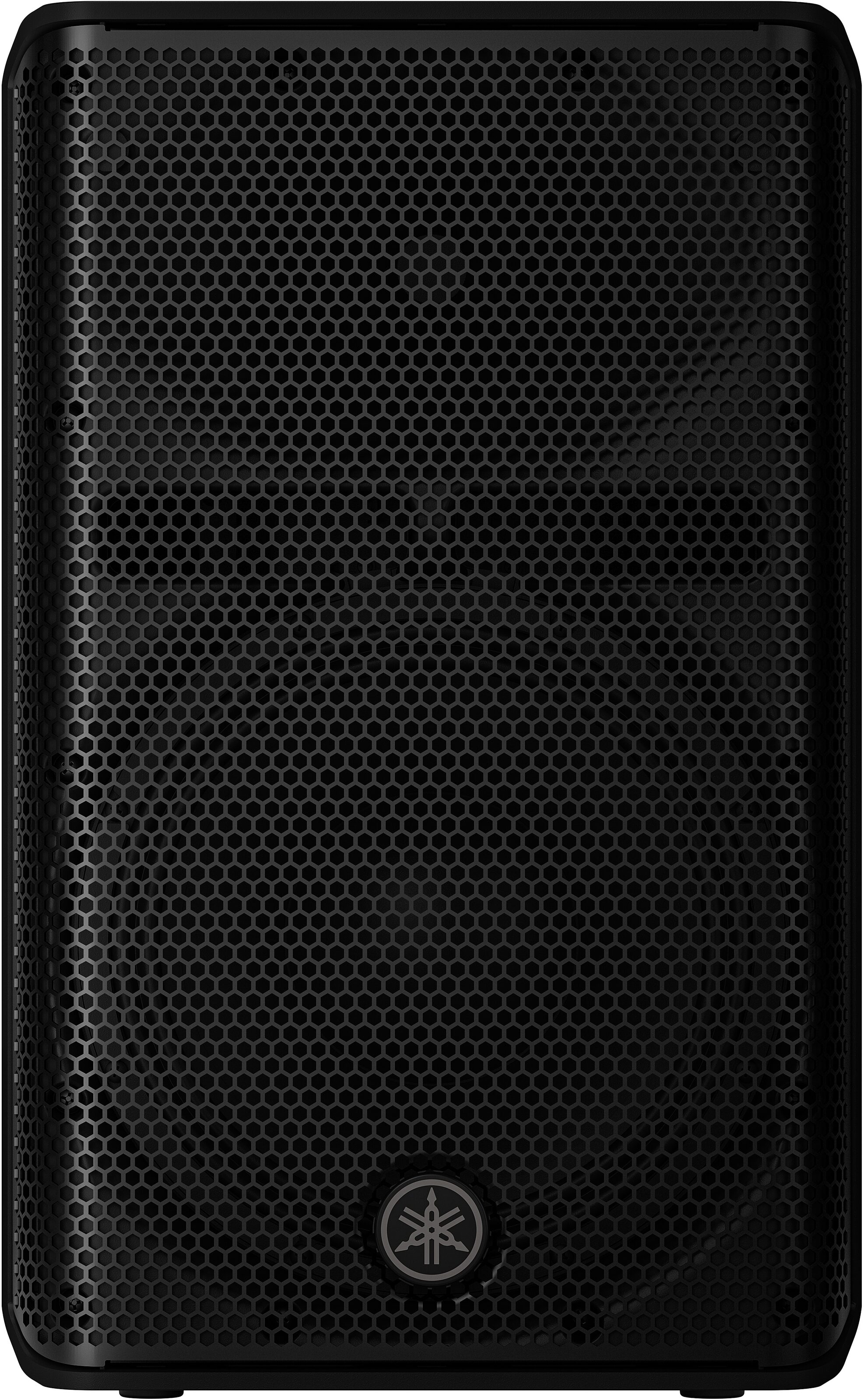

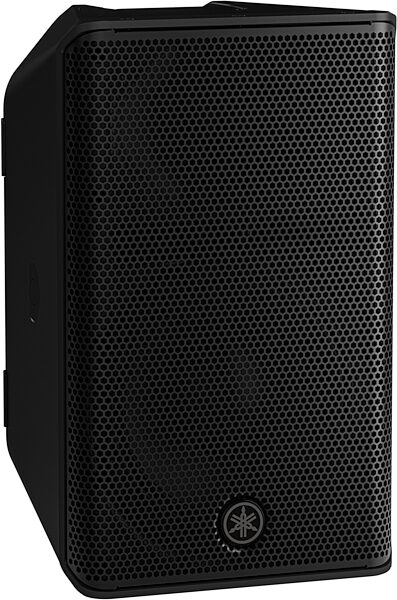

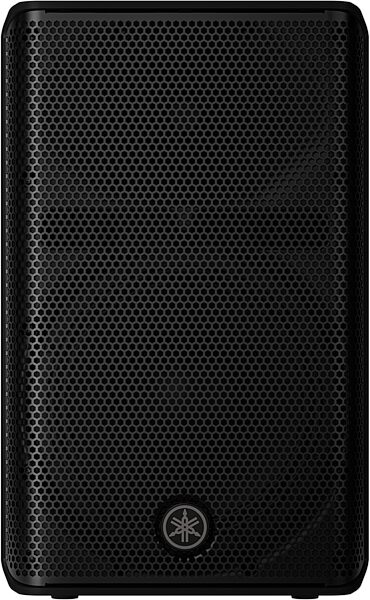

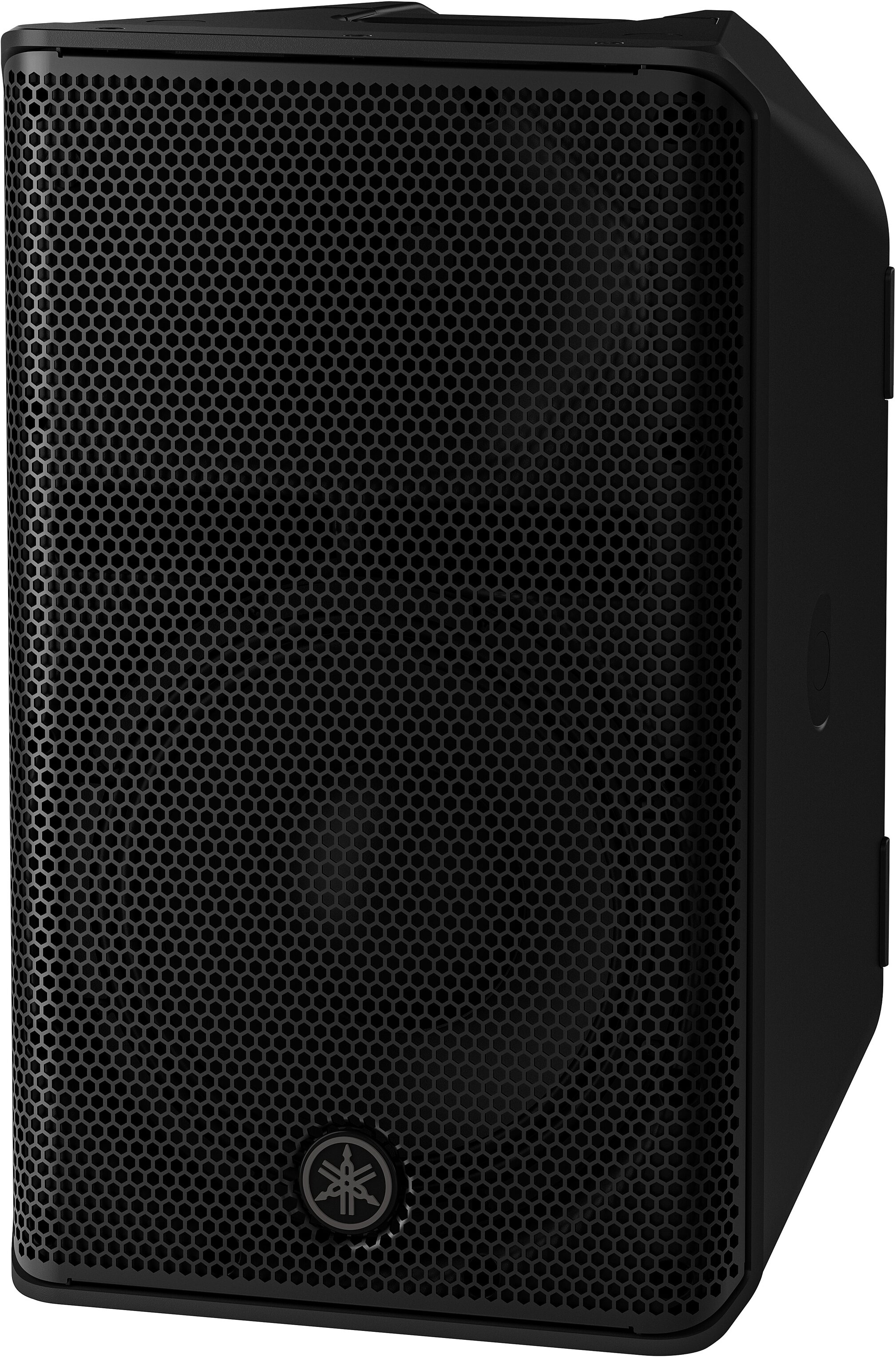

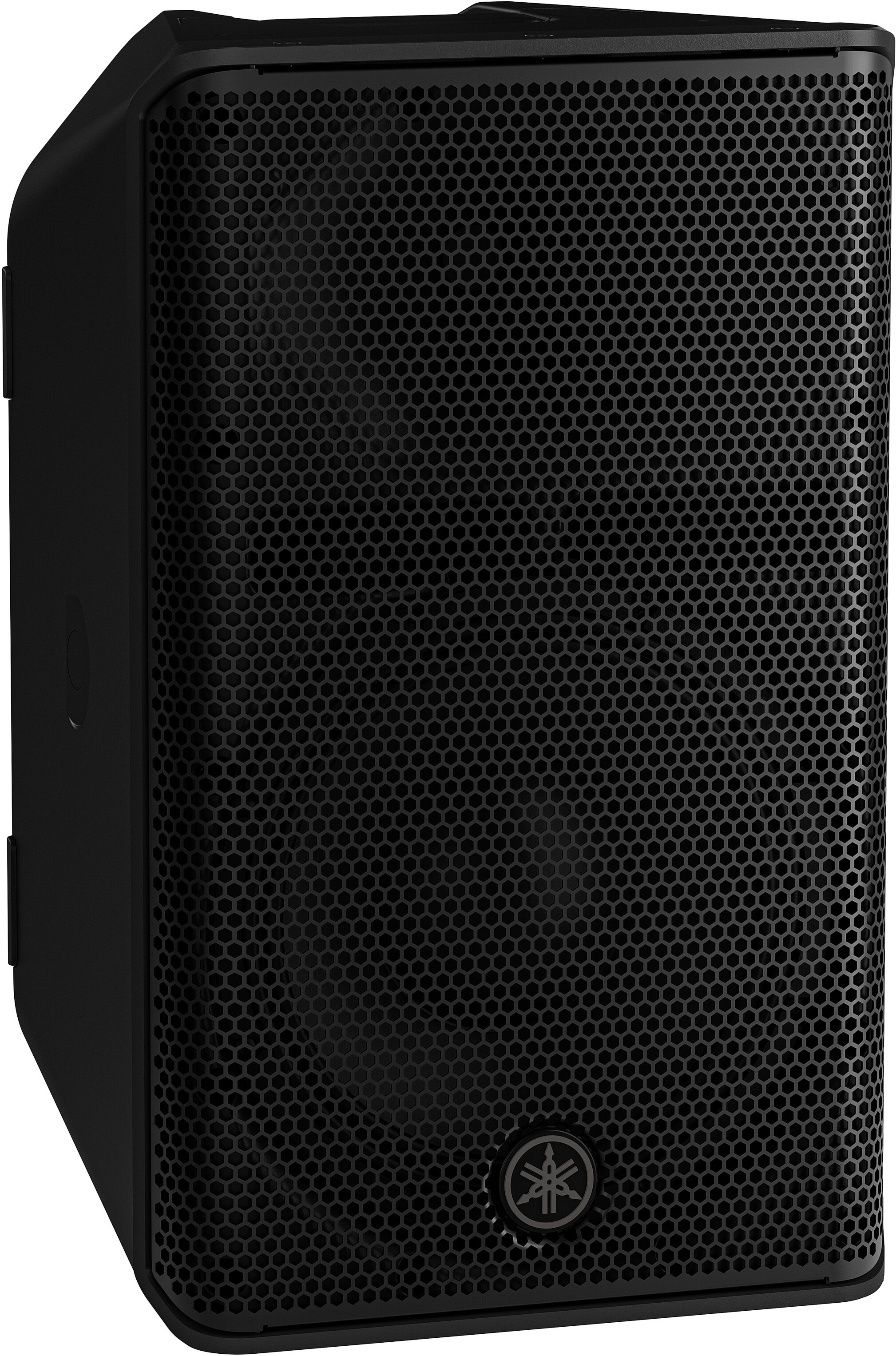

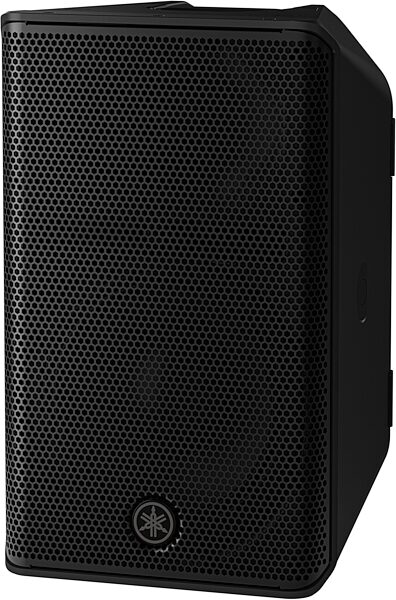

Yamaha CXR10 MKIII Passive Loudspeaker (1x10")
zZounds Gear Experts Say...
Yamaha knows a thing or two about great live sound! Built for pro installs or portable rigs, the under-27-pound passive CXR10 MKIII handles 1100 peak watts.
Overview
Often, the trajectory of a band, a brand, a business, or a career can be distilled down to a single pivotal moment that changed everything. When these moments arrive it's imperative to ensure that the audience is experiencing the full range of an artist's or speaker's expression and the sheer passion of their performance.
The CXRmk3 is the passive model of Yamaha's DXRmk3 series loudspeakers, contributing to the legacy of power and premium sound established by one of Yamaha's most celebrated loudspeaker lineups. This series sees a significant improvement in acoustic performance, speaker design, and flexibility, making it equally at home in portable applications or fixed installations.
Equipped with Yamaha's own high-durability LF/HF speaker units, a lightweight, high-performance molded enclosure, and a powerful horn and port design that enhances high-frequency directivity and optimizes low-frequency response, the CXRmk3 will empower users with the capability and confidence they need for those crucial moments when sound makes all the difference in the world.
The CXR10mk3 is a 2-way loudspeaker and the most compact model of the series, capable of exceptional clarity, precision, and powerful sound output. Thanks to its compact enclosure, it can function as a versatile utility speaker suitable for a wide variety of sound reinforcement environments.
- Yamaha Proprietary High-Durability… read more LF/HF Speaker Units
- Lightweight, High-Performance Molded Enclosure
- Intelligent processing to maximize system performance
- Usability Pursued to the Utmost Symmetrical design
- Dual-Angle Pole Socket
- Rubber-Coated Handles
- Eyebolt Rigging Points
read less
The CXRmk3 is the passive model of Yamaha's DXRmk3 series loudspeakers, contributing to the legacy of power and premium sound established by one of Yamaha's most celebrated loudspeaker lineups. This series sees a significant improvement in acoustic performance, speaker design, and flexibility, making it equally at home in portable applications or fixed installations.
Equipped with Yamaha's own high-durability LF/HF speaker units, a lightweight, high-performance molded enclosure, and a powerful horn and port design that enhances high-frequency directivity and optimizes low-frequency response, the CXRmk3 will empower users with the capability and confidence they need for those crucial moments when sound makes all the difference in the world.
The CXR10mk3 is a 2-way loudspeaker and the most compact model of the series, capable of exceptional clarity, precision, and powerful sound output. Thanks to its compact enclosure, it can function as a versatile utility speaker suitable for a wide variety of sound reinforcement environments.
Features:
- Enhanced High-Frequency Directivity and Optimized Low-Frequency Response- Yamaha Proprietary High-Durability… read more LF/HF Speaker Units
- Lightweight, High-Performance Molded Enclosure
- Intelligent processing to maximize system performance
- Usability Pursued to the Utmost Symmetrical design
- Dual-Angle Pole Socket
- Rubber-Coated Handles
- Eyebolt Rigging Points
Specs
- Speaker Type: 2-Way Speaker, Bass-reflex
- Frequency Range (-10 dB): 54 Hz - 20 kHz
- Coverage Angle: H90* V60*
- Crossover Frequency: 2.0 kHz
- Nominal Impedance: 8 Ohm
- Sensitivity (1 W / 1 m, On-Axis): 93 dB SPL
- Maximum SPL (Peak, Calculated): 123 dB SPL
- Low-Frequency Driver: 10" Cone
- LF Voice Coil: 2.5"
- High-Frequency Driver: 1" Throat Compression Driver
- HF Diaphragm: 1.75"
- Power Rating (Noise): 275 W
- Power Rating (Program): 550 W
- Power Rating (Peak): 1100 W

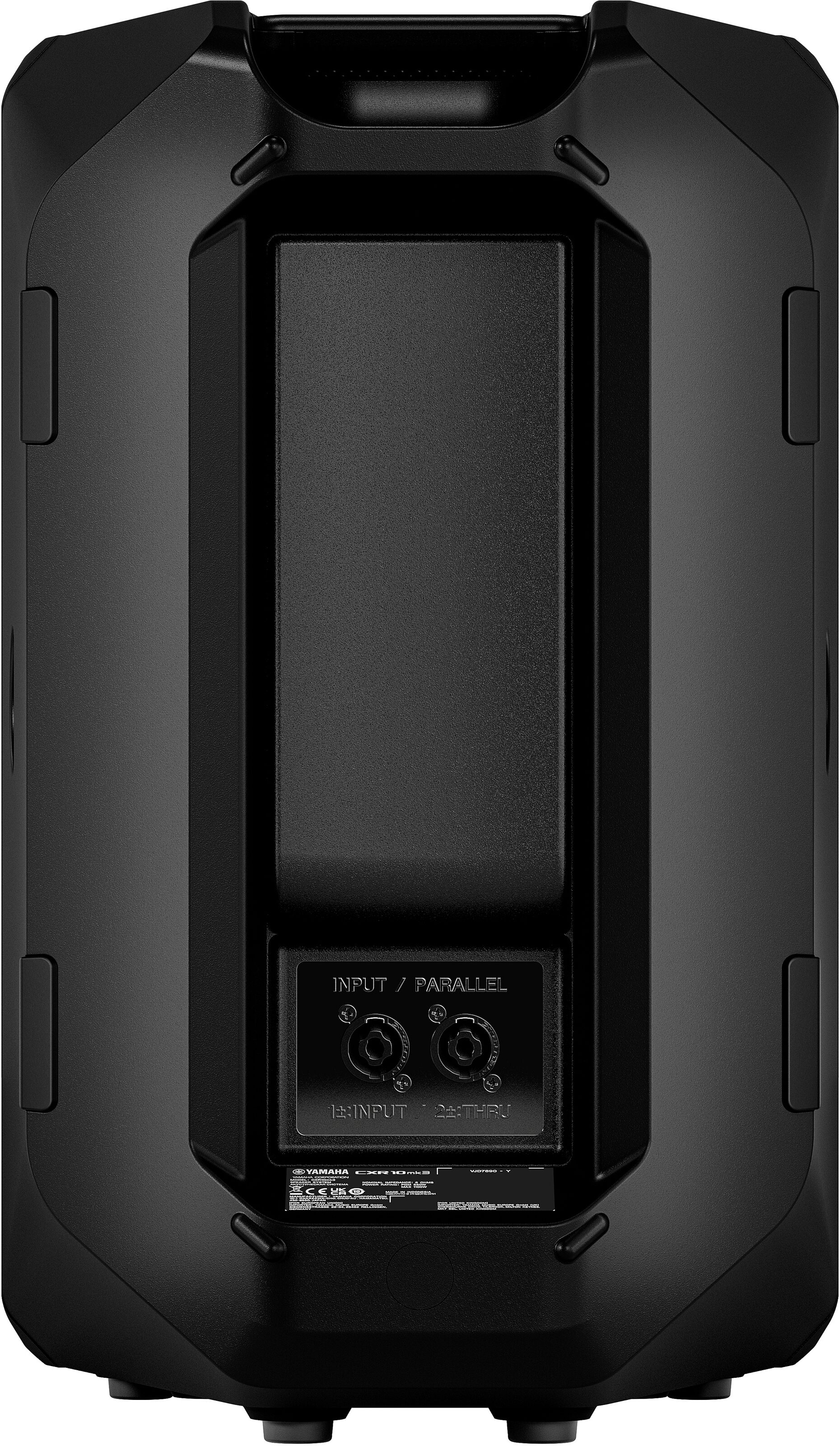

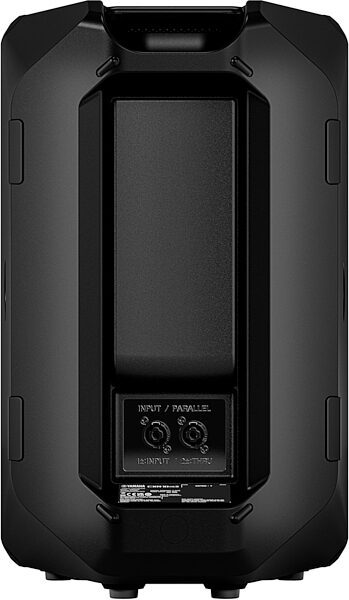

- Input Connectors: 2 SpeakON NL4MP (Parallel Connected)
- Cabinet Material: Plastic
- Finish: Black
- Handle: Top
- Pole Socket: O35 mm (Bottom, 0* or -7*)
- Rigging Points: Top , Rear (M8 15 mm Eyebolts), Bottom , Side (M8 25 mm UB-DXRDHR10A)
- Floor Monitor Angle: 55*
- Width: 12.2" (310 mm)
- Height: 19.8" (502 mm)
- Depth: 12.2" (310 mm)
- Net Weight: 26.9 lb (12.2 kg)
- Frequency Range (-10 dB): 54 Hz - 20 kHz
- Coverage Angle: H90* V60*
- Crossover Frequency: 2.0 kHz
- Nominal Impedance: 8 Ohm
- Sensitivity (1 W / 1 m, On-Axis): 93 dB SPL
- Maximum SPL (Peak, Calculated): 123 dB SPL
- Low-Frequency Driver: 10" Cone
- LF Voice Coil: 2.5"
- High-Frequency Driver: 1" Throat Compression Driver
- HF Diaphragm: 1.75"
- Power Rating (Noise): 275 W
- Power Rating (Program): 550 W
- Power Rating (Peak): 1100 W
- Input Connectors: 2 SpeakON NL4MP (Parallel Connected)
- Cabinet Material: Plastic
- Finish: Black
- Handle: Top
- Pole Socket: O35 mm (Bottom, 0* or -7*)
- Rigging Points: Top , Rear (M8 15 mm Eyebolts), Bottom , Side (M8 25 mm UB-DXRDHR10A)
- Floor Monitor Angle: 55*
- Width: 12.2" (310 mm)
- Height: 19.8" (502 mm)
- Depth: 12.2" (310 mm)
- Net Weight: 26.9 lb (12.2 kg)
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 39.7 lbs
- Shipping Dimensions: 24 x 16 x 15 in
- Manufacturer Part Number (MPN): CXR10MKIII
Note: Unpowered speaker, requires separate power amplifier.
