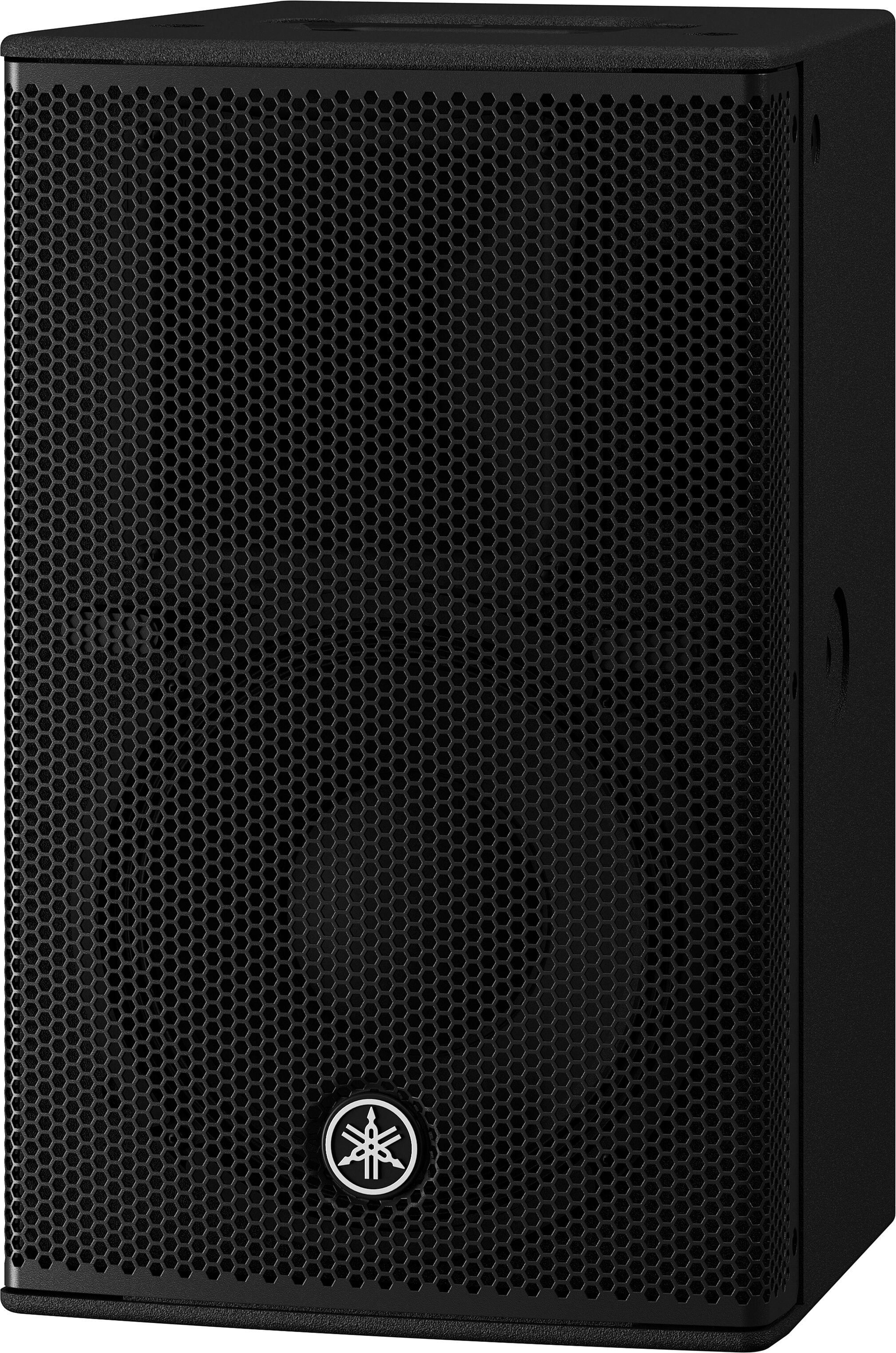

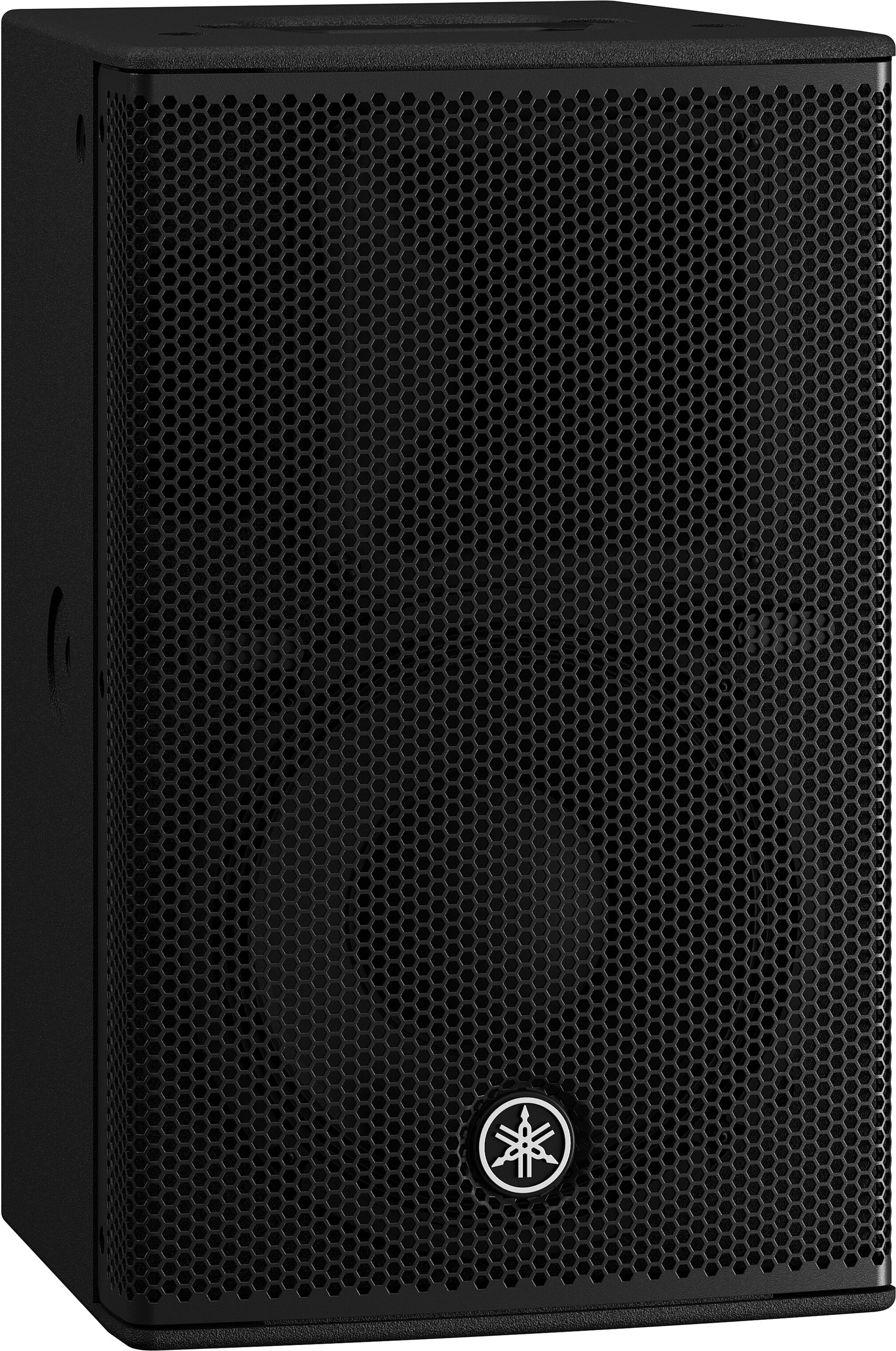

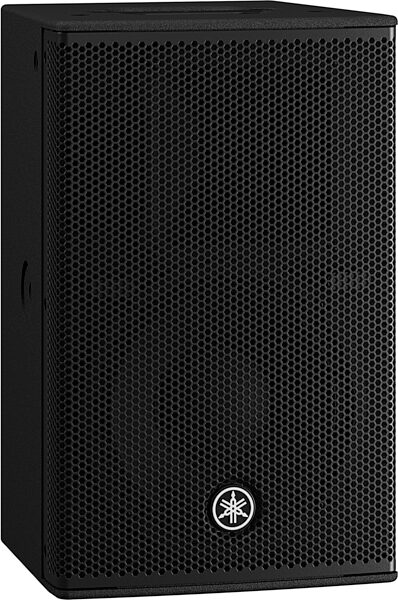

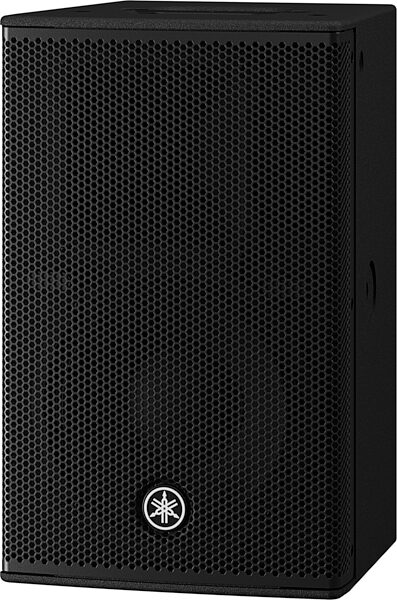

Yamaha CHR10 Passive, Unpowered PA Speaker (1x10")

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back
open zoom image for Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back
open zoom image for Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back
open zoom image for Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back
Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back Yamaha CHR10 Passive, Unpowered PA Speaker (1x10"), New, Action Position Back
zZounds Gear Experts Say...
Get Yamaha sound quality in a compact size with the CHR10 passive PA speaker. Its wood cabinet and wide frequency response deliver warm, clear audio.

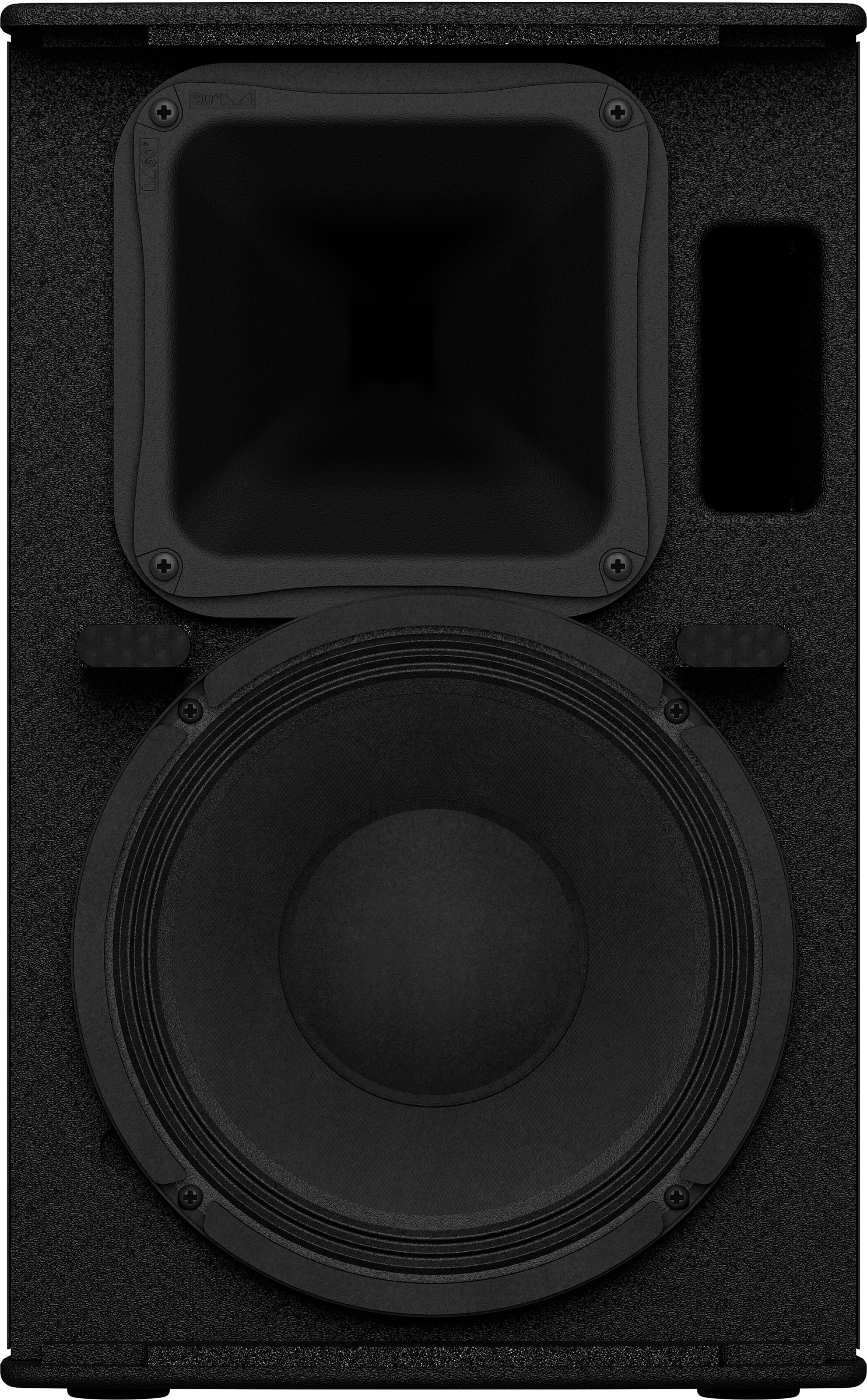

The Yamaha CHR10 loudspeaker is a versatile design offering integral rigging and optional bracketry for ease of installation. It offers an easily rotatable HF horn with 60 x 90 degree dispersion mated to a 1.4" HF compression driver and a high compliance 10" LF woofer for extremely clear voice reproduction and musicality.

Features:

- 10" LF driver with a 2" voice coil
- Compact and portable yet capable of high SPL for a wide range of applications
- 1.4" HF compression driver mated to a rotatable 90 x 60 degree rotatable horn
- Maximum output of 128dB SPL and wide frequency response range of 52Hz-20kHz
- Strong plywood cabinets with a tough polyurea coating
- Dual SpeakON connectors
- 3 Integral 10mm flypoints ready for rigging (CHR10 and CHR15)
- Optional U-Bracket available for CHR10 allows vertical or horizontal placement
- Rotatable HF horn on CHR10 offers 90 x 60 degree coverage
- 35mm sockets allow stand or pole mounting
- Custom designed transducers

Note: Unpowered speaker, requires separate power amplifier.

- Speaker Type: 2-Way Passive Loudspeaker
- Frequency Response: 55Hz - 20kHz
- Sensitivity: 93 dB SPL (1W; 1m on axis)
- Maximum SPL: 122 dB SPL (peak, calculated)
- Nominal Impedance: 8 ohms
- Power Handling (RMS): 175W (noise), 350W (PGM)
- Power Handling (Peak): 700W max
- LF Driver: 10" woofer
- HF Driver: 1.4" precision compression driver
- Crossover Frequency: 2.5kHz
- Coverage Pattern: 90° x 60° (rotatable horn)

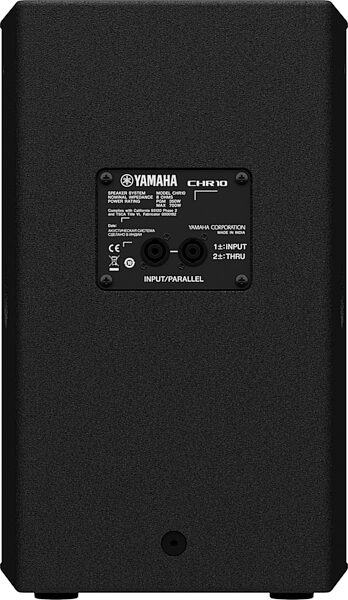

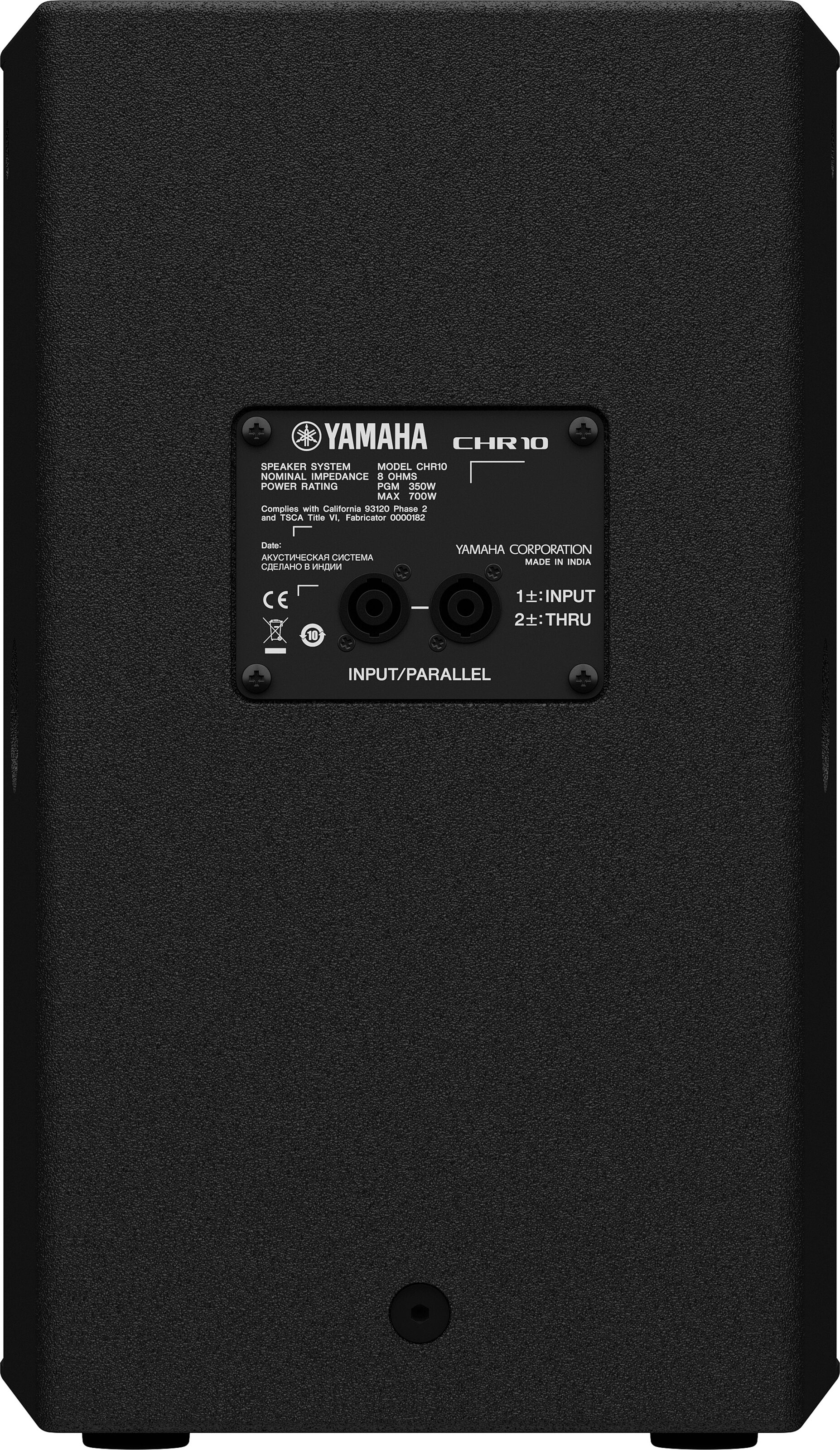

- Input Connectors: 2 x SpeakON NL4 (parallel connection)
- Enclosure Material: Plywood with polyurea coating
- Mounting Options: 1.4" pole socket, M10 rigging points (3x), optional U-bracket

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 37.5 lbs
  • Shipping Dimensions: 22 x 16 x 16 in
  • Manufacturer Part Number (MPN): CHR10

Note: Unpowered speaker, requires separate power amplifier.

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support
