Yamaha CBXK1 MIDI Keyboard

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

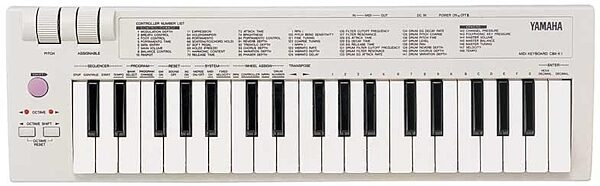

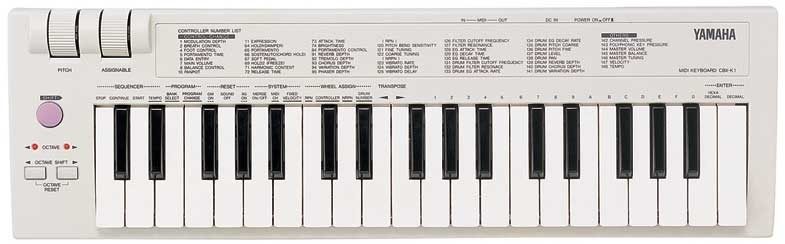

Yamaha CBXK1 MIDI Keyboard, Main
Yamaha CBXK1 MIDI Keyboard, Main
Yamaha CBXK1 MIDI Keyboard, Main Yamaha CBXK1 MIDI Keyboard, Main
zZounds Gear Experts Say...
37 mini keys with Initial Touch. Features 5 push switch, MIDI in/out remote control functions, MIDI merge, octave shift, transpose, and MIDI channel fixed velocity.

Basic Functions
Octave Shift (+/-4 octaves)
Pitch Bend
Assignable Control
MIDI merge

MIDI (MIDI In) Data Functions
Sequencer control
MIDI clock
Bank Select
Program Change
GM System On
XG System On
GM-B Reset
Control Change
All Sound Off
Reset All Controllers, and others.

Assignable Parameters Functions
Transpose (+/-12 semitones)
MIDI Transmit Channel
Fixed Velocity
Touch Sensitivity
Device Number
Merge On/Off (each channel)

Keyboard: 37 mini key keyboard (C2-C5), velocity responsive.

Panel Controls and Indicators: Shift button, Octave shift left arrow/right arrow buttons and lamps, Pitch Wheel, Assignable Wheel, Power On/Off switch

Input/Output Terminals: Midi In, Midi Out, DC In

Power Supply: Yamaha PA-3 or PA-1B AC Power Adapter (sold separately), or 6 "AA" size, Sum-3, R-6 or equivalent batteries (sold separately).

Power Consumption: Approximately 35 mA (with battery use); approximately 2 W (with AC adapter use).

Dimensions (W x D x H): 509 x 155 x 55 mm (20-1/16 x 6-1/8 x 2-3/16 in.)

Optional: PA3B AC Power Adapter

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support
Owner's Manual

Submitted April 18, 2005

Yamaha CBXK1 Keyboard Customer Review

Overall: 5 out of 5 stars
(see rating details)
Sound
for the money... the CBXK1-XG has very good sounds... a lot better than I expected... that's why I gave it a 9
3 of 5 people (60%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
