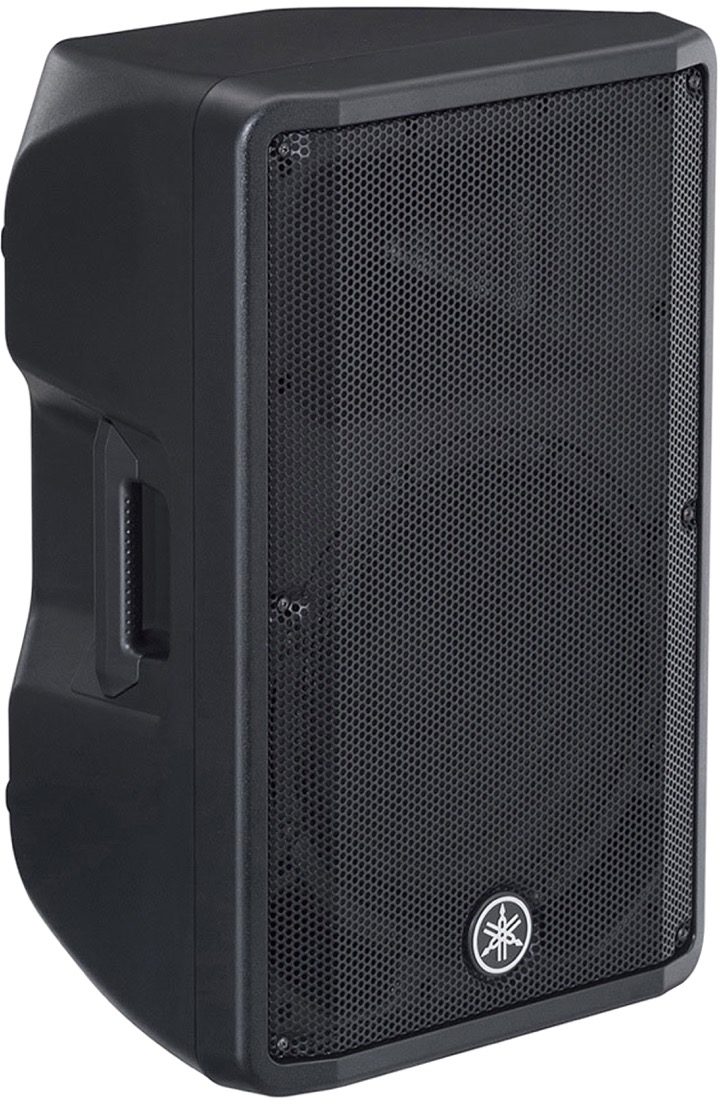

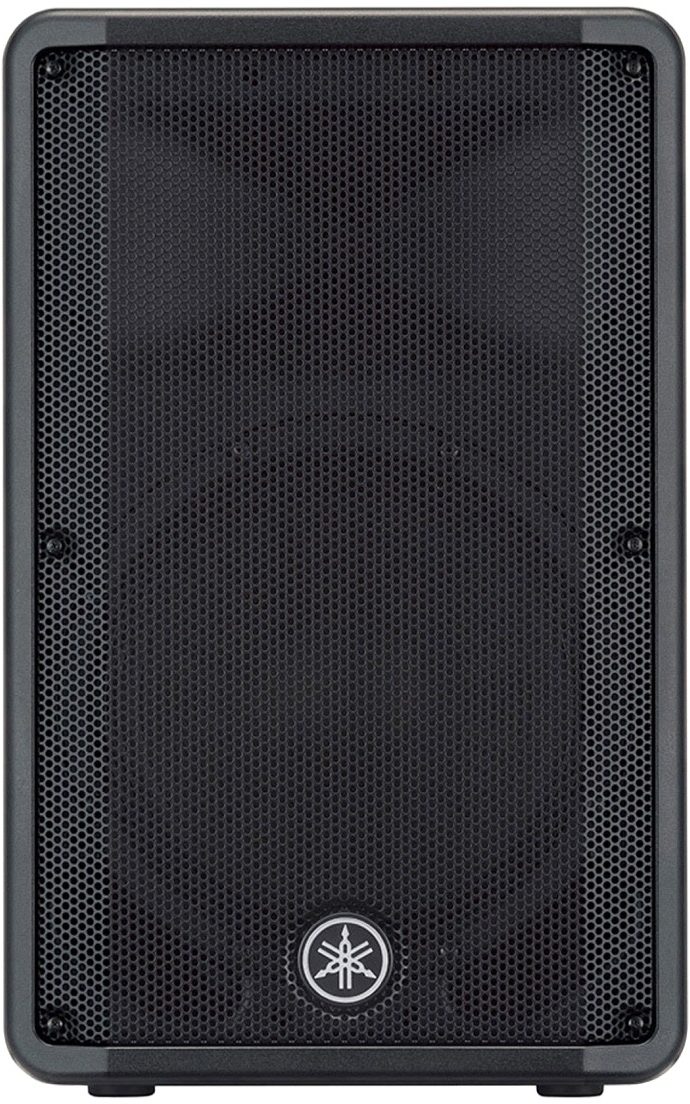

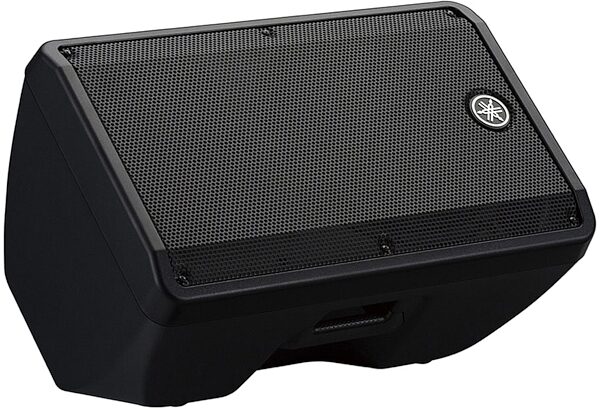

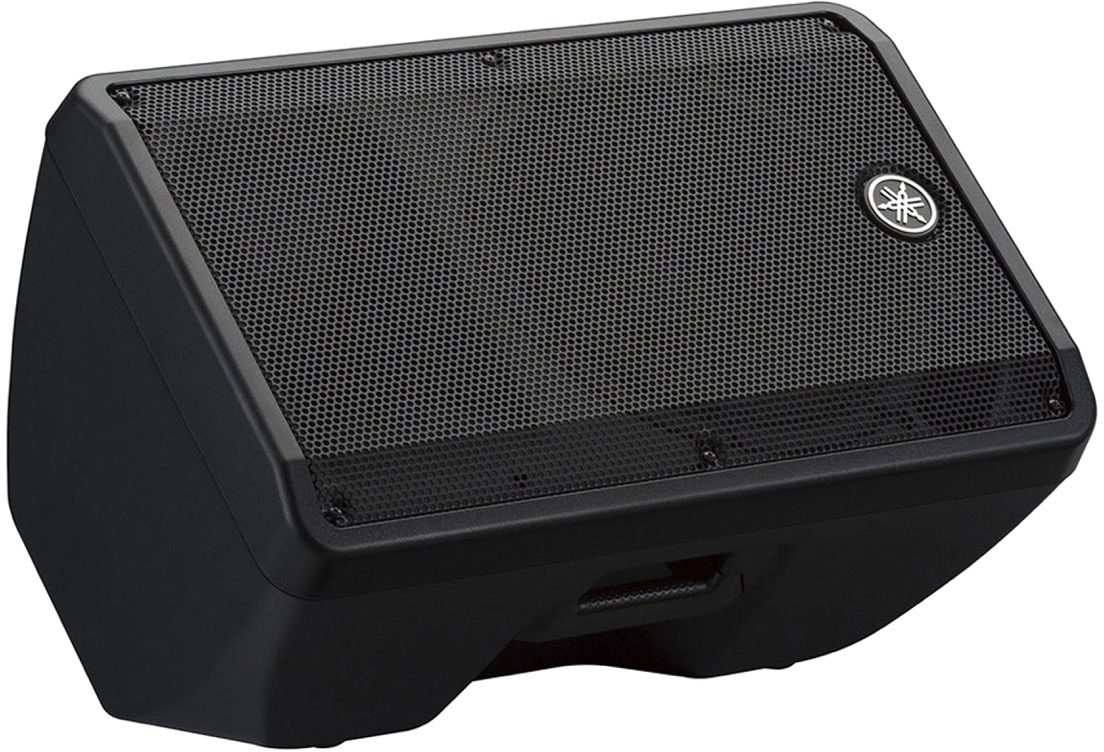

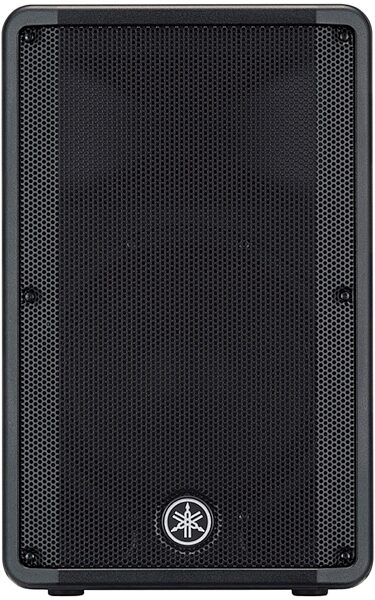

Yamaha CBR12 Passive, Unpowered Loudspeaker (1x12")

Get the volume you need for your venue with Yamaha's CBR12 passive speakers. With 700-watt peak power handling, they're a worthy choice for floor monitors. Unpowered. Requires separate power amplifier.

The Yamaha CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.

Combining a meticulous materials selection process, through customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

Note: Unpowered speaker, requires separate power amplifier.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Speaker type: 2-way Speaker, Bass-reflex Type
- Frequency range (-10dB) : 48 Hz - 20 kHz
- Components LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
- Components HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover: 2.1 kHz
- Power rating: NOISE 175W
- Power rating PGM: 350W
- Power rating PEAK: 700W
- Nominal impedance: 8O
- SPL Sensitivity (1W; 1m on axis) : 96dB SPL
- SPL Peak (Calculated) : 125 dB SPL
- I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
- Cabinet material: Plastic
- Finish: Black
- Handle: Side x 2
- Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
- Pole Socket Size: 1-3/8" (35 mm)
- Dimensions: (W x H x D) 376 x 601 x 348 (14.8 x 23.7 x 13.7")
- Net weight: 13.9 kg (30.6 lbs)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 38.5 lbs
Shipping Dimensions: 27 x 18 x 18 in
Manufacturer Part Number (MPN): CBR12

Note: Unpowered speaker, requires separate power amplifier.

For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (1 ratings)
Submitted June 7, 2016 by william anderson in central city, KY
"Yamaha CBR 12 speakers"
Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Flew these from the ceiling in my 1550 sq ft church.I have all ways used 15"speakers but I paired them together with one sub and used the new system for the first time sunday and more great compliments from people that on any system I eve had before These are amazing speakers...and ALLWAYS zZounds is the best that you could ever buy from. Thanks Again Guys and gals.....
Musical Background:
40 years...for souther gospel group
Musical Style:
Christen Southern Gospel
11 of 11 people (100%) people found this review helpful. Did you?
