Warm Audio Direct Box Active

Equipped with a custom-wound CineMag transformer, the Warm Audio Direct Box Active ensures your instrument sounds great running to the PA or mixing console.
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active from Warm Audio. Every aspect of Warm's direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active from Warm Audio.


Get started with Warm Audio's Active and Passive direct boxes with this video:


Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in a rugged aluminum chassis that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.

Features:

- Custom-wound CineMag USA transformer.
- Converts instruments to mic-level signals without signal degradation.
- Ideal solution for plugging your instrument direct into any mic pre, mixer or recording device.

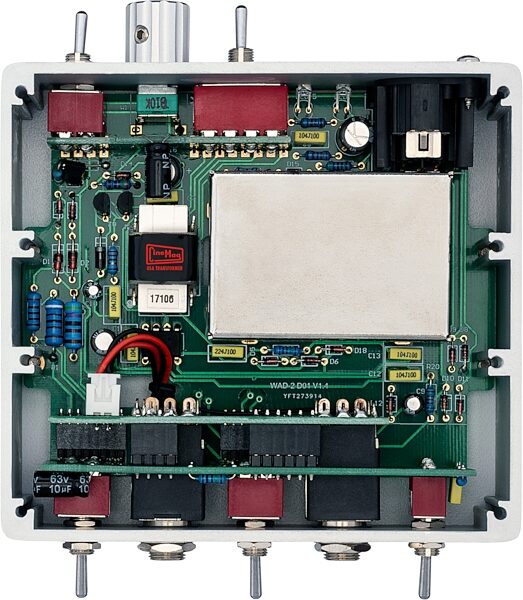

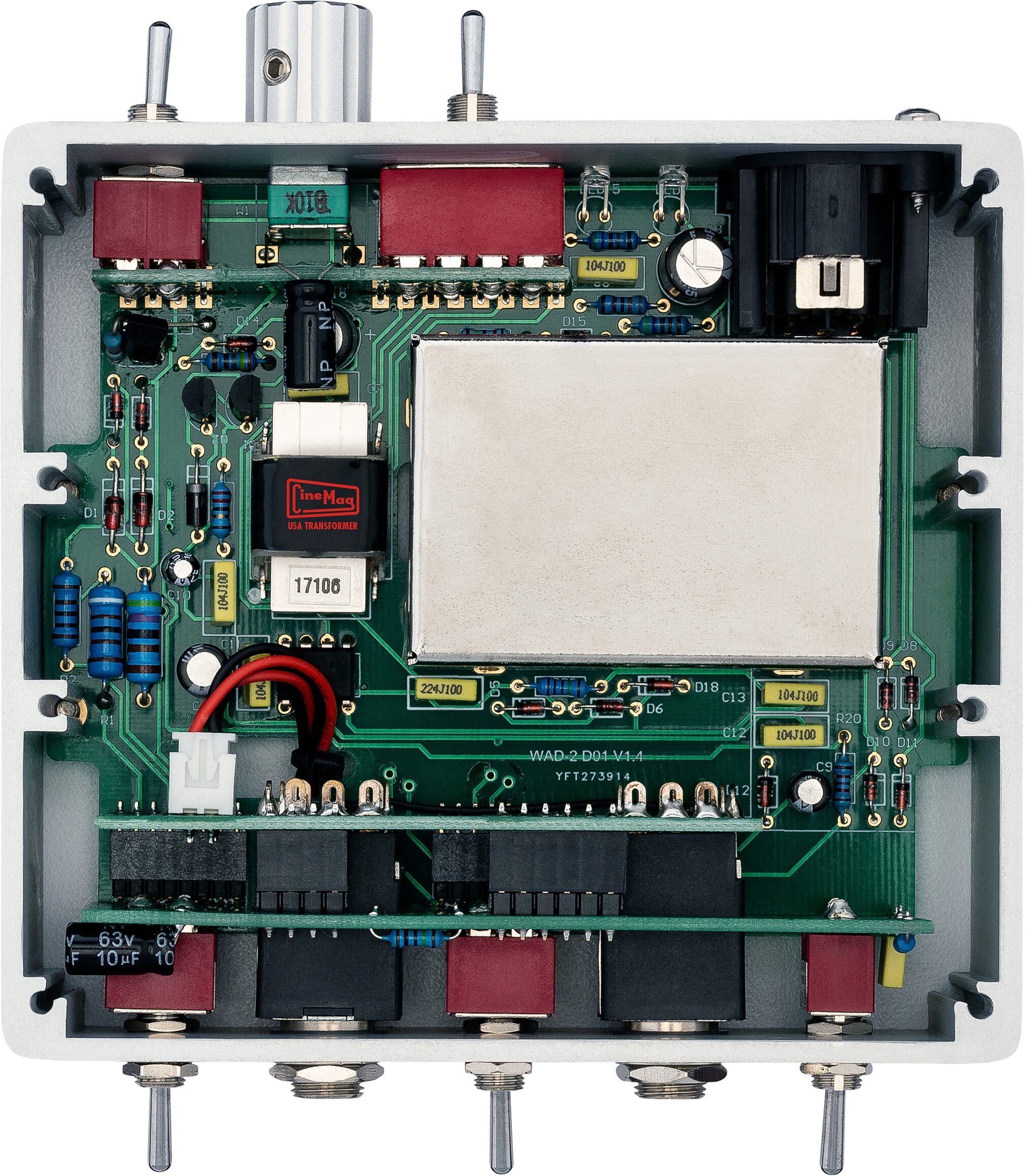

- Top-quality discrete components with gold-plated traces on circuit board.
- Rugged aluminum chassis construction.

Hear folk rocker Elle Sera and her band in the studio with Warm Audio:


Take a listen to gospel artist Troy Ramey through read more an all-Warm recording rig:
read less

Specifications

Pad: Variable from -3dB to -30dB.
Balanced Output: 600 ohms, mic level.
Input Impedance: 1 Meg Ohms.
THD: .01% from 20Hz to 50Hz. Less than .003% from 50Hz to 20kHz.
Frequency Response: 10Hz to 90kHz +/- 0.5dB.
Linear Performance: +/- 0.05dB 20Hz to 50kHz.
Power: 48V Phantom or two 9V batteries. Can also be used passively.

Dimensions: 5" x 4.96" x 1.88" (including overhang from switches)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2 lbs
Shipping Dimensions: 8 x 8 x 3 in
Manufacturer Part Number (MPN): WAU WADIA
