United Studio Technologies UT FET47 Large-Diaphragm Condenser Microphone

United Studio Technologies combines vintage NOS parts and custom components to recreate their take on the classic '47 condenser microphone for a great price.

It's a labor of love. The UT FET47 represents several years of R&D, blood, sweat, and tears -- all to capture the essence of one of the most beloved and classic solid state condenser microphones, and recreate it for the modern recordist.

The sonic qualities you've been chasing have arrived -- at an accessible price, with uncompromising quality.

The UT FET47 features a custom Cinemag transformer, a custom Heiserman-designed HZ series capsule, vintage polystyrene capacitors, and NOS (new old stock) FETs.
Custom parts. Vintage and new old stock parts. Mix that together with each microphone being built in the USA by actual recording engineers, and you have the UT FET47.

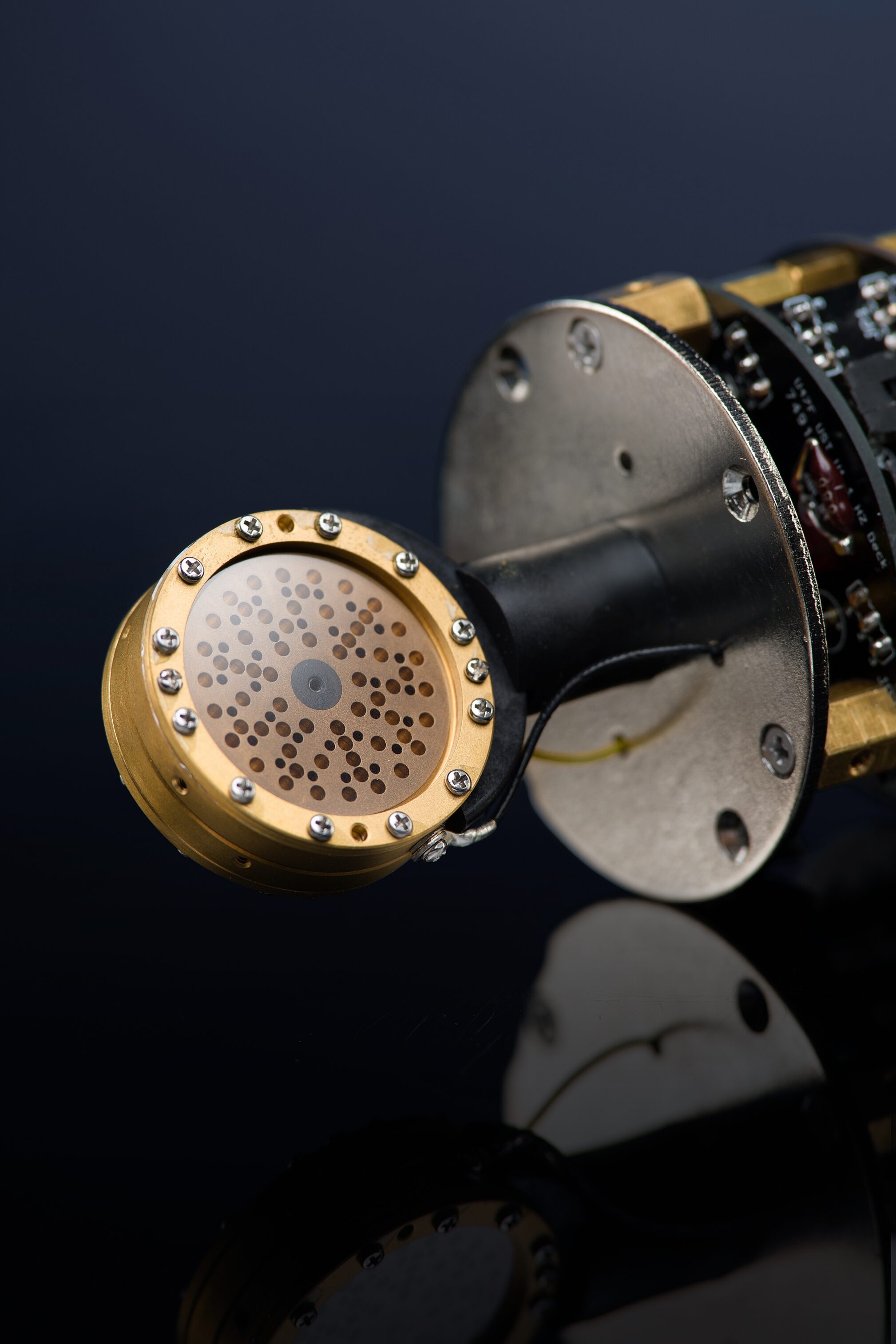

Featuring Heiserman designed capsules

United worked with acclaimed capsule designer and manufacturer Eric Heiserman to develop a fresh take on the classic K47 German capsule design. Eric worked with the United team and our capsule manufacturer to develop a new capsule from the ground up. The capsule is open, articulate, and very three-dimensional. This process required the analysis of everything from the sourced Mylar to the thread types of screws; but after many months and many iterations, they finally achieved what we had hoped for in the HZ-Series capsules.

While many of the HZ-Series design secrets will remain so, one superior attribute they can reveal is the use of dual, matched backplates. With the HZ-Series matching process, a far more accurate and consistent quality from side to side and capsule to read more capsule is achieved.
The HZ-Series capsule is still manufactured only a few at a time, and stringently listened to and tested.

Custom Cinemag Transformers

United auditioned many recreations of the original German transformer; but quickly settled on an exceptional offering from Cinemag Transformers in California. Their answer to the classic part is truly a piece of art; a large, hefty transformer made from a 'striped core' of interleaved sets of high nickel and steel laminations, and wound to the specs of the original. Its humbucking design delivers clean, quiet operation.

While United could have used smaller or less expensive transformer; they simply refused to compromise. You'll be glad they didn't.

It's not just another mic -- it's a United

Choosing the best microphone for your needs couldn't be any more difficult these days. With so many options on the market, and so many claiming to have the vintage sound and failing to deliver, it can be overwhelming.
That was United's inspiration: deliver the real product -- affordably. The UT FET47 represents United's true passion for microphones, and was built with a holistic-design approach. With over 50 years of combined industry experience, United have spent years on research and development on this microphone.
read less

- Type: Condenser Microphone
- Capsule: HZ Series 34mm all-brass, dual-backplate K47
- Diaphragm: Dual-diaphragm, 6 micron, 24k gold sputtered Mylar (PET film)
- Power Supply: +48v Phantom Power (via XLR)
- Ground: Pin 1 XLR (required)
- Frequency response: 20 Hz - 20 kHz
- Polar Pattern: Cardioid
- SPL: 136 dB (145 dB w/ Pad) @ <.5% THD
- Output Impedance: 200 O
- Amplifier Type: Field Effect Transistor
- Self Noise: <10 dB (no pad, no HPF)
- Output: Cinemag USA transformer balanced, pin 2 hot
- Body: Nickel electroplated, solid milled brass

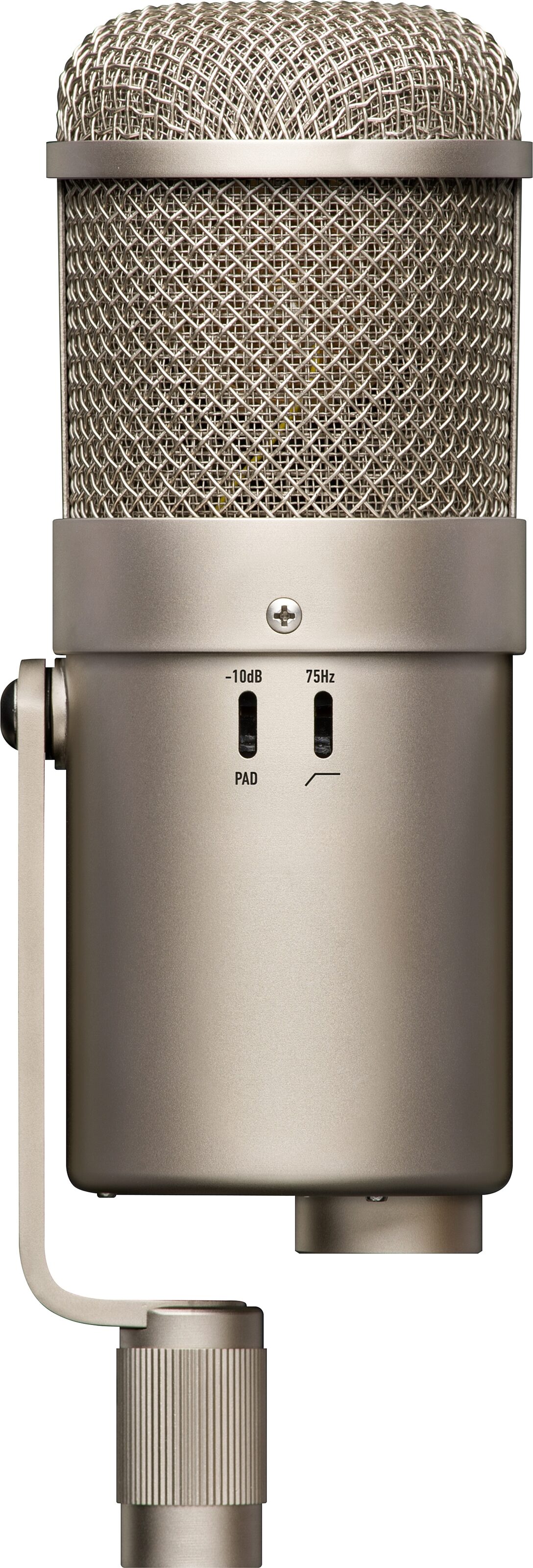

- High pass filter: 75 Hz (-12dB down point)
- Pad: -10dB
- Connector: 24k gold plated XLR
- Mount: Self-contained stand swivel mount adapter
- Dimensions: Height 8.2" / Width 2.7" / Diameter 2.4"
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.25 lbs
Shipping Dimensions: 10 x 5 x 4 in
Manufacturer Part Number (MPN): UT FET47
