Telefunken DC6 6-Piece Drum Microphone Package

Telefunken has the mics you need to capture drums: M82 for kick, M80-SH for snare, 2x M81-SH for toms, 2x M60 FETs for overheads, plus XLR cables and case.
TELEFUNKEN Elektroakustik has assembled the three unique voices of its TEC Award winning Dynamic Series microphone line, in combination with two matched small diaphragm FET condensers, and packaged them as the 6-microphone DC6 Drum Pack for drum recording and live performance applications. Each microphone set consists of the M82 handling kick drum duties, the M80-SH on snare, the M81-SH for toms, and the M60 FET Cardioid for cymbals or overheads.

The DC6 ships in the heavy duty hard shell HC87 flight case and include multiple drum mounts (M 782, M 784 and M 785) and an SGMC-5R five-meter XLR cable with a right angle female connector for each microphone in the set.
Cables: 6x SGMC-5R five-meter XLR with right angle female connector

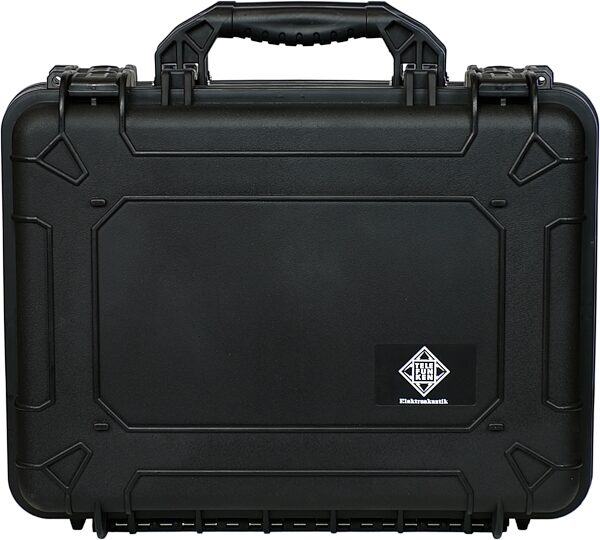

Case: 1x HC87 Hard Shell Flight Case

1x M82 with M 782 mount:
- Type: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 25 Hz - 18 kHz, +/-3 dB
- Capsule: 32mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.85 mV/Pa, +/-1 dB
- Output Impedance: 250
- Maximum SPL (for 1% THD): 146 dB
- Dimensions: 155 mm L x 63 mm Dia
- Weight: 434 g

1x M80-SH with M 784 (metal) and M 785 (plastic) mount:
- Type: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz, +/-3 dB
- Capsule: 25mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.54 mV/Pa, +/-1 dB
- Output Impedance: 325
- Maximum SPL (for 1% THD): 135 dB
- Dimensions: 125 mm L x 48 mm Dia
- Weight: 340 g

2x M81-SH with M 784 (metal) and M 785 (plastic) mount:
- Type: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz, +/-3 dB
- Capsule: 25mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.54 mV/Pa, +/-1 dB
- Output Impedance: 325
- Maximum SPL (for 1% THD): 135 dB
- Dimensions: 125 mm L x 48 mm Dia
- Weight: 340 g

2x M60 FET with M 761 elastic mount:
- Type: FET Condenser
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz - 20 kHz, +/-3 dB
- Power Source: +48V Phantom Power
- Capsule: TK60 - Edge Terminated Small Diaphragm, Thread-on
- Transformer: TELEFUNKEN Elektroakustik T61CT
- Sensitivity: 8.6 mV/Pa, +/-1 dB
- THD at 1kHZ at 1Pa (Amplifier): < 0.01%
- Output Impedance: 120
- Maximum SPL (for 1% THD): > 130 dB
- S/N Ratio: 89 dBA
- Self Noise (Amplifier): 5 dBA
- Dimensions: 140 mm L x 20 mm Dia
- Weight: 110 g
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 20 x 17 x 8 in
Manufacturer Part Number (MPN): SYTM-080
