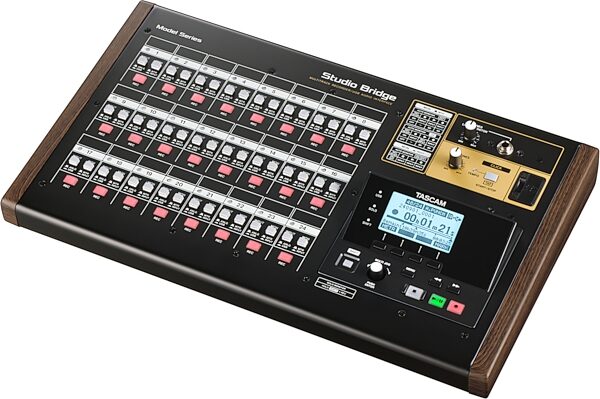

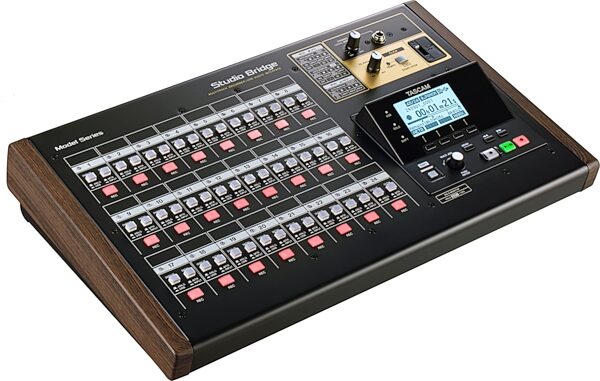

TASCAM's 24-channel analog-to-digital bridge! Connect an analog mixer to the Studio Bridge to record 24 tracks to SD Card, or run them into a DAW via USB.

Overview

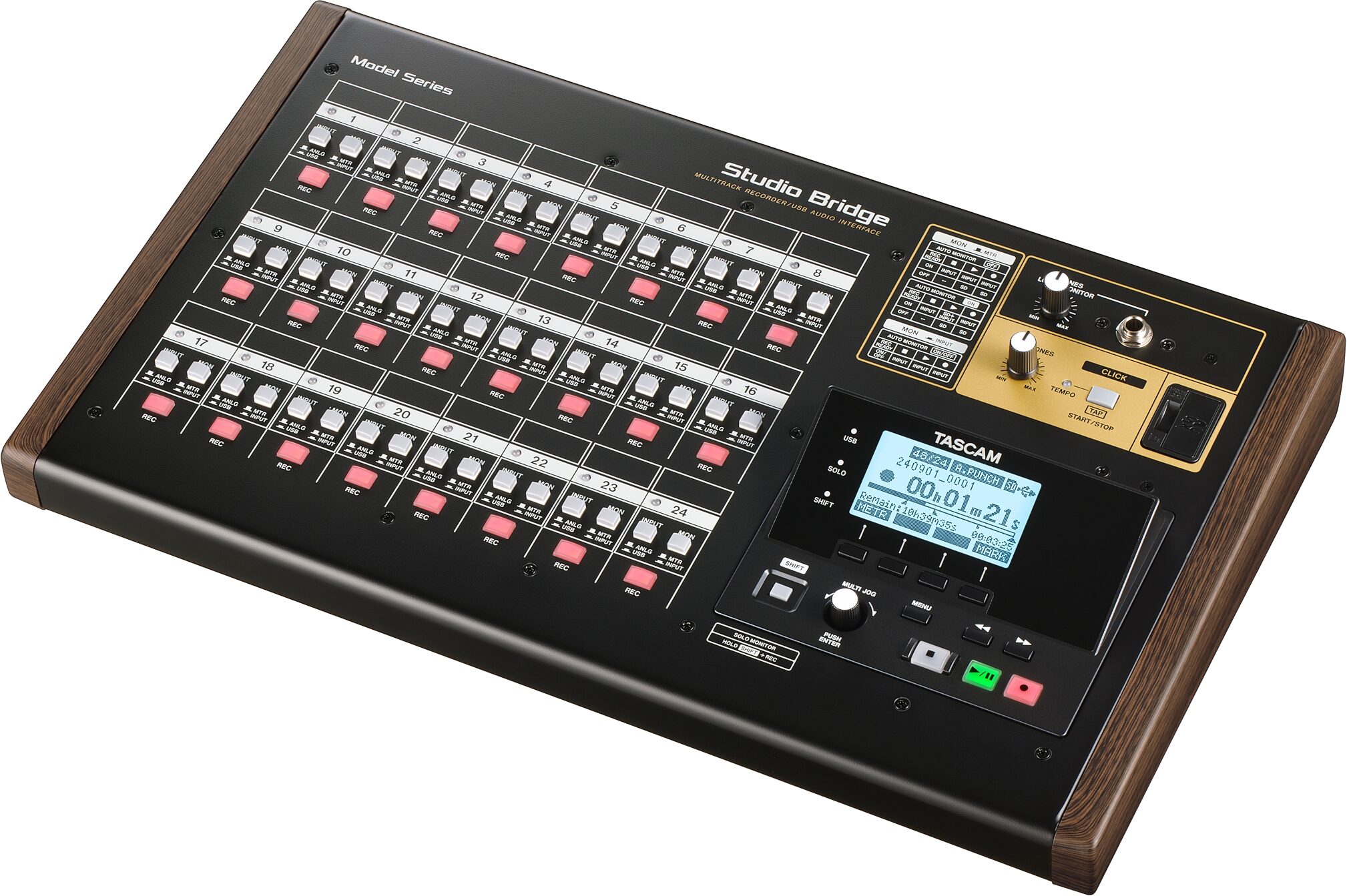

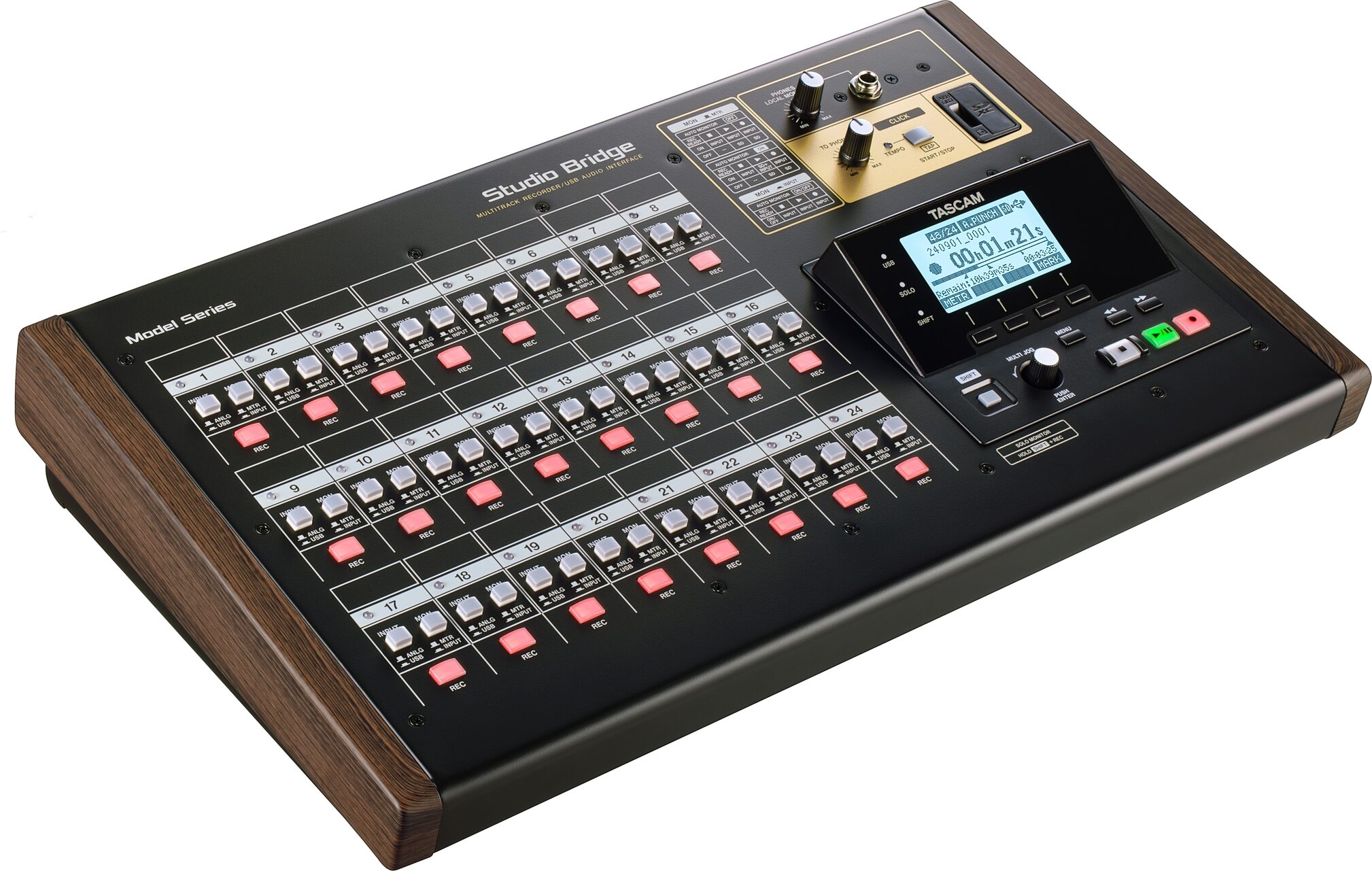

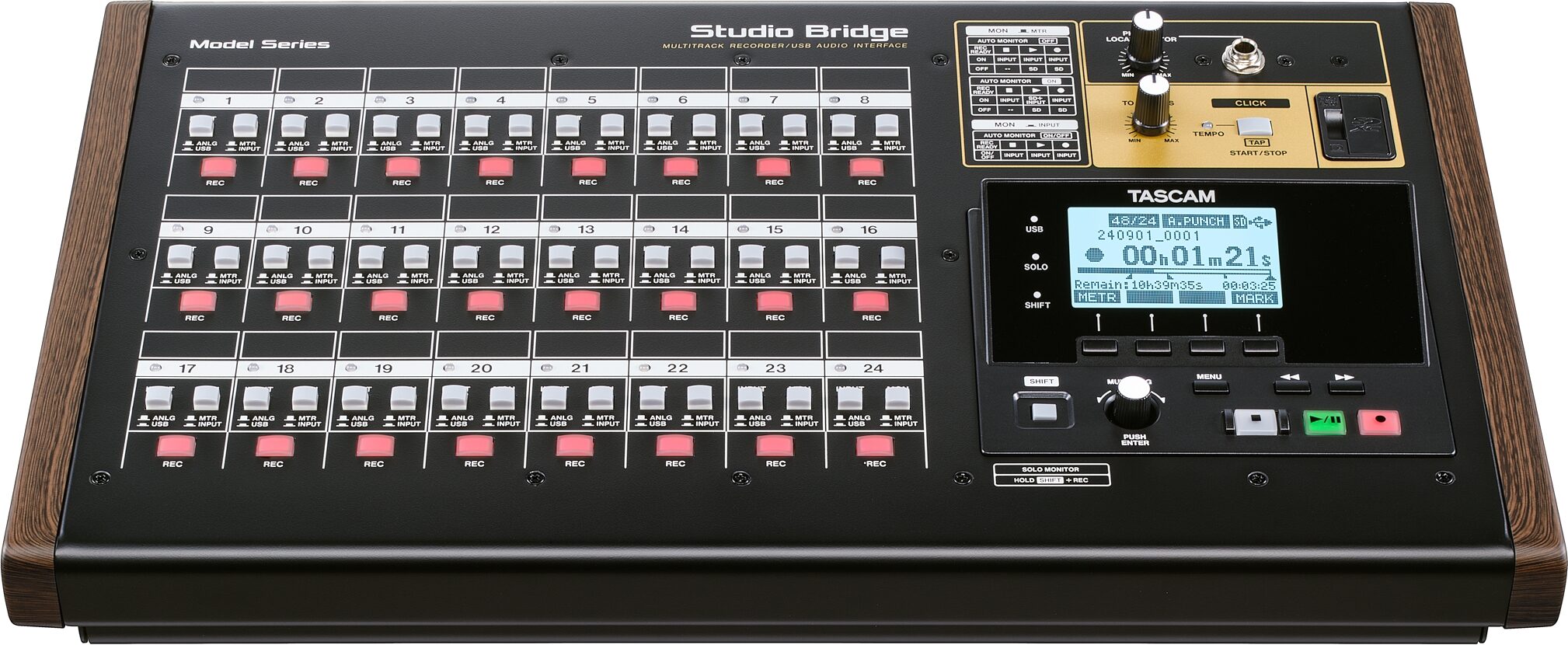

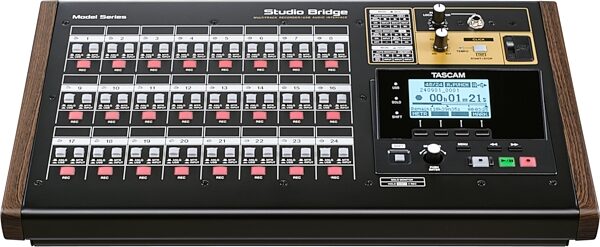

From TASCAM's Model Series, the Studio Bridge is quite literally the bridge between analog mixers and digital recording devices, whether you use a DAW or prefer a DAWless setup. Preserve the lush analog tone from your mixing console while tracking and mixing to your DAW of choice or to the Studio Bridge's on-board multitrack recorder. Tracks recorded to the on-board recorder or your DAW can be returned to your analog console for mix summing, turning digital recordings into warm analog productions. Whether tracking at a personal recording studio or a live environment, the Studio Bridge handles all your needs with ease.

Specs

Recorder specifications:
Supported media: SD (512 MB to 2 GB), SDHC (4 GB to 32 GB), SDXC (64 GB to 512 GB)
*(Class 10 or higher)
Recording format: WAV (BWF)
Playback format: WAV (BWF)
Sampling rate: 44.1/48 kHz
Quantization bit depth: 16-bit / 24-bit
Maximum number of recording tracks: 24
Maximum number of input and output channels: Inputs: 24 / Outputs: 24

Analog audio input/output ratings:

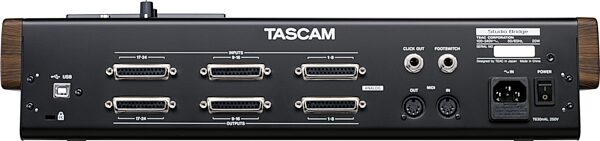

Line input connectors (1–8, 9–16, 17–24):

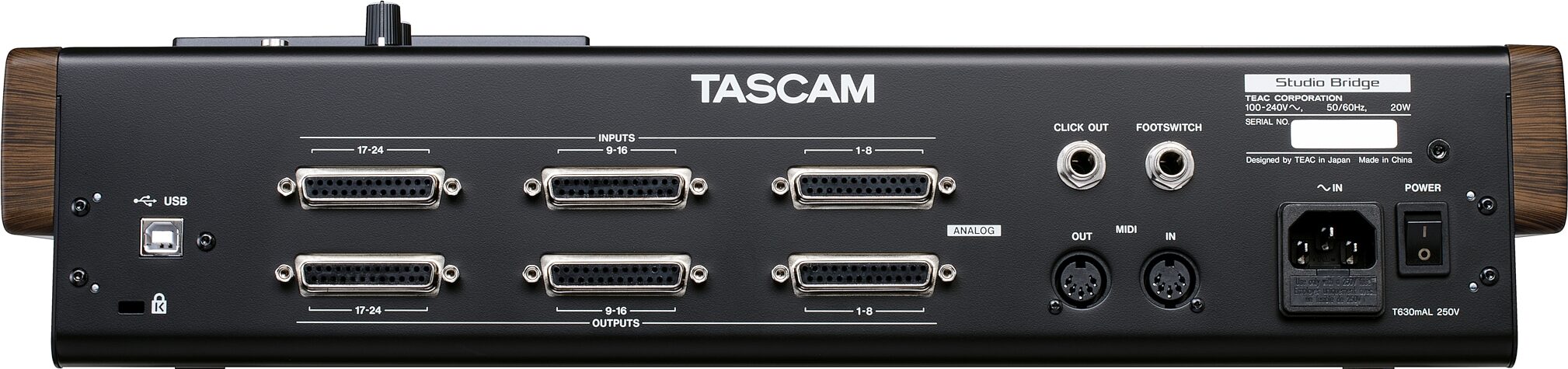

Pin assignments (same for 1–8, 9–16 and 17–24): TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
Connector: 25-pin balanced D-sub
Fixed screws: No. 4-40 UNC (inch type)
Maximum input level: +24 dBu
Nominal input level: +4 dBu
Input impedance: 10 kΩ or more

Line output connectors (1–8, 9–16, 17–24):
Pin assignments (same for 1–8, 9–16 and 17–24): TASCAM DB-25 Pinout Standard (AES59-2012 compliant)
Connector: 25-pin balanced D-sub
Fixed screws: No. 4-40 UNC (inch type)
Maximum output level: +24 dBu
Nominal output level: +4 dBu
Output impedance: 200 Ω

PHONES/LOCAL MONITOR jack:
Connector: 6.3mm (1/4") standard stereo jack
Maximum output: 80 mW + 80 mW (into 32Ω load)
Working impedance: 16 to 600 Ω

Control input/output ratings:
USB:
Connector: USB Type-B
Transfer format: USB 2.0 High-Speed
Device classes: Mass storage, USB audio class 2.0 (USB class compliant)
USB audio:
Sampling rate: 44.1 kHz / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 24 channels (Output from this unit)
Number of outputs: 24 channels (Input to this unit)

CLICK OUT jack connector: 6.3mm (1/4") standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)

FOOTSWITCH jack connector: 6.3mm (1/4") standard TRS jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, supports momentary (unlatch) types)

MIDI OUT connector: 5-pin DIN, MIDI 1.0
MIDI IN connector: 5-pin DIN, MIDI 1.0

Power: AC 100-240 V, 50/60 Hz

Power consumption: 20W

Dimensions:

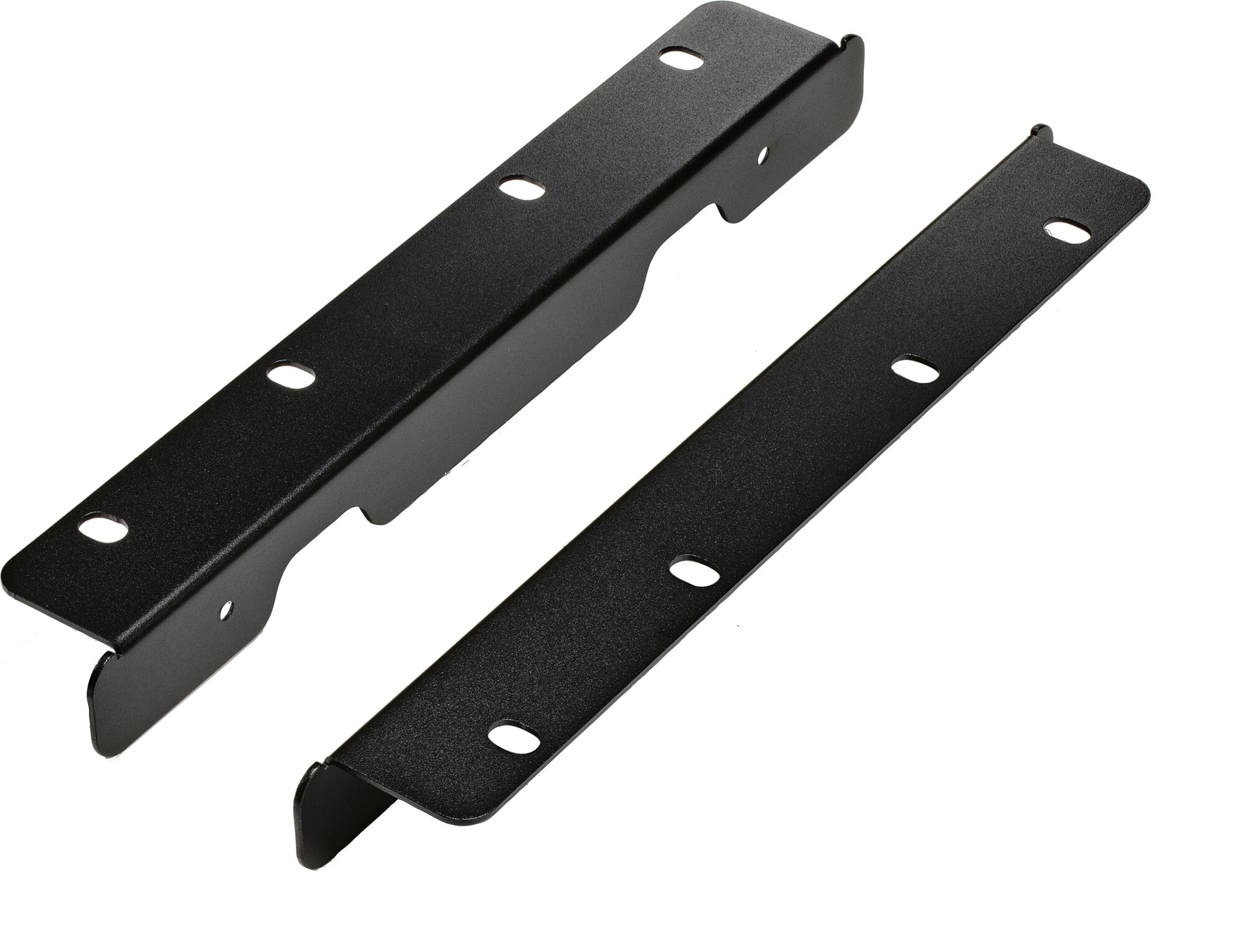

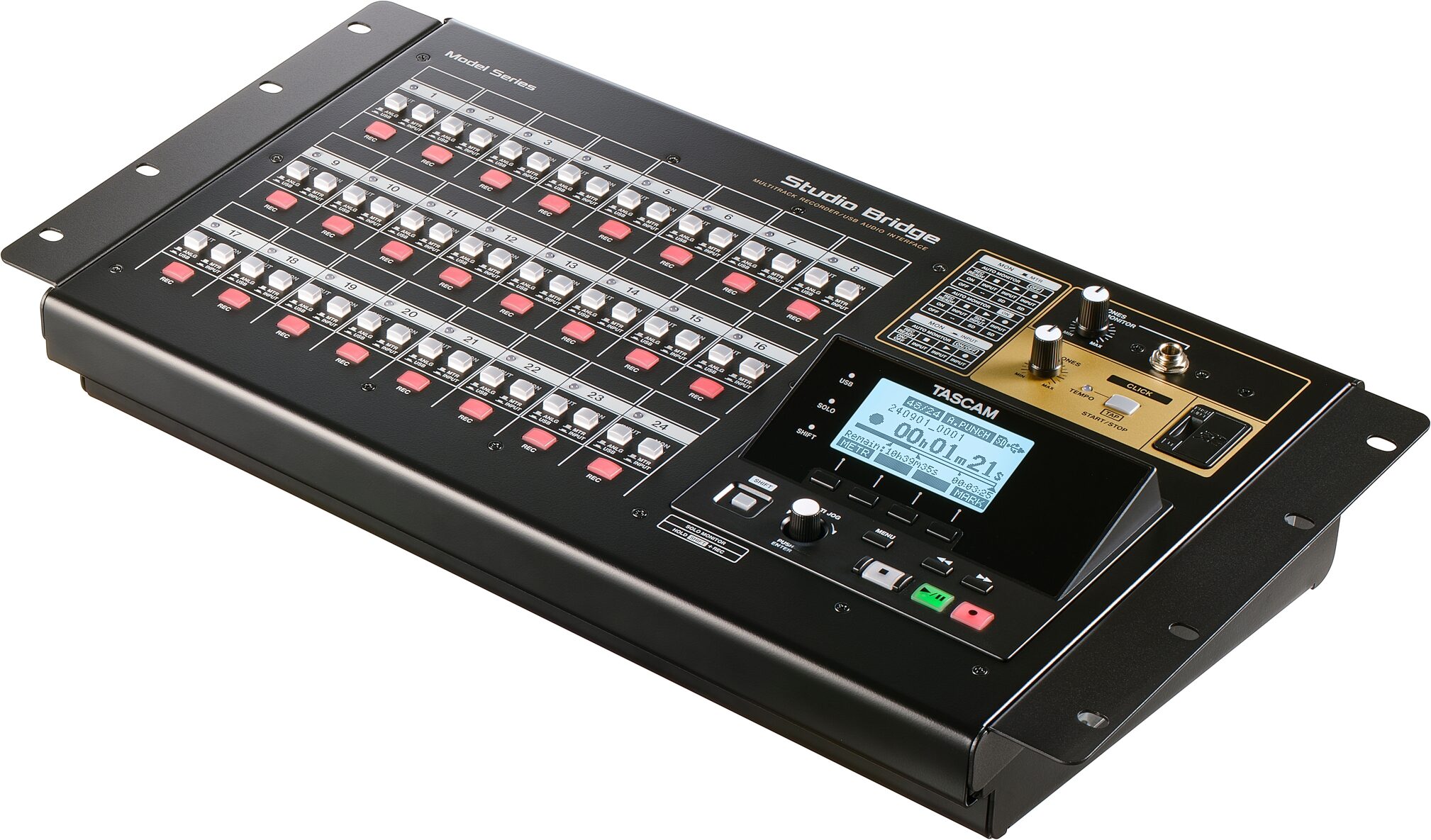

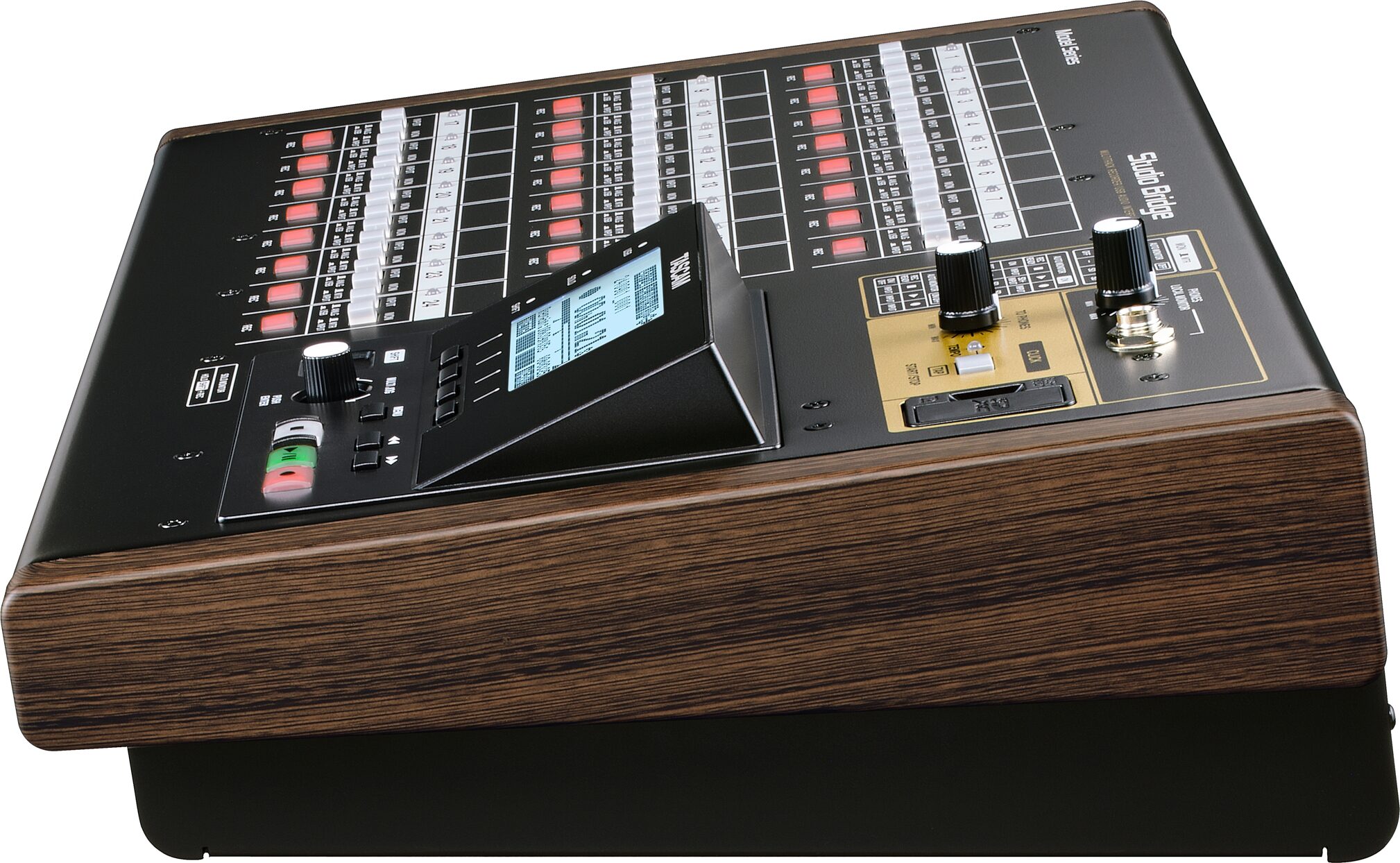

With side panels: 446.5 × 114.6 × 269.5 mm (W × H × D, including protrusions)
Without side panels: 414.6 × 114.6 × 269.5 mm (W × H × D, including protrusions)

Weight: 4.5kg
Operating temperature range: 0–40°C (32–104°F)
Operating humidity range: 5–85% (without condensation)

Included:
- Studio Bridge × 1
- Power cord (for Japan/USA, 3-pronged with protective grounding) × 1
- Power cord (for other, 3-pronged with protective grounding) × 1
- 3-prong to 2-prong adapter (for Japan) × 1
- Safety Guide (with warranty) × 1
- TASCAM ID registration guide × 1

Audio performance (Line in ➝ line out for both 44.1kHz and 48kHz sampling rates):
Frequency response: 20 Hz – 20 kHz (+0.3/−0.7 dB, 1 kHz)
Dynamic range: 100 dB or more (22kHz LPF + A-weight)
Total harmonic distortion ratio (THD+N): 0.003% or less (1 kHz, at maximum input level)
Crosstalk: −100 dB or less (1kHz BPF)

Recording times (hours: minutes) for 32GB card:
16-bit/44.1kHz WAV, 24 tracks: 4:10
16-bit/48kHz WAV, 24 tracks: 3:50
24-bit/44.1kHz WAV, 24 tracks: 2:47
24-bit/48kHz WAV, 24 tracks: 2:33
(The recording times shown above are estimates. They might differ depending on the SD card in use.)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 12.5 lbs; Shipping Dimensions: 21 x 15 x 8 in; Manufacturer Part Number (MPN): STUDIOBRIDGE
