TASCAM MZ-223 Rackmount Multi-Zone Mixer, 5-Channel

Route multiple audio sources to any of 3 independent zones with this mixer. The MZ-223 provides 10 RCA stereo inputs, 2 XLR mic inputs, and 3 pairs of outs.

A powerful multi-channel, multi-zone mixer housed in a compact 2U design, the TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

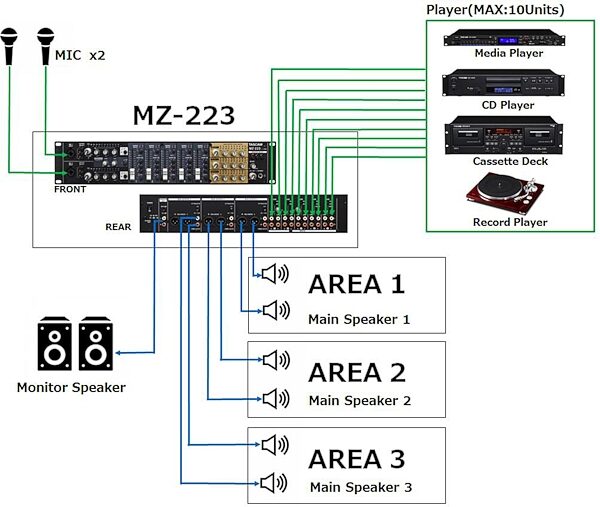

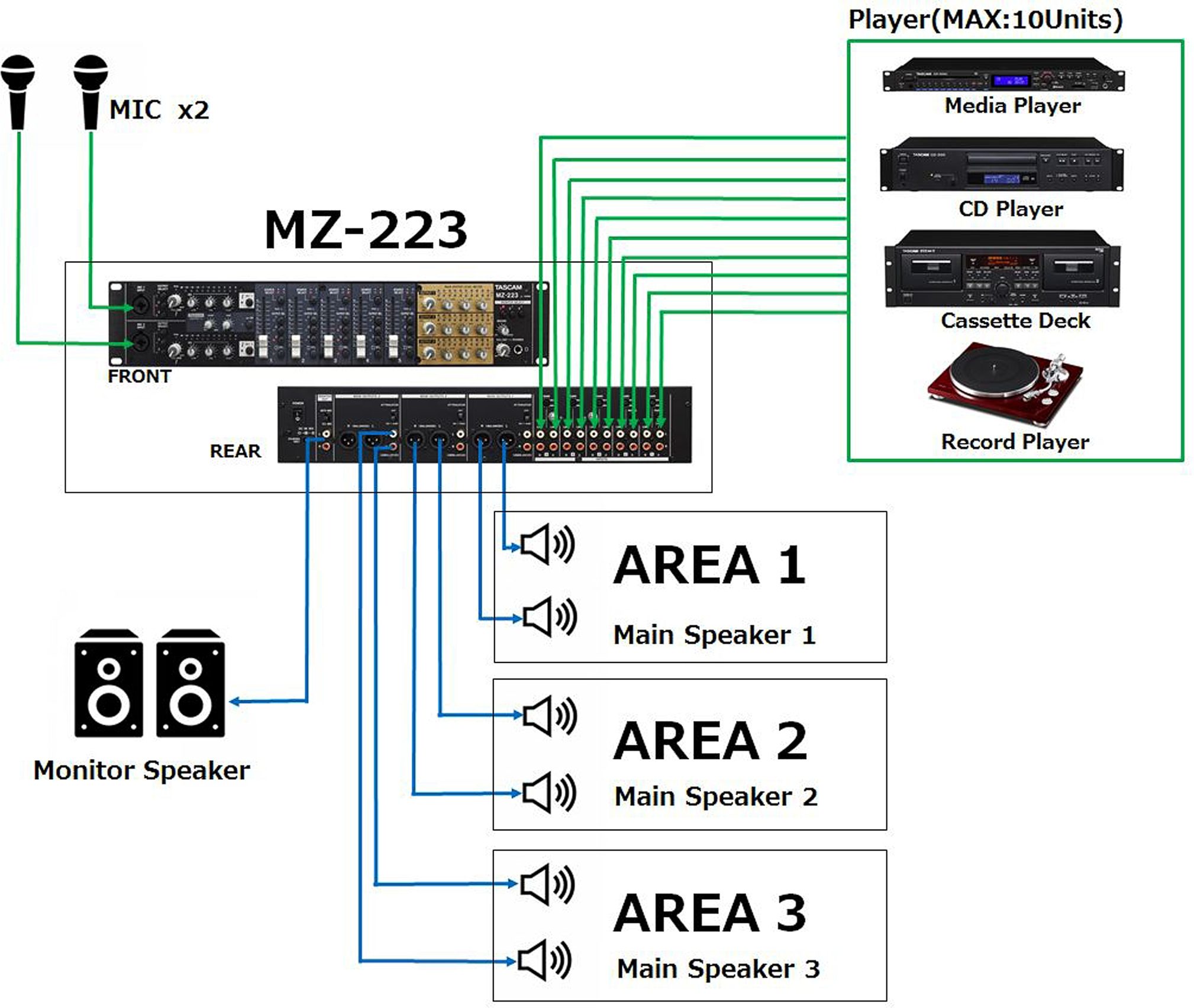

The MZ-223 allows multiple audio sources to be mixed, segregated, and routed to three (3) independent zones or destinations using familiar volume sliders and assignment buttons. Input signals can be inserted via five (5) audio channels, each consisting of two (2) sets of unbalanced RCA-type stereo pairs. A total of ten (10) sets of RCA-type inputs are provided. Channels one and two can be set to accommodate phono-level signals for use with a turntable. In addition, located conveniently on the front panel, two mic-compatible XLR inputs are available.

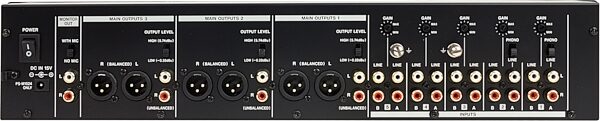

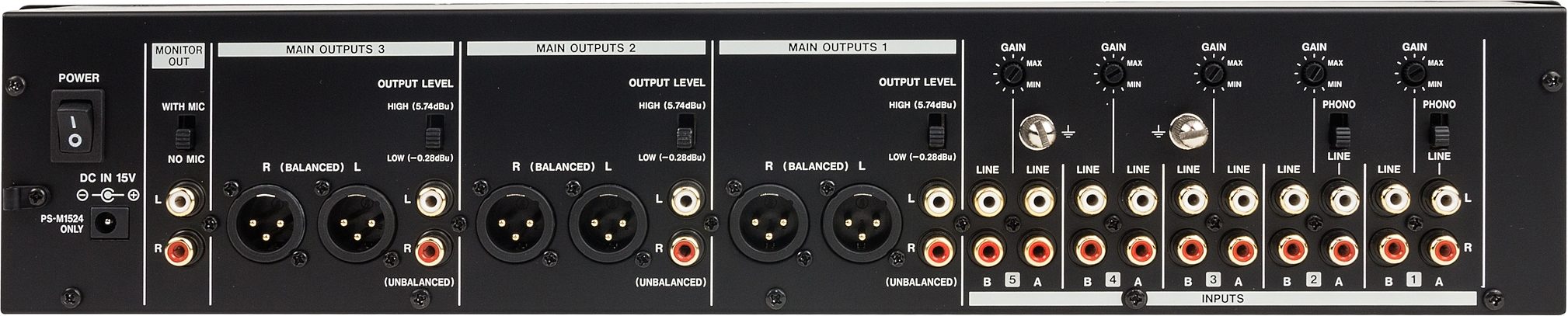

The independent three-zone outputs each have a combination of balanced professional XLR or RCA unbalanced configurations for long runs or connection to common residential power amplifiers or speakers. This flexibility, for example, allows music to be routed to zone one, ambient noise or natural sounds to zone two, a separate read more music track or a voice announcement can be routed to zone three, while the convenient "talkover" function will automatically lower any mixed channel source so the microphone can be heard while speaking.

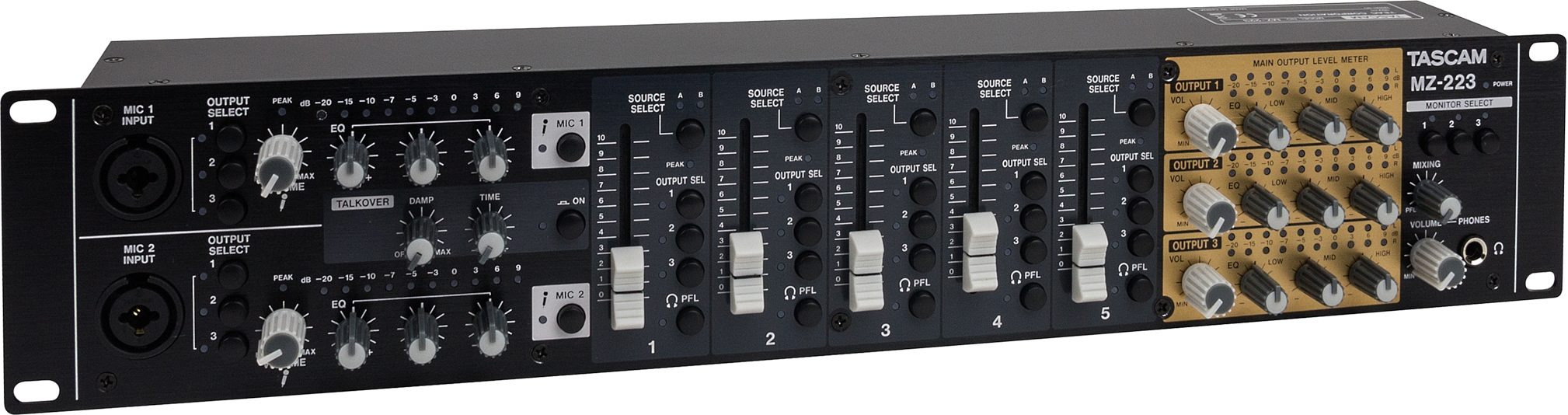

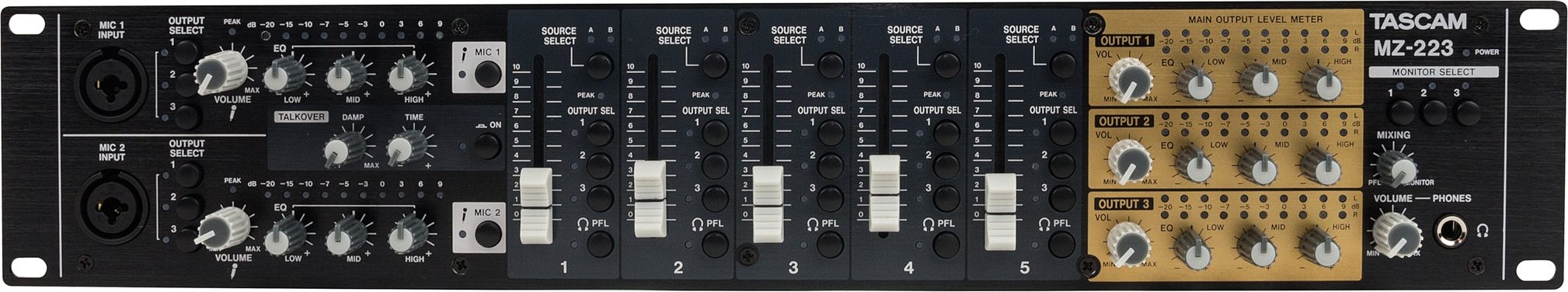

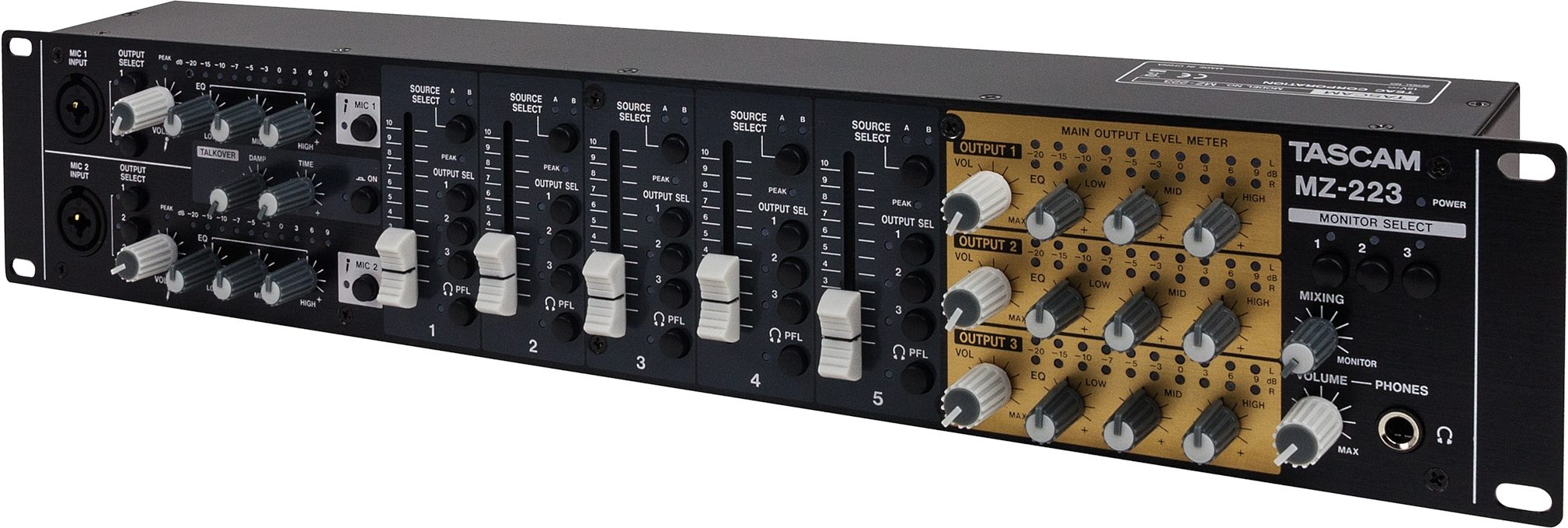

Familiar volume sliders, routing switches/buttons, EQ knobs, and mute buttons for the microphones make the MZ-223 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event capturing easy. The TASCAM MZ-223 delivers simple operation and maximum audio routing flexibility, all in a compact, affordable package.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Mic 1-2 Input (Balanced) Jacks:
- Connectors: XLR-3-31 (1 Ground, 2 Hot, 3 Cold), 6.3mm (1/4") standard TRS jacks (Tip Hot, Ring Cold, Sleeve Ground)
- Input impedance: 33 kOhm
- Nominal input level: -65 dBu (Volume Knob at Max)
- Nominal input level: -10 dBu (Volume Knob at Min)
- Gain range: 55 dB
- Inputs Line (Unbalanced) Jacks:
- Connectors: RCA pin jacks
- Nominal Input Level: -10 dBV
- Maximum Input Level: 10 dBV
- Input Impedance: 22 kOhm
- Main Outputs (Unbalanced) Jacks:
- Connectors: RCA Pin Jacks
- Rated Output Level: -10 dBV
- Maximum Output Level: 6 dBV
- Output Impedance: 200 Ohm
- Main Outputs (Balanced) Jacks:
- Connectors: XLR-3-32 (1 Ground, 2 Hot, 3 Cold)
- Rated Output Level: 4 dBu
- Maximum Output Level: 24 dBu
- Output Impedance: 200 Ohm
- Monitor Out Jacks:
- Connectors: RCA Pin Jacks
- Rated Output Level: -16 dBV
- Maximum Output Level: 0 dBV
- Output Impedance: 200 Ohm
- Phones Jack:
- Connectors: 6.3mm (1/4") Standard Stereo Jack
- Maximum Output: 50 mW + 50 mW (into 32 Ohm load)
- Frequency Response: 20 Hz-20 kHz
- Distortion: 0.03% or less
- Crosstalk: 65 dB
- Power: Dedicated AC adapter (PS-M1524)
- Input voltage: AC 100-240V ~, 50/60Hz
- Output voltage: DC 15V
- Output current: 2.4 A
- Power consumption: 35 W
- Weight: 2.5kg (5.5 lb)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 6.5 lbs
Shipping Dimensions: 21 x 7 x 6 in
Manufacturer Part Number (MPN): MZ-223
