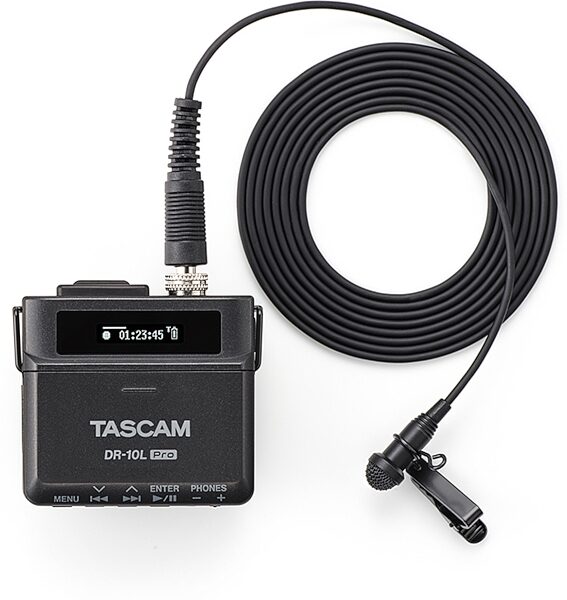

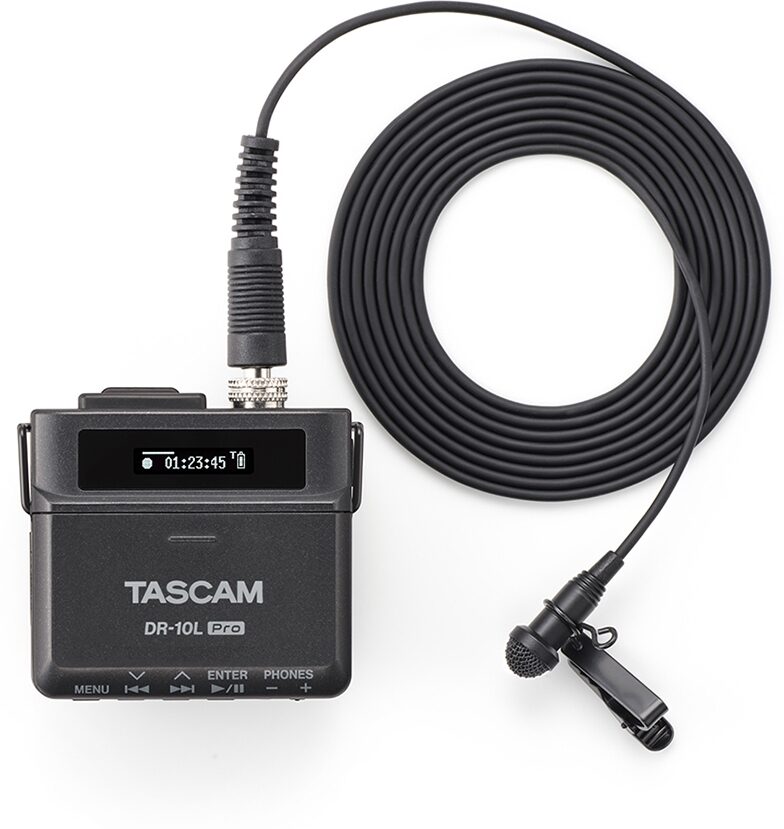

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Front

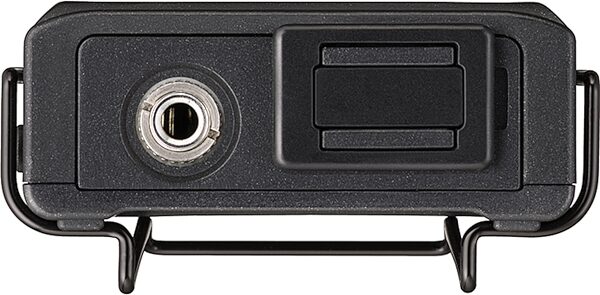

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Top Angle

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Back Angle

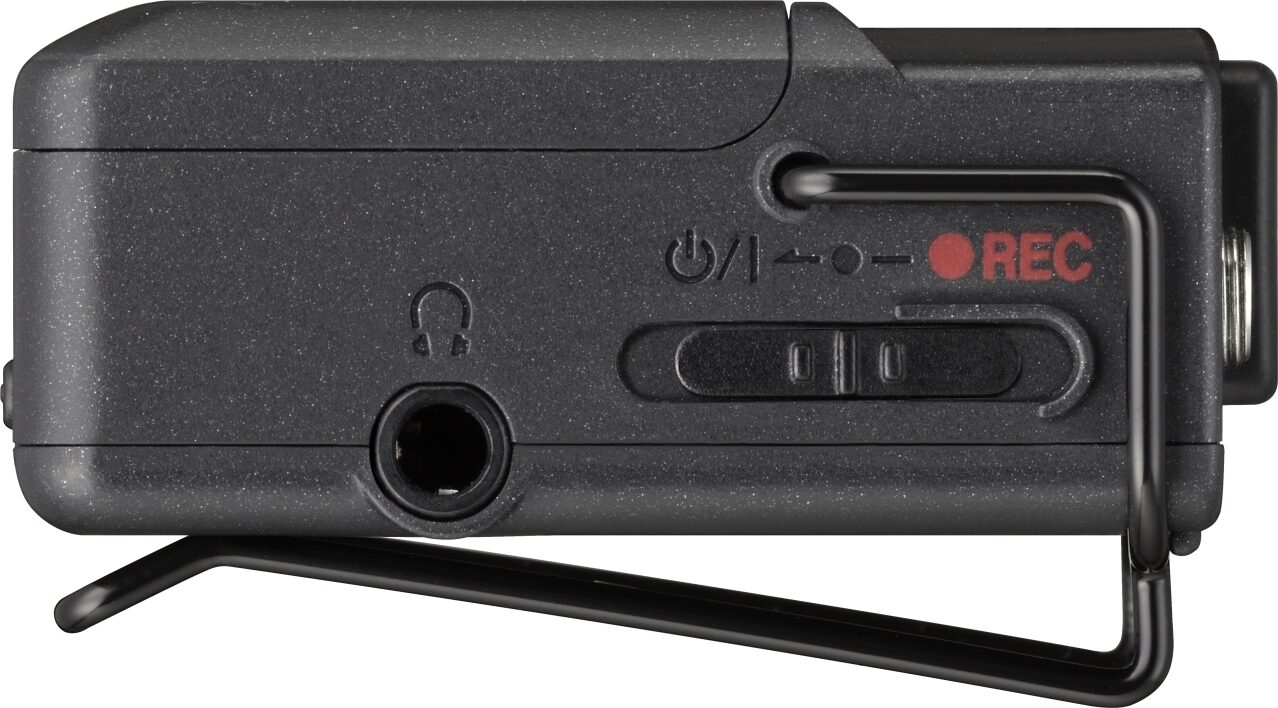

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Right

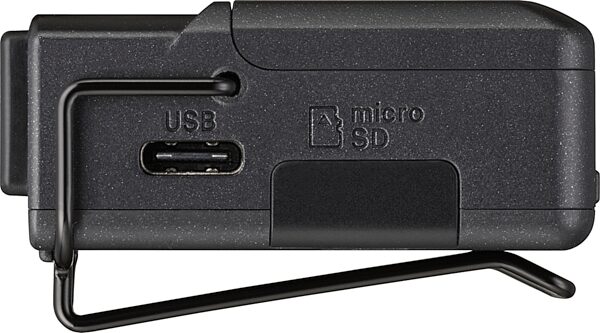

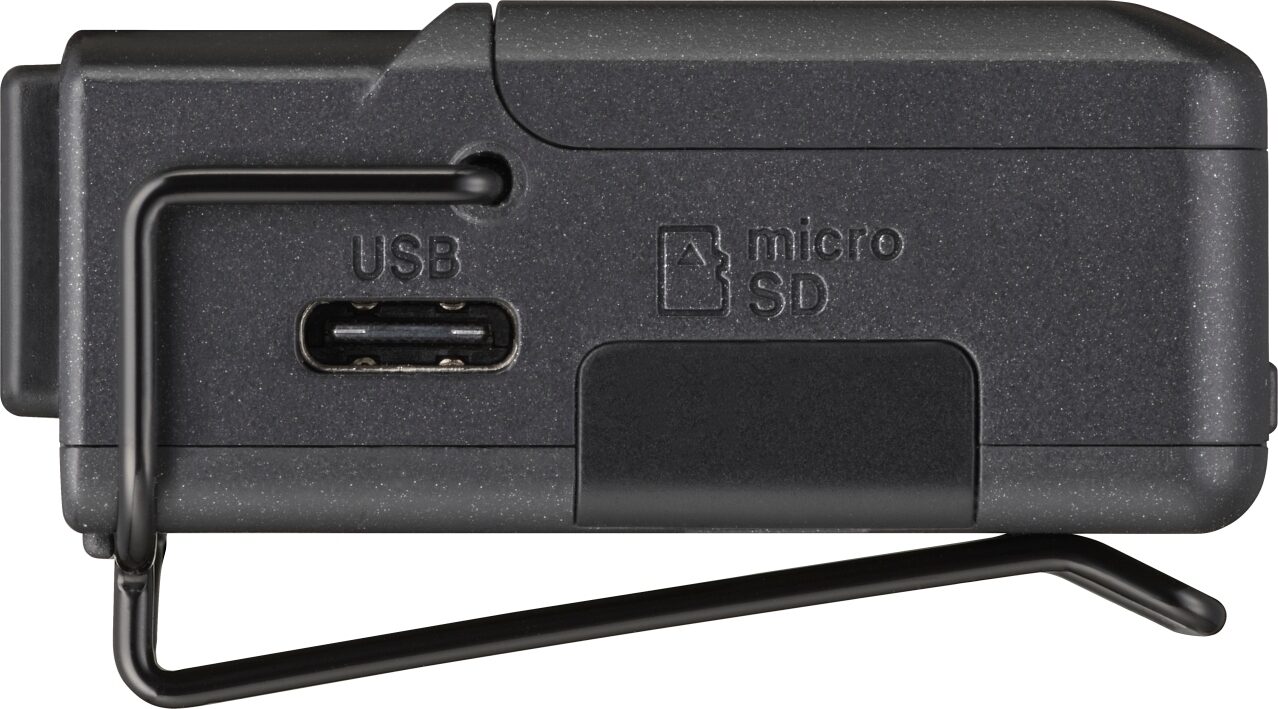

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Left

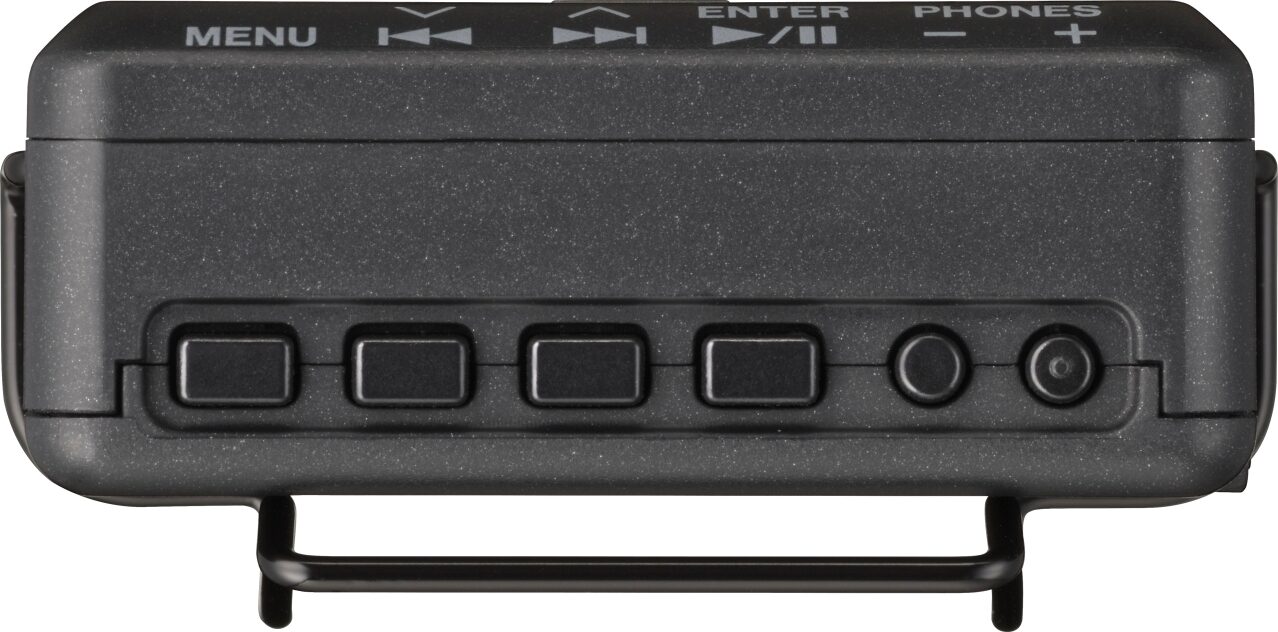

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, Bottom

TASCAM DR-10L Pro 32-Bit Float Field Recorder (with Lavalier Microphone), Black, In Use

TASCAM's "Pro" version of the DR-10L adds 32-bit float recording for enormous dynamic range -- ideal for capturing dialogue for weddings and live events.

Overview

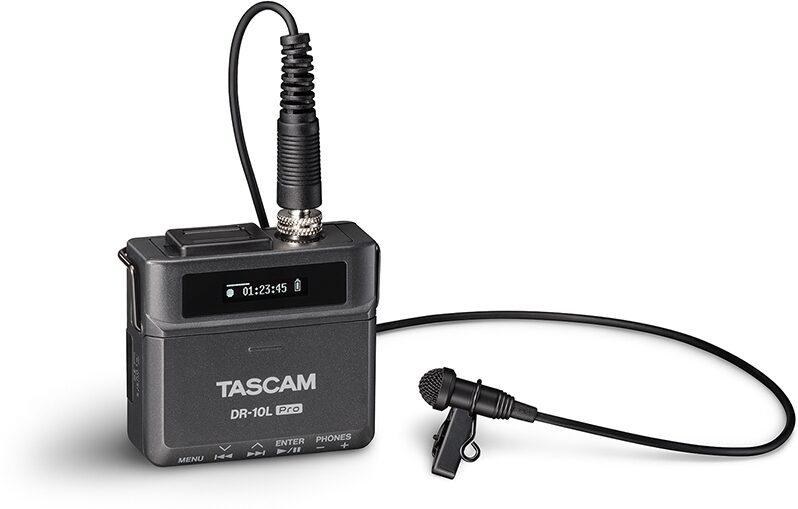

Videographers love the TASCAM DR-10L Pro portable recorder with clip-on microphone as a simple and stealthy solution for capturing audio for video. Combining the clip-on convenience of a lavalier mic with an ultra-compact portable recorder, this form factor solves many problems content creators often have. It's a superior solution for busy events like weddings and on-location film shoots where traditional wireless lav systems can pose concerns for your workflow, and the rock-solid capability of a TASCAM wired lavalier recorder is proven and assured. The DR-10L Pro can also be an easy backup system for your typical audio recording setup thanks to simple plug-and-go operation.

With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications. The optional AK-BT1 is needed for app control and wireless timecode.

The Stealthiest Recorder and Mic That You'll Never See

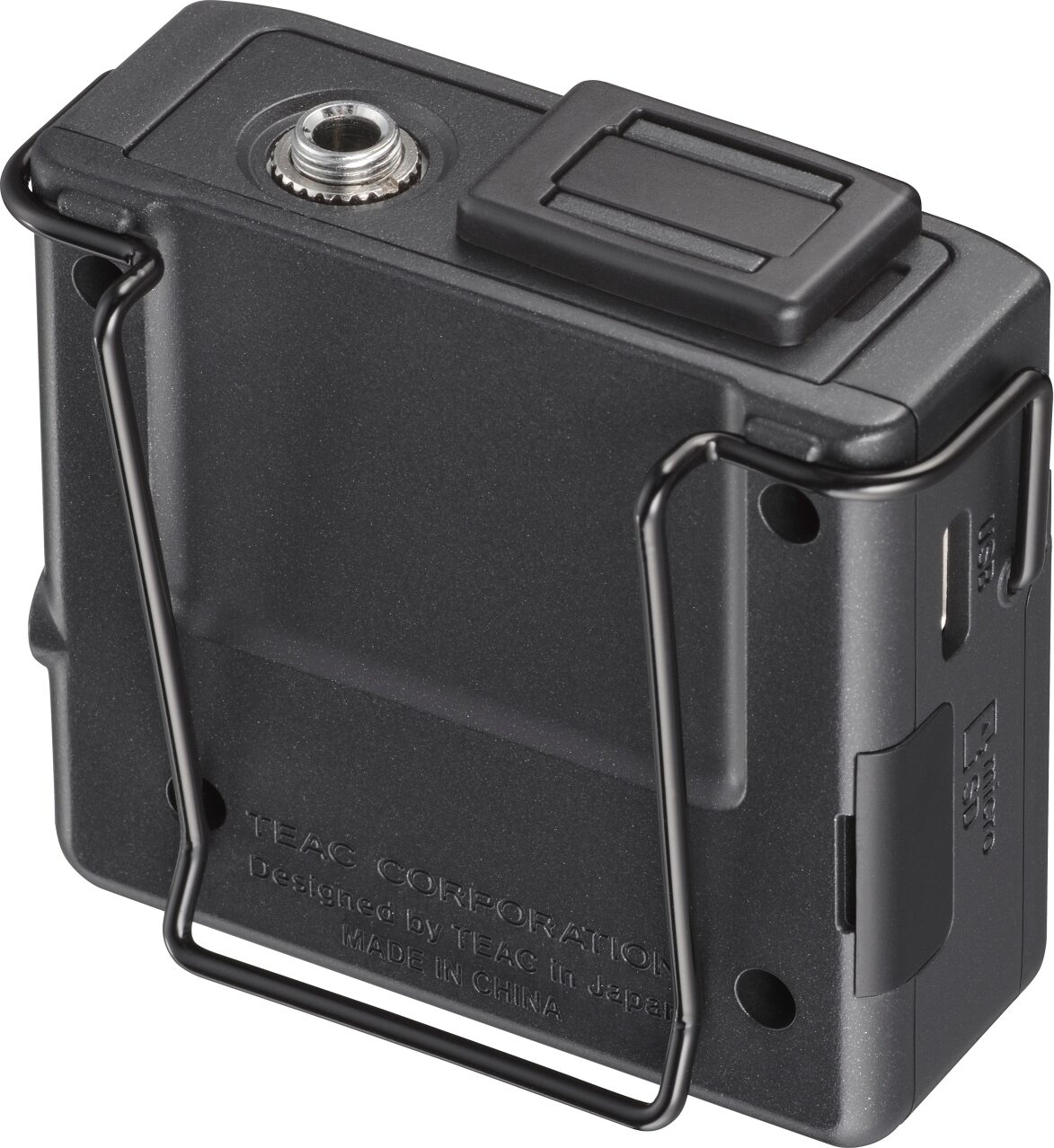

The DR-10L Pro is ultra-compact and lightweight, the perfect solution when stealth is a priority. Fitting in the palm of your hand and weighing in at just 65 grams, this recorder is easy to hide at film shoots, weddings, stage performances, and other projects where… read more invisibility is crucial. The included belt clip attaches easily and securely to clothing, allowing you to capture great audio without compromising your talent.

32-bit Float Recording for Fast Setup and Worry-free Recording

The DR-10L Pro's default 32-bit float recording mode employs dual ADCs to capture sounds across a huge dynamic range without distorting or introducing excessive noise — that means videographers can avoid having to scrap audio due to poor levels. With 32-bit float recording, there's no need to adjust input gain levels, allowing you to set up faster and with total confidence that you'll capture great audio in any setting.

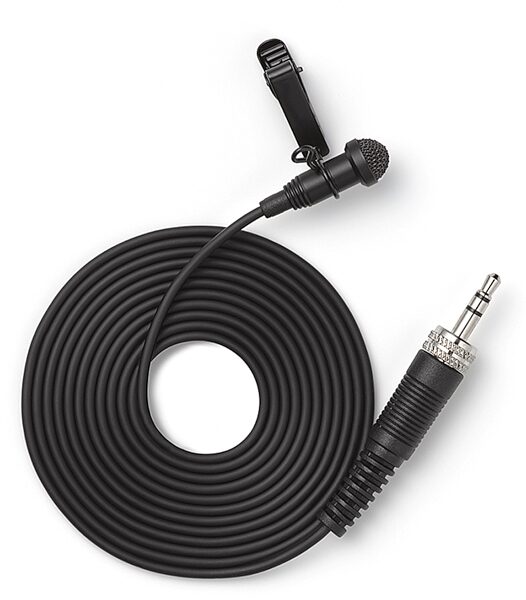

The included TM-10L microphone captures clear, detailed audio while handling loud sound pressure levels without distorting, making it the perfect lav mic for the DR-10L Pro's 32-bit float recording mode.

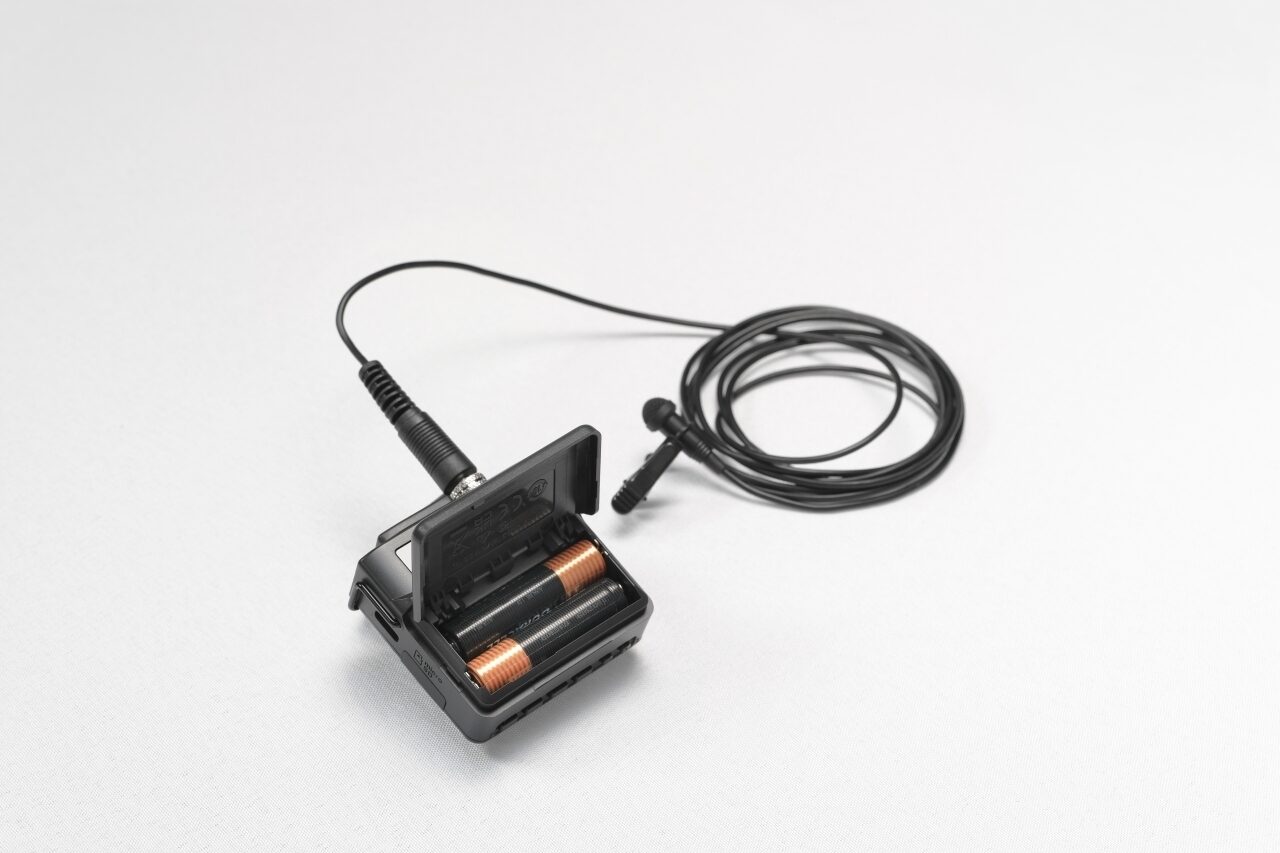

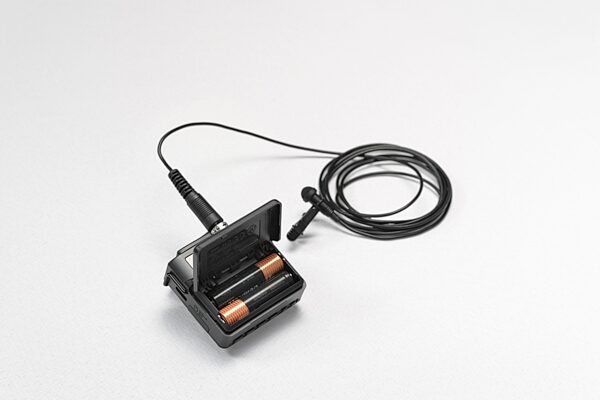

AAA Batteries Power Long Shooting Sessions

Whether you're capturing audio from people at a wedding reception, a busy trade convention, or a lengthy ceremony, the DR-10L Pro is ready to keep recording as long as you are. Just two AAA batteries can power the DR-10L Pro personal recorder for up to 24.5 hours, minimizing concerns over battery changes during the shoot.

In addition, files are saved approximately every 20 seconds during recording, so data loss due to unexpected power supply interruptions are kept to a minimum.

Remotely Control up to 5 Units with the DR-10L Pro CONNECT App

With the optional AK-BT1 Bluetooth dongle, DR-10L Pro recorders can be controlled from iOS, iPadOS and Android devices wirelessly with the free DR-10L Pro CONNECT app. In addition to controlling up to five DR-10L Pro units remotely, the DR-10L Pro CONNECT app allows videographers to check device status and view the recorded waveforms real time. You can also use the app to name devices for easy identification, for example "Bride", "Groom", and so on. (Note: Audio monitoring via app is NOT supported.)

Other features of DR-10L Pro CONNECT app:
- Visual confirmation of input sound with waveform display
- Easy management of multiple units with unique names and identification color settings
- Metadata (project name, scene name, take number) can be recorded in the recording file (BEXT, iXML)
- The preset data of the unit can be saved in the app. Your favorite settings can be recalled with a few taps
- Synchronize the unit's clock with the time on your smartphone or tablet

Supports Wireless Time Code with Atomos Products

With the optional AK-BT1 Bluetooth dongle, the DR-10L Pro is ready to wirelessly sync time code with supported Atomos products. Time code allows videographers to perfectly align audio recordings with video, even when there is no audio on the camera. Time code is crucial when videographers are dealing with multi-camera video shoots, and saves valuable time in post production.

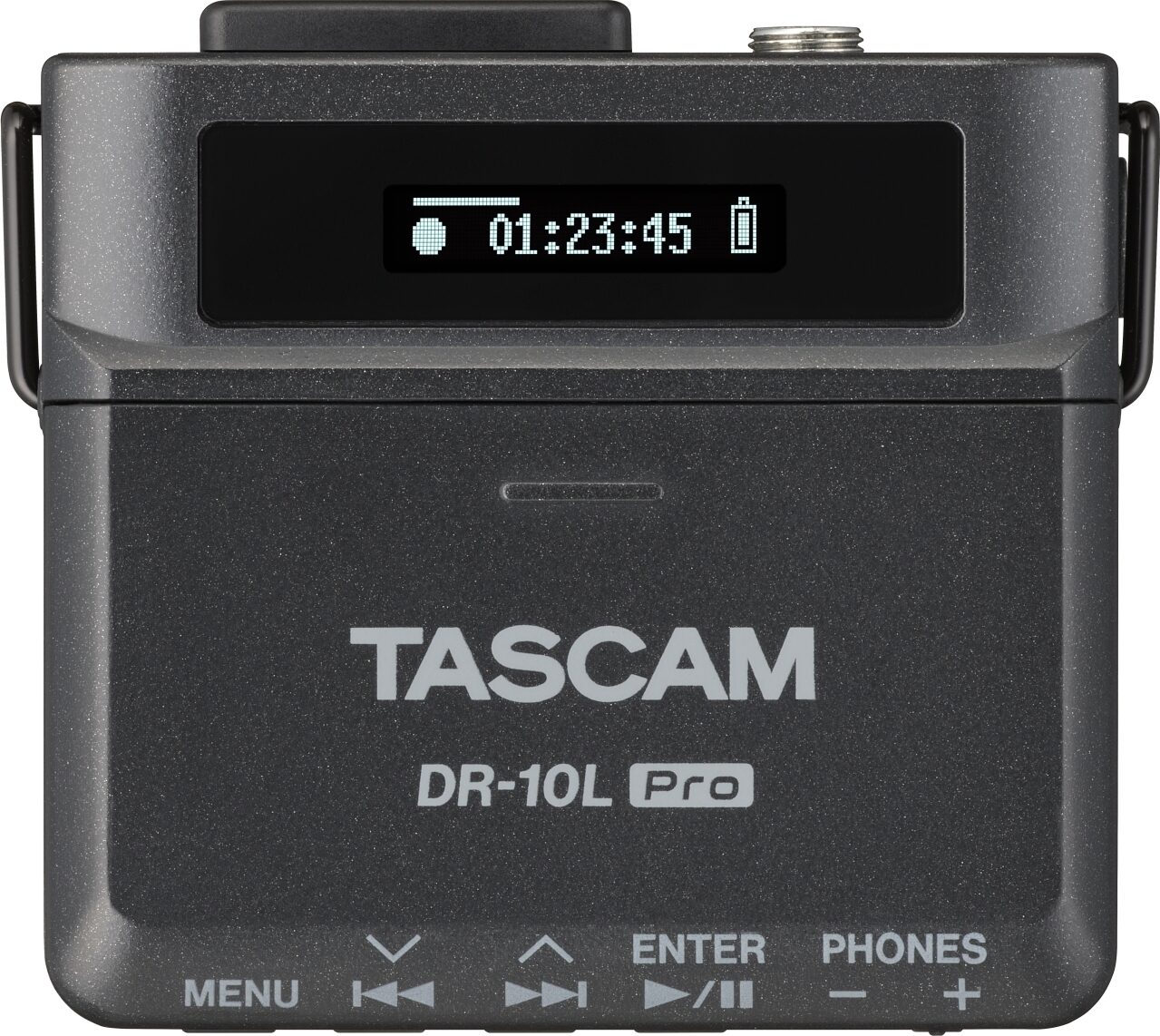

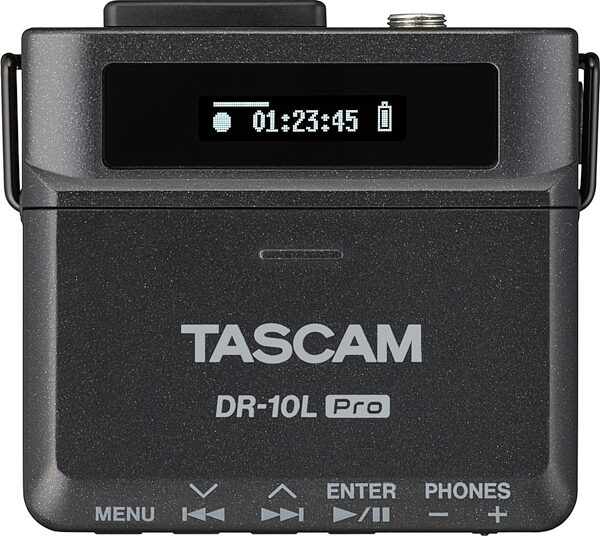

High-visibility OLED Display Allows You to Check Device Status Fast

Whether you're in a dark environment or outdoors in the sun, the DR-10L Pro's high-visibility OLED display allows you to confirm settings at a glance. You can check your battery level, recording status, and input levels right from the display, with all advanced functions only a couple button presses away.

Easy to Monitor Input and Recordings

The DR-10L Pro personal recorder is equipped with a headphone output for monitoring convenience. You'll be able to monitor the input before or during recording, and also check the quality of your recordings immediately without having to first transfer them to a computer.

iZotope RX Elements Audio Repair Bundle Included

The DR-10L Pro is bundled with a free version of RX Elements, iZotope's groundbreaking audio repair and noise reduction tool. RX Elements brings videographers powerful audio restoration capabilities you have to hear to believe, from seamlessly removing coughs and background noises to reducing wind roar and ambient noise. Live video shoots for weddings, on-location interviews, and documentaries can present countless post-production challenges, and RX Elements gives videographers the tools they need to deal with them.

Features:

- Ultra-lightweight, compact and wearable design is perfect when stealth is a priority
- TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm)
- 32-bit float recording and dual AD converter technology means you'll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels
- Supports recording in MP3 format
- Huge storage capacity, with support for microSDXC cards up to 512GB
- Records up to 24.5 hours on two AAA lithium batteries for all-day video shoots
- Optional AK-BT1 Bluetooth® adapter (sold separately) adds wireless control and synchronization
- Free DR-10L Pro CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously (Note: The number of devices that can be connected may vary depending on the usage environment and radio wave conditions.)
- Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series
- Screw lock mechanism securely connects the microphone connector to the recorder
- Sliding recording switch mechanism makes it fast and easy to start recording, and prevents accidental operation during recording
- Lock function disables all operations other than "recording stop" during recording
- Automatic file closing function to prevent the loss of recorded data if the batteries run out
- Automatic leveling and limiting prevent distortion caused by overloads
- Low-cut filter reduces ambient hum and rumble (40Hz/80Hz/120Hz/220Hz)
- Easy-to-read organic EL display
- Headphone output enables input monitoring and allows you to check recorded files
- USB Type-C port enables connecting extra power supply and easy data exchange with computers
- Belt clip included
- Includes iZotope RX Elements audio production editing software

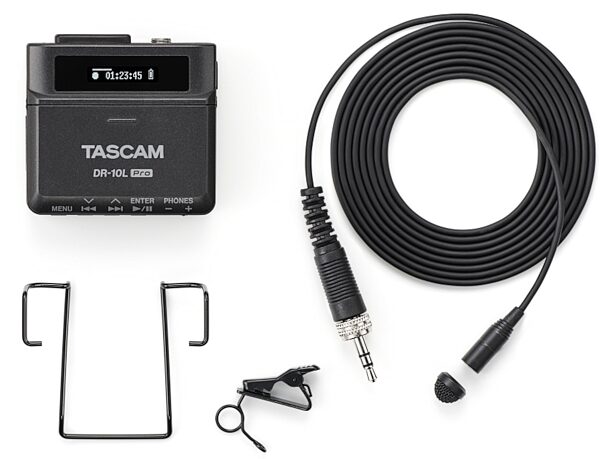

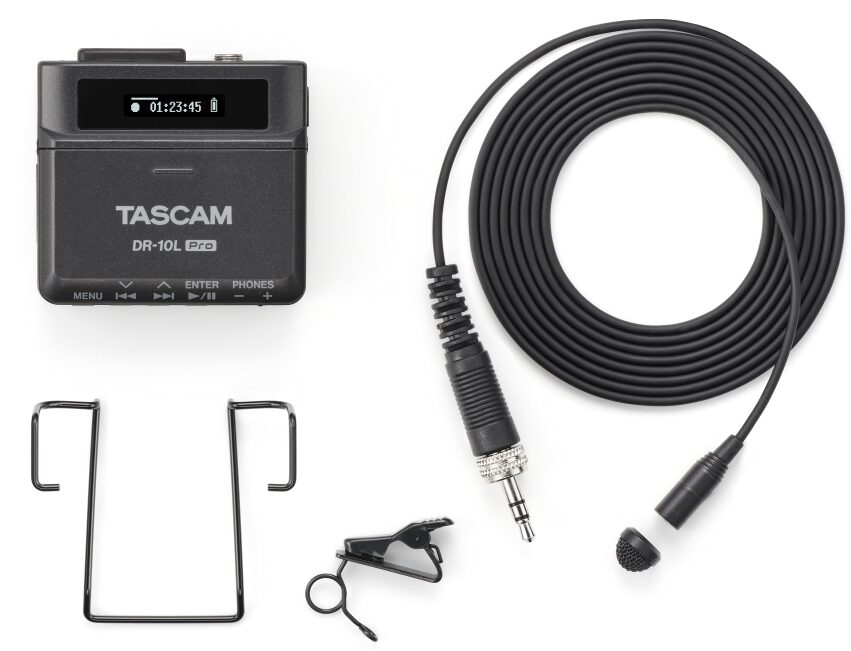

Included Items

- DR-10L Pro
- Belt clip
- USB cable (Type A – Type C)
- TM-10L: Lavalier microphone, Microphone clip, Windscreen
- Start-up guide (including warranty)
- TASCAM ID registration guide
- iZotope RX Elements download card

Specs

Recording media:
- microSD cards (64MB - 2GB)
- microSDHC cards (4GB - 32GB)
- microSDXC cards (48GB - 512GB)

Recording / playback formats:
- WAV (BWF) 44.1k/48kHz, 16/24-bit, 32-bit float
- MP3 44.1k/48kHz, 128k/192kbps, 128k/192kbps (Recording), 32 - 320kbps (Playback)

Input:
- Connector: 1/8"(3.5mm) TRS jack with screw lock
- Maximum input level: -11dBV
- Input gain: 7.5dB - 38dB
- Input impedance: 2kOhms

Lavalier microphone　(TM-10L):
- Sensitivity: -42dBV/Pa
- Max. SPL: 115 dB SPL
- Cable length: 1.6m

Headphone output:
- Connector: 1/8"(3.5mm) stereo mini jack (Dual Mono Output)
- Maximum output: 10mW + 10mW (THD+N 0.1% or less, into 32Ω)

Control USB port:
- Connectors: USB Type-C
- Format: USB2.0 HIGH SPEED mass storage class

Bluetooth device connector: For Bluetooth adapter (AK-BT1) only

Audio performance　(Input → SD data):
- Frequency response: 20Hz – 20kHz: +0dB/-1dB
- Total harmonic distortion ratio (THD+N): 0.01%　(1kHz, input: -21dBV)
- Dynamic Range: 105dB　or higher
(Note: 0dBV=1Vrms, JEITA CP-2150)

Operating system and other requirements for DR-10L Pro CONNECT app:
- iOS / iPadOS device: iOS 16 / iPadOS 16, iOS 15 / iPadOS 15, iOS 14 / iPadOS 14
- Android devices: Android 13, Android 12, Android 11
- Check the TEAC Global Site (https://teac-global.com/) for the latest information about supported operating systems

Other specifications:
- Plug-in power (Mic bias): 2.3V
- Power: 2 AAA battery (Alkaline / Ni-MH / Lithium) or USB bus power
- Power consumption (battery): 0.3W (MAX)
- Current consumption (USB bus power): 0.1A (MAX)
- Internal Battery for RTC Real Time Clock: Lithium × 1 (built in with soldering)
- Dimensions (W × H × D, including protrusions): 2.09×2.00×0.85 inch (53×50.7×21.4 mm)
- Weight (including battery / without battery): 0.15 lb / 0.10 lb (65g / 43g)
- Operating temperature: 0 - 40 degrees C

Dimensions and Weight in Packaging
Black: Shipping Weight: 0.45 lbs; Shipping Dimensions: 7 x 5 x 2 in; Manufacturer Part Number (MPN): DR-10L PRO
Blemished, Black: Shipping Weight: 0.45 lbs; Shipping Dimensions: 7 x 5 x 2 in; Manufacturer Part Number (MPN): DR-10L PRO
Warehouse Resealed, Black: Shipping Weight: 0.45 lbs; Shipping Dimensions: 7 x 5 x 2 in; Manufacturer Part Number (MPN): DR-10L PRO
Black, with 16GB micro SD Card: Shipping Weight: 0.8 lbs; Shipping Dimensions: 8 x 8 x 6 in; Manufacturer Part Number (MPN): TAS DR10LPRO16
Black, with Bluetooth Adapter Kit and 16GB micro SD Card: Shipping Weight: 0.9 lbs; Shipping Dimensions: 8 x 8 x 6 in; Manufacturer Part Number (MPN): TAS DR10LPROBT1
