Build your own Samson wireless system with this dual-channel receiver, made to pair with Concert 288 handheld transmitters or bodypack transmitters.

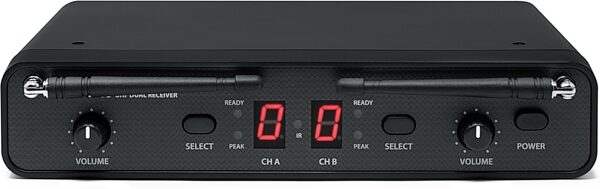

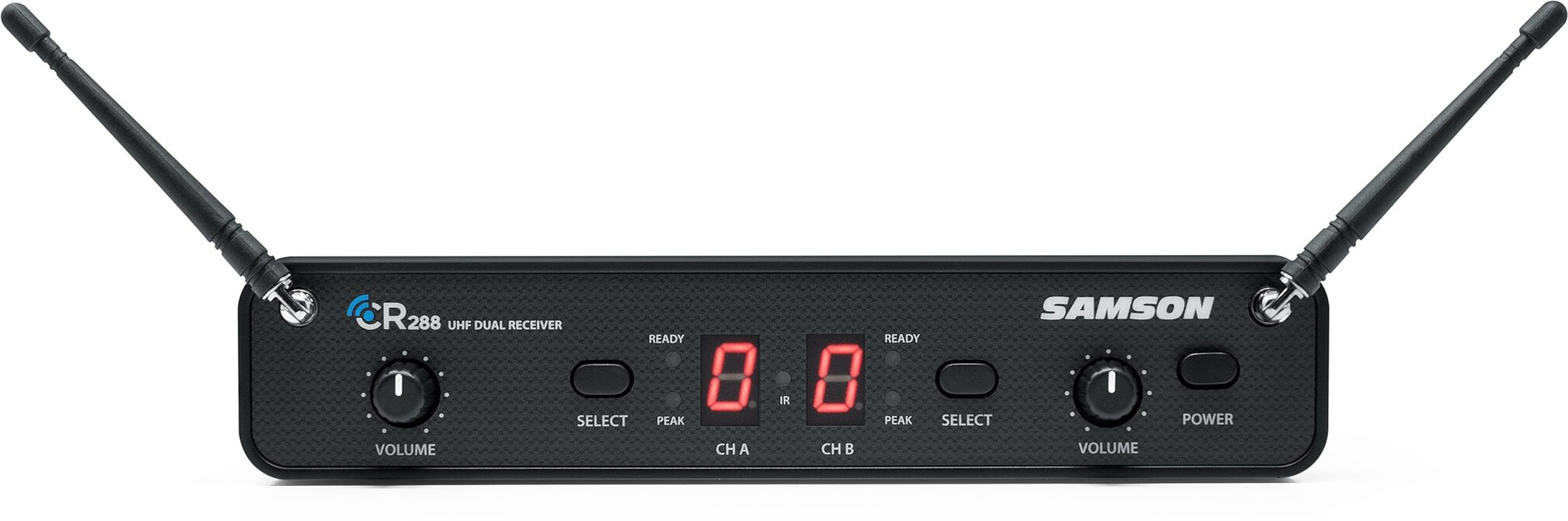

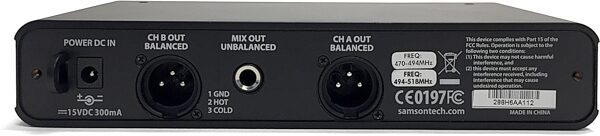

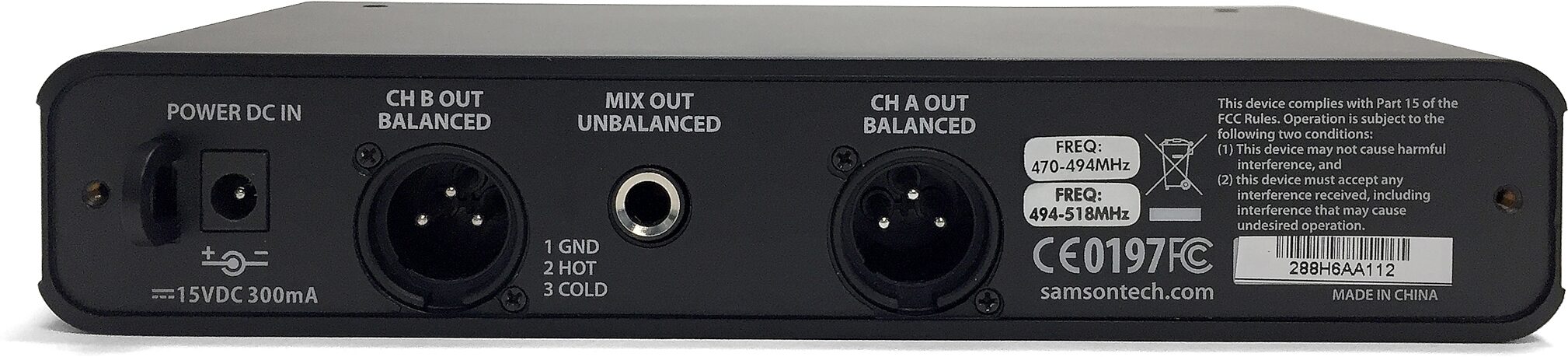

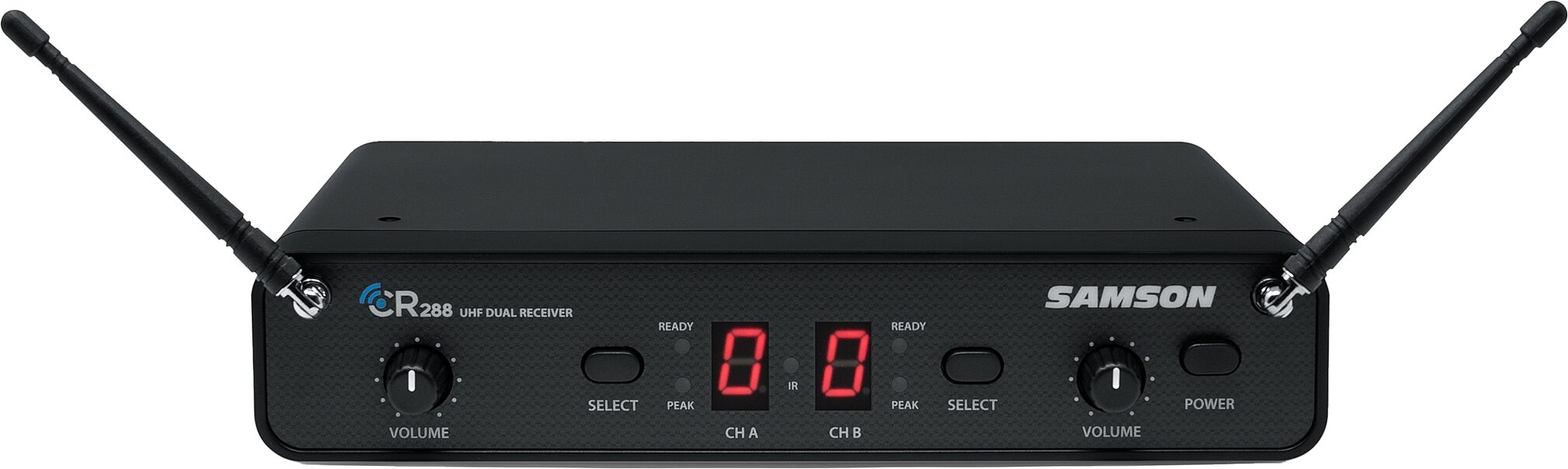

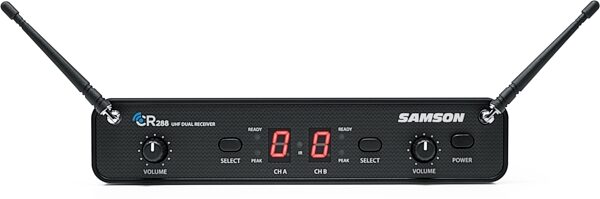

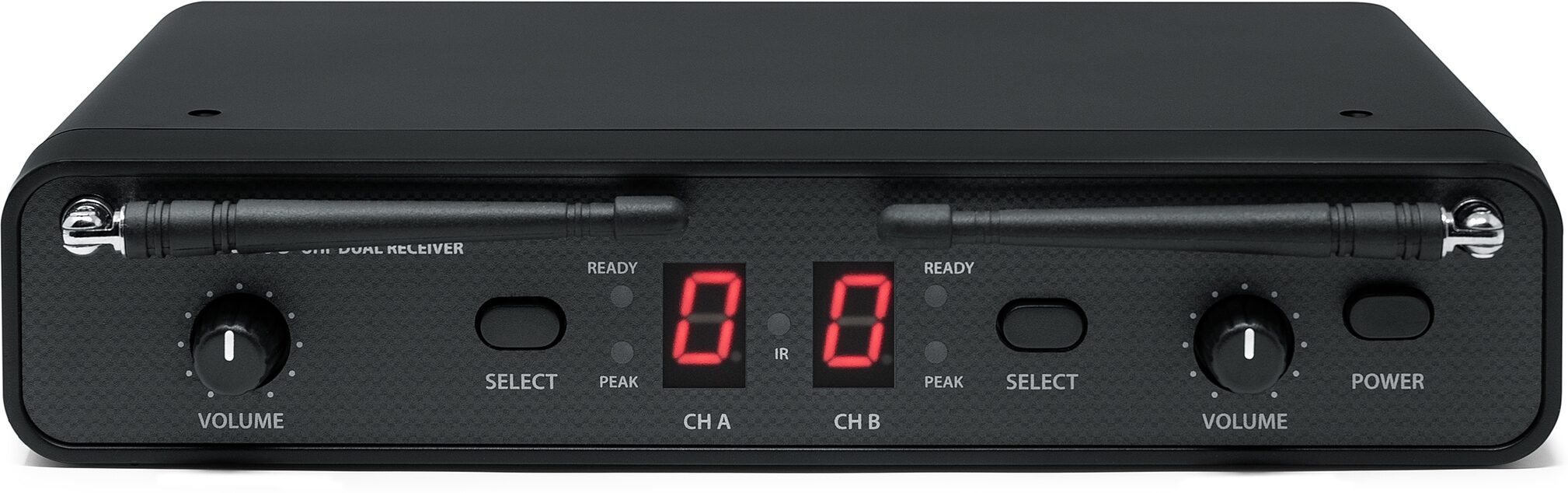

With a user-friendly front panel, the Samson SWCR288-H CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically sync the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.

Features:

- Two select buttons that automatically sync the receiver and transmitter channels
- Dual 7-segment LED front panel
- Two separate balanced XLR outputs for routing signals to two separate mixer channels
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Band: UHF
- Number of Channels: 16 channels per receiver
- Receiver Sensitivity: -100 dBm / 20 dB sinad
- Audio Frequency Response: 50 Hz - 15 kHz
- Signal-to-Noise Ratio: >85 dB
- Total Harmonic Distortion (THD): <1% (@AF 1 kHz, RF 46 dBu)
- Dynamic Range: >100 dB A-weighted
- Diversity Type: True diversity
- Antenna Inputs: Two tuned antennas
- Output Connectors: XLR balanced output, 1/4" unbalanced mix output
- Audio Output Level: +14 dBu balanced, +14 dBu unbalanced
- Power Requirements: 15 VDC 500mA
- Frequency Stability: 32.768 kHz tone key frequency
- Pilot Tone Frequency: 32.768 kHz

Dimensions and Weight in Packaging

Band H

  • Shipping Weight: 3.2 lbs
  • Shipping Dimensions: 15 x 12 x 3 in
  • Manufacturer Part Number (MPN): SWCR288 H

Band I

  • Shipping Weight: 3.2 lbs
  • Shipping Dimensions: 15 x 12 x 3 in
  • Manufacturer Part Number (MPN): SWCR288 I

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
Samson Concert 288 Dual-Channel Wireless System Manual
