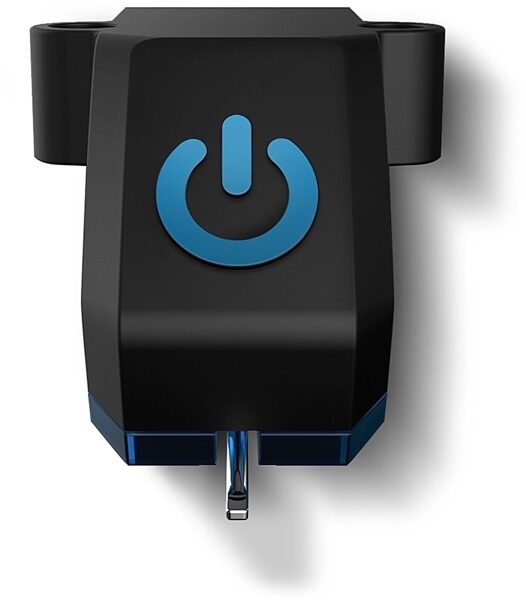

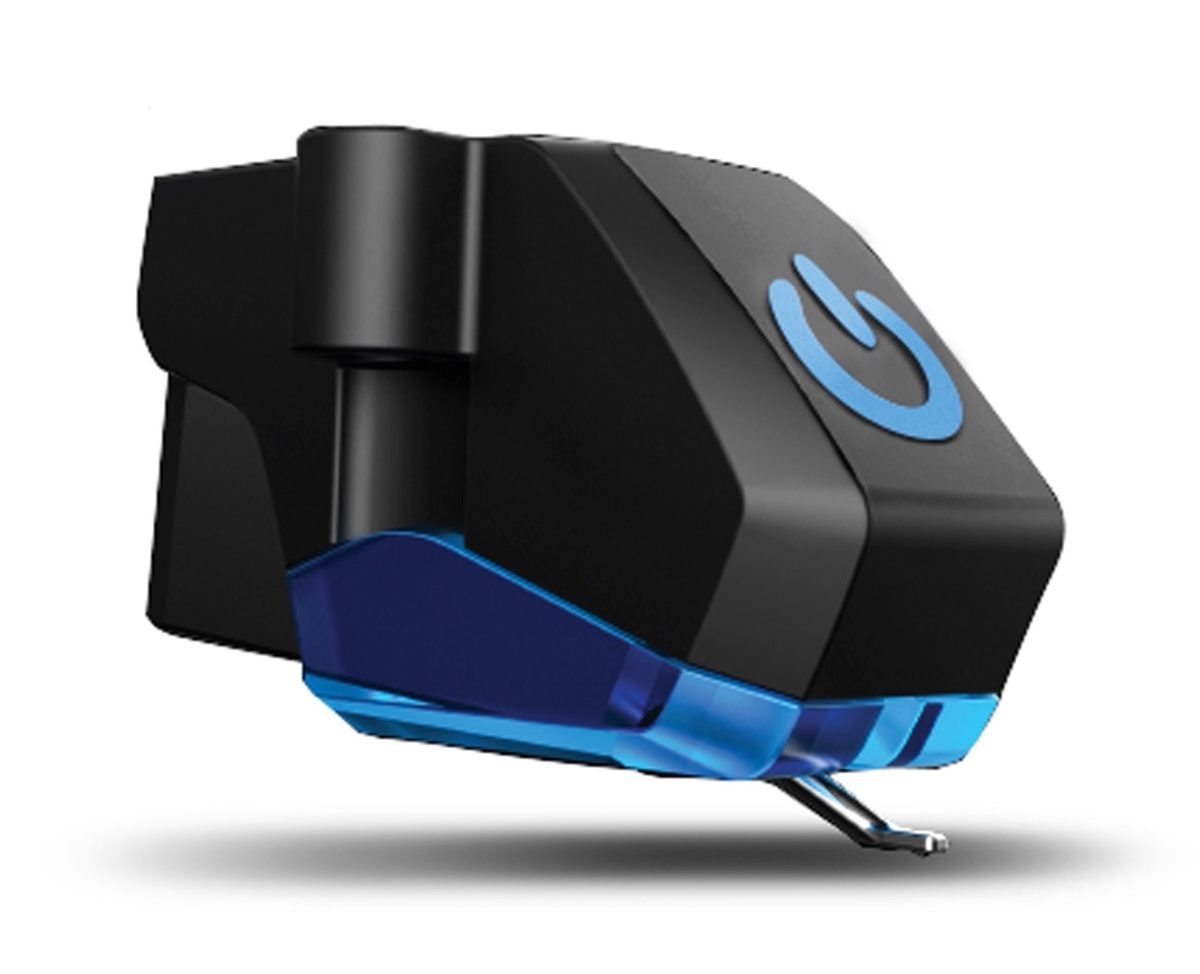

Stanton 750 DJ Cartridge

No longer available at zZounds

zZounds Gear Experts Say...

A solid cartridge for listening, mixing, and scratching, the Stanton 750 delivers the consistency and sonic clarity that Stanton DJ products are known for.

Overview

Founded in 1946 by Walter O. Stanton, the inventor of the replaceable phonograph stylus, Stanton Magnetics was one of the first American companies to make and sell magnetic cartridges. Stanton's slide- in stylus made it possible to replace the stylus assembly when it wore out instead of requiring a factory repair. Audiophiles snapped them up for home use, and the invention became one of the essentials in phonograph cartridge design.

The Stanton 750 professional cartridge is designed to exceed the demands of the professional DJ and deliver a wide dynamic range of audio for the vinyl record enthusiast. A professional grade cartridge for digital mixing, scratch performance and vinyl recordings, the Stanton 750 delivers consistent sonic purity for all applications. Developed and optimized for all professional turntables, including the Stanton Turntable line up, with its Deckadance DVS DJ software, the 750 cartridge continues the legacy of Stanton excellence and innovation.

Specs

- Stylus Type: Spherical .7 mil Special High; Polish Diamond Tip
- Frequency Response: 20Hz to 20KHz
- Output Nominal Output: @ 5.5mV @ 1kHz
- Separation: Channel Separation @ >27dB (1kHz @ 5cm/sec)
- Balance: Channel Balance @ Within 1.2dB
- Tracking Force: 2.5g to 4.0g
- DC Resistance: 830 ohms
- Inductance: 860 mH
- Cartridge Weight: 5.8g
- Recommended Load: pF 47k ohms /275pF (industry standard)
- Replacement Stylus: N 750
