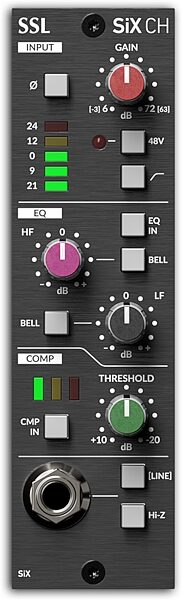

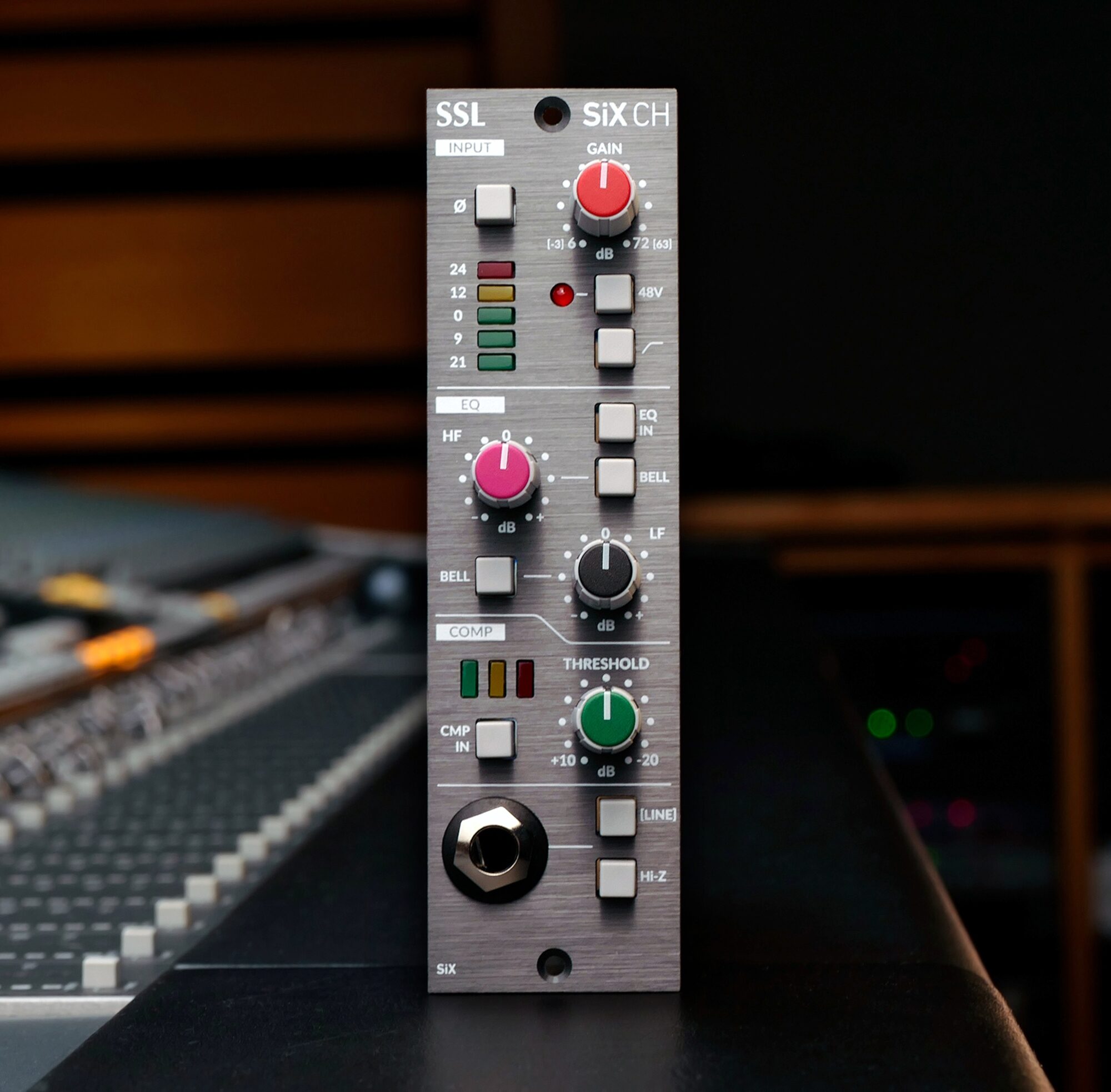

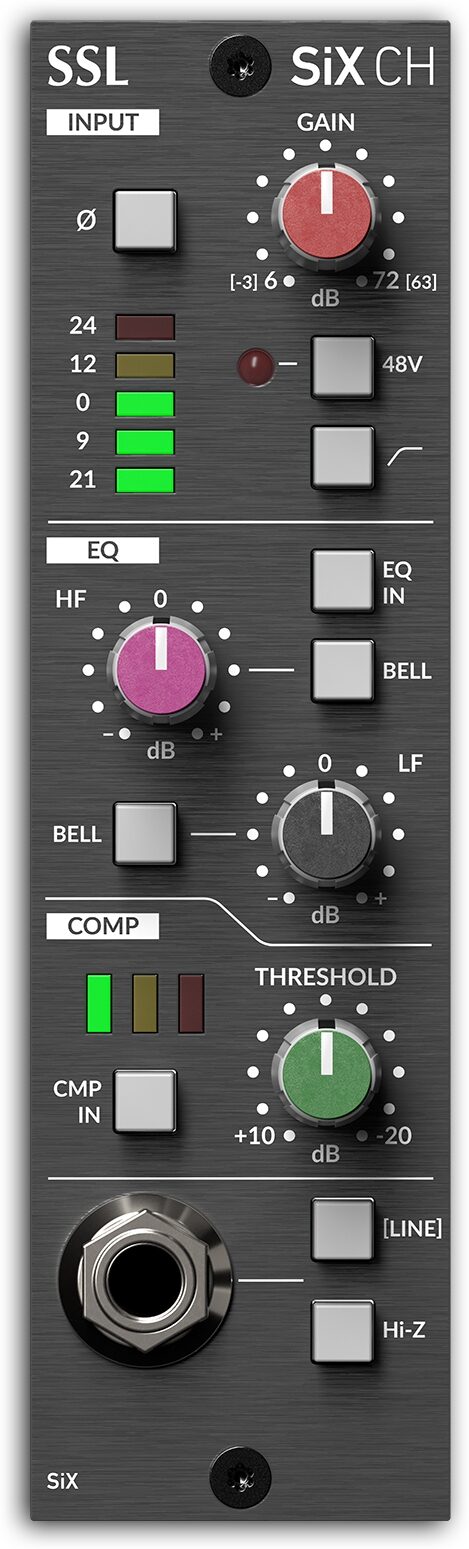

Solid State Logic SSL SiX CH 500-Series Channel Strip

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
open zoom image for Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
open zoom image for Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
open zoom image for Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
open zoom image for Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back Solid State Logic SSL SiX CH 500-Series Channel Strip, New, Action Position Back
zZounds Gear Experts Say...
Add some SSL console preamps to your 500 rack! The SiX CH gives you 72 dB gain, fat 2-band shelf/bell EQ, one-knob compressor, and a TRS line input in front.

Using the same technology as SiX and large-format SSL consoles, SiX CH features a SuperAnalogue mic pre, offering a wide gain range and ultra-low noise. It's clean, fast, and punchy -- the perfect preamplifier for any source material.

Features:

- SSL SuperAnalogue mic pre
- +48V phantom power
- Phase invert switch
- 5 segment LED meter in dBu
- Switched 12 dB/oct, 75 Hz High Pass Filter (HPF)
- Classic SSL HF and LF EQ
- Switch from shelf to bell curve
- Single knob Channel Compressor with variable Threshold
- Front Panel TRS Line Input with 1MO Hi-Z switch

SSL HF and LF EQ

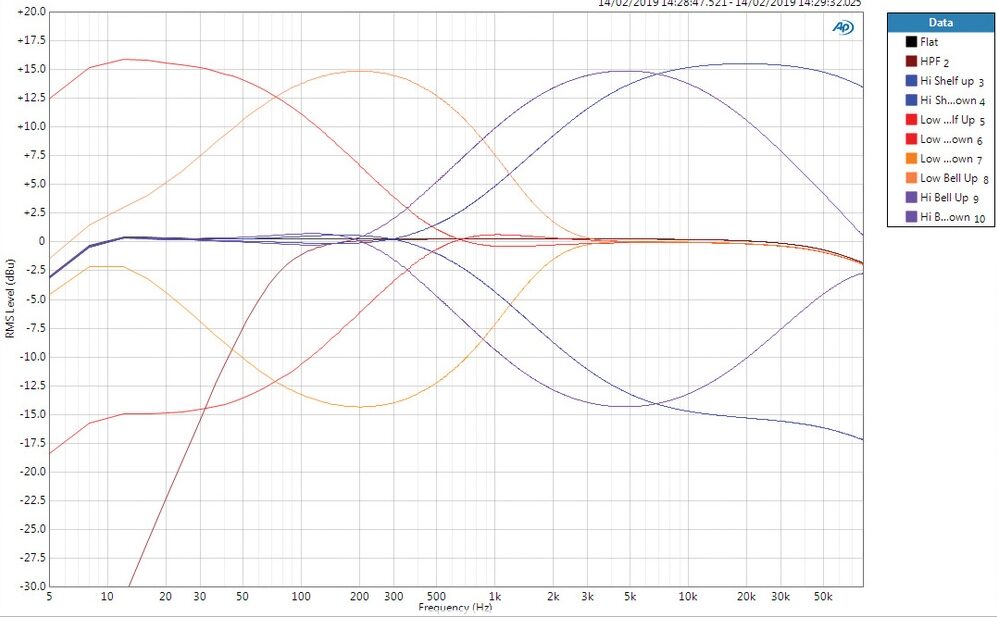

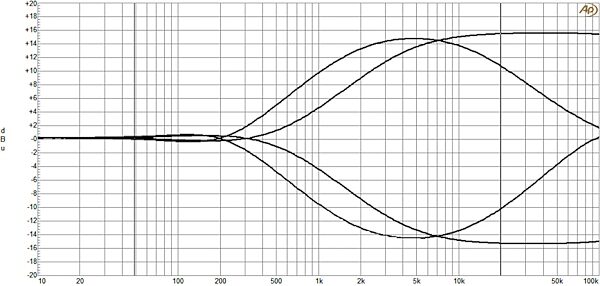

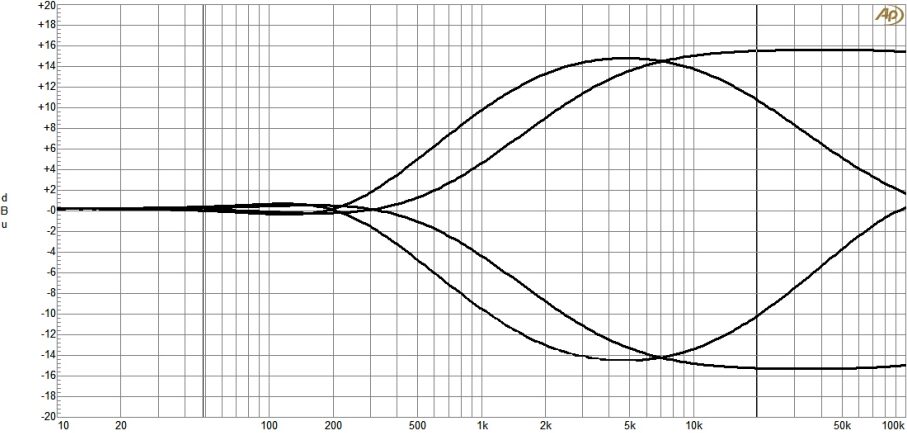

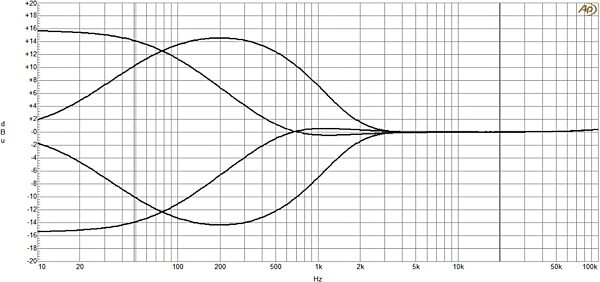

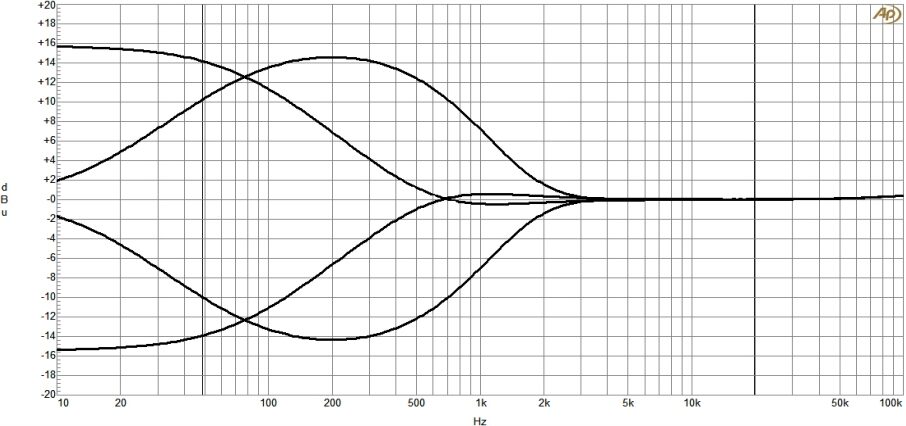

SiX CH EQ is a classic SSL-style gentle, broad stroke two-band design with high and low shelving filters at 3.5 kHz and 60 Hz and a +/-15 dB gain range. Each band can be independently switched between shelving and bell curves. The bell curves change the centre frequency to operate at 5 kHz and 200 Hz, giving greater versatility from the two controls.

Channel compressor
A "one knob" channel compressor with features that give powerful and versatile performance from its deceptively simple controls. Using the tried-and-tested SSL feed-forward circuit design, program-dependent attack time, and automatic make-up gain to maintain signal level.

TRS Line Input
The front-facing TRS line input offers a convenient way to add instruments on the fly or use SiX CH as a feature-packed summing module. 10 kO nominal Line Input impedance can be changed to 1 MO via the Hi-Z switch. The 1MO impedance makes this input… read more suitable for very high impedance sources such as passive guitar pickups without needing an external DI box.

Deceptively simple, extremely effective
SiX Channel Strip (SiX CH) is a single-width 500 Series channel strip using the SuperAnalogue channel processing features from SSL's SiX console including the Mic-pre, low and high frequency EQ, as well as the single knob compressor.
read less

- Channels: 1
- Input Connectors: XLR-3 (rear), 1/4" TRS (front panel)
- Output Connectors: XLR-3 (balanced)
- Gain Range: +6 dB to +72 dB (mic), -3 dB to +63 dB (line)
- Equivalent Input Noise (EIN): Typically 129dB
- Total Harmonic Distortion (THD): <0.0015%
- Phantom Power: +48V switchable
- Input Impedance: 10 kΩ nominal (switchable to 1 MΩ via Hi-Z switch)
- Power Requirements: 500-Series rack (±16V rails)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.73 lbs
  • Shipping Dimensions: 8 x 6 x 2 in
  • Manufacturer Part Number (MPN): 729736X1

For support or warranty questions, please contact the manufacturer:
Web: https://support.solidstatelogic.com/
