Shure UT Series Headset UHF Wireless System with WH20TQG

No longer available at zZounds

zZounds Gear Experts Say...

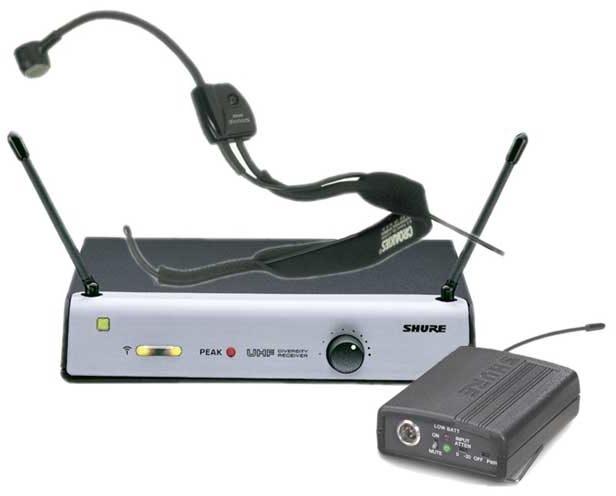

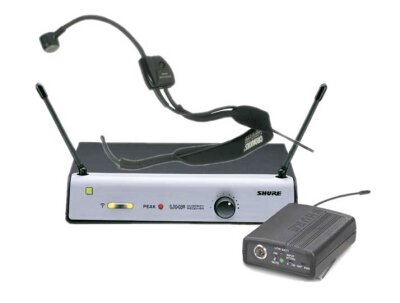

System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WH20TQG Cardioid Headworn Microphone.

Overview

System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WH20TQG Cardioid Headworn Microphone.

From the innovative minds of Shure comes the first affordable UHF systems that are as good as our name: the UT Series UHF Wireless Systems.

For the money, you'll find no better UHF wireless system. The UT Series gives you all the freedom and flexibility of our popular T Series VHF system, now in a UHF format. So you'll get a less crowded operating band for a clear, interference-free sound.

We've specifically designed 4 systems to fit every need. And our combination package, The Vocal Artist/Presenter UHF, offers even more versatility. Each system features Shure's exclusive MARCAD(TM) Diversity receiver with intelligent circuitry. MARCAD delivers the best possible performance by combining audio signals from 2 independent receiver sections. So dropout and switching noise are eliminated, while operating range is dramatically improved.

Shure's "battery saver" technology provides up to 12 hours of battery life and operates in conjunction with 2 LED indicators; one for on/off and another to warn when battery life is low. A convenient mute switch delivers noiseless control of audio on/off functions, while Shure's noise squelch circuitry virtually eliminates noise bursts.

With a UT Series UHF Wireless System, you'll have the freedom to deliver your most professional performance every time.

Features
All Shure UT Series systems offer a variety of exceptional features, including:… read more

Diversity Receivers with Exclusive Shure MARCAD Circuitry: MARCAD
(Maximum Ratio Combining Audio Diversity) circuitry continuously processes the rf signal from each antenna and combines the audio outputs to produce one signal of optimum quality. The result is improved reception and exceptional freedom from dropouts.

Low-Traffic UHF Transmission: UT systems use a UHF (Ultra High Frequency) range between approximately 596 to 862 MHz (available frequencies depend on regulations in the country where the system is used). In urban areas, UHF frequencies are less congested than those in the VHF range, and are less susceptible to interference.

Multiple System Use: Up to 8 UT systems can be used in the same performance space. Each system must be set at a different frequency. If systems are set to the same frequency, contact an authorized Shure dealer.

Note: In multiple use situations, each transmitter must have a dedicated receiver.

Simultaneous Output Use: Unbalanced 1/4" phone plug and balanced XLR output connectors may be used simultaneously to different external devices.

Stackable and Rack-Mountable Receivers: If multiple systems are in use, receivers may either be stacked or rack-mounted, with 2 receivers fitting in the optional rack mount tray. In these situations, antennas should not touch or be crossed. (See Stacking and Rack-mounting Receivers.)

Range: Series transmitters will work at a distance of up to 100 meters (about 300 ft.) from the receiver.

Noise Squelch: The noise squelch circuit analyzes signal quality instead of signal strength, which allows the circuit to discriminate between noise and desired signal. This reduces the likelihood of noise burst due to environmental rf (radio frequency) noise.

Semi-Rigid Receiver Antennas: 3 in. rubberized antennas offer performance equal to telescoping antennas with added durability.

Low Battery Warning Light: A red light on the body-pack and handheld transmitters warns the user that there is less than one hour of battery life left.

Specs

System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WH20TQG Cardioid Headworn Microphone.

RF Carrier Frequency Range:
Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used).

Operating Range: 100 m (approximately 300 ft) under typical conditions

Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB

Image Rejection: 75 dB typical

Spurious Rejection: 75 dB typical

System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical

Signal/Noise Ratio: 90 dB

Sensitivity: 110 dBm for 12 dB SINAD typical

Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV

Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): 80 dBV

Operating Temperature Range
-29 to 74 degrees C (20 to 165 degrees F) Note: Battery characteristics may limit this range.

Battery Life
UT1: 12 hours with 9V alkaline battery (Duracell MN1604 recommended)

UT1
RF Output: 15 mW Typical

Input Configuration: Unbalanced

Connector Type: 4-pin Miniature connector (male), TB4M

Actual Impedance: 1 Megohm

Connector Pin Assignments:
Pin 1: Ground
Pin 2: +5 V Bias
Pin 3: Audio In
Pin 4: 20k Resistor to Audio Ground

Dimensions (H x W x D): 82.6 x 63.5 x 26.2 mm (3.25 x 2.50 x 1.03 in.)

Net Weight: 125 g (4.4 oz.), including battery

Power Requirements:
9 V alkaline battery (Duracell MN1604 recommended)
9 V lithium ULTRALIFE battery optional

Nominal Current Drain: 40 mA

UT4
Maximum Output Levels:
XLR Line Level: +10 dBV, Mic Level: 22 dBV
1/4 in.: +4 dBV

Nominal Output Levels:
XLR: Line Level: 26 dBV, Mic Level: 62 dBV
1/4 in.: 32 dBV

Output Configuration: Active Balanced Unbalanced

Actual Impedance:
XLR: Line Level: 138 Ω, Mic Level: 500 Ω
1/4 in.: 1 k

Connector Pin Assignments:
XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
1/4 in.: Tip: hot, sleeve: ground

Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

Net Weight 419.6 g (14.8 oz.)

Power Requirements: 12-18 Vdc nominal, 200mA

Power Supply: 120 V or 230V ac adapter with 2.1 mm female plug

Voltage/Current/Phantom Power Protection: Yes
