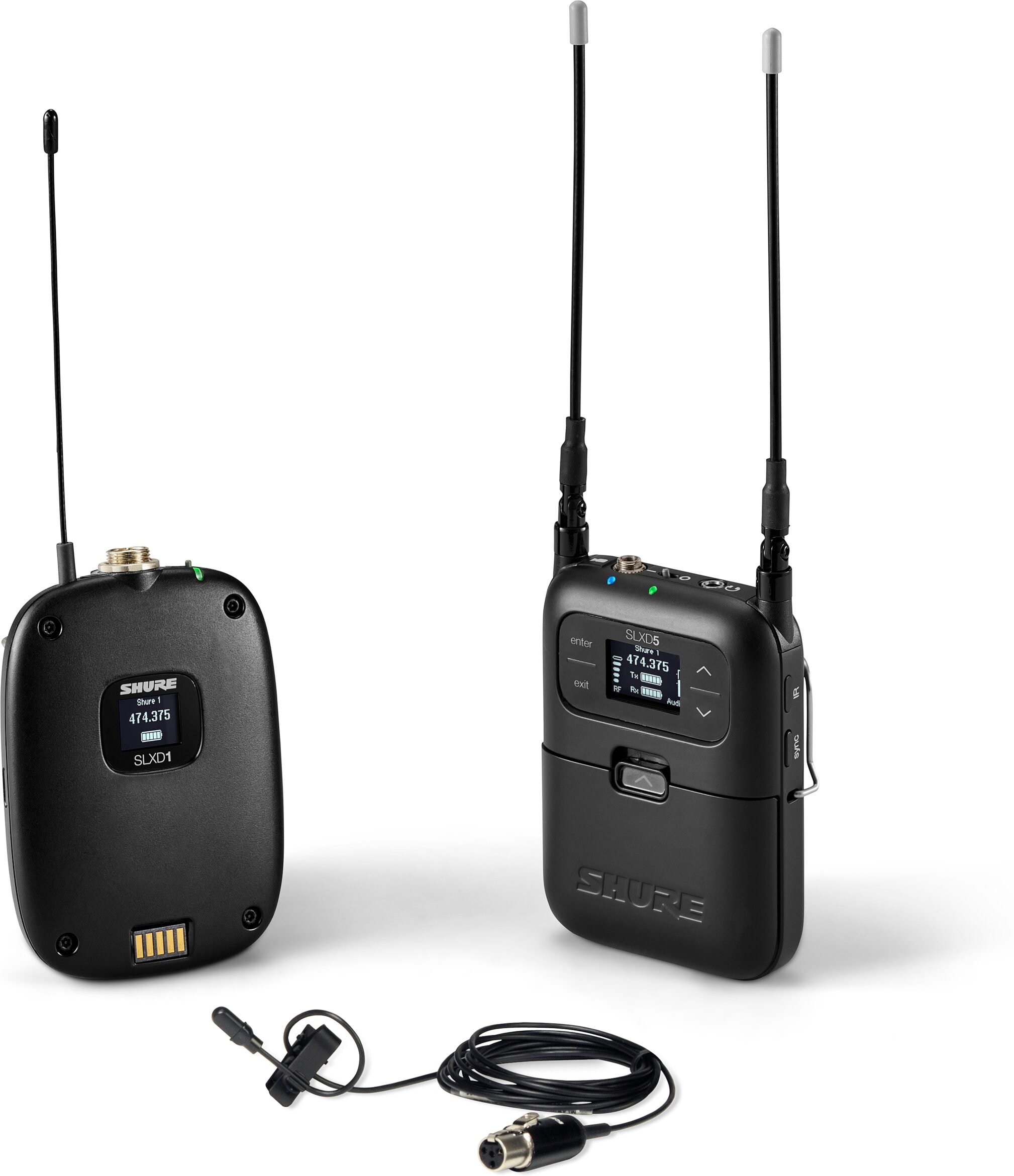

Shure SLXD15/DL4B Wireless Omni Lavalier Microphone System

With 24-bit digital audio and long-range UHF transmission, this low-profile wireless lav system reliably mics up your speaker or performer.

Overview

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations.

SLXD5 Receiver: The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non conductive cold shoe mount adapter and a zippered carrying pouch.

SLXD5 Features:

- Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Dual 1/8" outputs including a headphone monitor out and switchable line/mic output
- Use Multi-Mic Mode to scan and sync over IR multiple clean… read more frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
- Bright OLED display screen for key system function readouts and remaining battery life
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Rugged metal construction

SLXD1 Bodypack: Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

SLXD1 Features:

- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- TQG connectivity offers a variety of microphone options
- Ergonomic, durable plastic construction

DL4B Lavalier: Defy the elements. The DuraPlex subminiature DL4 lavalier microphone is consistent, long-lasting, and resistant to dust, dirt, water, and sweat. Offering professional-quality audio for film, broadcast, speech, theater, and performance applications, DuraPlex is perfect for everyday situations but excels in the harshest environments such as broadcast audio and sound for film. Capture every moment with confidence. Rain, or shine. The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield.

Specs

- SLXD1 Specifications:
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions (H x W x D): 3.86 x 2.68 x 1.0 in / (98 x 68 x 25.5 mm)
- Weight: 3.1 oz (89 g)
- Housing: PC/ABS
- AUDIO INPUT:
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MO
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent Input Noise (EIN): -118 dBV
- RF OUTPUT:
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW/10 mW
Varies by region.
See Frequency Range and Output Power Table.

- SLXD5 Specifications:
- Dimensions (H x W x D): 4.21 x 2.68 x 1.0 in / (107 x 68 x 25.3 mm)
- Weight: 1.8 lb (182 g)
- Housing: Aluminum
- Power Requirements: Battery Rechargeable Li-Ion or 1.5 V AA batteries
- Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
- RF INPUT:
- Spurious Rejection: >75 dB
- Typical Impedance: 50 O
- Phantom Power Protection: Yes
- Antenna Type: 1/4 Wave Whip
- AUDIO OUTPUT:
- Audio Frequency Response: 20 Hz - 20 kHz (+1, -3 dB)
- Connector Type: 1/8" (3.5 mm), \0xD72
- Configuration Balanced (Mono): Tip=audio +, Ring=audio -, Sleeve=ground
- Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
- Impedance (Camera):
- Balanced (Mono) Line: 450 O
- Balanced (Mono) Mic: 240 O
- Dual Mono Line: 400 O
- Dual Mono Mic: 200 O
- Full Scale Output Camera (Balanced Line): 15 dBV
- Headphone: 13 mW @ 64 O Load

- DL4B Specifications:
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: - 42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-A (A-weighted, Equivalent Acoustical)
- Signal-to-Noise Ratio: 63dB
- Maximum SPL: 132 dB SPL (1 kHz @ 1% THD, typical)
- Dynamic Range: 101 dB
- Housing: Molded ABS
- Cable Diameter: 1.6mm
- Cable Length: 1.67m (66in)

Dimensions and Weight in Packaging
G58: Shipping Weight: 2.25 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD15/DL4B-G58
H55: Shipping Weight: 2.35 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD15/DL4B-H55
J52: Shipping Weight: 2.25 lbs; Shipping Dimensions: 16 x 8 x 3 in; Manufacturer Part Number (MPN): SLXD15/DL4B-J52

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
