Shure SLXD14/SM35 Headset Wireless Microphone System

Conquer the stage! This Shure wireless system joins an SLXD4 receiver, an SLXD1 bodypack, and a comfortable SM35 headset mic great for mobile performers.
The Shure SLX14D/SM35 Digital Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.

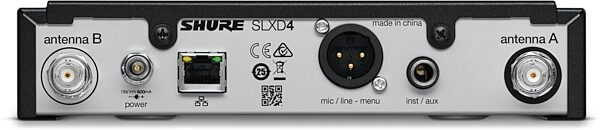

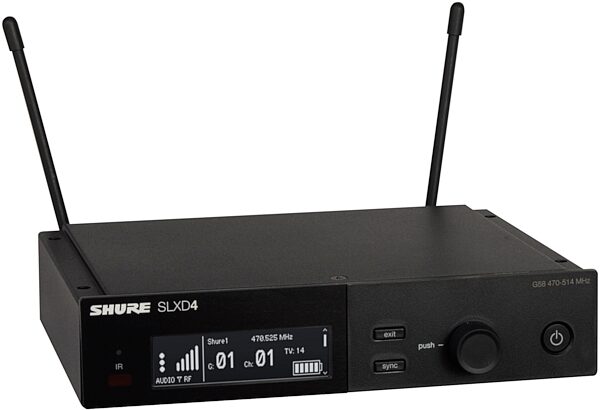

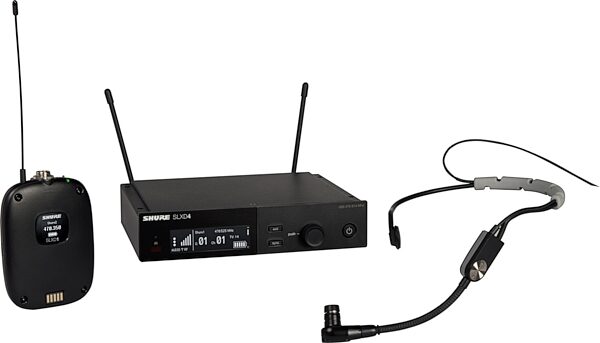

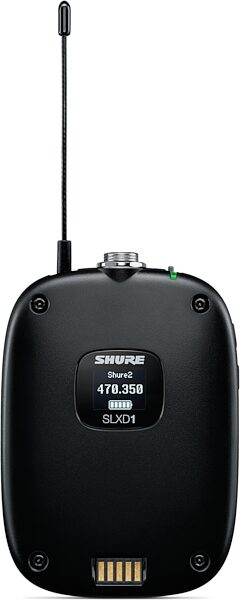

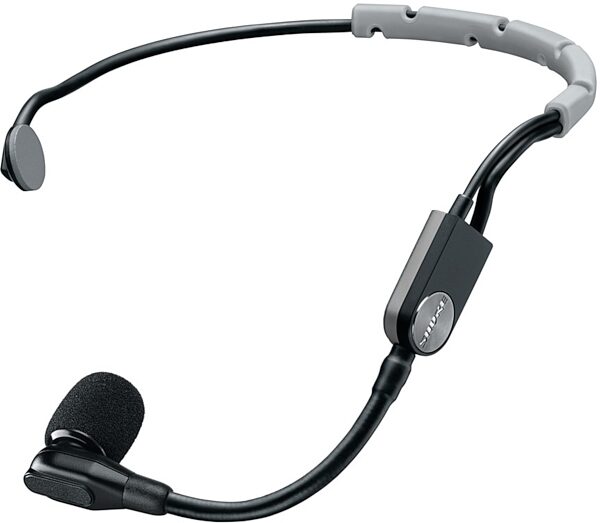

Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitter and SM35 unidirectional headworn microphone with antenna and rackmount accessories and 2 AA batteries.

Get More with Shure's SLX-D Wireless Series

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

Always Come Through Clear: In front of an audience, clarity is simply essential. SLX-D provides crystal-clear digital audio quality with >120 dB dynamic range.

Dropouts Are Out: From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.

Keep the Show Going: Ready to perform for all-day conferences and nighttime performances -- up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging read more accessories.

Features:

- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (sold separately)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
- RF:
- RF Carrier Frequency Range - 470 to 514MHz (G58 Band)
- Working Range - 100 m (328 ft)
- Note: Actual range depends on RF signal absorption, reflection and interference.
- RF Tuning Step Size - 25 kHz
- Image Rejection - >70 dB (typical)
- RF Sensitivity - -97 dBm at 10-5 BER

- AUDIO:
- Latency - 3.2 ms
- Audio Frequency Response - 20 Hz-20 kHz (+1, -2 dB)
- Audio Dynamic Range (A-weighted, typical) - 120 dB @1% THD
- Total Harmonic Distortion - <0.02%
- System Audio Polarity - XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
- Mic Offset Range - 0 to 21 dB (in 3 dB steps)
- TEMPERATURE RANGE (Note- Battery characteristics may limit this range):
- Operating Temperature Range - 0 *F to 122 *F (-18 *C to 50 *C)
- Storage Temperature Range - -20*F to 165*F (-29*C to 74*C)"
Dimensions and Weight in Packaging
Band G58 (470-514 MHz)
Shipping Weight: 7 lbs
Shipping Dimensions: 18 x 14 x 5 in
Manufacturer Part Number (MPN): SHU SLXD14SM35G58
Blemished, Band G58 (470-514 MHz)
Shipping Weight: 7.1 lbs
Shipping Dimensions: 18 x 14 x 4 in
Manufacturer Part Number (MPN): MBP SHUSLXD14SM35G58
Band H55 (514-558 MHz)
Shipping Weight: 7 lbs
Shipping Dimensions: 18 x 14 x 5 in
Manufacturer Part Number (MPN): SHU SLXD14SM35H55
Band J52 (558-602, 614-616 MHz)
Shipping Weight: 7 lbs
Shipping Dimensions: 18 x 14 x 5 in
Manufacturer Part Number (MPN): SHU SLXD14SM35J52
