Shure SLXD14/85M Lavalier Wireless Microphone System
Shure's WL185m lavalier mic teams up with the SLXD1 bodypack transmitter and SLXD4 receiver to give you clear digital audio over rock-solid UHF transmission.
Overview

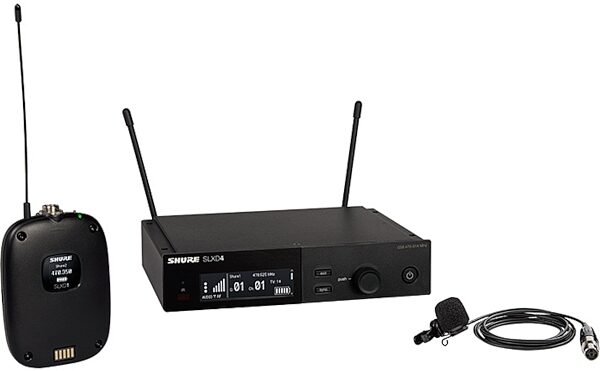

This Shure SLX-D digital wireless microphone system includes one SLXD4 Receiver with 19" rack mount kit and one SLXD1 Bodypack Transmitter with a WL185m Cardioid Lavalier Microphone.
With a 100 meter line of sight, this Digital Wireless Microphone System is Shure to provide you with the tools, clarity and distance you'll need for every performance. Reliability is built into the Shure brand, as well as convenience and quality. * Note: Actual range depends on RF signal absorption, reflection and interference.
- One SLXD1 Bodypack Transmitter
- One WL185m Cardioid Lavalier Microphone
- Up to 100m working range
- Factory default is for the HPF to be off
With a 100 meter line of sight, this Digital Wireless Microphone System is Shure to provide you with the tools, clarity and distance you'll need for every performance. Reliability is built into the Shure brand, as well as convenience and quality. * Note: Actual range depends on RF signal absorption, reflection and interference.
Features:
- One SLXD4 Receiver with 19" rack mount kit- One SLXD1 Bodypack Transmitter
- One WL185m Cardioid Lavalier Microphone
- Up to 100m working range
- Factory default is for the HPF to be off
Specs
- RF Carrier Frequency Range: 470-937.5 MHz
- Working Range 100 m (328 ft)
- JB Band: 125 kHz
- All Other Bands: 25 kHz
- Image Rejection >70 dB
- RF Sensitivity: -97 dBm at 10-5 BER
- Audio Latency: 3.2 ms
- High-Pass/Low Cut Filter: 150 Hz, -12 dB/octave
- Audio Frequency Response: 20 Hz-20 kHz (+1, -2 dB)
- Audio Dynamic Range:
- A-weighted, 20 Hz-20 kHz, typical
- 118 dB
- @1% THD
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
- Working Range 100 m (328 ft)
- JB Band: 125 kHz
- All Other Bands: 25 kHz
- Image Rejection >70 dB
- RF Sensitivity: -97 dBm at 10-5 BER
- Audio Latency: 3.2 ms
- High-Pass/Low Cut Filter: 150 Hz, -12 dB/octave
- Audio Frequency Response: 20 Hz-20 kHz (+1, -2 dB)
- Audio Dynamic Range:
- A-weighted, 20 Hz-20 kHz, typical
- 118 dB
- @1% THD
- Total Harmonic Distortion: <0.02%
- System Audio Polarity:
- XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output.
- TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
- Dimensions and Weight in Packaging
- Band G58 (470-514 MHz)
- Shipping Weight: 8.19 lbs
- Shipping Dimensions: 18 x 14 x 4 in
- Manufacturer Part Number (MPN): SLXD14/85M-G58
- Band H55 (514-558 MHz)
- Shipping Weight: 7 lbs
- Shipping Dimensions: 18 x 14 x 5 in
- Manufacturer Part Number (MPN): SLXD14/85M-H55
- Band J52 (558-602, 614-616 MHz)
- Shipping Weight: 6.9 lbs
- Shipping Dimensions: 18 x 14 x 4 in
- Manufacturer Part Number (MPN): SLXD14/85M-J52
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-516-2525
Email: service@shure.com
Phone: 800-516-2525
Email: service@shure.com
