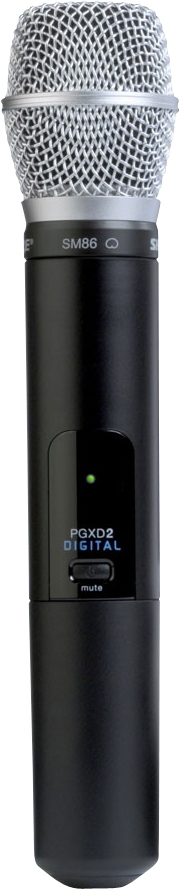

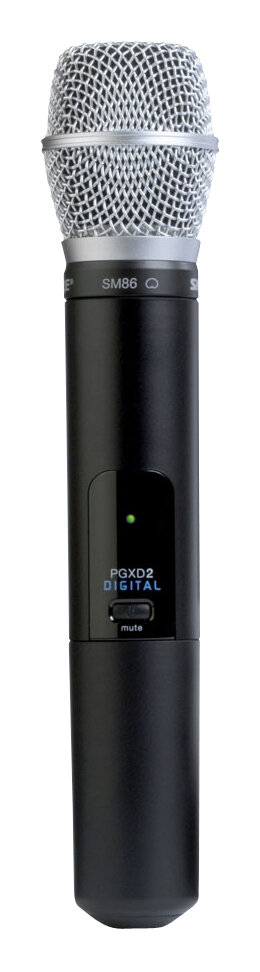

Shure PGXD2 SM86 Digital Handheld Wireless Microphone Transmitter

Break free from the limits of wires with this Shure mic transmitter. Couple it with a PGXD4 digital receiver for a superior digital wireless system.

The Shure PGXD2 Handheld SM86 Transmitter is a rugged cardioid condenser microphone with extended high frequency response for smooth reproduction of lead vocals. Pair this with the PGXD4 Digital Receiver for a solid digital wireless system that will give great clarity and performance.

Shure PGX Digital Wireless

PGX Digital adds the clarity of 24-bit digital audio to the famed PGX line of Shure wireless products. Offering tailored wireless solutions for vocalists, guitarists, and presenters, PGX Digital combines the trusted legacy of Shure microphones with state of the art, 24-bit digital wireless technology that delivers strong, clean RF performance. The result is wireless audio that sounds like wired, rock-solid RF signal, and simple setup and operation.


- Cardioid condenser microphone with extended high frequency response for smooth reproduction of lead vocals
- Extremely durable design to handle even the harshest conditions
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- Rugged construction for reliable performance show after show
- 24-bit / 48kHz digital technology for incredibly accurate sound
- 20 Hz - 20 kHz frequency range captures every detail
- True digital diversity for rock-solid wireless signal
- 900 MHz operation -- free from TV signal interference
- Simple Setup and Operation
- Scan and Sync instantly and automatically sets up the system

- Audio Input Level:
- - +5 dBV maximum at -10 dB gain position
- - -5 dBV maximum at 0 dB gain position
- Gain Adjustment Range: 10 dB
- RF Output Level: 10 mW maximum (dependent on applicable country regulations)
- Housing: Molded PC/ABS handle and battery cup
- Power: 2 AA size batteries
- Battery Life: Up to 9 hours
- Dimensions: 10 x 2 inches diameter (254 x 51 mm dia.)
- Weight: 290 grams (10.2 oz.) without batteries
Dimensions and Weight in Packaging
Band X8 (902 - 928 MHz)
Shipping Weight: 1.25 lbs
Shipping Dimensions: 11 x 6 x 4 in
Manufacturer Part Number (MPN): PGXD2/SM86-X8

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: (800) 516-2525

Band X8 (902 - 928 MHz)
